ROOF SYSTEMS SMALL RHOMBOID ROOF TILE

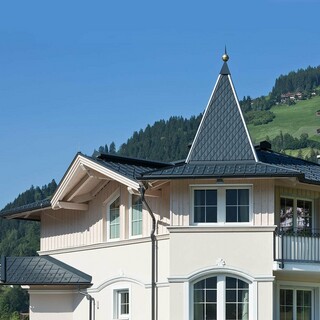

Reference buildings PREFA Roof systems Small rhomboid roof tile 01 P.10 brown Reference buildings PREFA Roof systems Small rhomboid roof tile 02 P.10 anthracite Reference buildings PREFA Roof systems Small rhomboid roof tile 03 P.10 black Reference buildings PREFA Roof systems Small rhomboid roof tile 04 P.10 brick red Reference buildings PREFA Roof systems Small rhomboid roof tile 05 P.10 oxide red Reference buildings PREFA Roof systems Small rhomboid roof tile 06 P.10 moss green Reference buildings PREFA Roof systems Small rhomboid roof tile 07 P.10 light grey Reference buildings PREFA Roof systems Small rhomboid roof tile 11 P.10 nut brown Reference buildings PREFA Roof systems Small rhomboid roof tile 43 P.10 stone grey
Product catalogue PREFA Roof systems Small rhomboid roof tile 01 P.10 brown P.10 Product catalogue PREFA Roof systems Small rhomboid roof tile 02 P.10 anthracite P.10 Product catalogue PREFA Roof systems Small rhomboid roof tile 03 P.10 black P.10 Product catalogue PREFA Roof systems Small rhomboid roof tile 04 P.10 brick red P.10 Product catalogue PREFA Roof systems Small rhomboid roof tile 05 P.10 oxide red P.10 Product catalogue PREFA Roof systems Small rhomboid roof tile 06 P.10 moss green P.10 Product catalogue PREFA Roof systems Small rhomboid roof tile 07 P.10 light grey P.10 Product catalogue PREFA Roof systems Small rhomboid roof tile 11 P.10 nut brown P.10 Product catalogue PREFA Roof systems Small rhomboid roof tile 43 P.10 stone grey P.10
AVAILABLE COLOURS

SMALL RHOMBOID ROOF TILE – INFORMATION

Small-format roof tiles made of colour-coated aluminium effectively emphasise architectural features. Smaller façade areas, gables, chimneys and bays can be attractively covered with great attention to detail. Visually appealing colour patterns make each building unique. Combining the small-format rhomboid roof tiles with other façade components creates a particularly attractive effect.

SMALL RHOMBOID ROOF TILE – TECHNICAL INFORMATION

  • Available in 9 standard colours (stucco surface)
  • Also available with a smooth finish upon request
SURFACE:
available in 9 colours
MATERIAL:
aluminium 0.7 mm thick
VISIBLE SIDE:
Coil coating
REAR:
protective paint
SIZE:
305 × 175 mm
WEIGHT PER M²:
3.00 kg
PIECES PER M²:
43 pc.

ROOF STRUCTURE

The attic can also be used as living space

The attic is not used as living space

SMALL RHOMBOID ROOF TILE – INFORMATION

THE PRODUCT IS AVAILABLE IN THE FOLLOWING COLOURS

COLOUR ~ RAL ~ NCS
01 P.10 brown 7013 S 8005-Y20R
02 P.10 anthracite 7016 S 8502-B
03 P.10 black 9005 S 9000-N
04 P.10 brick red 8004 S 4550-Y60R
05 P.10 oxide red 3009 S 0530-Y90R
06 P.10 moss green 6005 S 7020-G
07 P.10 light grey 7005 S 6000-N
11 P.10 nut brown 8019 S 8005-Y80R
43 P.10 stonegrey¹ 7031 S 6005-R80B
01 P.10 BROWN
7013
S 8005-Y20R
02 P.10 ANTHRACITE
7016
S 8502-B
03 P.10 BLACK
9005
S 9000-N
04 P.10 BRICK RED
8004
S 4550-Y60R
05 P.10 OXIDE RED
3009
S 0530-Y90R
06 P.10 MOSS GREEN
6005
S 7020-G
07 P.10 LIGHT GREY
7005
S 6000-N
11 P.10 NUT BROWN
8019
S 8005-Y80R
43 P.10 STONEGREY¹
7031
S 6005-R80B

¹ The colours P.10 stone grey, P.10 sand brown, P.10 rust brown, P.10 patina green, light wood, dark wood, patina grey and natural blank reflect natural colouring and are therefore subject to minimal variation, which gives the products their unmistakable character.

Notes

  • The RAL and NCS values stated are merely approximate values (~), some of which may differ vastly from the original PREFA colour and, under certain circumstances, may not reflect the subjective perception of the colour.
  • Above all for colour quality P.10, it is almost impossible to define values due to the surface structure. Furthermore, the colours P.10 stone grey, P.10 sand brown, P.10 rust brown, P.10 patina green, light wood, dark wood, and patina grey reflect natural colourings that are composed of several colour tones.
  • To identify exact colours for complementary components please consult original samples.
