Investing in renewable energies pays off! Do you already have a PREFA roof and now you’d like to gear it to the future? If so, the PREFA solar installation is exactly what you need – perfect for attaching solar panels.
All advantages of the PREFA solar installation system:
Fast and safe mounting
Accessoires
Comprehensive accessories for panels and mounting
Flat, aesthetic design
40-year material guarantee
Fast and safe mounting
Accessoires
Comprehensive accessories for panels and mounting
Flat, aesthetic design
40-year material guarantee
Be inspired by reference properties that have already been implemented.
Thanks to the PREFA all-in-one system, the roof, PV system, and roof drainage can be perfectly combined

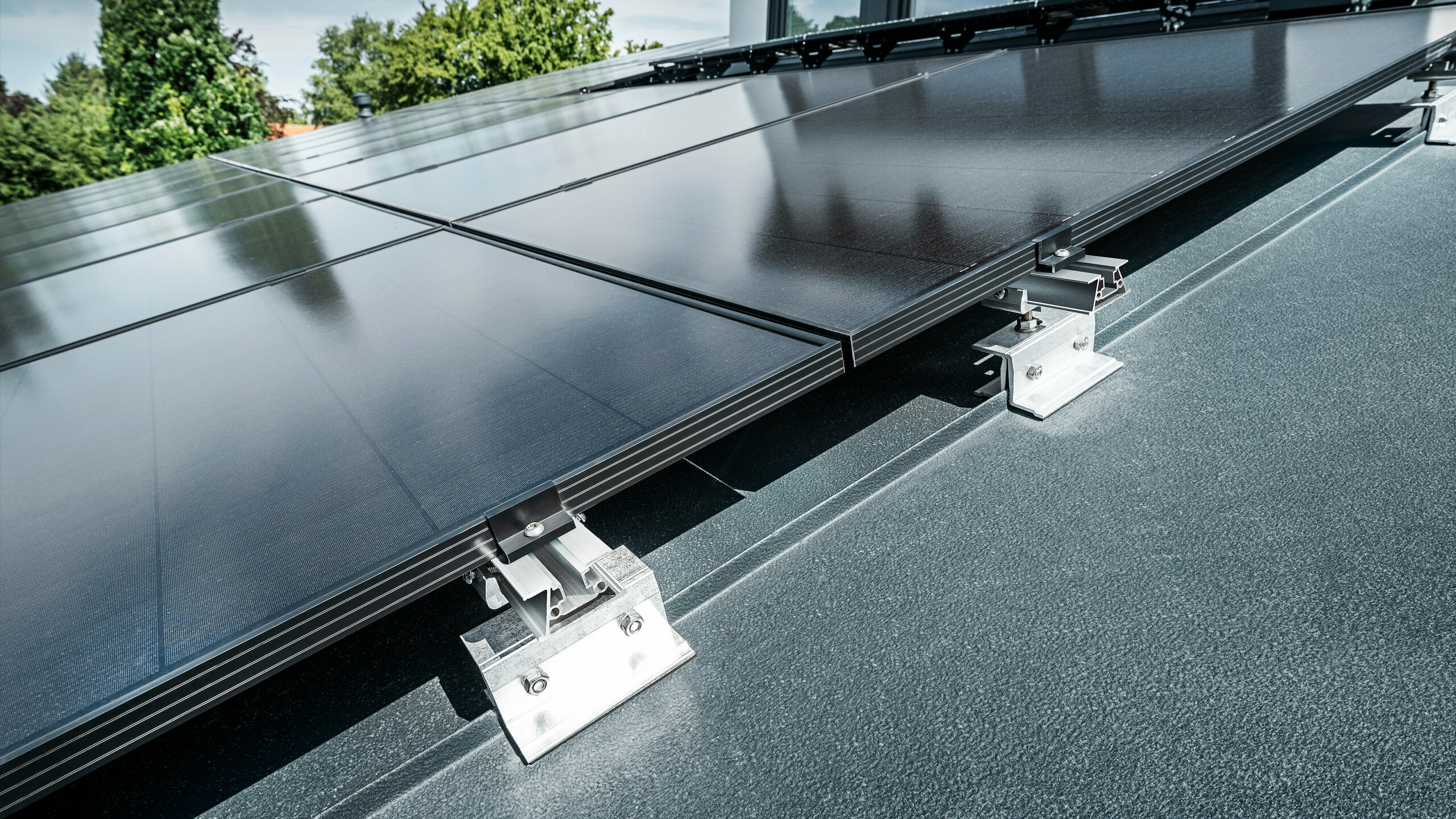

Detached house with PREFA roof shingles DS.19 and PREFALZ in P.10 anthracite as well as a large-scale PV system, mounted with the PREFA solar panel installation system.

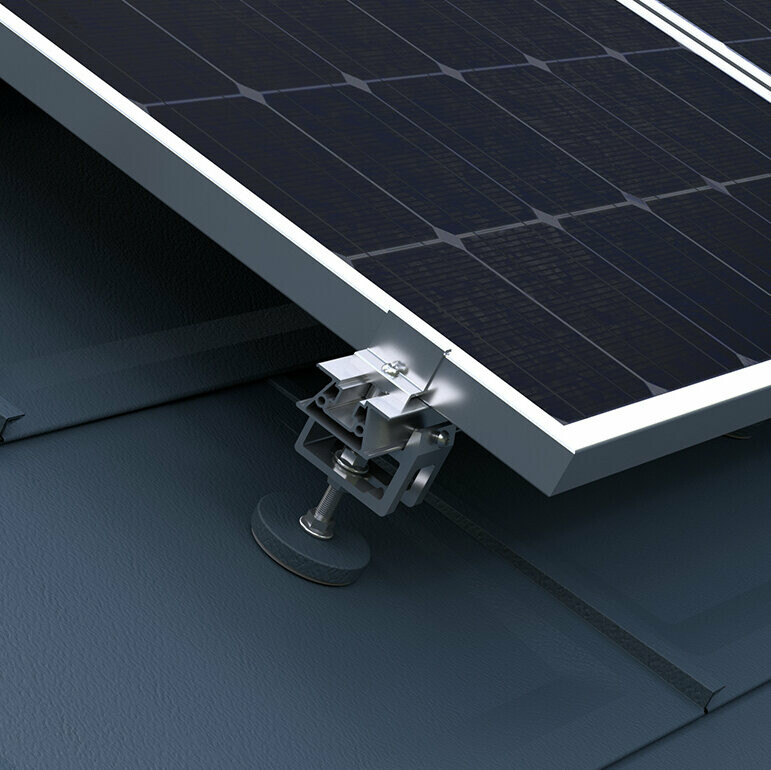

Close-up of the Vario PREFALZ solar bracket
Detail of the PREFA solar bracket on the PREFALZ roof
Photovoltaic modules, fixed with PREFA solar brackets Vario, on PREFA roof shingles DS.19 in P.10 anthracite
Bird's eye view of the roof of a detached home with PREFA roof and solar panel installation system in P.10 anthracite
Thanks to the PREFA all-in-one system, the roof, PV system, and roof drainage can be perfectly combined
Detached house with PREFA roof shingles DS.19 and PREFALZ in P.10 anthracite as well as a large-scale PV system, mounted with the PREFA solar panel installation system.
Close-up of the Vario PREFALZ solar bracket
Detail of the PREFA solar bracket on the PREFALZ roof
Photovoltaic modules, fixed with PREFA solar brackets Vario, on PREFA roof shingles DS.19 in P.10 anthracite
Bird's eye view of the roof of a detached home with PREFA roof and solar panel installation system in P.10 anthracite
PREFA solar installation system
Solar panel substructure – Accessoires
Here, you will find a list of matching accessories for the PREFA solar panel substructure.
For a complete, detailed list of accessory products, see our price list (only for processors).
Vario solar bracket
Variable installation of solar modules on PREFA small-format roof systems. Available with or without cross connectors. Only suitable for processing PREFA profile rails, and not compatible with other products.
Fix solar bracket
Fixed installation of solar modules on PREFA small-format roof systems. Available with or without cross connectors. Only suitable for processing PREFA profile rails, and not compatible with other products.
Sunny special solar bracket
suitable for PREFA roof tile
Solar bracket with protective cap
length: 260 mm
Sunny solar bracket
suitable for all PREFA small format products and standing seam systems.
Vario Prefalz solar bracket
Suitable for PREFA double-lock standing seams with a seam height of 25 mm. Available with or without cross connectors. Only suitable for processing PREFA profile rails, and not compatible with other products.
Solar roof conduit
For a properly sealed and secure penetration of PV cables on all PREFA roof systems to ensure the insulation of the cables in the long term.
Profile rail
rail profile for high static loads, 35 mm x 65 mm cut to length of 3.200 mm.
Rail connector
for quick and secure connection of profile rails
Cable clip
for correct fastening of the PV cable to the PREFA profile rail
Middle clamp
Pre-mounted solar panel clamp (including earth plates) for quick and secure fastening of the solar panel onto the supporting rail. Uncoated or black anodised.
End clamp
Pre-mounted solar panel clamp for quick and secure fastening of the solar panel onto the supporting rail at the end of the row of solar panels. Uncoated or black anodised.
Cross connector for Sunny
-
Cross connector for solar bracket Fix and Vario
-
Earth/cross connector
for connecting an additional rail level and connecting the potential equalization conductors of lightning protection systems

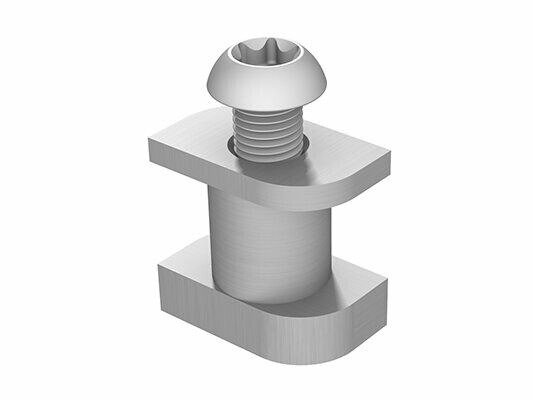

Solar panel fall protection device
fall protection device for the last row of solar panels in the mounting system
Profile rail connector
for connecting accessories to the PREFA profile rail
Taurus-BEF-10 on mounts
For Taurus rails on PREFA small format products. According to EN 795 TYPE D.
Special adhesive kit
Content: 1 cartridge of PREFA special adhesive 290 ml, 1 can of adhesive cleaner 60 ml, 1 piece of sandpaper, 1 cloth, 2 adapter nozzles
