Façade shingle

A sophisticated installation technique and the broad range of colours ensure attractive and harmonious façade surfaces.

+6
read more

Small-format façade shingles are the popular classics of façade design. Thanks to their flexibility, small, narrow spaces can be realised in the same way as larger façades — and always with top technical quality, of course. Owing to their concealed fasteners, the PREFA small-format façade shingles also create an attractive appearance that meets even the highest expectations.

Colour overview (10)

The product is available in the following colours (special colours available on request)

Colour

Code

~ RAL

01 Braun

P.10 brown

7013

02 Anthrazit

P.10 anthracite

7016

03 Schwarz

P.10 black

9005

04 Ziegelrot

P.10 brick red

8004

05 Oxydrot

P.10 oxide red

3009

06 Moosgrün

P.10 moss green

6005

07 Hellgrau

P.10 light grey

7005

11 Nussbraun

P.10 nut brown

8019

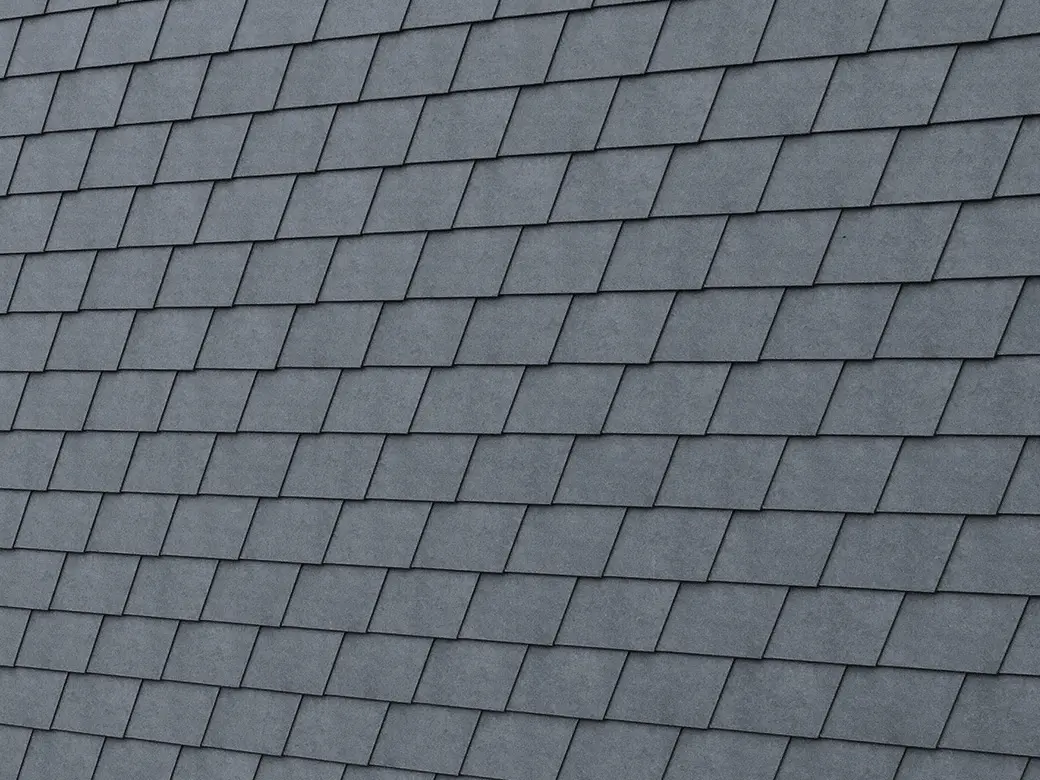

43 Steingrau

P.10 stone grey

7031

PREFA dunkelgrau ähnlich DB 703 oder RAL 7043

P.10 dark grey

7043

Notes

  • The RAL values stated are merely approximate values (~), some of which may differ vastly from the original PREFA colour and, under certain circumstances, may not reflect the subjective perception of the colour.
  • Above all for colour quality P.10, it is almost impossible to define values due to the surface structure.
  • Plain aluminium: The guarantee does not cover surface appearance alterations caused by processing and environmental influences. Follow the instructions.
  • Metallic colours may vary in shade.
  • To identify exact colours for complementary components please consult original samples.

Façade shingle – Technical information

Material

coil-coated aluminium, 0.7 mm thick

Dimensions

420×240 mm (cover), i.e. 10 pc./m²

Weight

approx. 2.5 kg/m²

Supporting substrate*

on fully boarded substrate (at least 24 mm)

Standard fastening

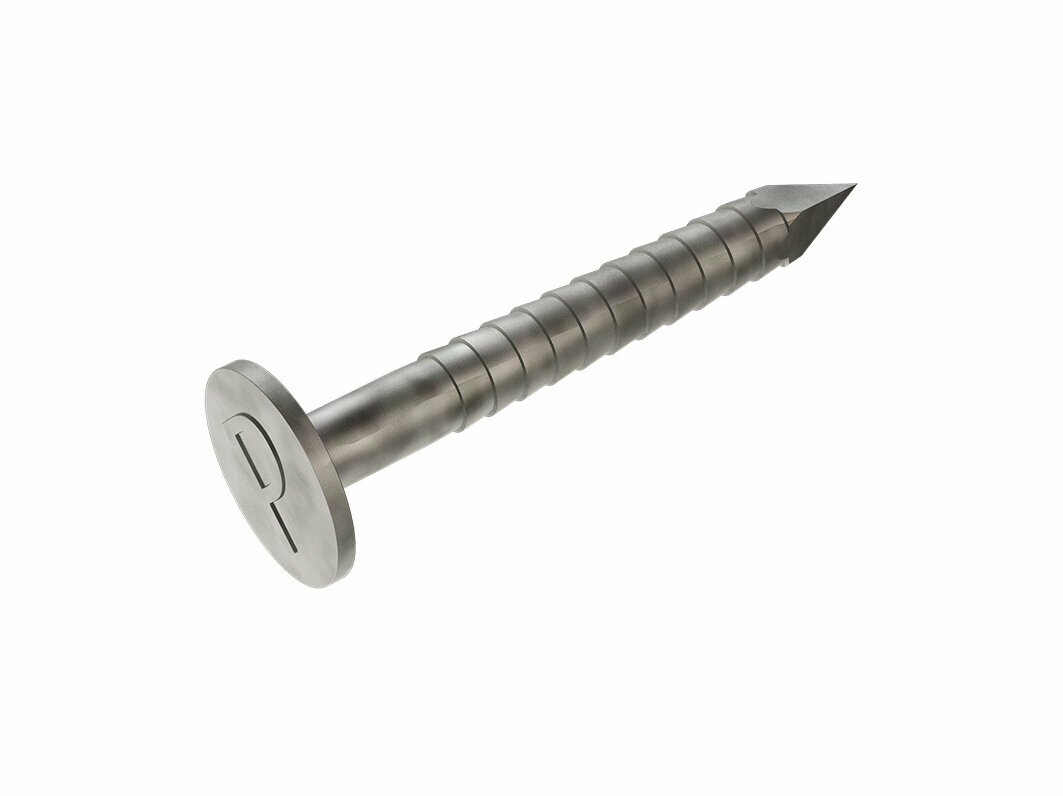

indirect fastening, 1 PREFA patent clip and ring nail per façade shingle (i.e. 10 PREFA patent clips and ring nails per m²)

Façade shingle – Planning and installation

More product information is available for downloading here.

Note: download DWG and DXF format files by right-clicking and selecting “Save link as”.

Accessories

Patent clip for façade shingles and XL façade shingles

-

Starter strip façade

for façade shingles, rhomboid façade tiles and FX.12; 1800 × 158 × 1,00 mm, pre-drilled
