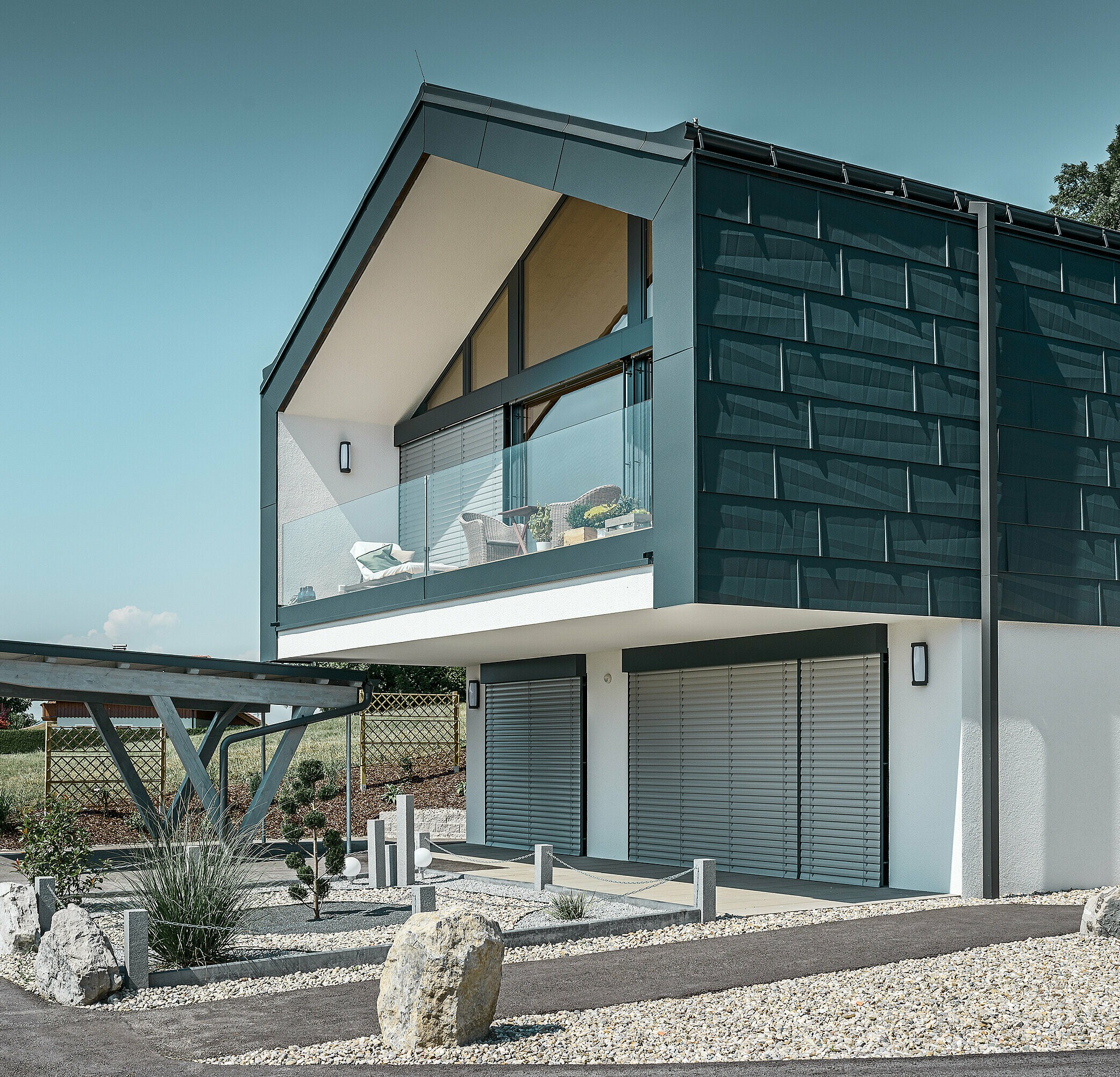

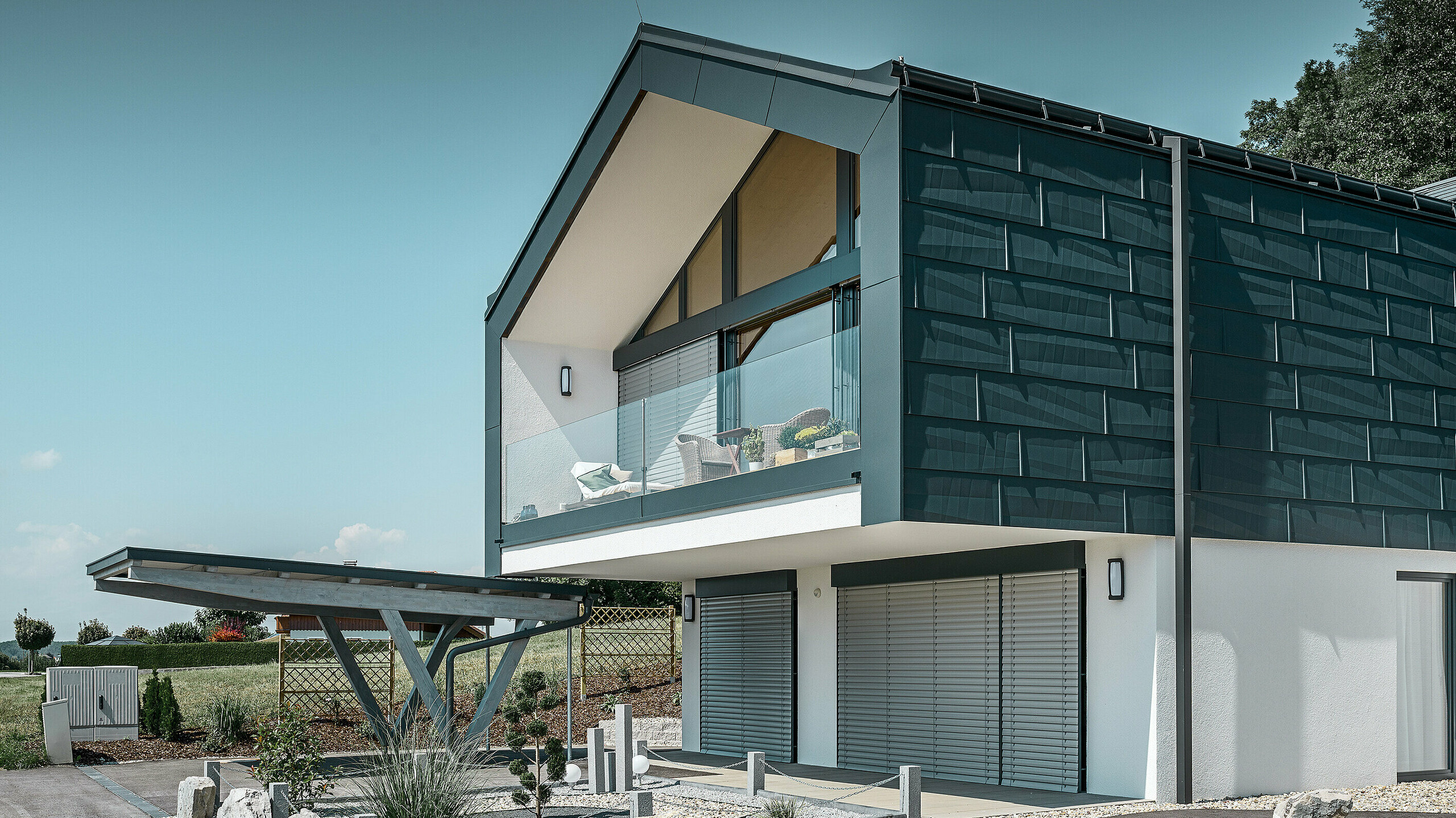

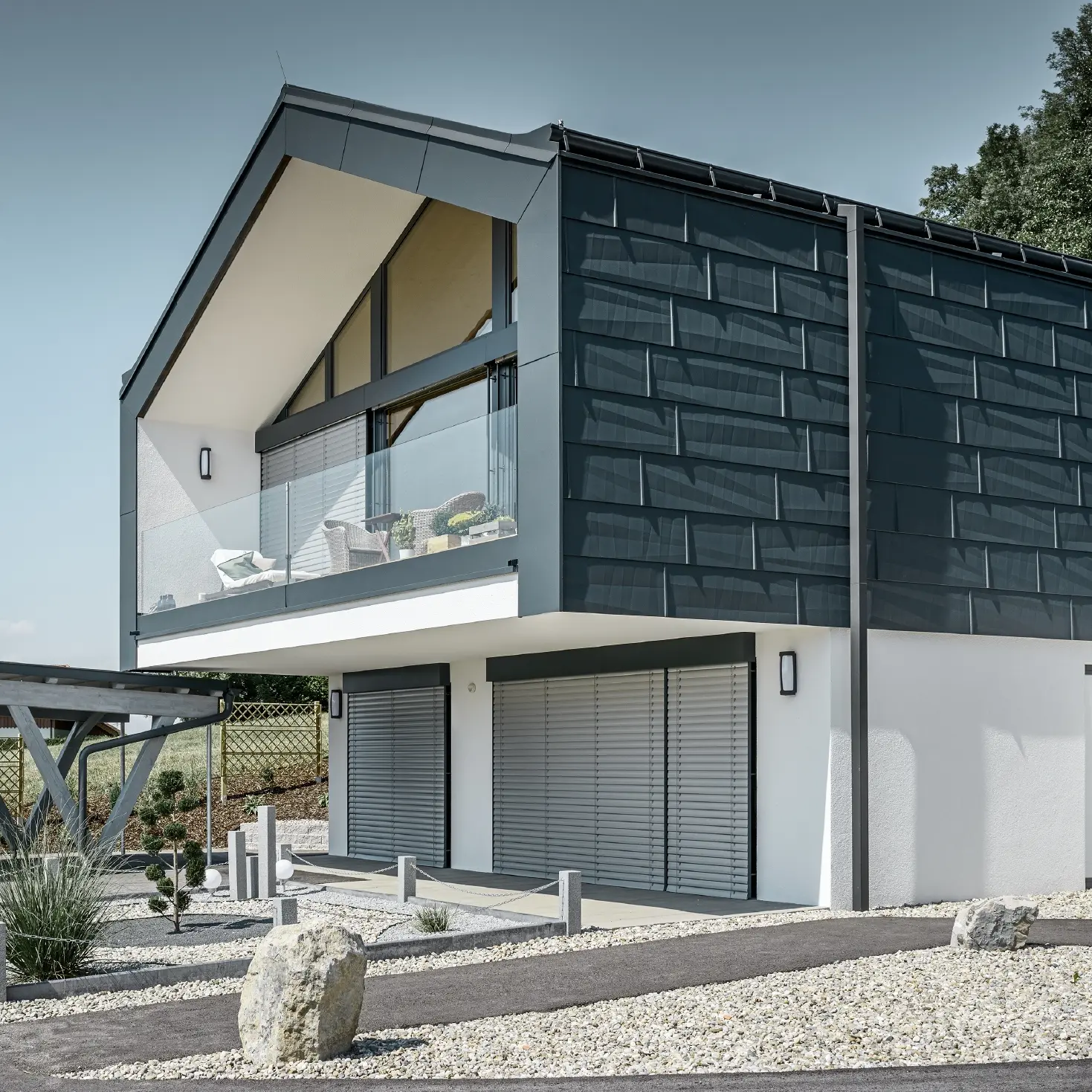

Modern apartment building with a large glass front, roof and façade were clad in the PREFA roof and façade panel FX.12 in anthracite

FX.12 façade panel

Unique right-angled canting: Depending on how the light falls, the building front radiates ever changing colours.

+9
read more

PREFA FX.12 façade panels are innovative design elements that feature a mixture of longitudinal and transverse edging sections, creating a “crumpled” look. The end result is a contemporary and eye-catching surface finish. The appearance changes depending on how the light hits the surface, making every property unique. And the option to use two different panel sizes (FX.12 façade panels in short and long) reinforces the asymmetrical and individual look of your new house façade. For designers and architects with a real creative flair, the façade panels are also available in a wide variety of colours.

A real eye-catcher: the irregular canting of the FX.12 façade panel conjures up lively light effects on your façade. With their irregular surface structure, the aluminium panels constantly change appearance, depending on the position of the sun. But this modern edge effect does more than just look good – it also has a useful function: It increases the strength of the panels, making them even more stable.

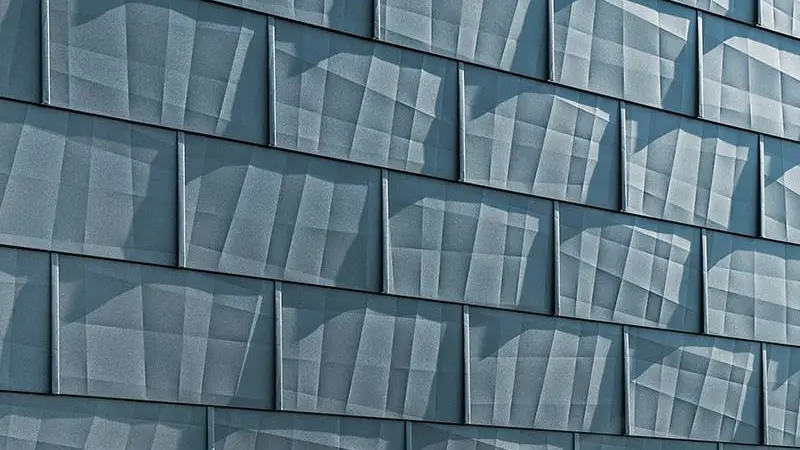

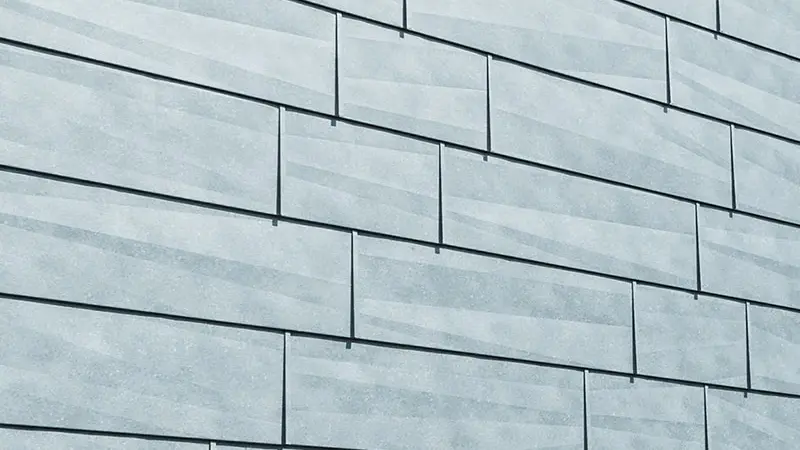

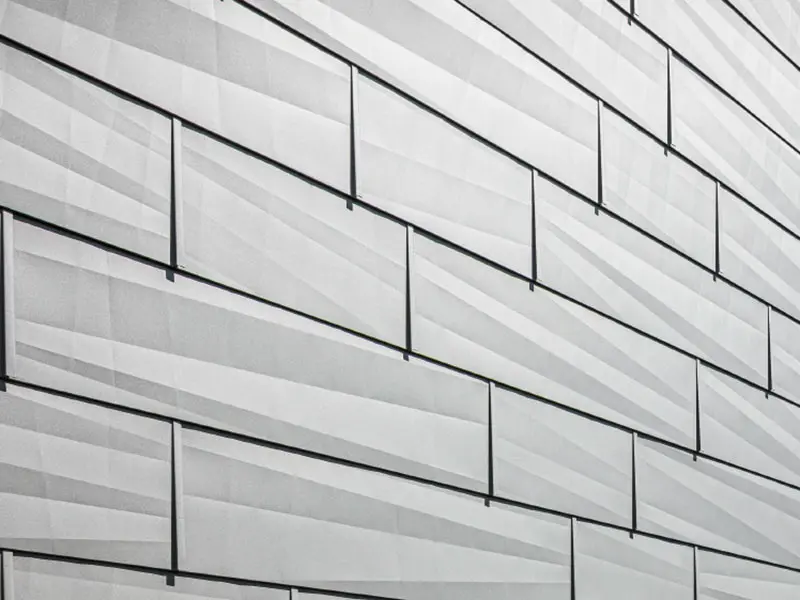

FX.12 façade panel with characteristic edging, P.10 light grey

FX.12 façade panel with characteristic edging, P.10 light grey

But what gives the panels their unique appearance? During production, each piece is embossed in a unique way so that the cant pattern never repeats itself and is always irregular, even on large surfaces. Another special technical feature is the tapered standing seam. This ensures that any lateral expansion acting on the FX.12 is absorbed.

Through the additional canting of the top seam and the pre-cut holes, the FX.12 façade panel can be directly fastened to boarding. This makes the façade panels especially easy to install.

Façades with PREFA FX.12 panelling are installed as a non-bearing, rear-ventilated façade. This allows air to circulate between the PREFA façade cladding and the supporting structure (brickwork/insulation). This ensures that warm air does not accumulate beneath the aluminium façade and therefore no condensation can form.

Benefits of the FX.12 façade panels:

Icon for advantages

Weather-resistant and corrosion-free façade system

Icon for advantages

Available in 14 colours

Icon for advantages

Reduced installation time

thanks to direct fixing – no additional clips are required

Icon for advantages

Creative design

regular or irregular joint offset with two different panel formats (long and short)

Icon for advantages

Weather-resistant and corrosion-free façade system

Icon for advantages

Available in 14 colours

Icon for advantages

Reduced installation time

thanks to direct fixing – no additional clips are required

Icon for advantages

Creative design

regular or irregular joint offset with two different panel formats (long and short)

Icon for advantages

Rear-ventilated façade

no condensation, no heat build-up

Icon for advantages

Unique appearance

thanks to kinked surface finish (irregular canting)

Icon for advantages

Fire class “A1”

non-flammable

Icon for advantages

Perfect protection on the exposed side

Icon for advantages

Rear-ventilated façade

no condensation, no heat build-up

Icon for advantages

Unique appearance

thanks to kinked surface finish (irregular canting)

Icon for advantages

Fire class “A1”

non-flammable

Icon for advantages

Perfect protection on the exposed side

Colour overview (13)

The product is available in the following colours

Colour

Code

~ RAL

01 Braun

P.10 brown

7013

02 Anthrazit

P.10 anthracite

7016

03 Schwarz

P.10 black

9005

04 Ziegelrot

P.10 brick red

8004

05 Oxydrot

P.10 oxide red

3009

06 Moosgrün

P.10 moss green

6005

07 Hellgrau

P.10 light grey

7005

10 Prefaweiß

P.10 prefa white

9002

11 Nussbraun

P.10 nut brown

8019

12 Silbermetallic

metallic silver

9006

PREFA dunkelgrau ähnlich DB 703 oder RAL 7043

P.10 dark grey

7043

42 Sandbraun

P.10 sand brown

1019

43 Steingrau

P.10 stone grey

7031

Notes

  • The RAL values stated are merely approximate values (~), some of which may differ vastly from the original PREFA colour and, under certain circumstances, may not reflect the subjective perception of the colour.
  • Above all for colour quality P.10, it is almost impossible to define values due to the surface structure.
  • Plain aluminium: The guarantee does not cover surface appearance alterations caused by processing and environmental influences. Follow the instructions.
  • Metallic colours may vary in shade.
  • To identify exact colours for complementary components please consult original samples.

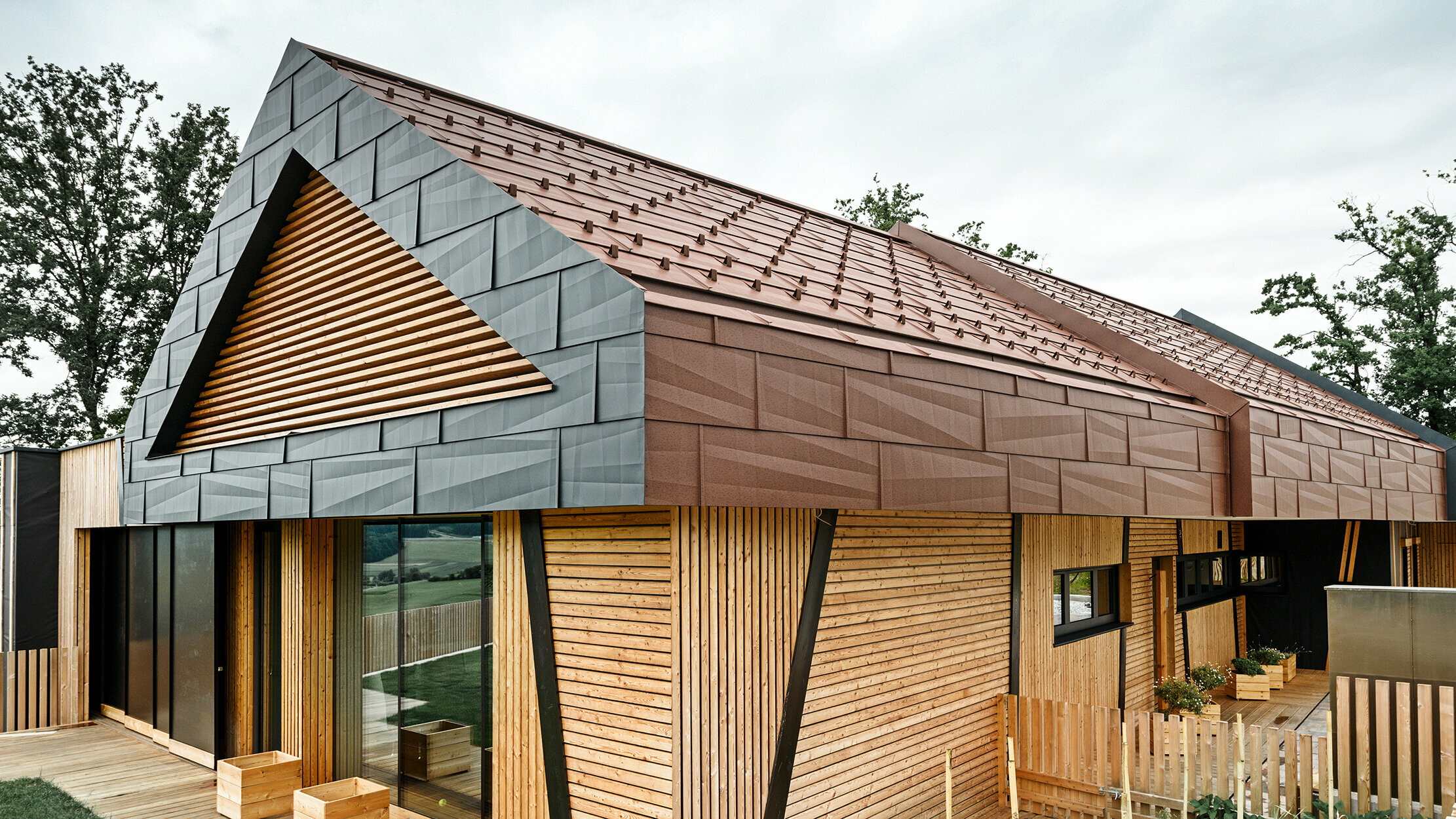

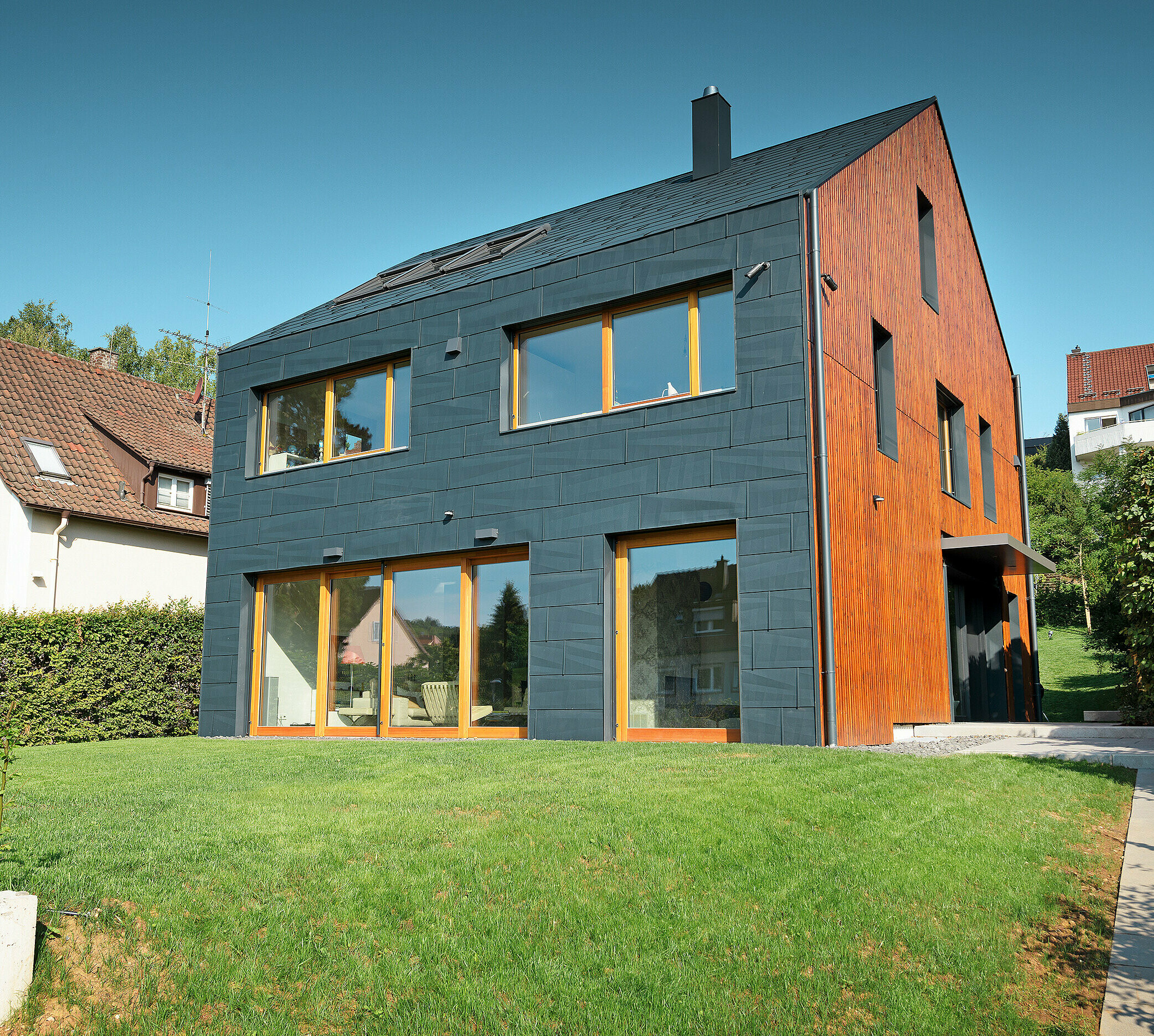

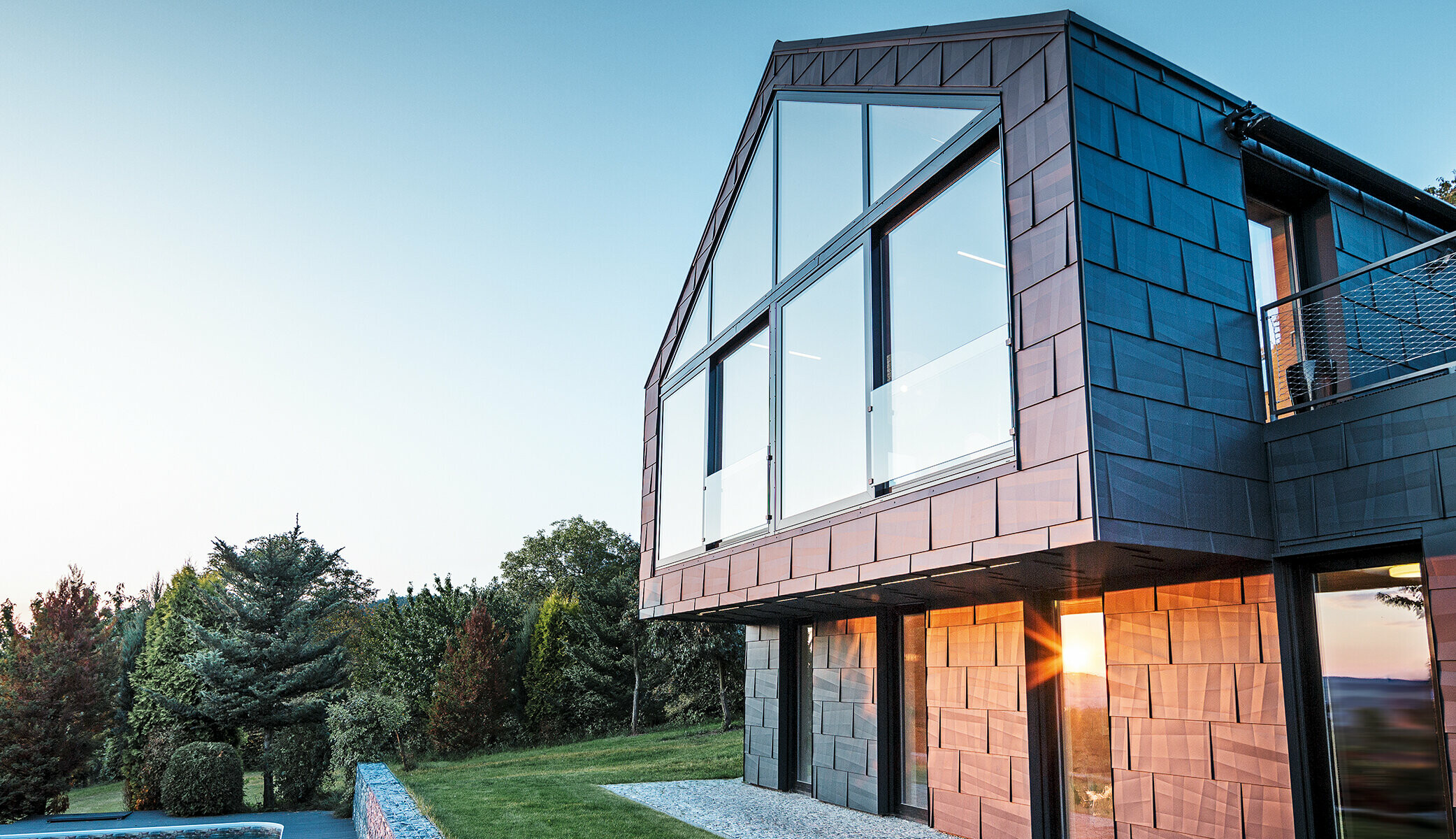

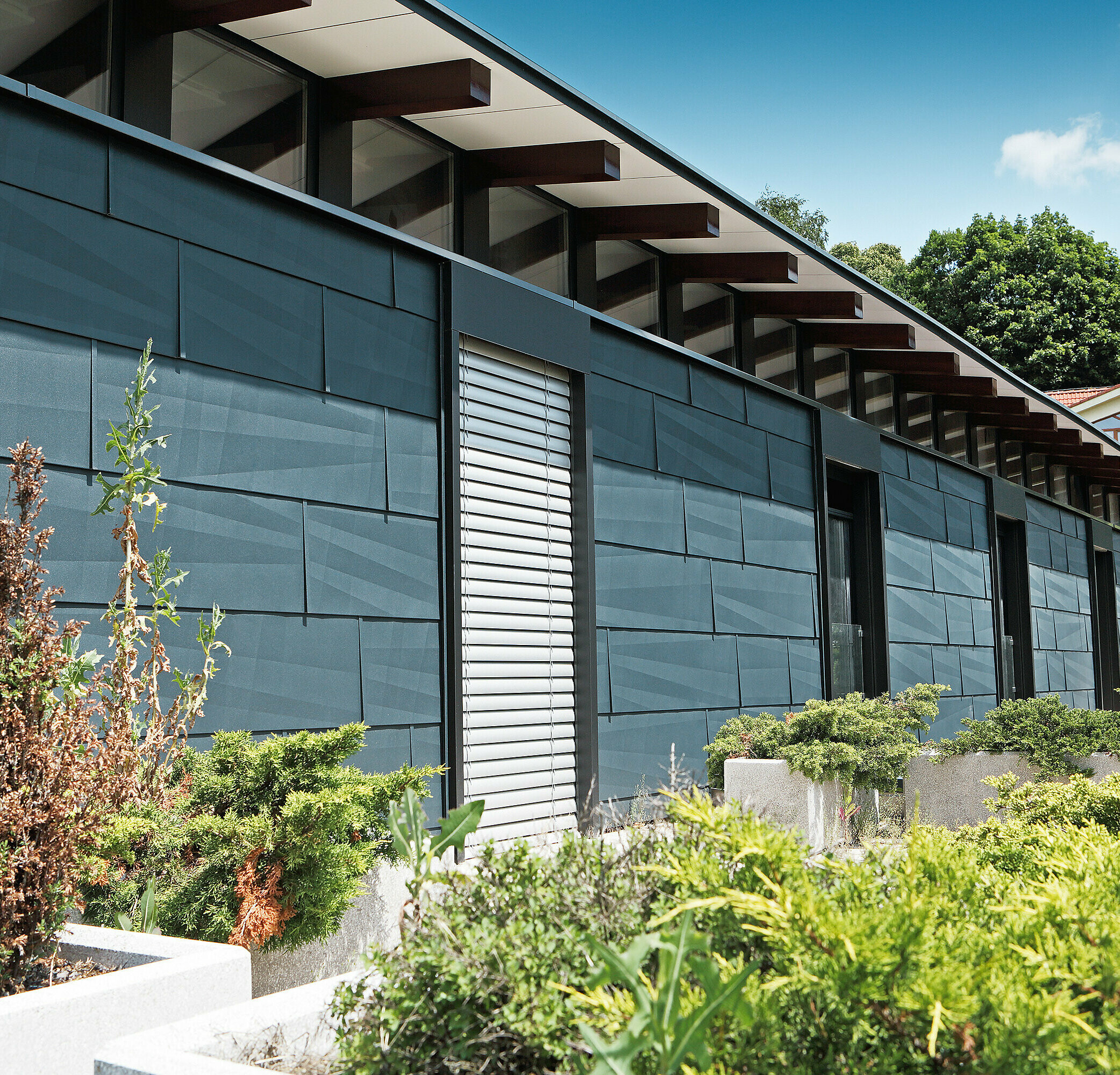

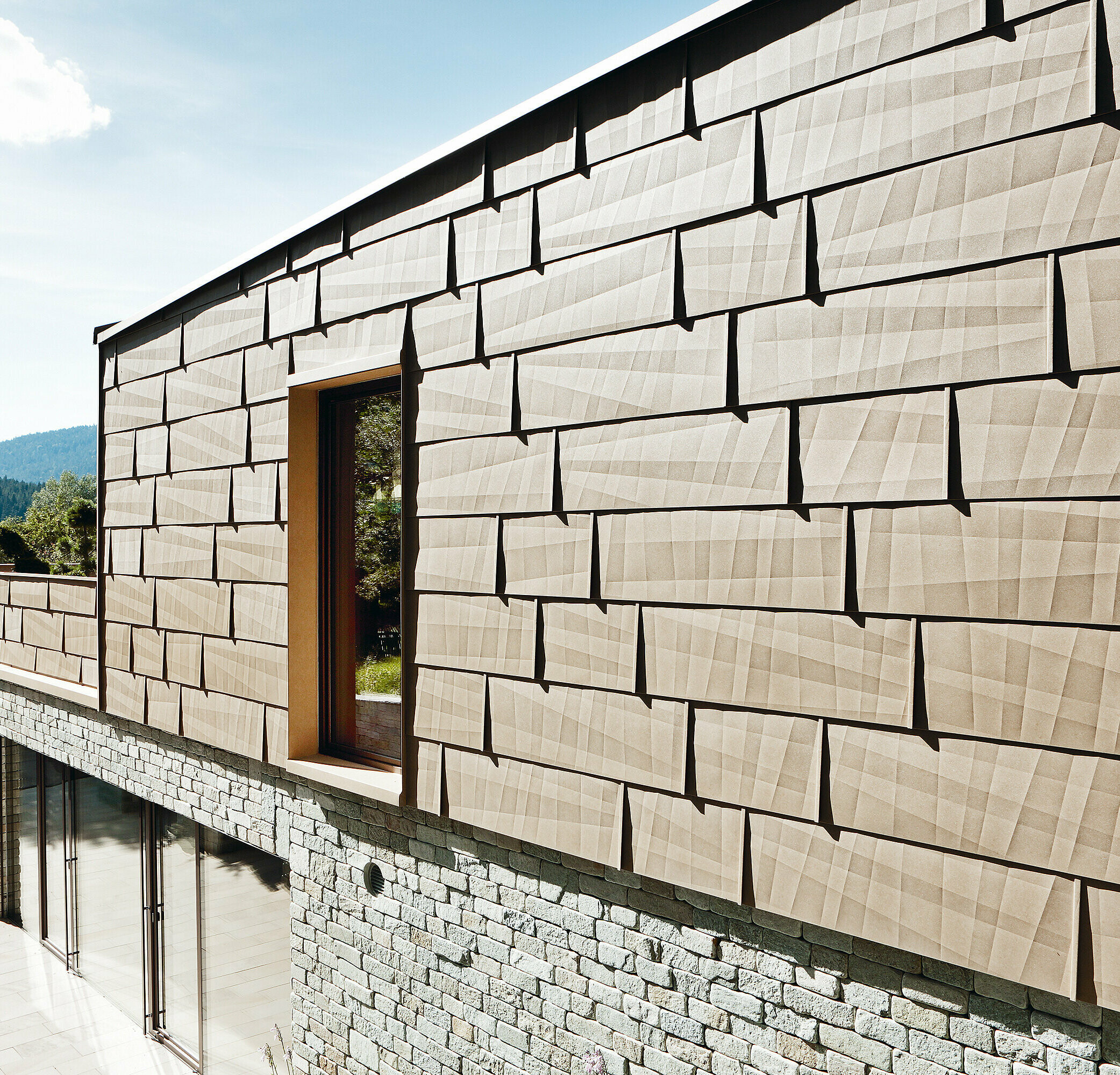

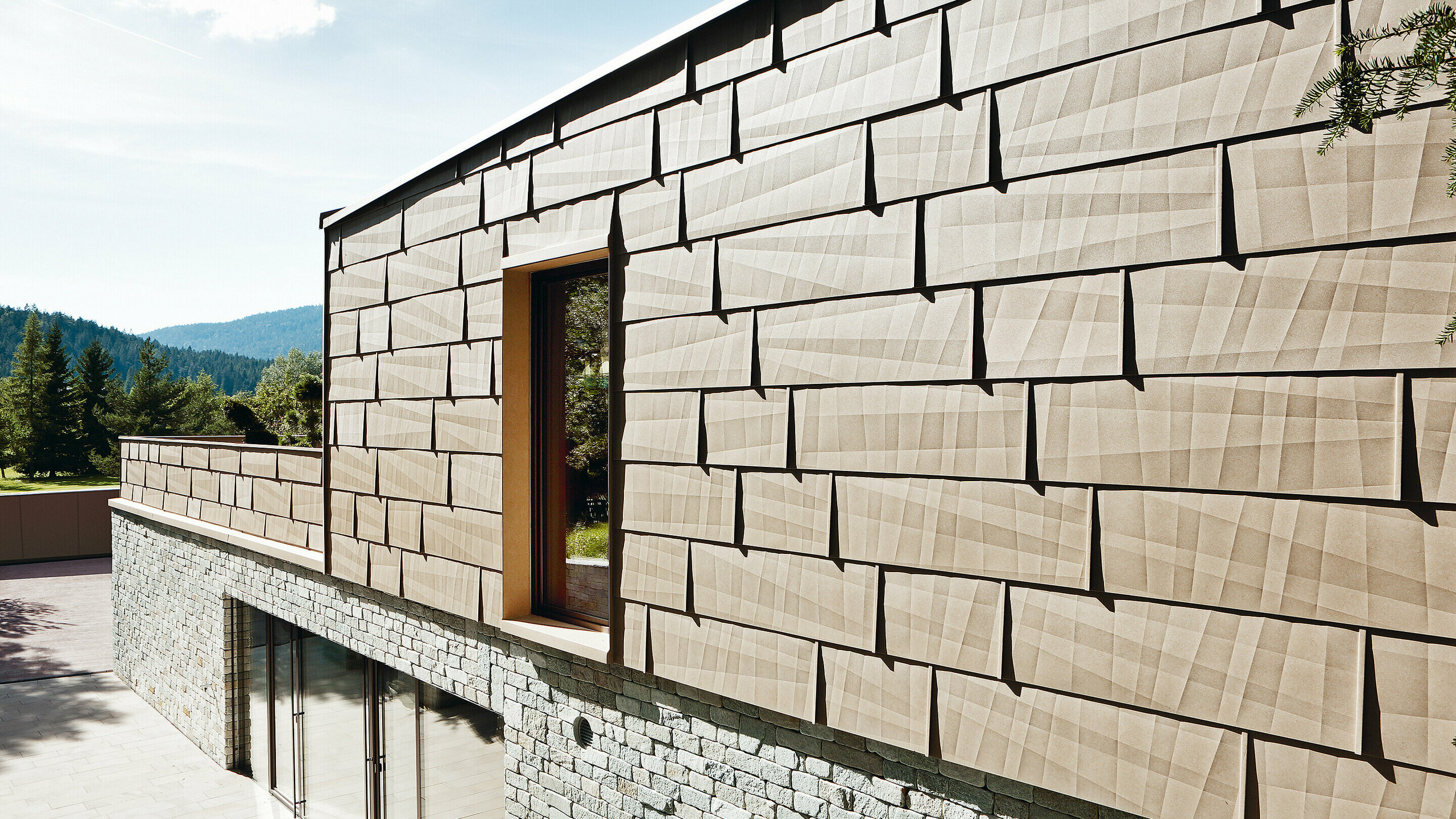

Need inspiration? Take a look at some successful projects that feature PREFA FX.12 façades

Use FX.12 façade panels as a visual highlight, protect the side of your house that is exposed to weather, or use the panelling to clad the entire façade of your home. Design your new external wall exactly how you wish, with long and/or short façade elements and 14 colours to choose from.

We've put together a wide range of tips and ideas for façade design for you here.

Take inspiration from these ideas for façade design with FX.12:

FX.12 façade panel – Technical information

Material

coil-coated aluminium, 0.7 mm thick

Dimensions

700 × 420 mm (cover), i.e. 3.4 pc./m²
1,400 × 420 mm (cover), i.e. 1.7 pc./m²

Weight

approx. 2.4–2.5 kg/m²

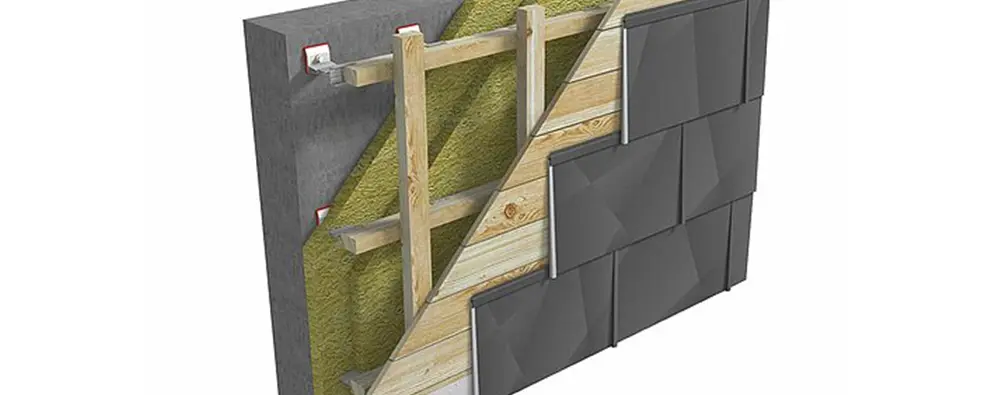

Supporting substrate*

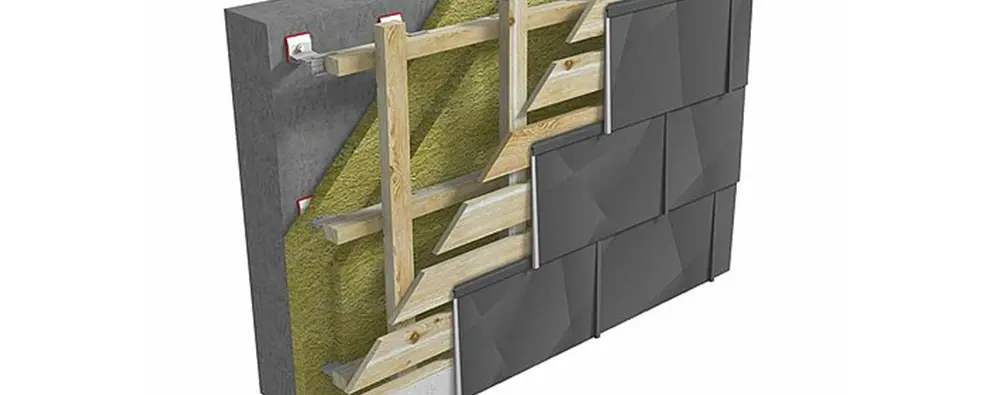

on fully boarded substrate or skip sheathing (at least 24 mm thick)

* Observe country-specific standards and specialist guidelines.

Standard fastening

direct
with 3 PREFA ring nails per small FX.12 façade panel
with 5 PREFA ring nails per large FX.12 façade panel
(i.e. 8–10 PREFA ring nails per m²

FX.12 roof panel – Planning and installation

More product information is available for downloading here.

Note: download DWG and DXF format files by right-clicking and selecting “Save link as”.

Accessories

Here, you will find a list of matching accessories for the FX.12 façade panel.
For a complete, detailed list of accessory products, see our price list (only for processors).

Starter strip façade

for façade shingles, rhomboid façade tiles and FX.12; 1800 × 158 × 1,00 mm, pre-drilled

Fastener (aluminium screw)

Special screw for aluminium substructures, with hardened drill point (red tip for illustration only)

Fastener (steel screw)

Special screw for steel substructures, with hardened drill point (red tip for illustration only)
