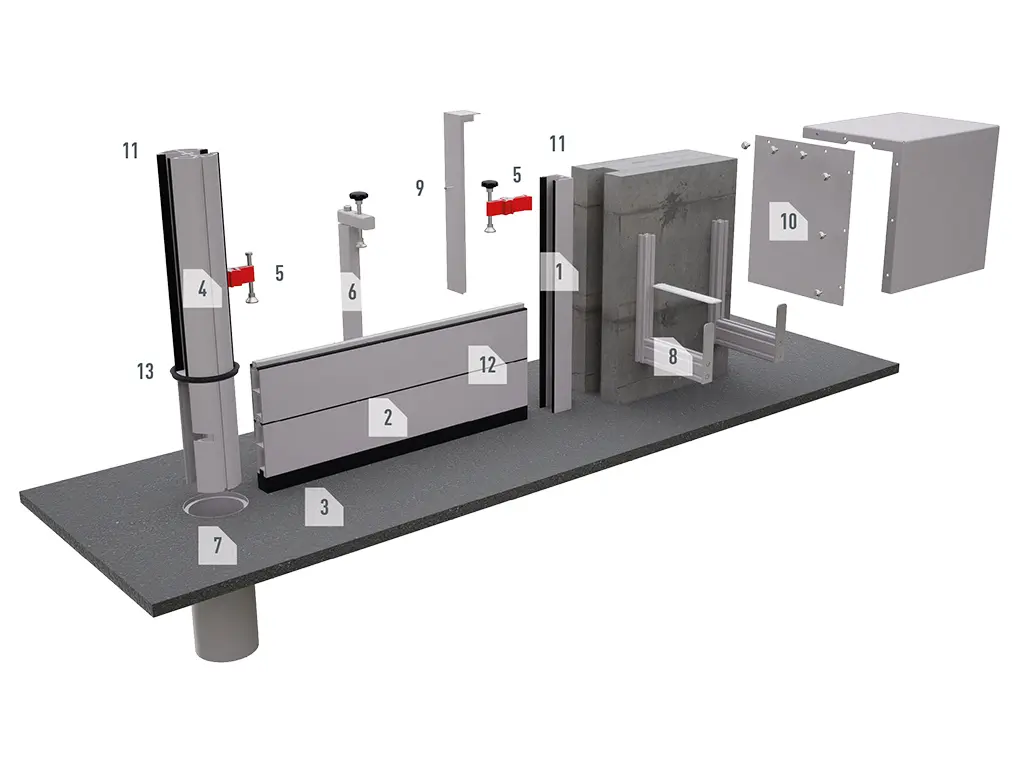

1. wall profile: Permanently built into the masonry or installed in front of, in or fitted flush in the reveal
2. barrier panels: Illustrated here: the lowest barrier panel is connected to point 3.
3. ground seal: Ensures sealing between the lowest barrier panel and the ground
4. centre column: In larger areas, these uprights can be used as intermediate columns.
5. compression clamp (with hex-head screw or with star-shaped handle): For clamping the barrier panels in place
6. retainer: Prevents vertical deflection of the barrier panels and increases pressure on the ground seal.
7. ground sleeve: Sleeve fixed permanently in the foundations with concrete for inserting the centre column
8. wall bracket: For stacking the barrier panels during storage when not in use
9. angular cover: For covering the wall profiles when not in use.
10. storage casing: The individual sections (length: 445 mm) are screwed together.
11. base profile seal
12. barrier panel seal
13. seal for cover and ground sleeve
The barrier panels, fasteners and compression clamps are made of aluminium as the material is break-proof, weather-resistant and rust-proof. As the material is so lightweight, you can effortlessly transport the individual protective elements and set them up quickly in an emergency.
Wall fastening profiles for building protection

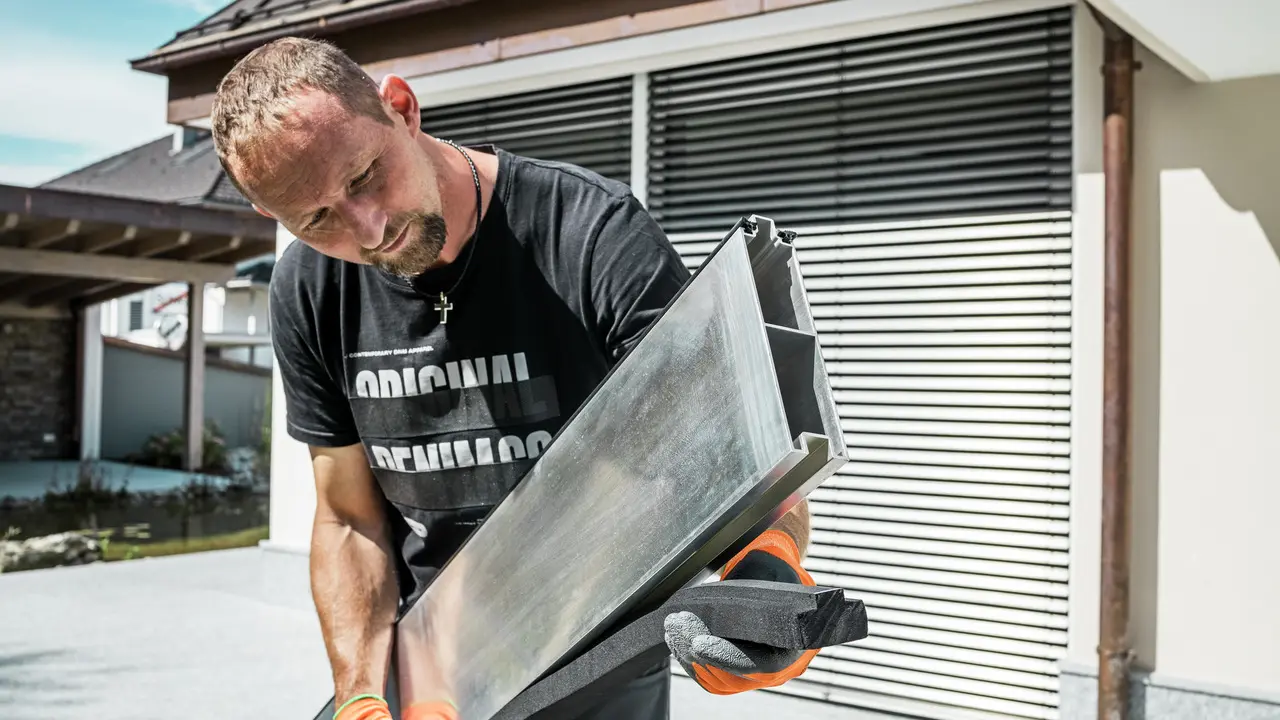

Starting barrier panel with ground seal

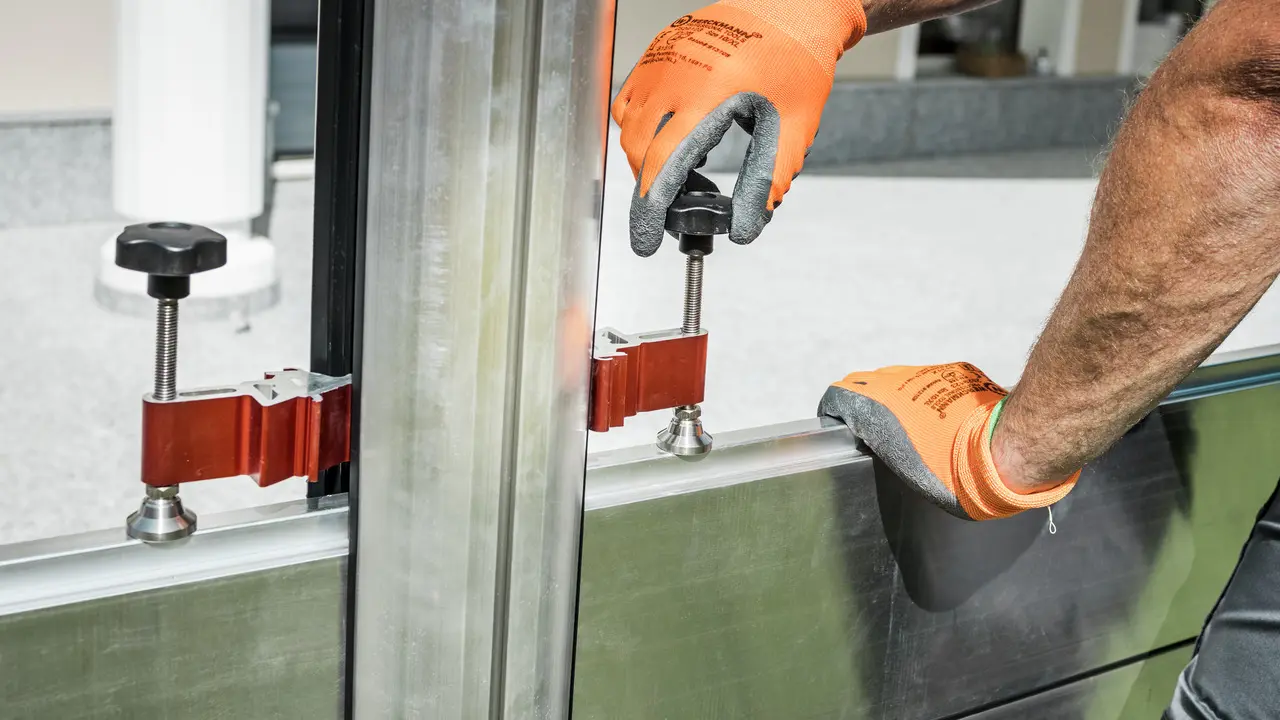

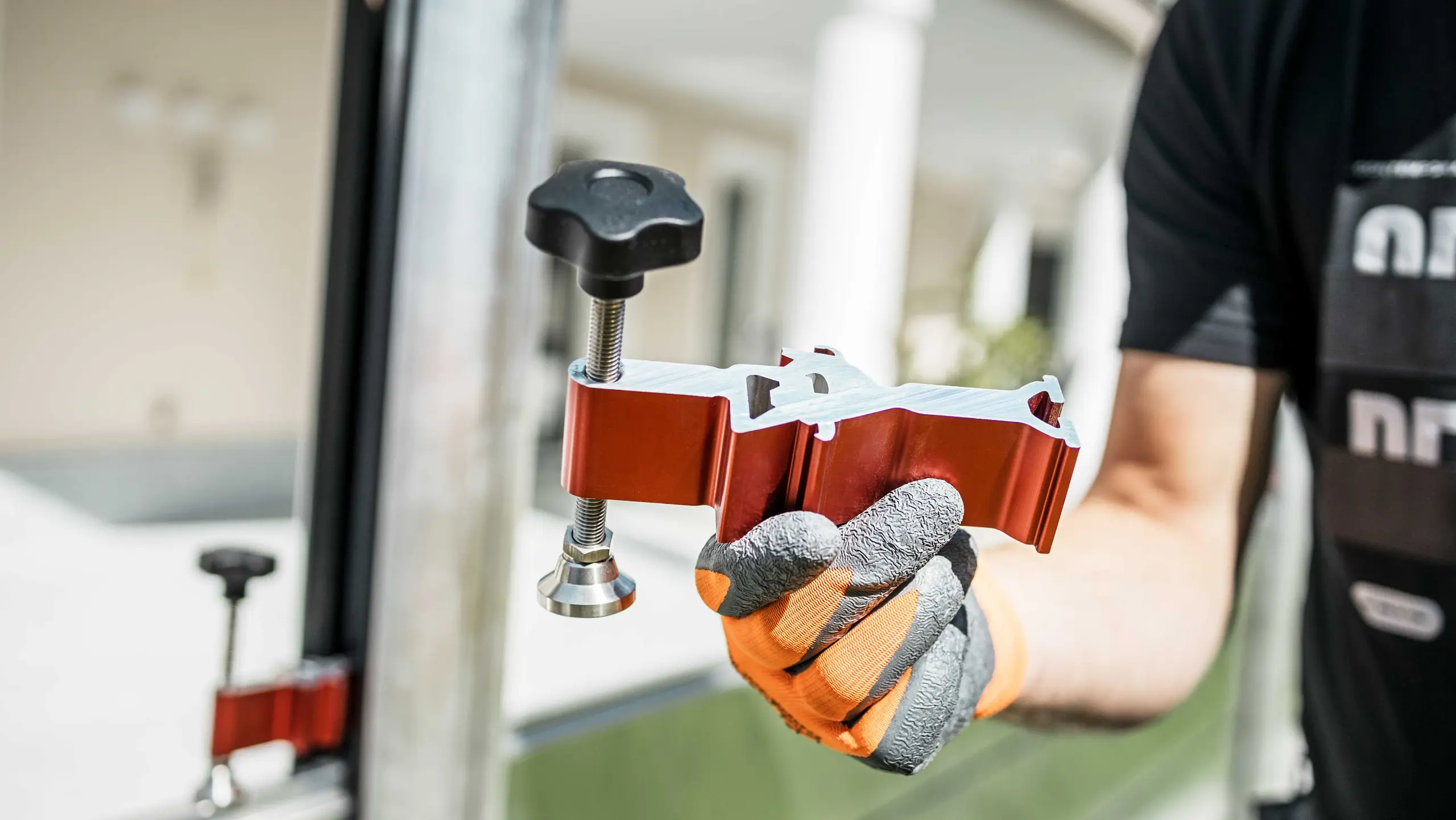

Compression clamp for fastening the individual panels
Installation of the compression clamp on the stacked barrier panels
