FAÇADE SYSTEMS RIPPLE PROFILE

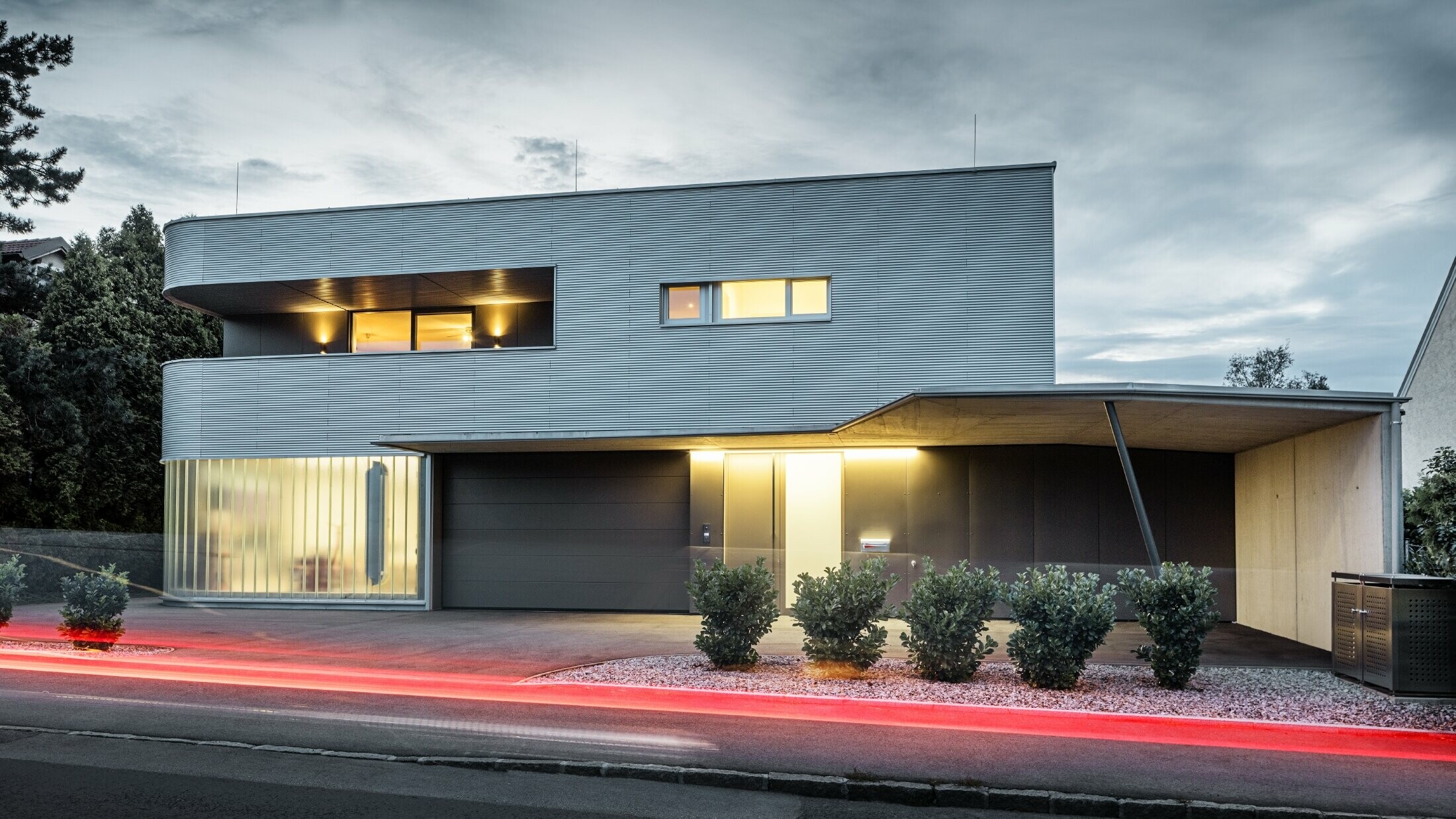

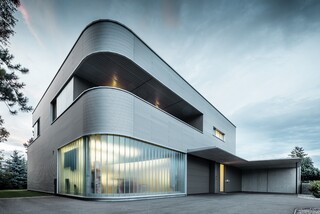

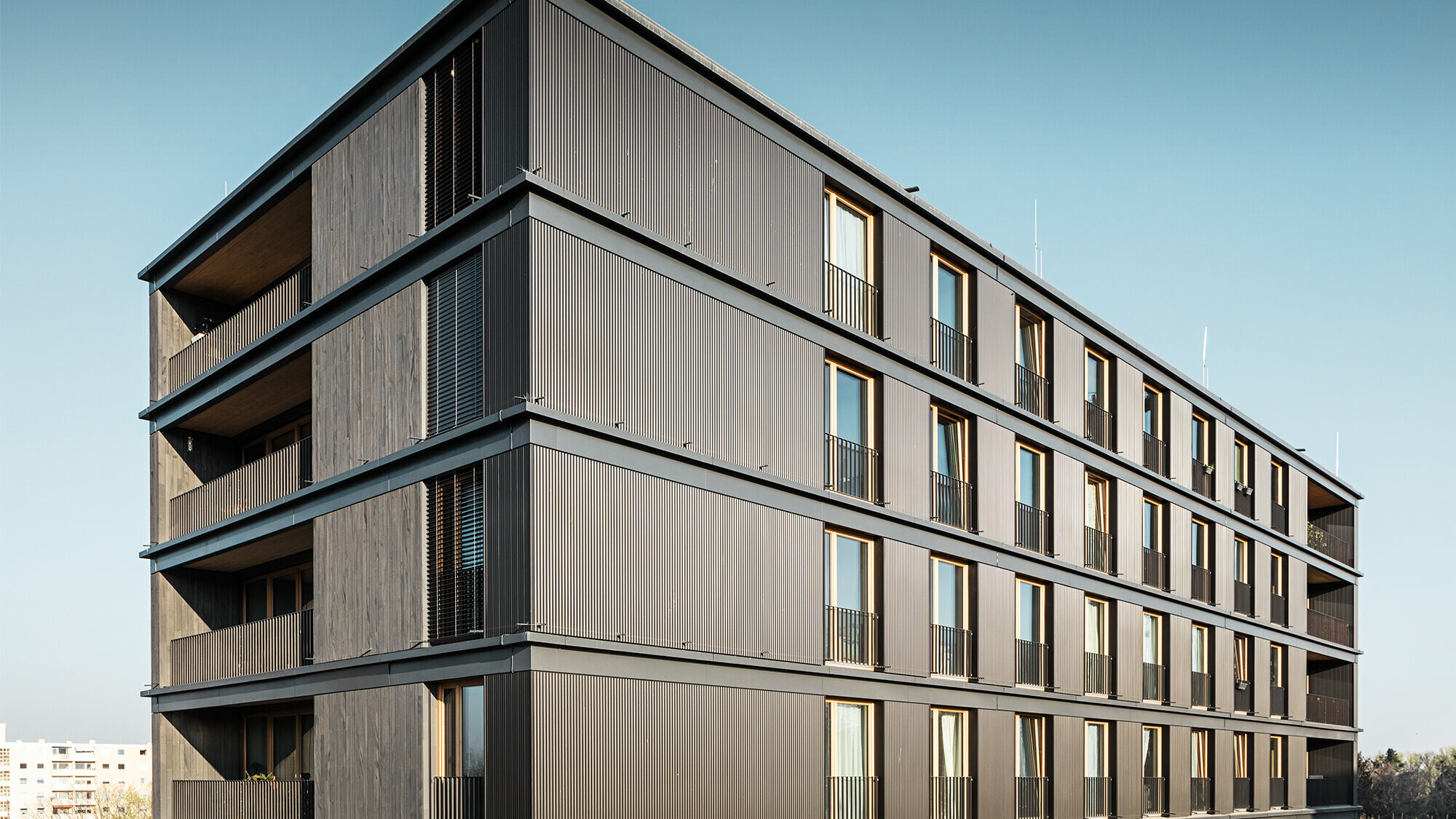

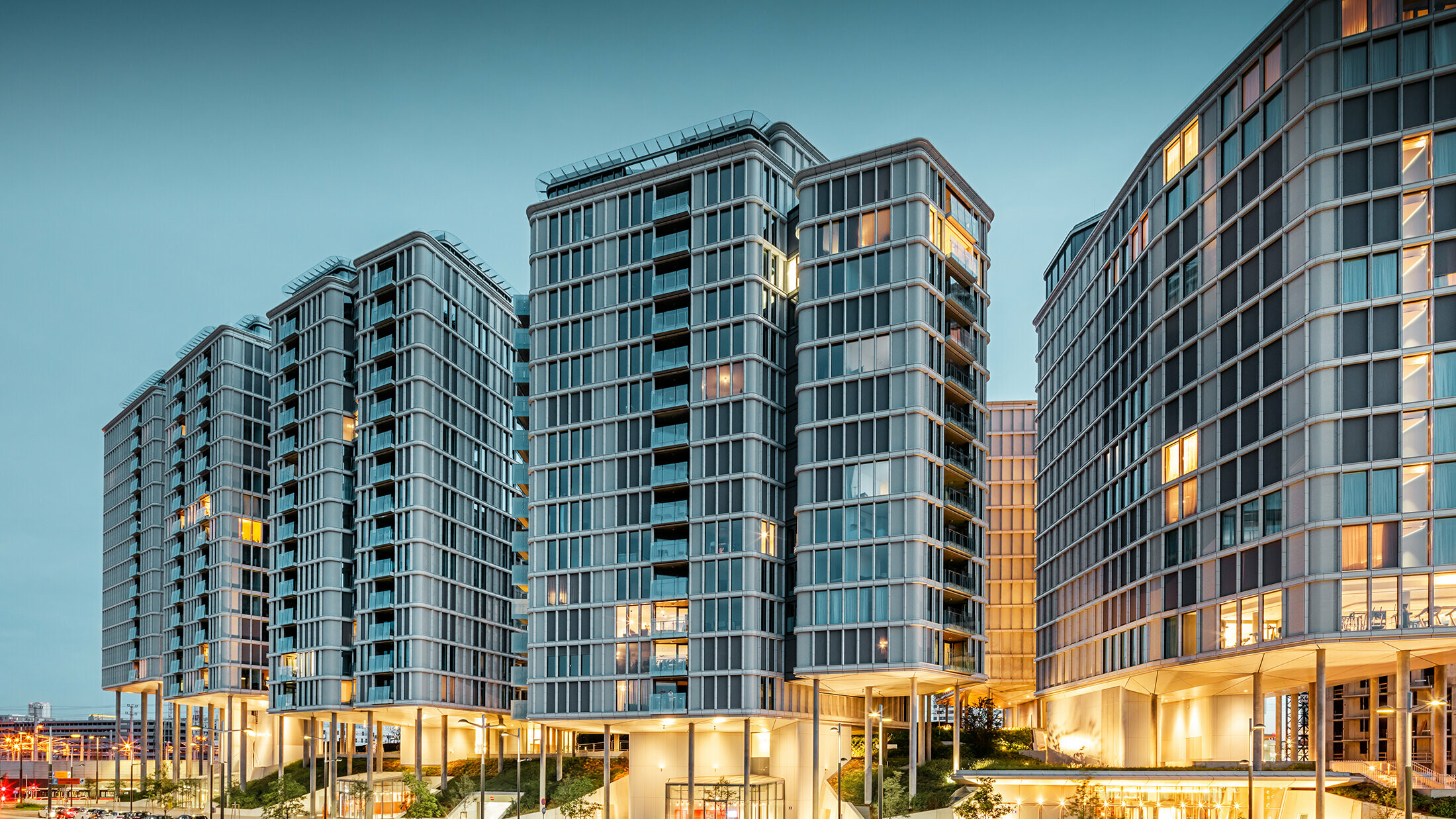

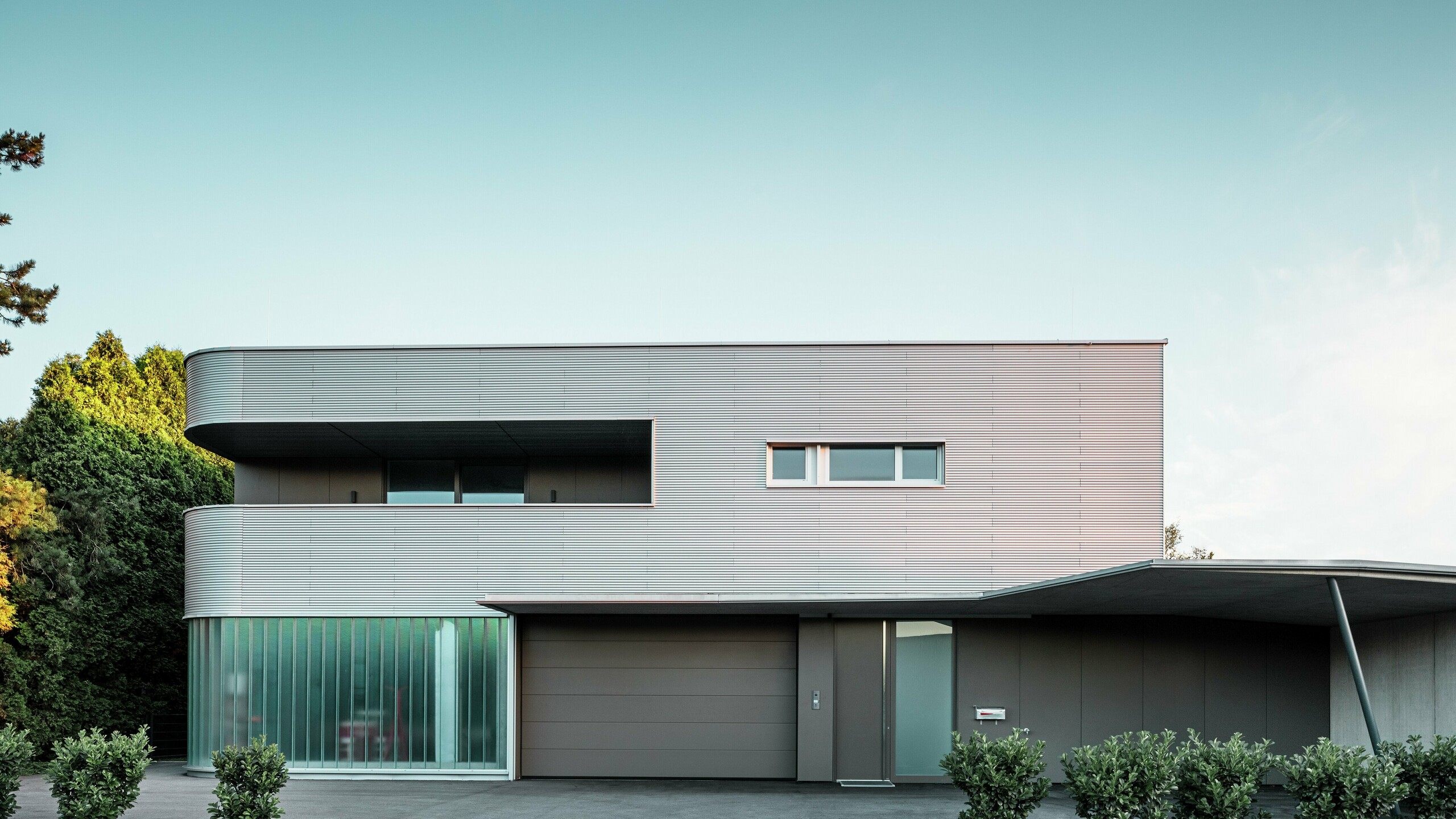

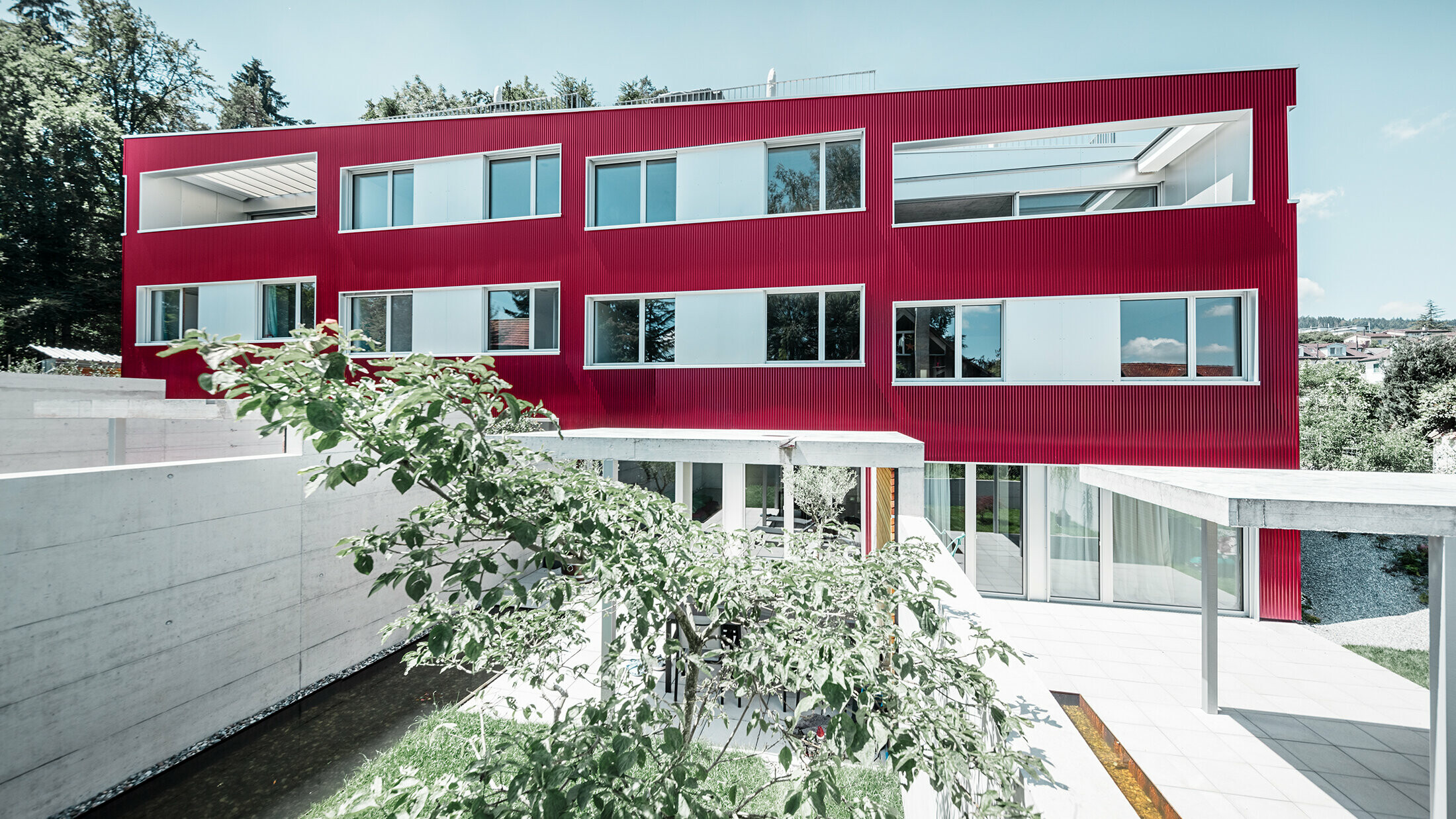

Reference buildings PREFA Façade systems Ripple profile upon request
Product catalogue PREFA Façade systems Ripple profile upon request
AVAILABLE COLOURS

RIPPLE PROFILE – INFORMATION

Modern façade design needs room for creative and innovative ideas. The PREFA ripple profile gives you complete flexibility for implementing your ideas. The range of accessories with starter, closing and corner profiles ensures easy, trouble-free installation.

  • Installation without visible fasteners
  • Anodised or plain aluminium – also available upon request: powder-coated in every RAL colour up to a length of max. 3,000 mm
  • Horizontal, vertical and diagonal installation

RIPPLE PROFILE – TECHNICAL INFORMATION

TECHNICAL INFORMATION ABOUT THE PRODUCT

GENERAL INFORMATION:
made of extruded aluminium alloy
design protection no. 31230
for high-quality façade claddings
VISIBLE WIDTH:
140 mm
CORRUGATION HEIGHT:
10 mm
DISTANCE BETWEEN CORRUGATIONS:
47 mm
PIECE LENGTHS:
up to max. 6,200 mmpowder-coated up to max. 3,000 mm

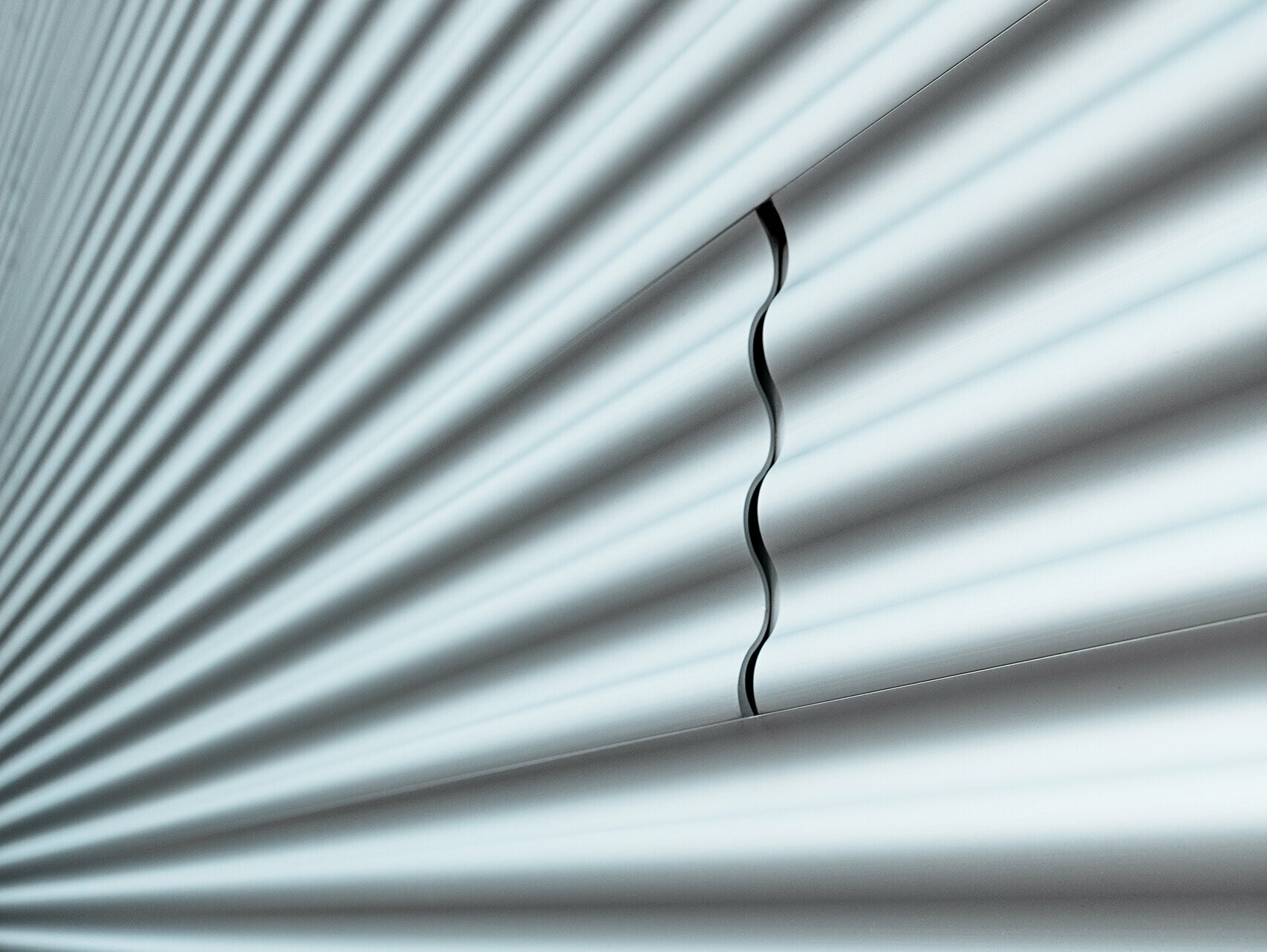

SIDE JOINTS:
with 5–10 mm gap, depending on profile length
IMPLEMENTATION:
all laying directions allowed– concealed fastening– curves with a radius of min. 800 mm possible
SURFACE:
Plain aluminium – also available upon request: powder-coated in every RAL colour up to a length of max. 3,000 mm
WEIGHT PER M²:
6.62 kg

RIPPLE PROFILE – ACCESSORIES

YOU CAN FIND A LIST OF ACCESSORIES FOR THE PRODUCT HERE

PREFA sliding clip for ripple profile

PREFA SLIDING CLIP FOR RIPPLE PROFILE

PREFA protruding corner for ripple profile

PREFA PROTRUDING CORNER FOR RIPPLE PROFILE

PREFA starter profile for ripple profile

PREFA STARTER PROFILE FOR RIPPLE PROFILE

PREFA closing profile for ripple profile

PREFA CLOSING PROFILE FOR RIPPLE PROFILE

PREFA channel profile for ripple profile (canted)

PREFA CHANNEL PROFILE FOR RIPPLE PROFILE (CANTED)

RIPPLE PROFILE – PLANNING AND INSTALLATION

MORE PRODUCT INFORMATION IS AVAILABLE FOR DOWNLOADING HERE

Note: download DWG and DXF format files by right-clicking and selecting “Save link as”.

TENDER TEXTS

535 KB PREFA_Tender_Texts_Facade_Ripple_Profile_2018-06_-_EN.pdf 52 KB PREFA_Tender_Texts_Facade_Ripple_Profile_2018-06_-_EN.docx

DETAILS

1 MB PREFA_Details_Fassade_Profilwelle_horizontal_2019_Q2.dwg 2 MB PREFA_Details_Fassade_Profilwelle_vertikal_2019_Q2.pdf 2 MB PREFA_Details_Fassade_Profilwelle_horizontal_2019_Q2.pdf 5 MB PREFA_Details_Fassade_Profilwelle_horizontal_2019_Q2.dxf 1 MB PREFA_Details_Fassade_Profilwelle_vertikal_2019_Q2.dwg 6 MB PREFA_Details_Fassade_Profilwelle_vertikal_2019_Q2.dxf
