FAÇADE SYSTEMS SIDING

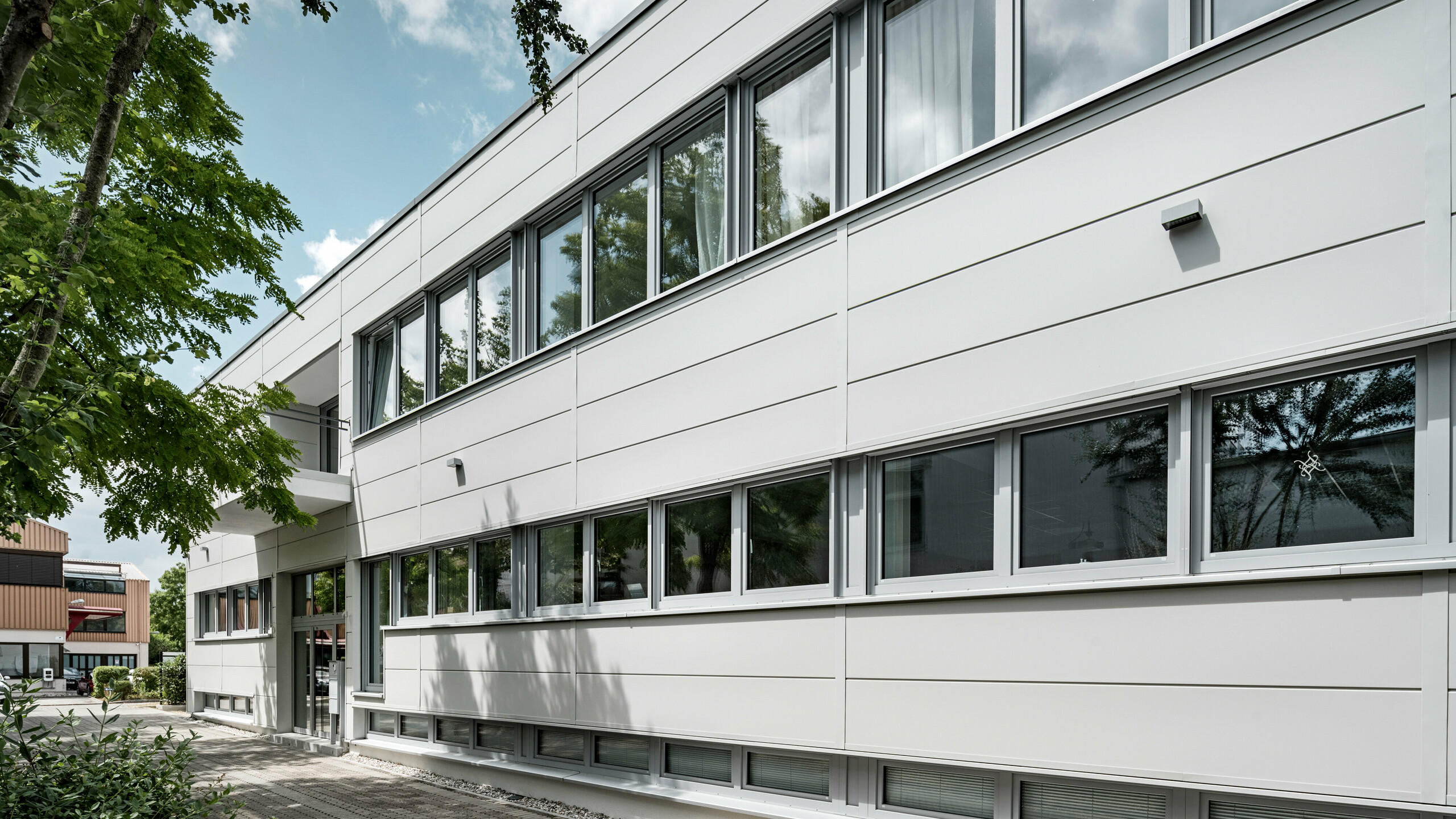

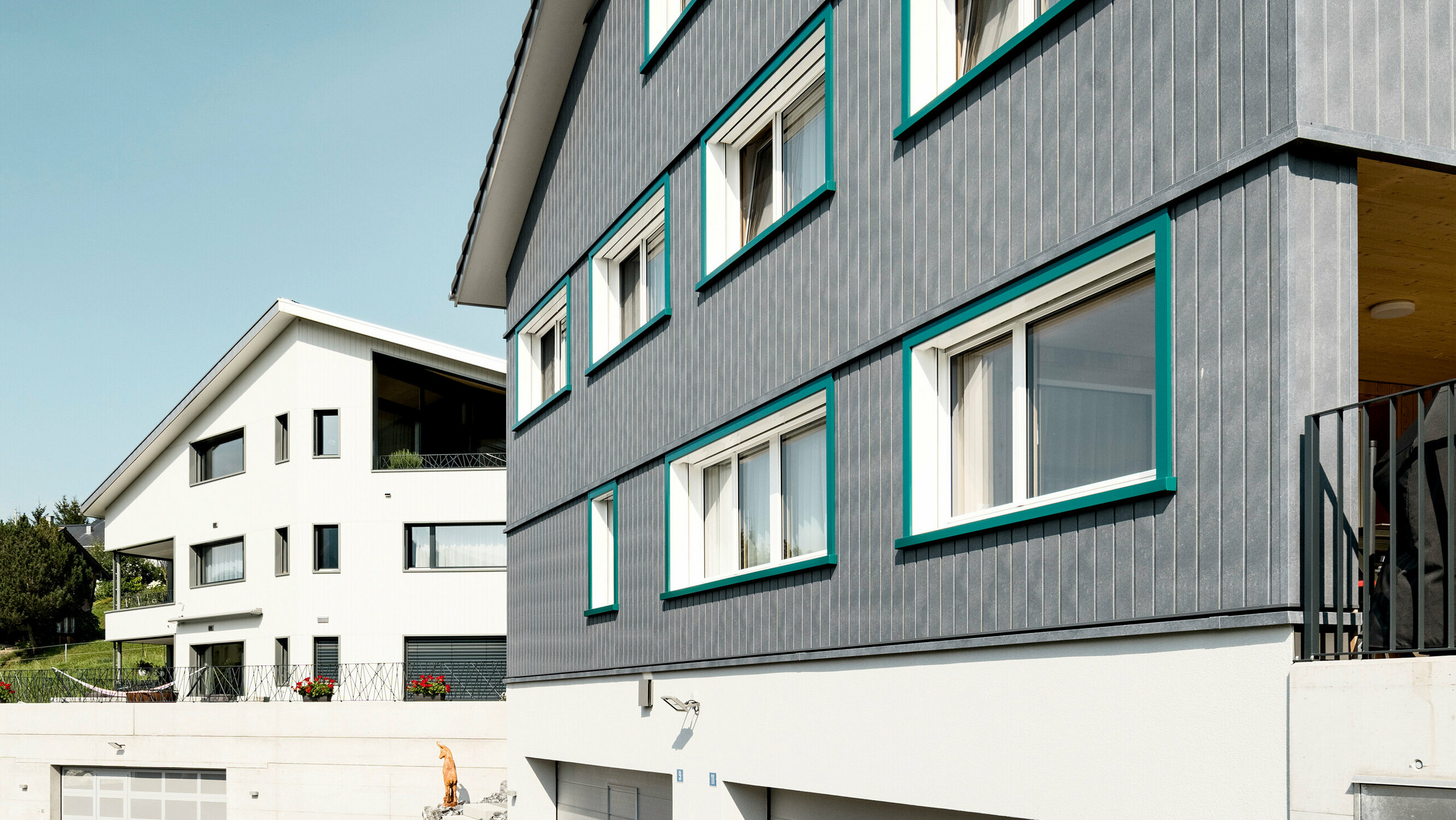

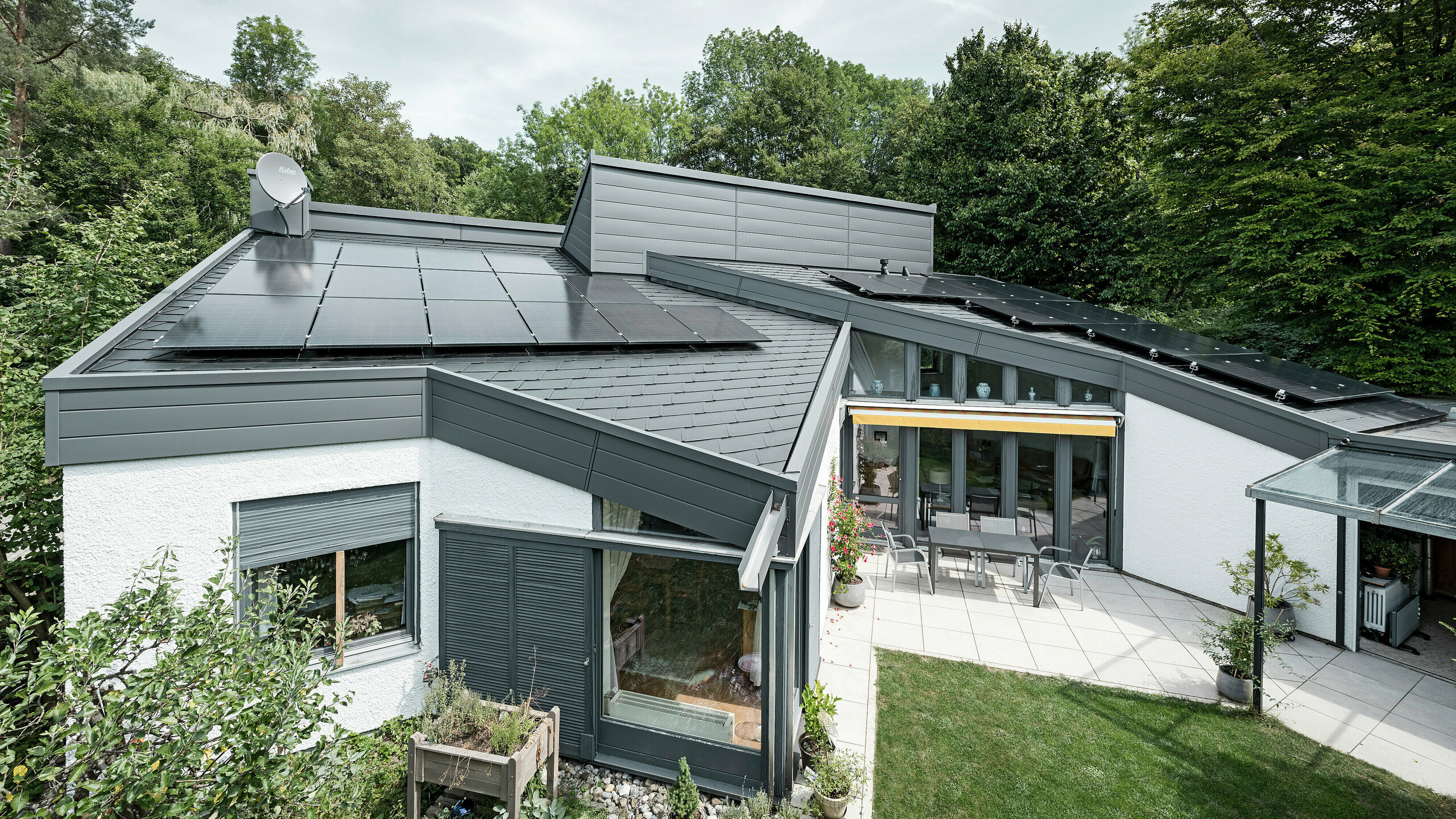

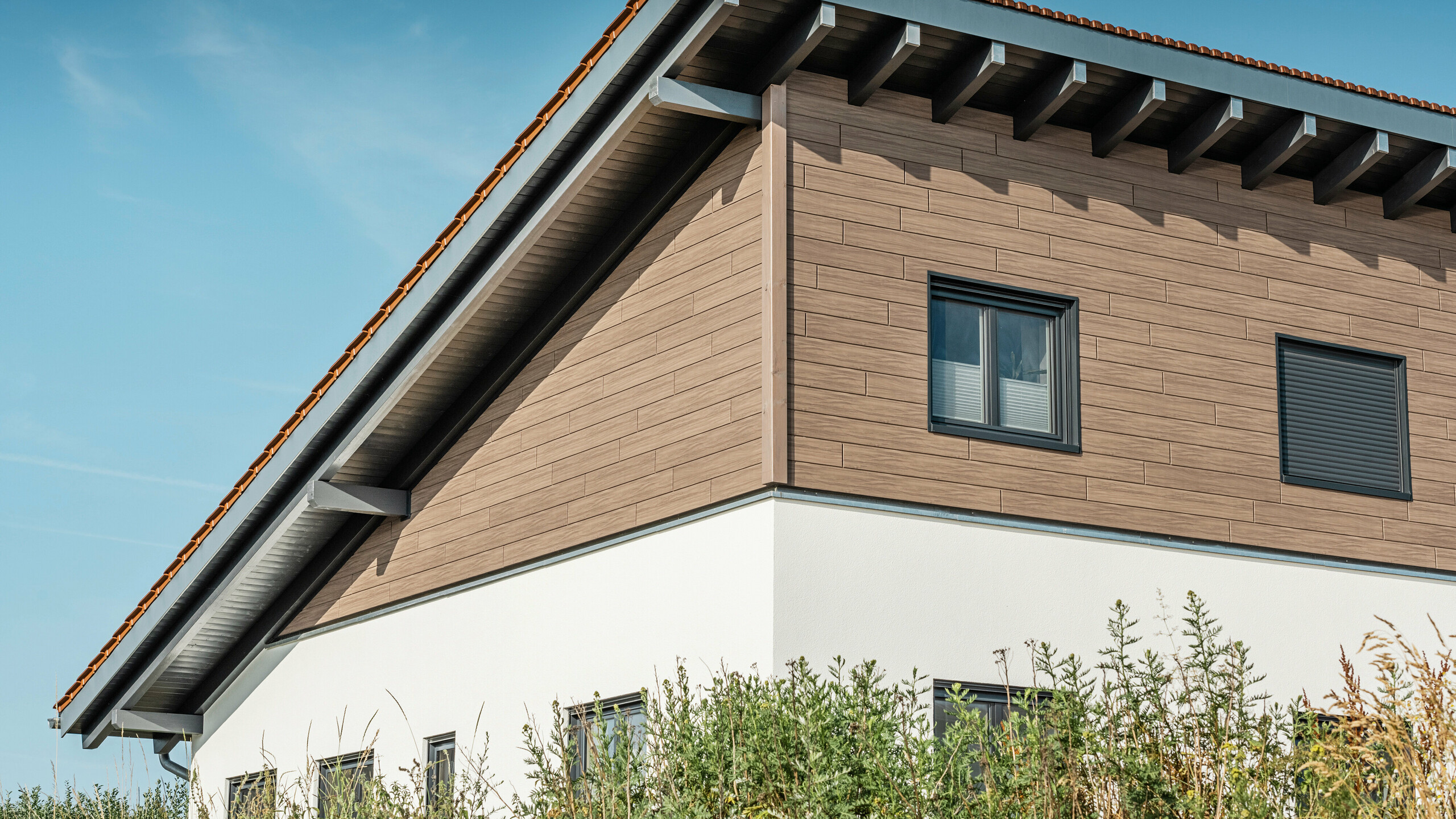

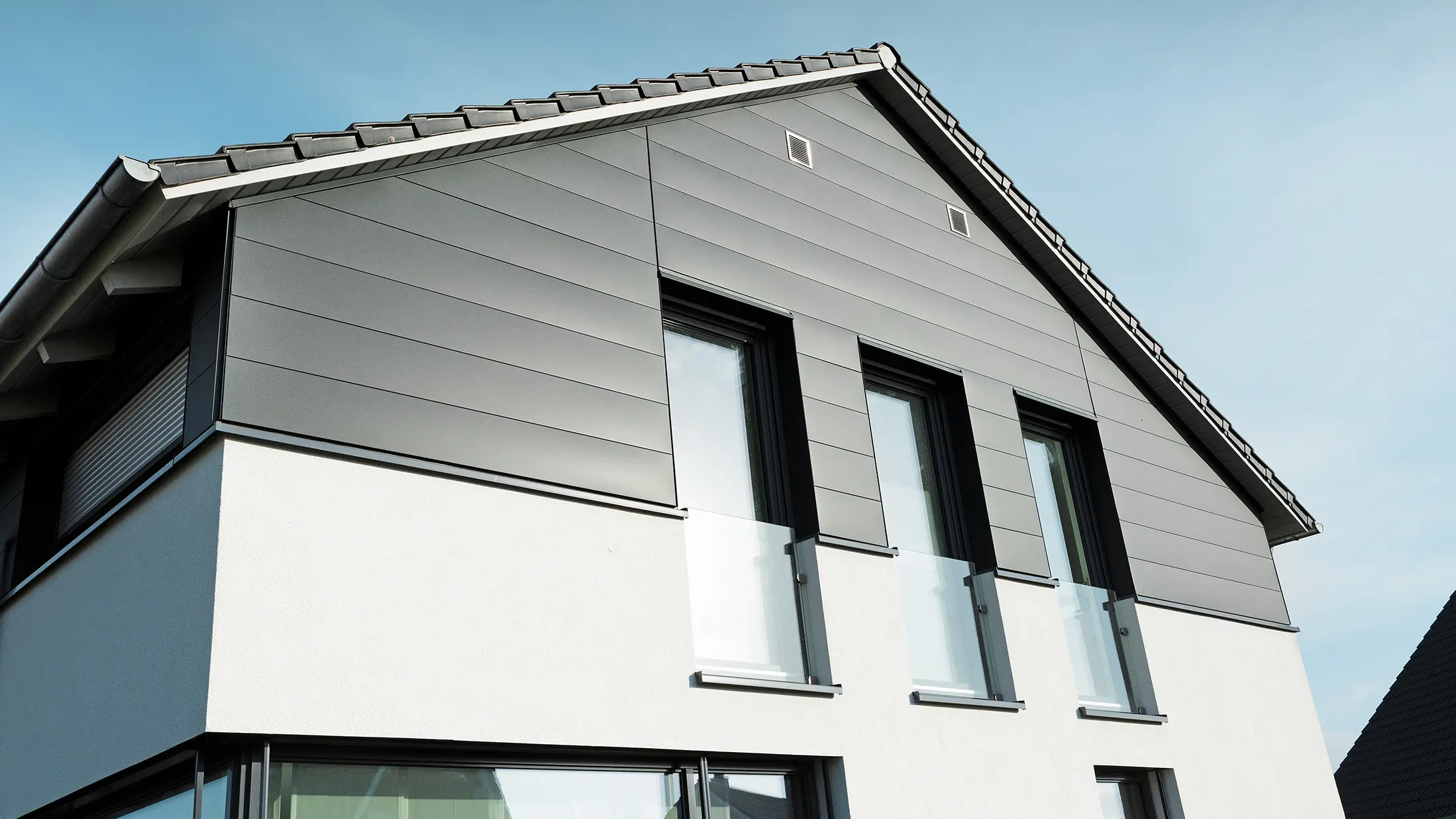

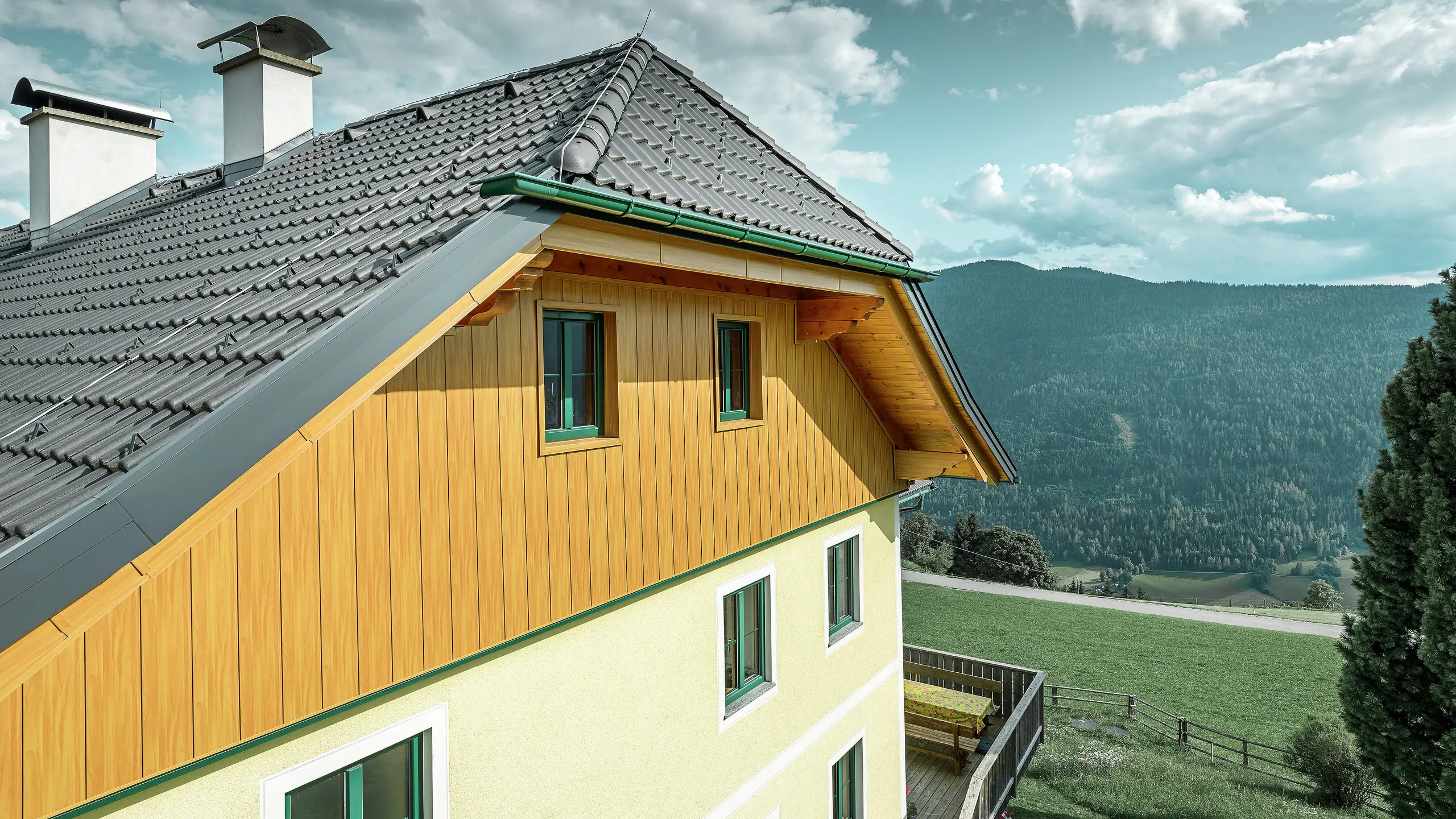

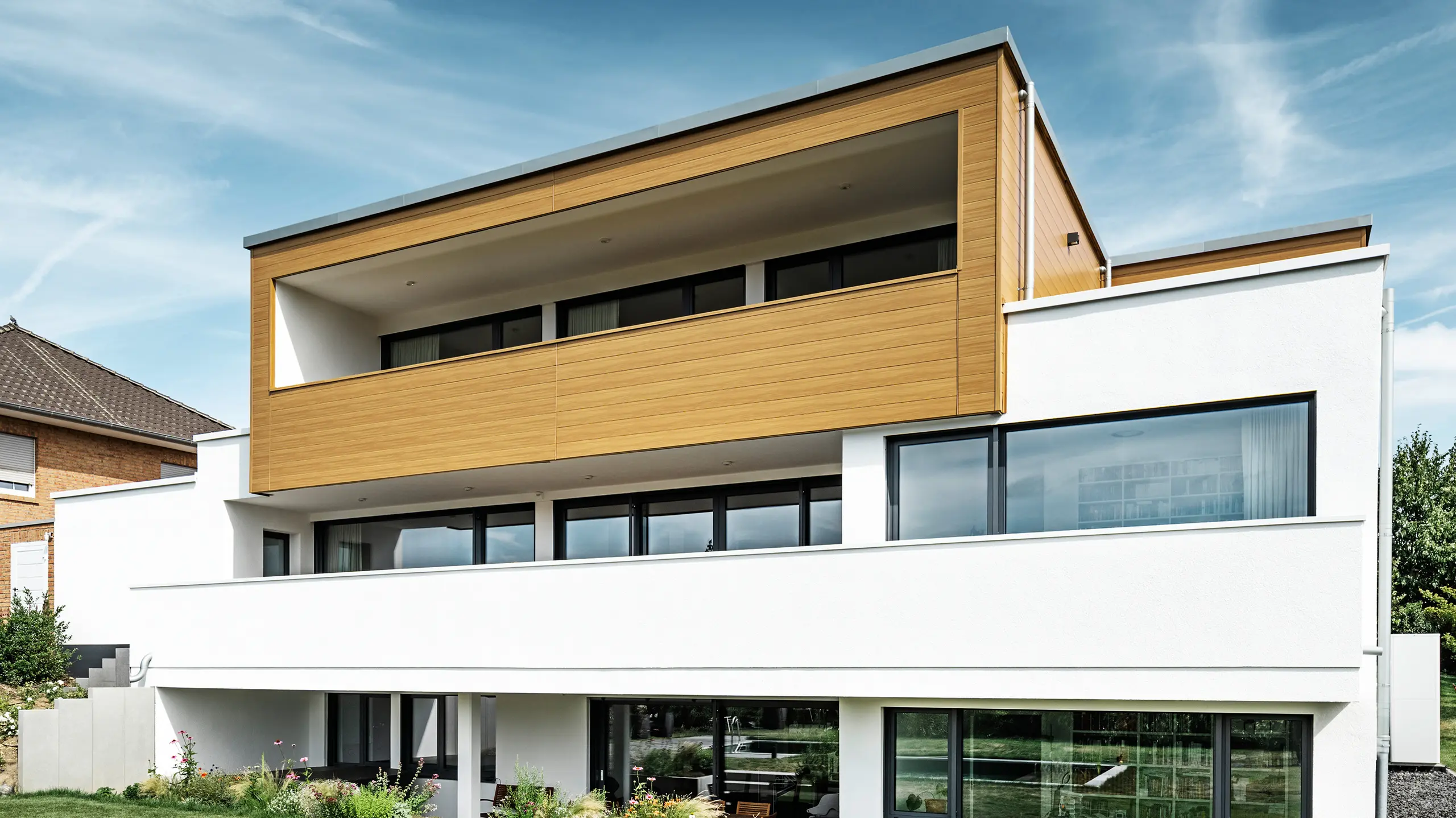

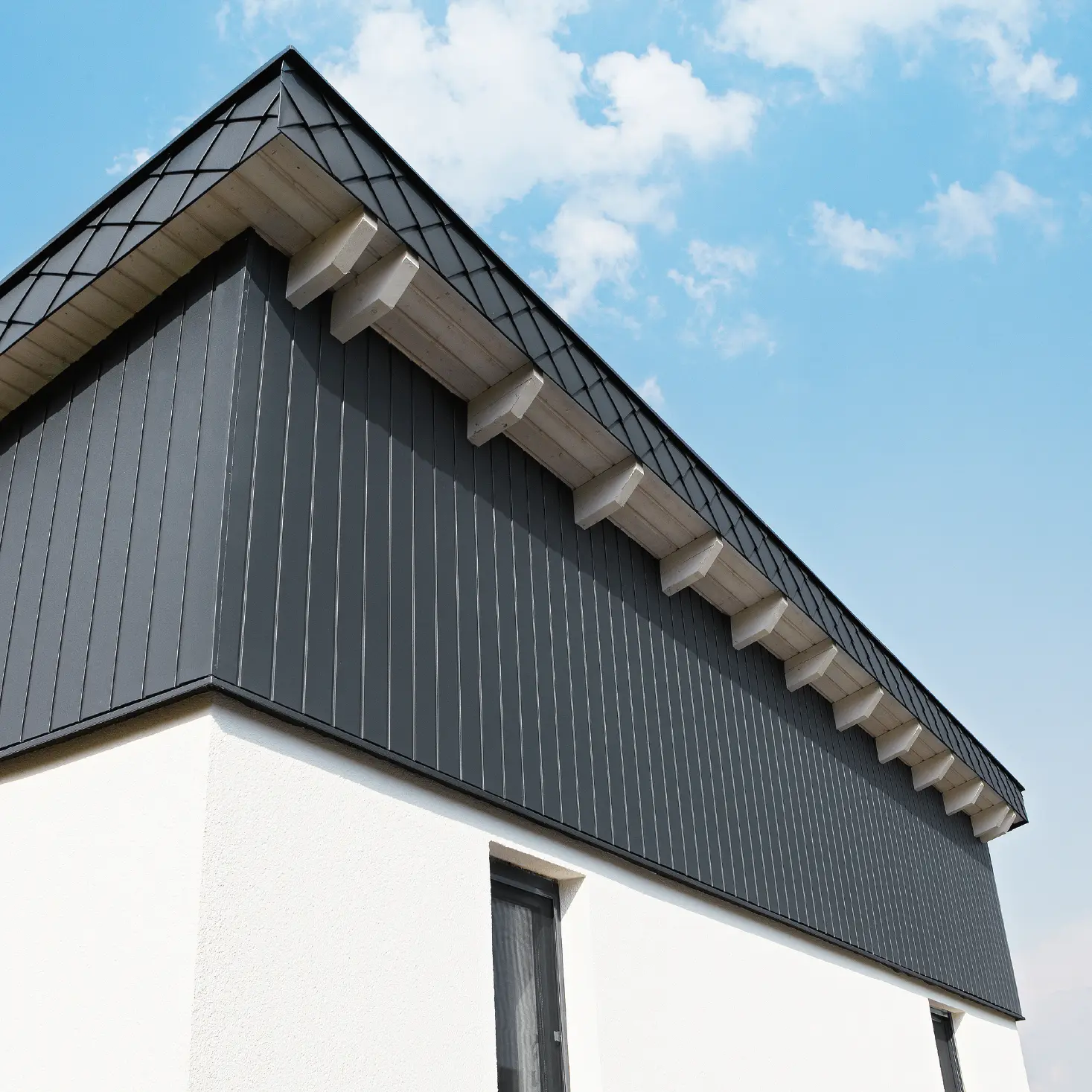

Reference buildings PREFA Façade systems Siding 01 P.10 brown Reference buildings PREFA Façade systems Siding 02 P.10 anthracite Reference buildings PREFA Façade systems Siding 03 P.10 black Reference buildings PREFA Façade systems Siding 04 P.10 brick red Reference buildings PREFA Façade systems Siding 05 P.10 oxide red Reference buildings PREFA Façade systems Siding 06 P.10 moss green Reference buildings PREFA Façade systems Siding 07 P.10 light grey Reference buildings PREFA Façade systems Siding 10 P.10 prefa white Reference buildings PREFA Façade systems Siding 11 P.10 nut brown Reference buildings PREFA Façade systems Siding 17 P.10 pure white Moderner Zubau – die Fassade wurde mit den PREFA Sidings in Dunkelgrau verkleidet. Reference buildings PREFA Façade systems Siding 41 P.10 rust brown Reference buildings PREFA Façade systems Siding 42 P.10 sand brown Façade design with aluminium panels, sidings in stone grey, from PREFA. Reference buildings PREFA Façade systems Siding 12 metallic silver Flat-roof extension with a curved window façade, the façade is clad with horizontal aluminium panels, the PREFA sidings in smoke silver. Reference buildings PREFA Façade systems Siding 21 ruby red Car dealer with an aluminium façade with PREFA sidings in black grey. Reference buildings PREFA Façade systems Siding 25 ivory Reference buildings PREFA Façade systems Siding 26 dark wood Conservatory extension with façade cladding in PREFA aluminium sidings in a light wood look. EMA commercial building, the façade is clad with PREFA aluminium bonded tiles in bronze and anthracite. Einfamilienhaus mit PREFA Siding in patina grau und Dachplatte in hellgrau
Product catalogue PREFA Façade systems Siding 01 P.10 brown P.10 Product catalogue PREFA Façade systems Siding 02 P.10 anthracite P.10 Product catalogue PREFA Façade systems Siding 03 P.10 black P.10 Product catalogue PREFA Façade systems Siding 04 P.10 brick red P.10 Product catalogue PREFA Façade systems Siding 05 P.10 oxide red P.10 Product catalogue PREFA Façade systems Siding 06 P.10 moss green P.10 Product catalogue PREFA Façade systems Siding 07 P.10 light grey P.10 Product catalogue PREFA Façade systems Siding 10 P.10 prefa white P.10 Product catalogue PREFA Façade systems Siding 11 P.10 nut brown P.10 Product catalogue PREFA Façade systems Siding 17 P.10 pure white P.10 Fassadengestaltung mit den PREFA Fassadenpaneelen Sidings in P.10 Dunkelgrau - ähnlich DB 703 oder RAL 7043 Product catalogue PREFA Façade systems Siding 41 P.10 rust brown P.10 Product catalogue PREFA Façade systems Siding 42 P.10 sand brown P.10 Product catalogue PREFA Façade systems Siding 43 P.10 stone grey P.10 Product catalogue PREFA Façade systems Siding 12 metallic silver DURAGLOSS 5000 Product catalogue PREFA Façade systems Siding 20 smoke silver DURAGLOSS 5000 Product catalogue PREFA Façade systems Siding 21 ruby red DURAGLOSS 5000 Product catalogue PREFA Façade systems Siding 23 black grey DURAGLOSS 5000 Product catalogue PREFA Façade systems Siding 25 ivory PP99 Product catalogue PREFA Façade systems Siding 26 dark wood DURAGLOSS 5000 Product catalogue PREFA Façade systems Siding 40 light wood DURAGLOSS 5000 Product catalogue PREFA Façade systems Siding 45 bronze DURAGLOSS 5000 Product catalogue PREFA Façade systems Siding 47 patina grey DURAGLOSS 5000
AVAILABLE COLOURS

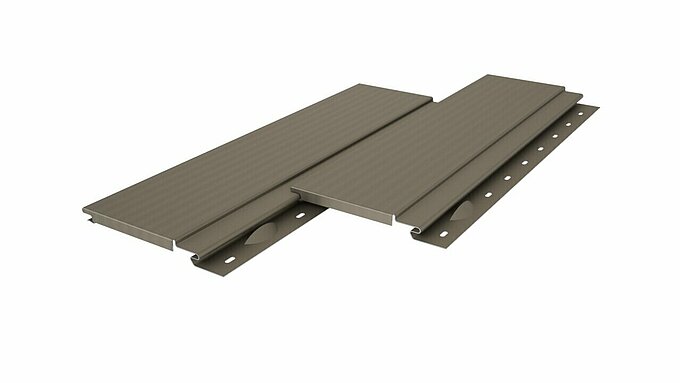

PREFA SIDING

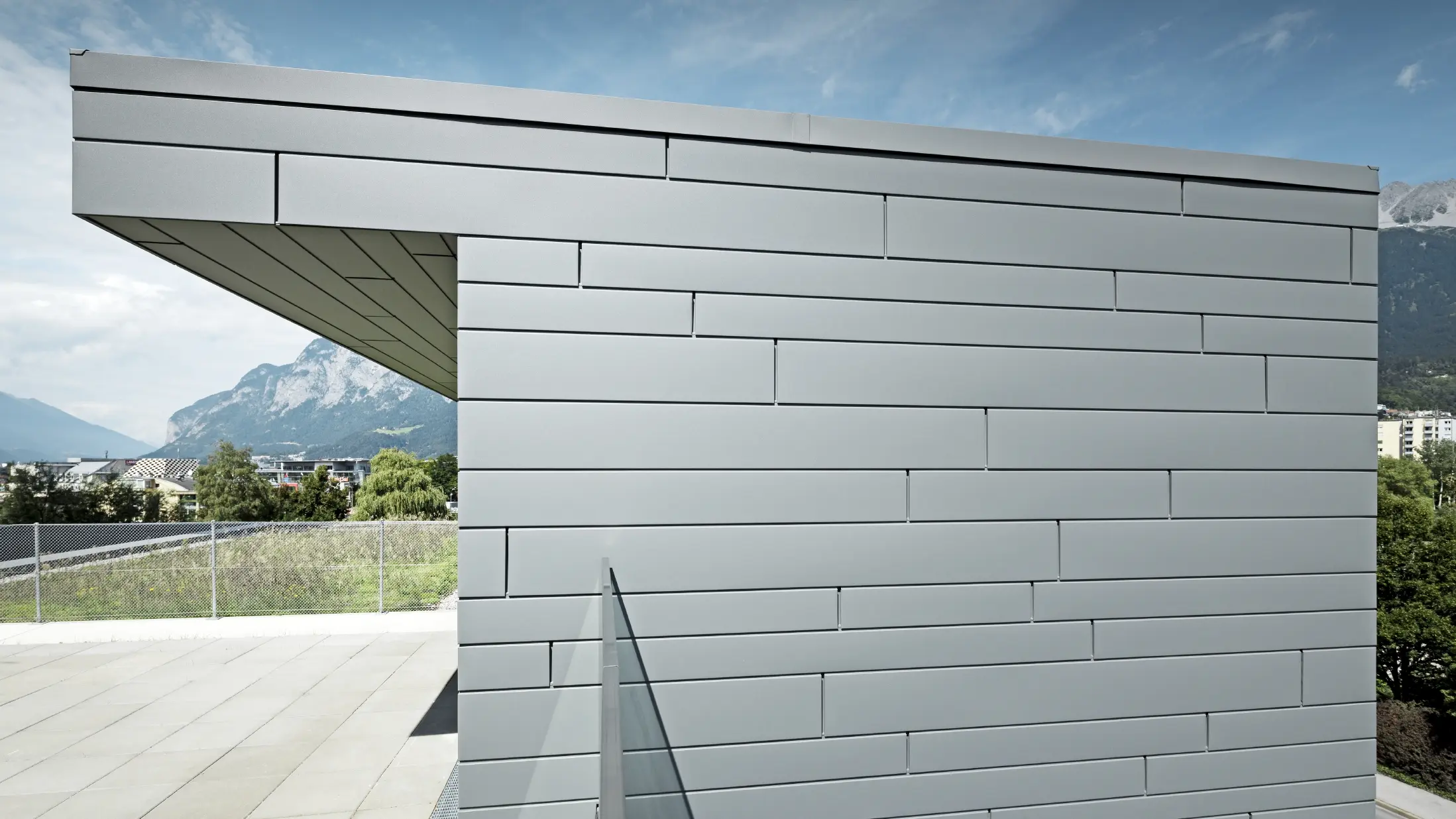

PREFA aluminium façade sidings are façade elements from the ventilated façade range. PREFA sidings are used in a variety of ways, both indoors and out, as wall and ceiling coverings. Their concealed fastening (via a tongue and groove system) guarantees an attractive appearance. PREFA sidings enable building façades to be ingeniously enhanced, maintained and modernised for decades to come.

  • Can be safely installed: diagonally, vertically or horizontally
  • 23 colours to choose from

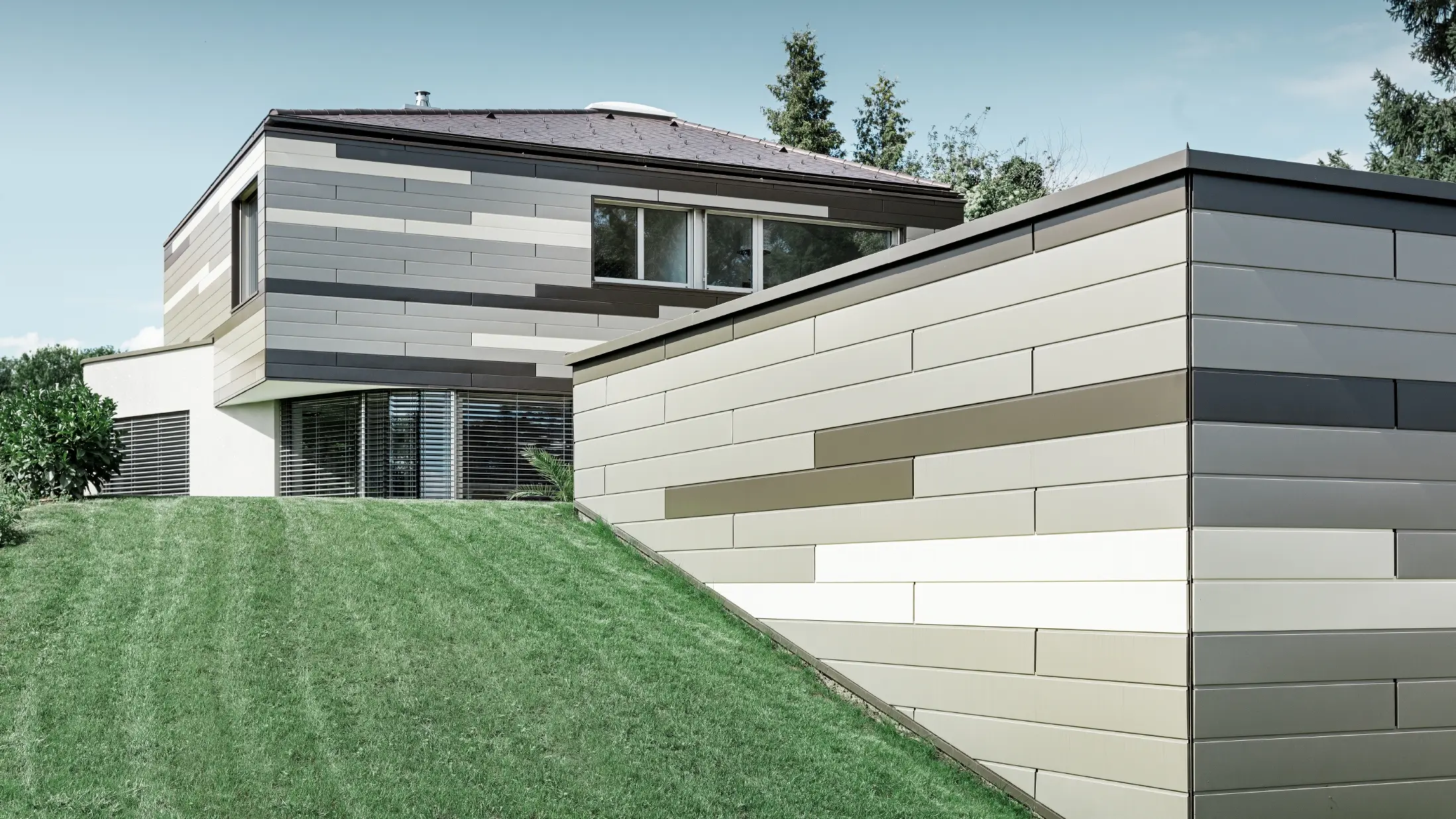

  • many design possibilities thanks to the combination of different visible widths

SIDING FAÇADE ELEMENTS – TECHNICAL INFORMATION

TECHNICAL INFORMATION ABOUT THE PRODUCT AND TECHNICAL DRAWINGS

COATING:

Coil coating

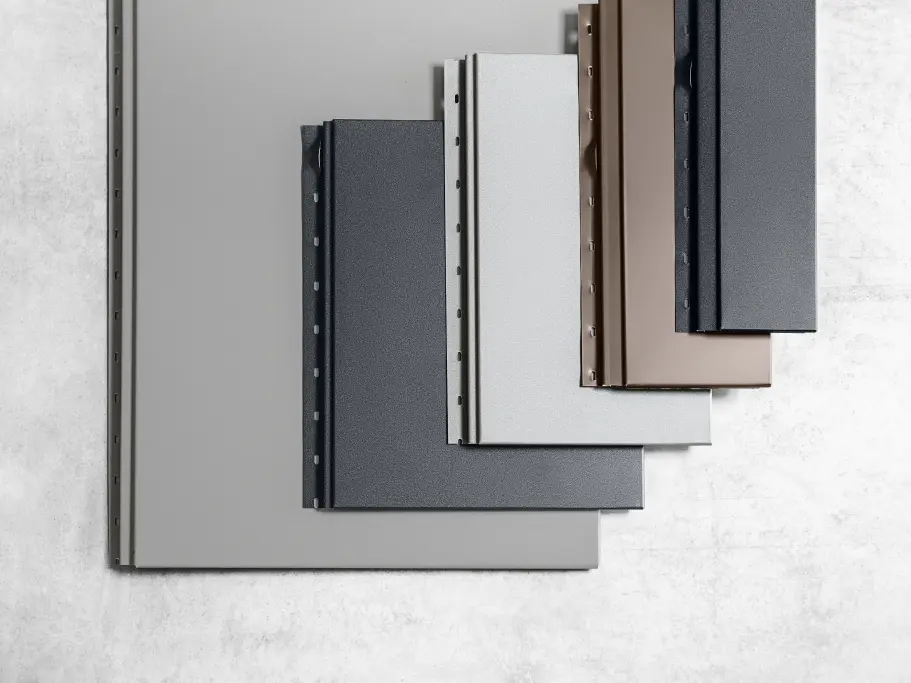

STANDARD MATERIAL:

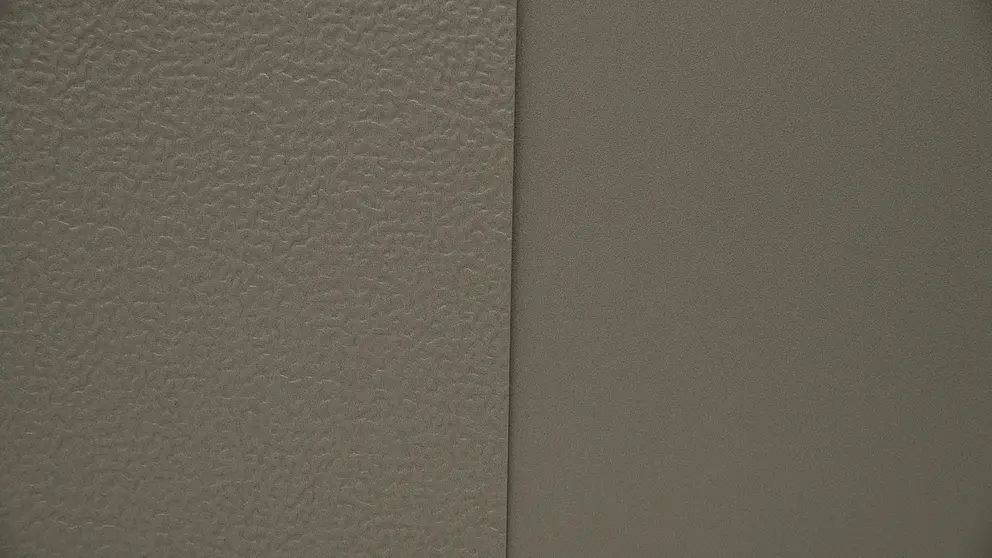

0.7 × 138 mm (thickness/visible side), stucco, lined with shadow gap option (also smooth for P.10)
1.0 × 200 mm (thickness/visible side), smooth, lined or stucco, with shadow gap option
1.2 × 300 mm (thickness/visible side), smooth, with shadow gap option
1.2 × 400 mm (thickness/visible side), smooth, with shadow gap option (installation with storm-proof clip)

special visible widths (120 to 400 mm) upon request

ENDS:

with or without edge downstand (11 mm)

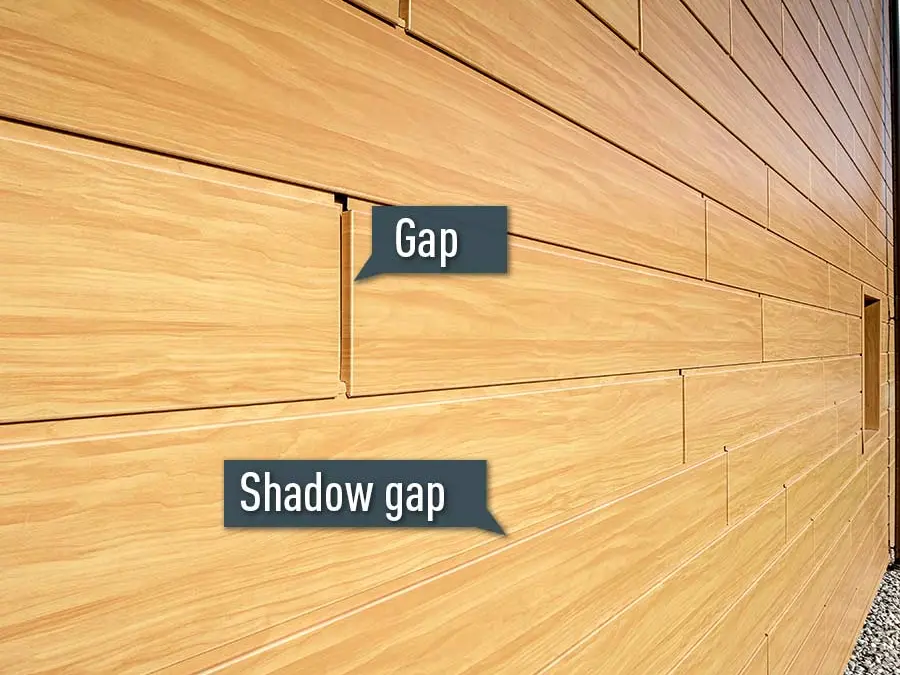

SHADOW GAP:

with or without shadow gap; shadow gap: 15 mm wide, 7 mm deep

WEIGHT:

approx. 3.30–4.30 kg/m² depending on the visible width

LENGTH:

500–2,500 mm for all visible widths (with PREFA joint)

500–6,200 mm for all visible widths (without PREFA joint)

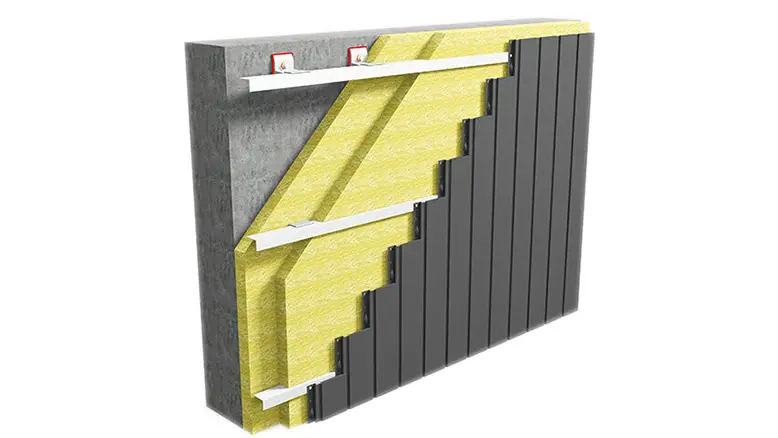

SIDING FAÇADE ELEMENTS – TECHNICAL DRAWING

PREFA SIDING – COLOUR RANGE (SPECIAL COLOURS AVAILABLE ON REQUEST)

THE PRODUCT IS AVAILABLE IN THE FOLLOWING COLOURS

COLOUR ~ RAL ~ NCS DETAILS
01 P.10 brown 7013 S 8005-Y20R 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth
02 P.10 anthrcite 7016 S 8502-B 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth
03 P.10 black 9005 S 9000-N 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth
04 P.10 brick red 8004 S 4550-Y60R 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
05 P.10 oxide red 3009 S 0530-Y90R 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
06 P.10 moss green 6005 S 7020-G 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
07 P.10 light grey 7005 S 6000-N 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth
10 P.10 prefa white 9002 S 1200-N 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
11 P.10 nut brown 8019 S 8005-Y80R 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
12 mitallic silver³ 9006 S 3502-B 138 × 0,70 mm stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth
17 P.10 pure white 9010 S 0502-Y 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth
19 P.10 dark grey 7043 S 7500-N 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth
20 smoke silver³ 9007 S 5500-N 200 × 1,00 mm smooth, stucco, lined
21 ruby red 3003 S 2570-R 200 × 1,00 mm smooth, stucco, lined
23 black grey 7022 S 8000-N 200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,2 mm smooth
25 ivory 1015 S 1010-Y30R 138 × 0,7 mm stucco, lined
200 × 1,00 mm smooth, stucco, lined
26 dark wood¹ 8015 S 6030-Y80R 138 × 0,70 mm smooth
200 × 1,00 mm smooth
40 licht wood¹ 1011 S 4040-Y20R 200 × 1,00 mm smooth
41 P.10 rust brown¹ 8015 S 7010-Y70R 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
42 P.10 sand brown¹ 1019 S 4020-Y20R 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
43 P.10 stone grey¹ 7031 S 6005-R80B 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth
45 bronze³ 7048 S 6005-R80B 200 × 1,00 mm smooth, stucco, lined
47 patina grey¹ 7042 S 5000-N 138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
COLOUR
01 P.10 brown
~ RAL
7013
~ NCS
S 8005-Y20R
DETAILS
138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth
COLOUR
02 P.10 anthrcite
~ RAL
7016
~ NCS
S 8502-B
DETAILS
138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth
COLOUR
03 P.10 black
~ RAL
9005
~ NCS
S 9000-N
DETAILS
138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth
COLOUR
04 P.10 brick red
~ RAL
8004
~ NCS
S 4550-Y60R
DETAILS
138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
COLOUR
05 P.10 oxide red
~ RAL
3009
~ NCS
S 0530-Y90R
DETAILS
138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
COLOUR
06 P.10 moss green
~ RAL
6005
~ NCS
S 7020-G
DETAILS
138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
COLOUR
07 P.10 light grey
~ RAL
7005
~ NCS
S 6000-N
DETAILS
138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth
COLOUR
10 P.10 prefa white
~ RAL
9002
~ NCS
S 1200-N
DETAILS
138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
COLOUR
11 P.10 nut brown
~ RAL
8019
~ NCS
S 8005-Y80R
DETAILS
138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
COLOUR
12 mitallic silver³
~ RAL
9006
~ NCS
S 3502-B
DETAILS
138 × 0,70 mm stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth
COLOUR
17 P.10 pure white
~ RAL
9010
~ NCS
S 0502-Y
DETAILS
138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth
COLOUR
19 P.10 dark grey
~ RAL
7043
~ NCS
S 7500-N
DETAILS
138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth
COLOUR
20 smoke silver³
~ RAL
9007
~ NCS
S 5500-N
DETAILS
200 × 1,00 mm smooth, stucco, lined
COLOUR
21 ruby red
~ RAL
3003
~ NCS
S 2570-R
DETAILS
200 × 1,00 mm smooth, stucco, lined
COLOUR
23 black grey
~ RAL
7022
~ NCS
S 8000-N
DETAILS
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,2 mm smooth
COLOUR
25 ivory
~ RAL
1015
~ NCS
S 1010-Y30R
DETAILS
138 × 0,7 mm stucco, lined
200 × 1,00 mm smooth, stucco, lined
COLOUR
26 dark wood¹
~ RAL
8015
~ NCS
S 6030-Y80R
DETAILS
138 × 0,70 mm smooth
200 × 1,00 mm smooth
COLOUR
40 licht wood¹
~ RAL
1011
~ NCS
S 4040-Y20R
DETAILS
200 × 1,00 mm smooth
COLOUR
41 P.10 rust brown¹
~ RAL
8015
~ NCS
S 7010-Y70R
DETAILS
138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
COLOUR
42 P.10 sand brown¹
~ RAL
1019
~ NCS
S 4020-Y20R
DETAILS
138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
COLOUR
43 P.10 stone grey¹
~ RAL
7031
~ NCS
S 6005-R80B
DETAILS
138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined
300 × 1,20 mm smooth
400 × 1,20 mm smooth
COLOUR
45 bronze³
~ RAL
7048
~ NCS
S 6005-R80B
DETAILS
200 × 1,00 mm smooth, stucco, lined
COLOUR
47 patina grey¹
~ RAL
7042
~ NCS
S 5000-N
DETAILS
138 × 0,70 mm smooth, stucco, lined
200 × 1,00 mm smooth, stucco, lined

¹ The colours P.10 stone grey, P.10 sand brown, P.10 rust brown, P.10 patina green, light wood, dark wood, patina grey and natural blank reflect natural colouring and are therefore subject to minimal variation, which gives the products their unmistakable character.

² The warranty does not cover changes to the surface appearance due to processing and environmental influences. Please refer to information sheet.

³ Metallic colours may vary in shade.

Notes

  • The RAL and NCS values stated are merely approximate values (~), some of which may differ vastly from the original PREFA colour and, under certain circumstances, may not reflect the subjective perception of the colour.
  • Above all for colour quality P.10, it is almost impossible to define values due to the surface structure. Furthermore, the colours P.10 stone grey, P.10 sand brown, P.10 rust brown, P.10 patina green, light wood, dark wood, and patina grey reflect natural colourings that are composed of several colour tones.
  • To identify exact colours for complementary components please consult original samples.
COLOUR DETAILS

SIDING – ACCESSORIES

YOU CAN FIND A LIST OF ACCESSORIES FOR THE PRODUCT HERE

PREFA Joint.138/200/300/400

PREFA JOINT.138/200/300/400

Joint width of 15 mm, for sidings with a visible width of 138 mm, 200 mm, 300 mm and 400 mm
with shadow gap
maximum siding length of 2,500 mm

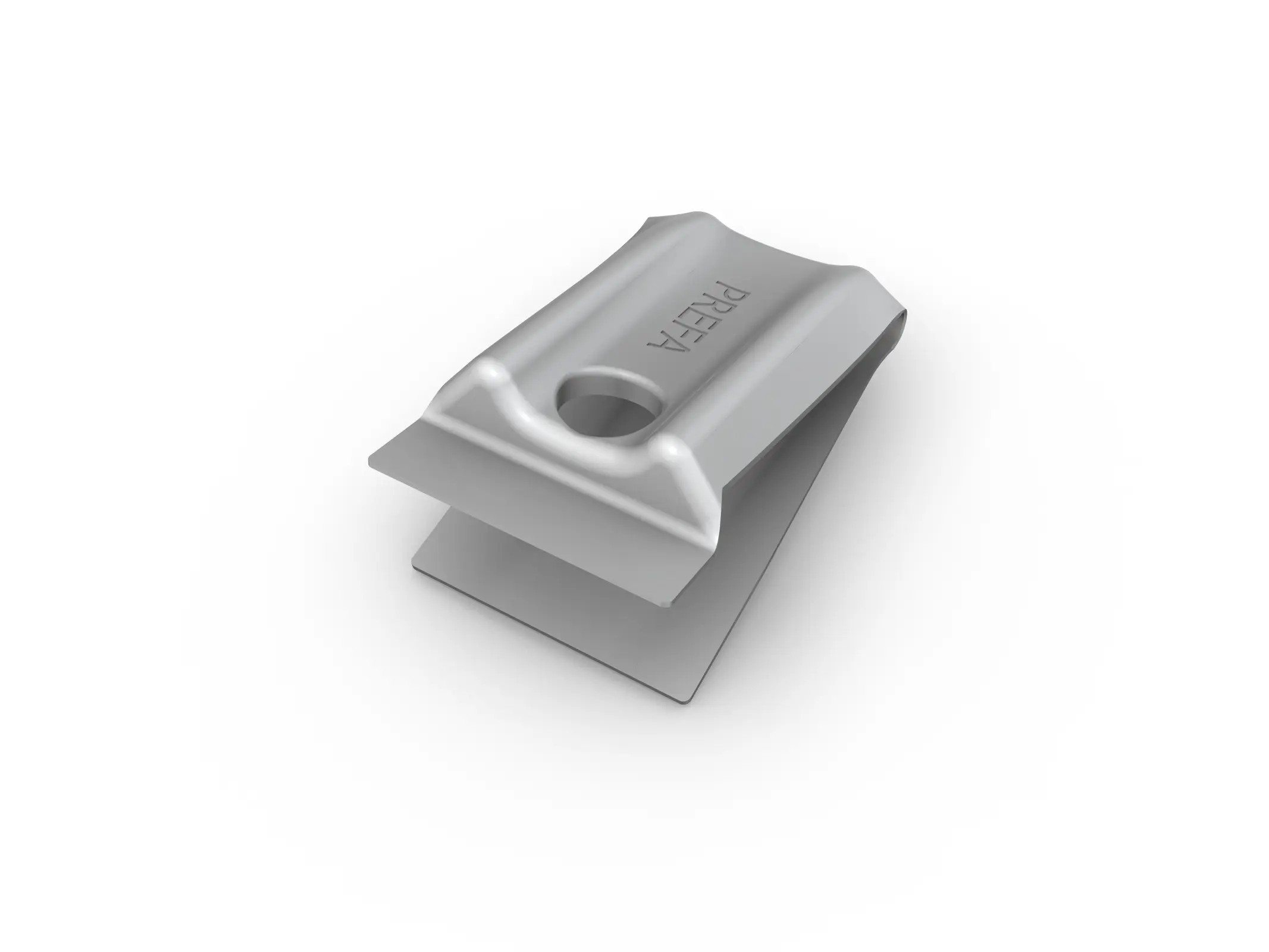

PREFA storm-proof clip

PREFA STORM-PROOF CLIP

made of stainless steel, 6–9 pc./m²; according to visible width and wind-drag loads

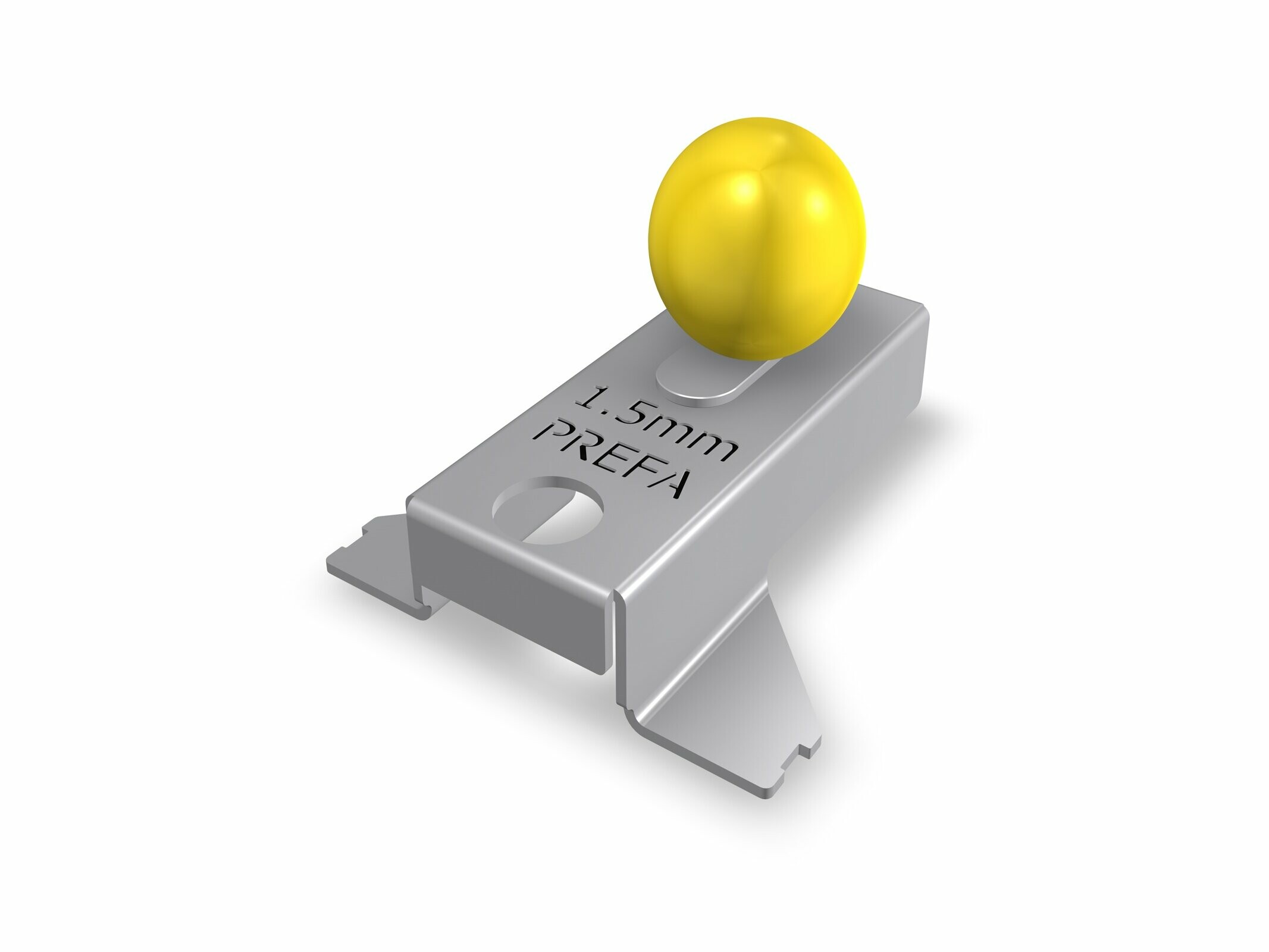

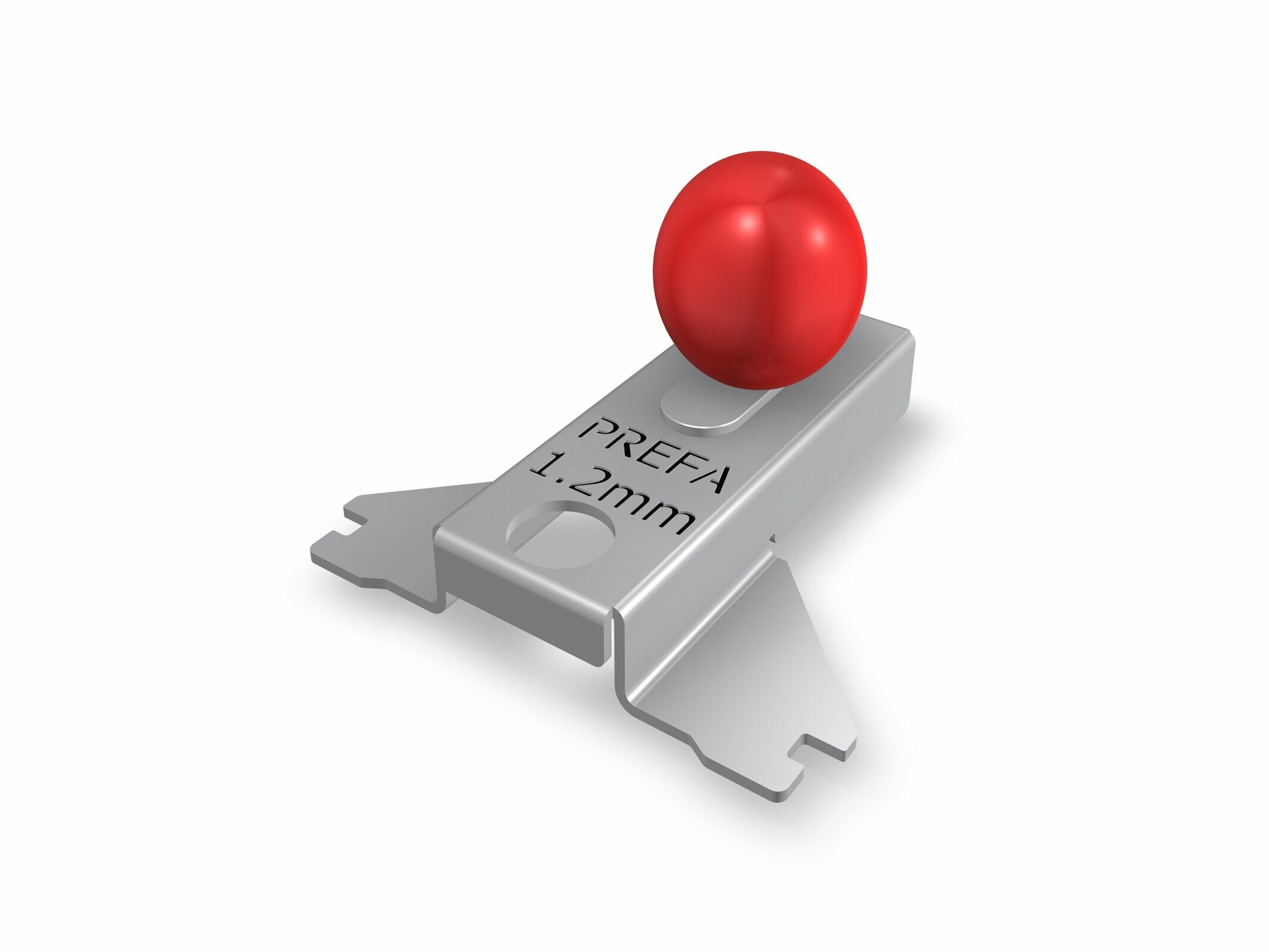

PREFA storm-proof clip mounting aid

PREFA STORM-PROOF CLIP MOUNTING AID

made of stainless steel

PREFA corner siding

PREFA CORNER SIDING

500 mm side length on both sides (inside dimensions), 521 mm side length on both sides (external dimensions), 1,042 mm in the cross-section

PREFA drip

PREFA DRIP

PREFA joint connector plate

PREFA JOINT CONNECTOR PLATE

made of embossed aluminium, PREFA design wave (transverse, 5 mm), for PREFA drip

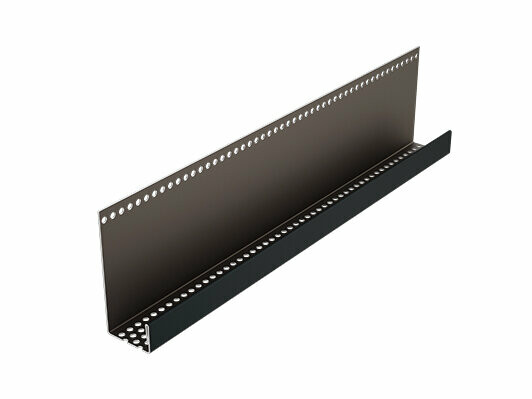

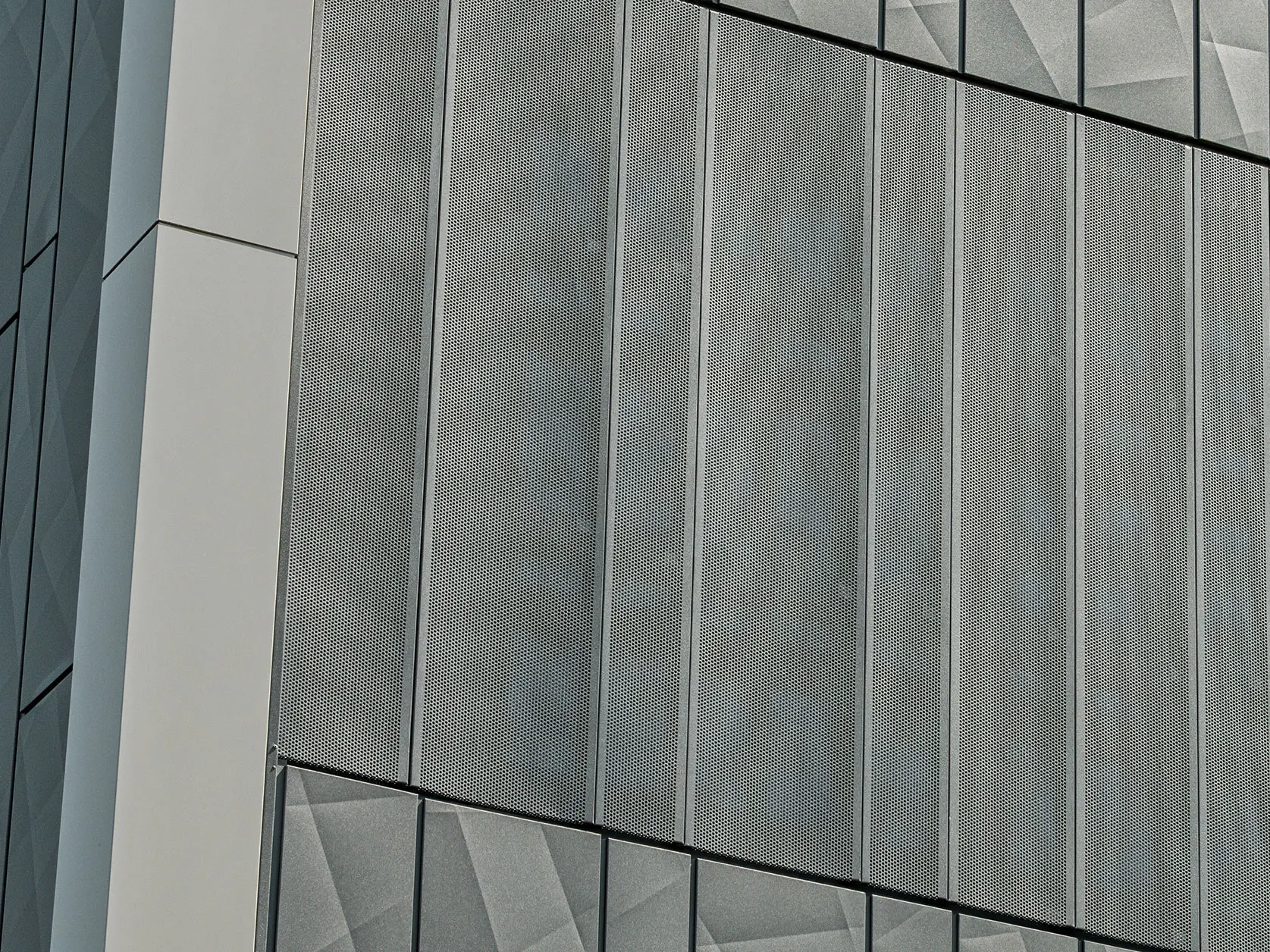

PREFA perforated plate

PREFA PERFORATED PLATE

PREFA channel profile (canted)

PREFA CHANNEL PROFILE (CANTED)

PREFA hemmed flashing

PREFA HEMMED FLASHING

PREFA starter profile

PREFA STARTER PROFILE

PREFA external corner flashing

PREFA EXTERNAL CORNER FLASHING

PREFA reveal flashing

PREFA REVEAL FLASHING

PREFA closing profile

PREFA CLOSING PROFILE

for reinforcing the ends, e.g. diagonal cuts

PREFA protruding corner (2 elements)

PREFA PROTRUDING CORNER (2 ELEMENTS)

PREFA joint connection

PREFA JOINT CONNECTION

PREFA recessed corner

PREFA RECESSED CORNER

PREFA base profile

PREFA BASE PROFILE

Fasteners for woodsiding – wooden substructure

FASTENERS FOR WOODSIDING – WOODEN SUBSTRUCTURE

Fasteners for aluminiumsiding – aluminium substructure

FASTENERS FOR ALUMINIUMSIDING – ALUMINIUM SUBSTRUCTURE

PREFA mounting hole cover

PREFA MOUNTING HOLE COVER

for covering bore holes and small repairs

PREFA patent rivets for siding flashing strip

PREFA PATENT RIVETS FOR SIDING FLASHING STRIP

with stainless steel pin, splash-proof
