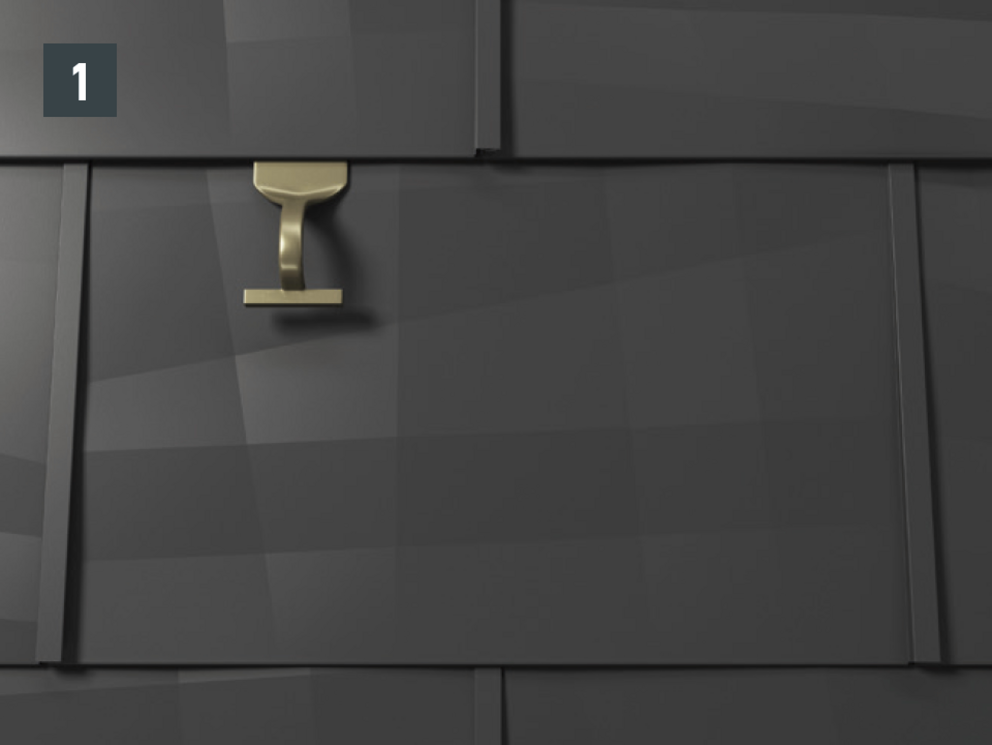

- Lift up the upper transverse fold of the damaged FX.12 roof panel (Fig. 1).

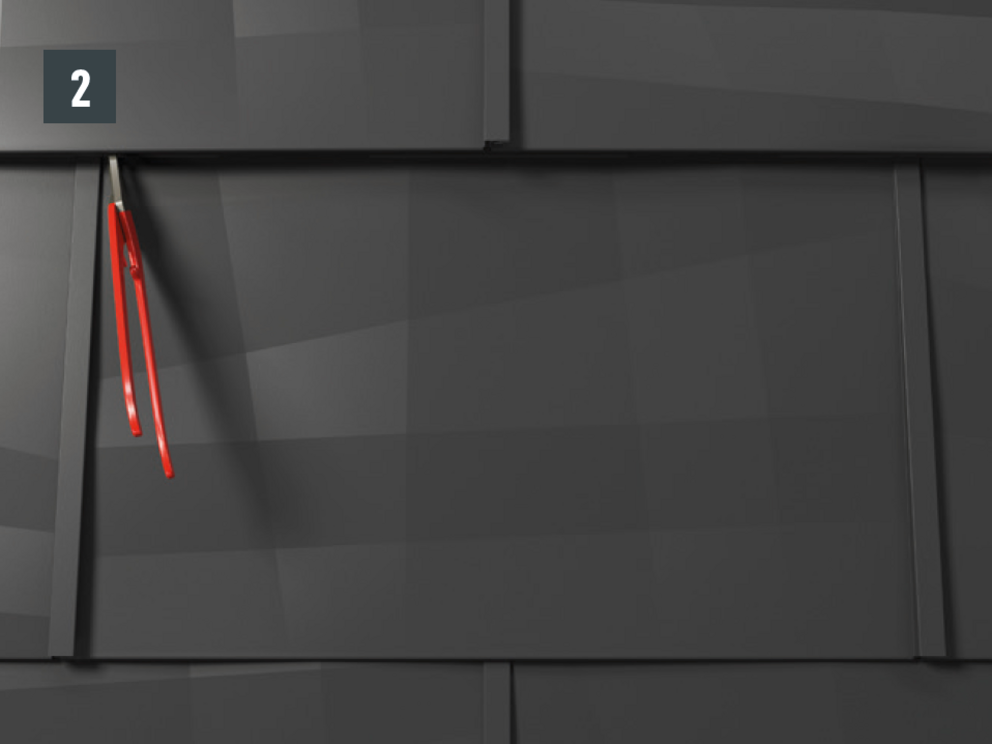

- Remove the fastening and cut into the upper patent fold (Image 2). Then pull the FX.12 roof panel down and out.

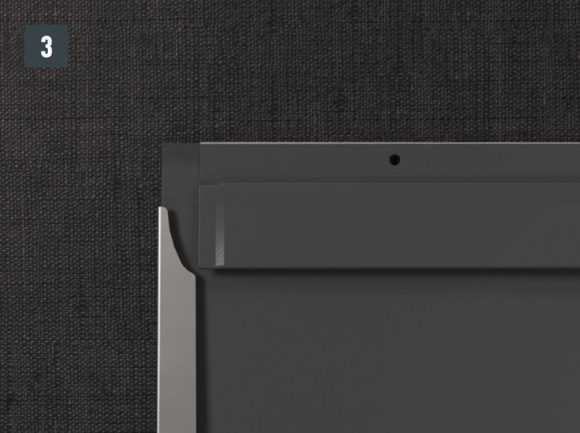

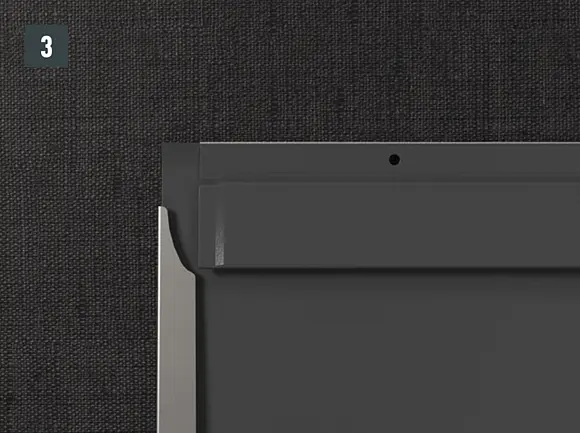

- Prepare new FX.12 roof panel according to Fig. 3.

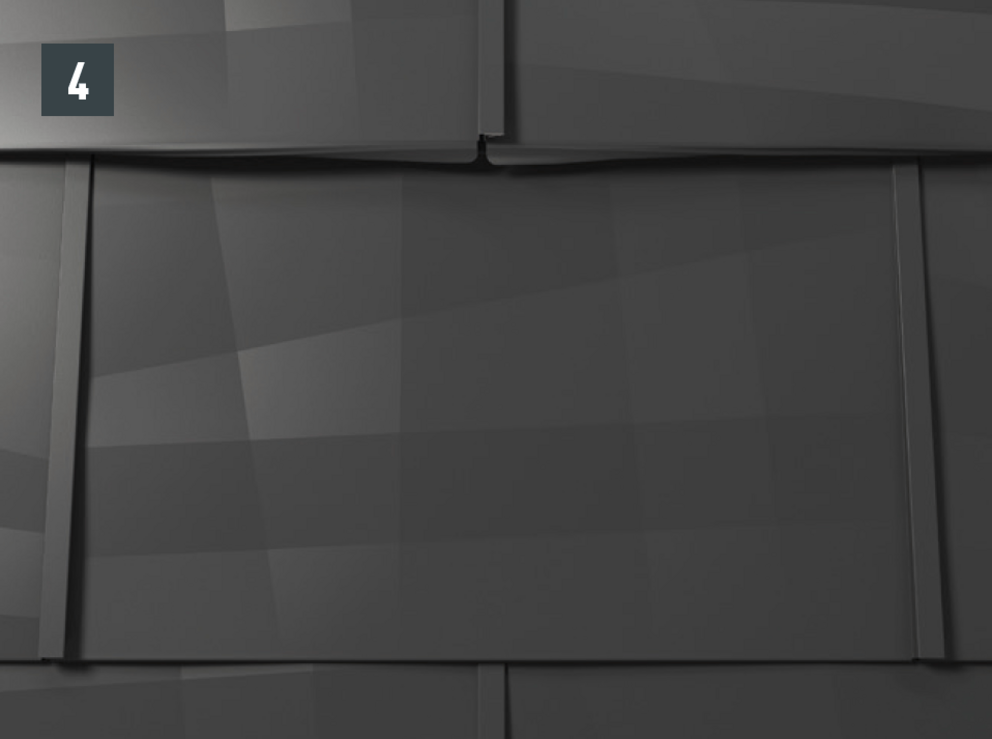

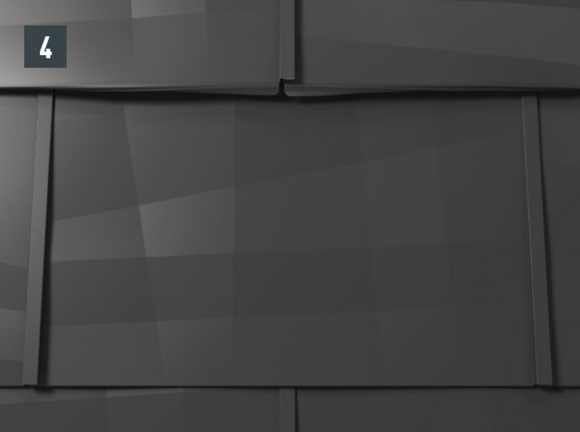

- Push the new FX.12 roof panel in position and fasten it. Bend the fold of the upper FX.12 roof panel downwards at an angle of approx. 90° (Fig. 4).
CAUTION: Choose the position of the new ring nails carefully, they must not hammeredd into the existing holes!

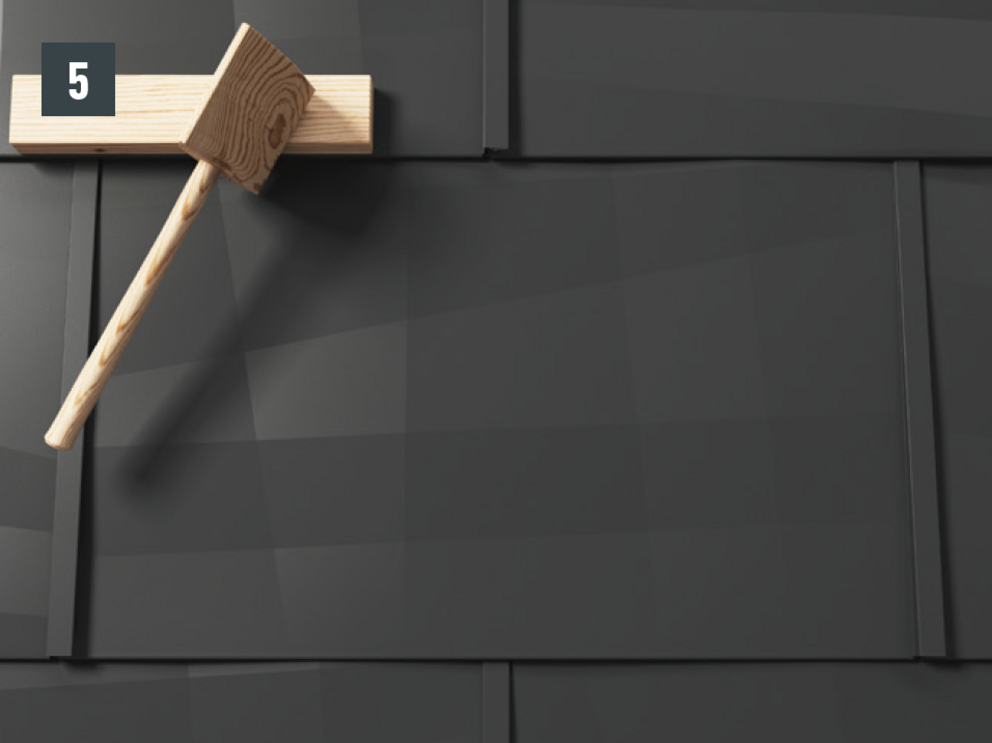

- Carefully adjust the fold into the original shape (Image 5).

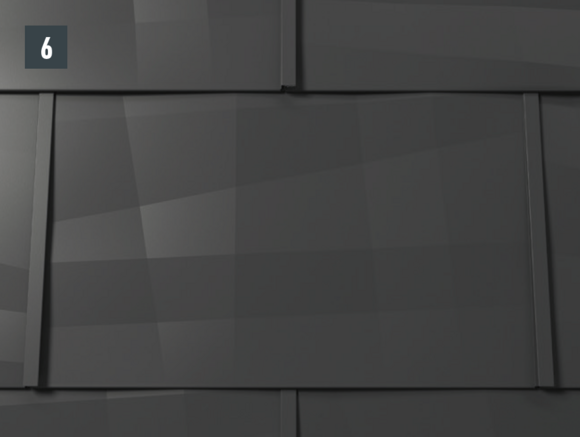

- A professionally replaced FX.12 roof panel should not be recognisable as such (Fig. 6).
