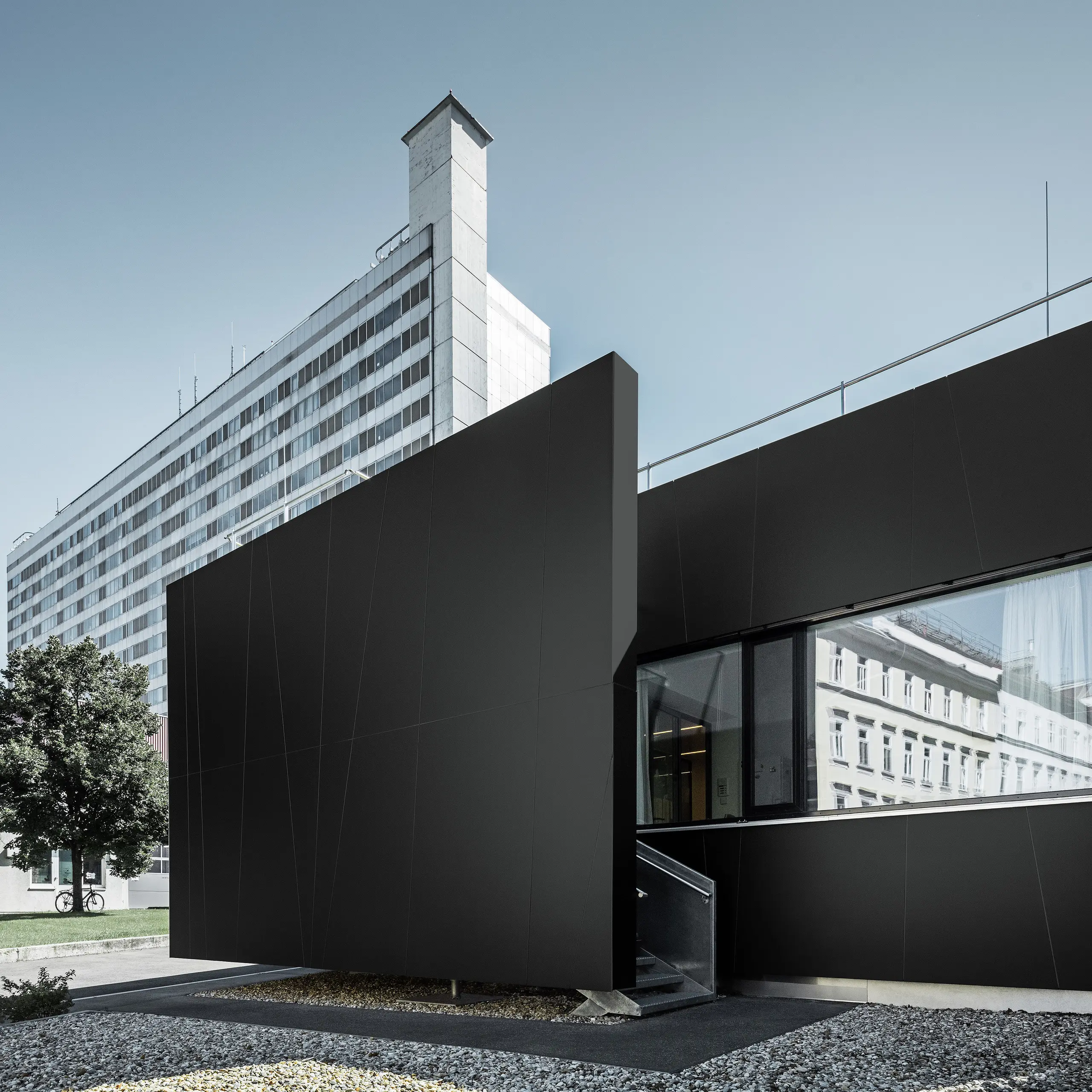

The frontal view of the Central A&E Department at the Landstraße Clinic on Juchgasse, Vienna, was clad with black grey PREFABOND aluminium composite panels.

Aluminium composite panel

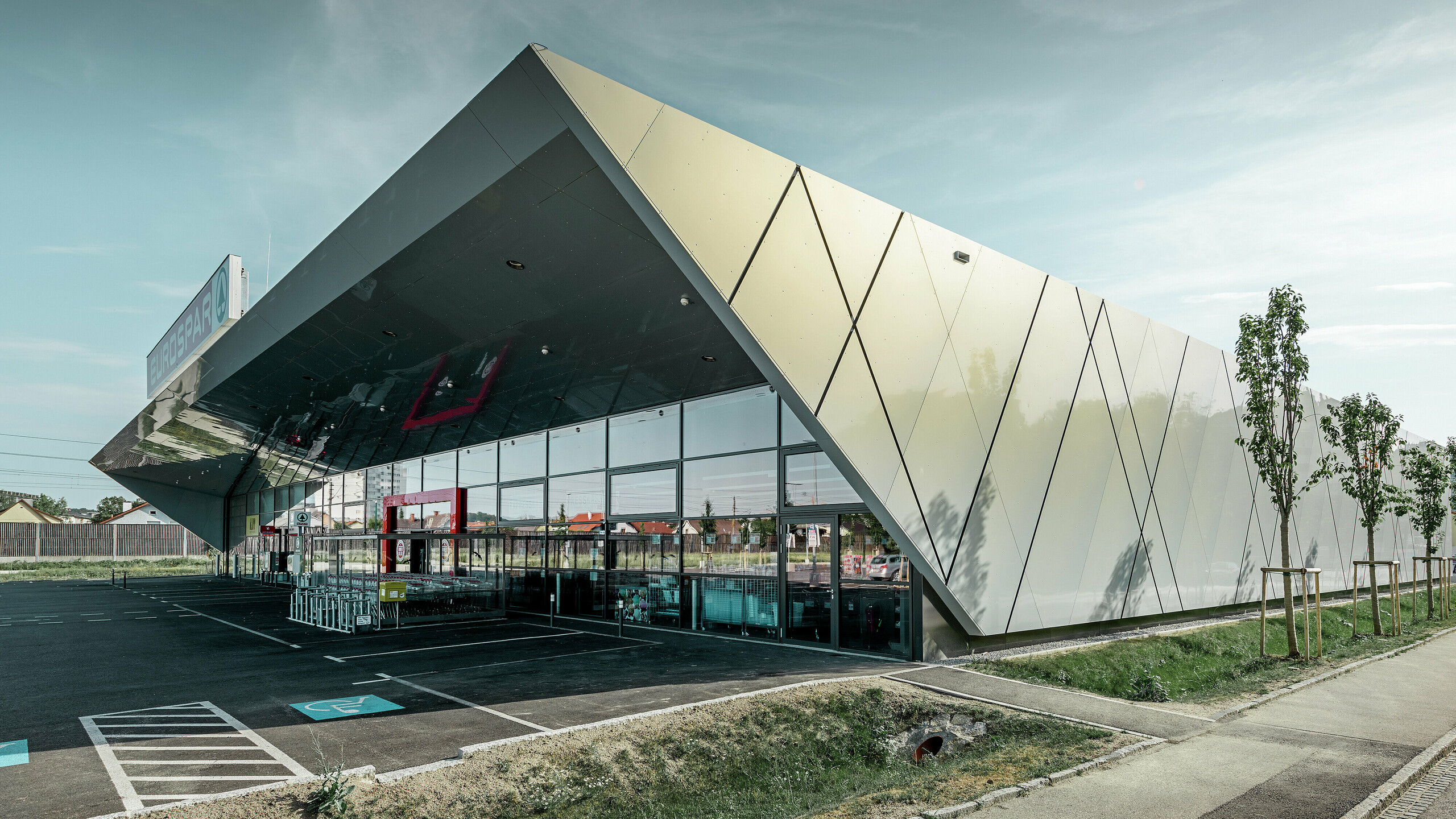

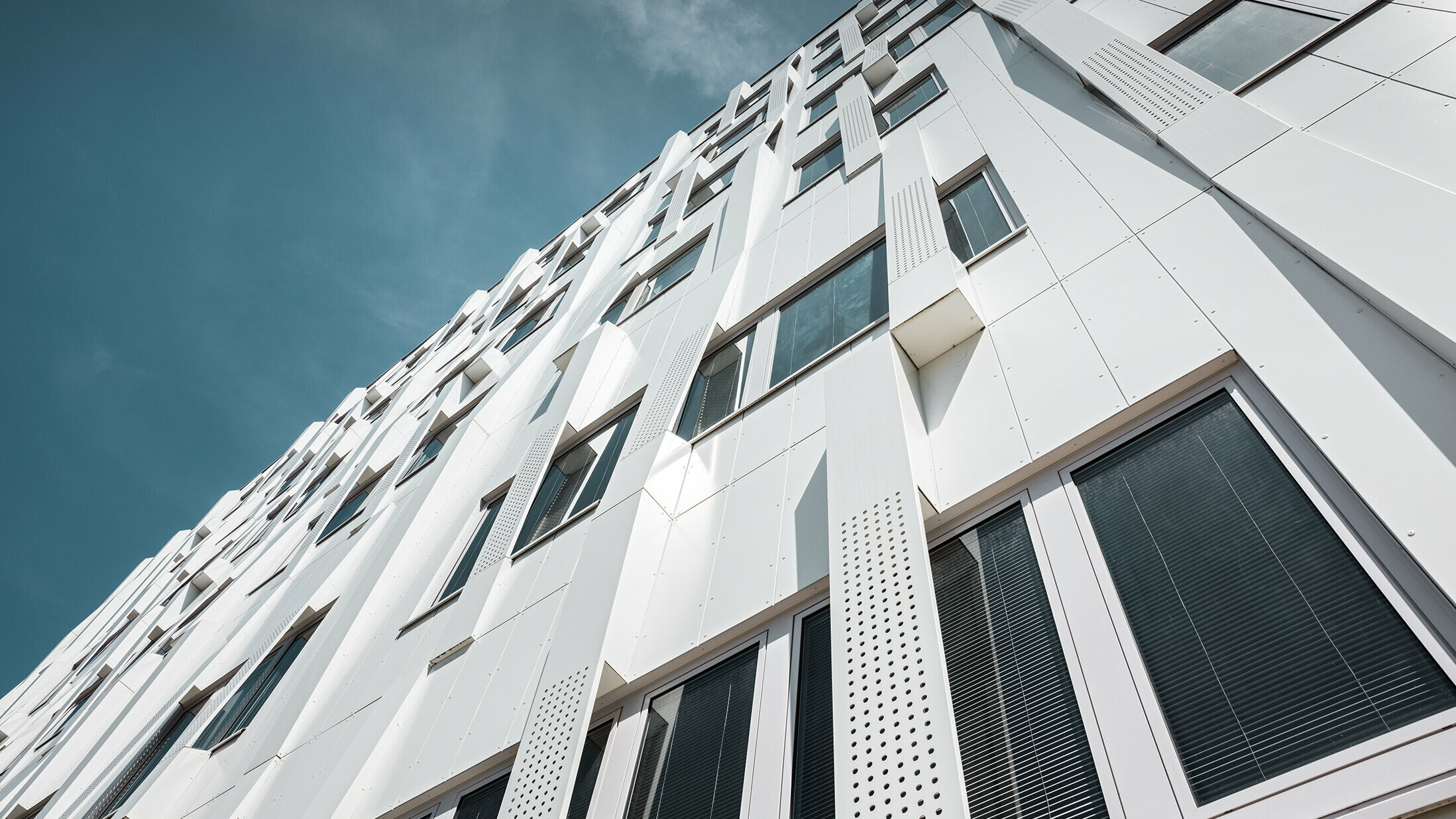

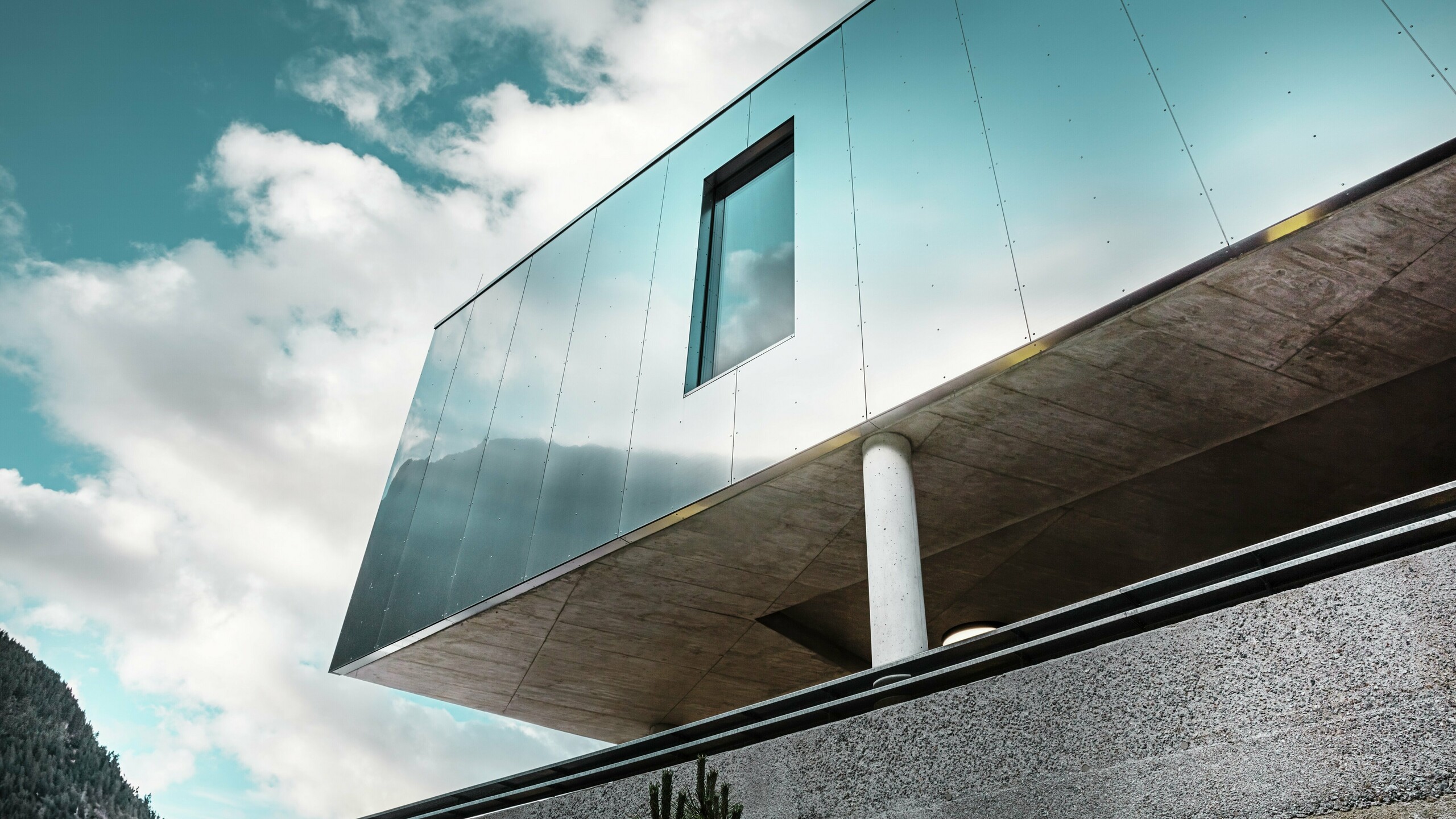

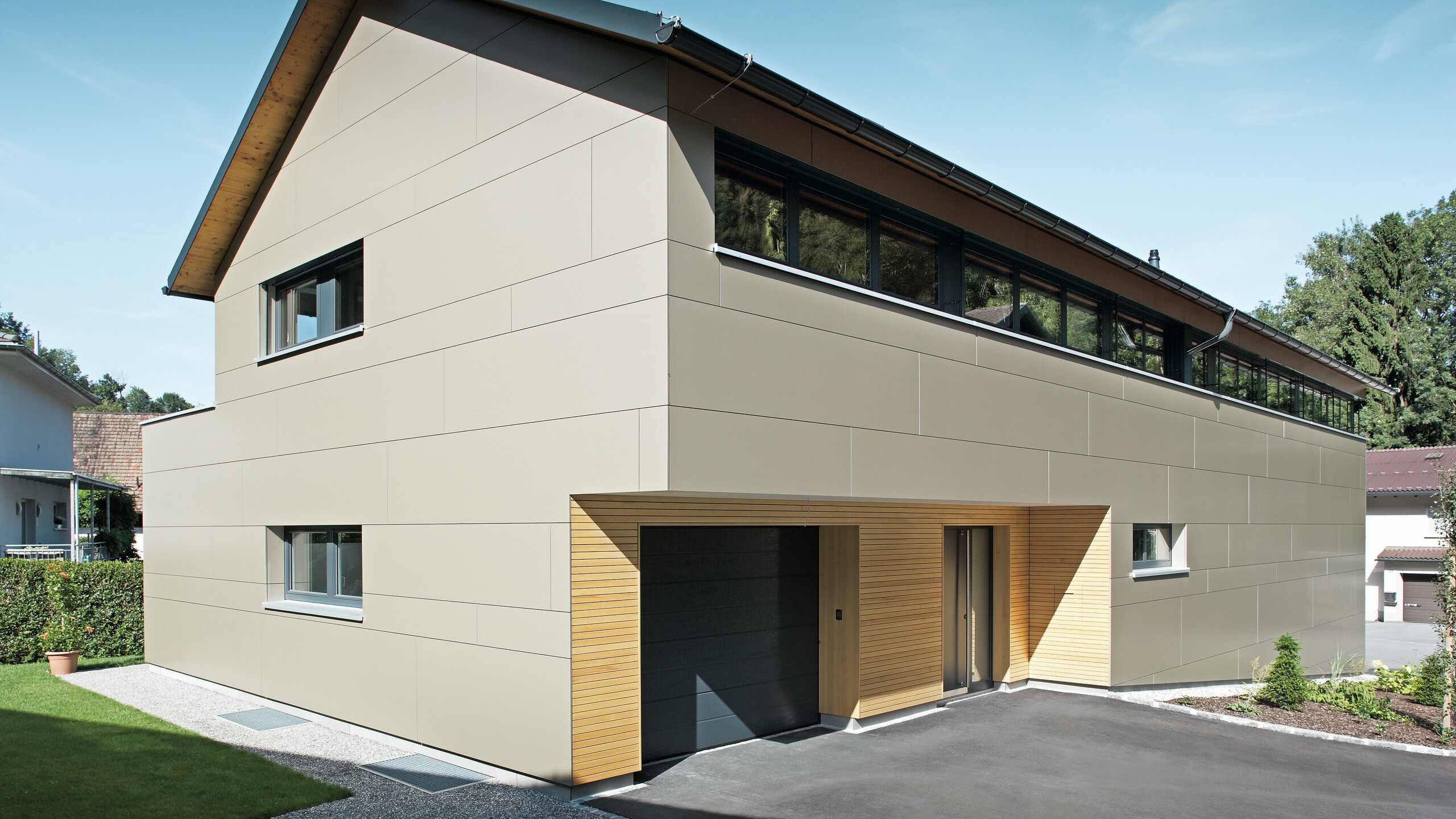

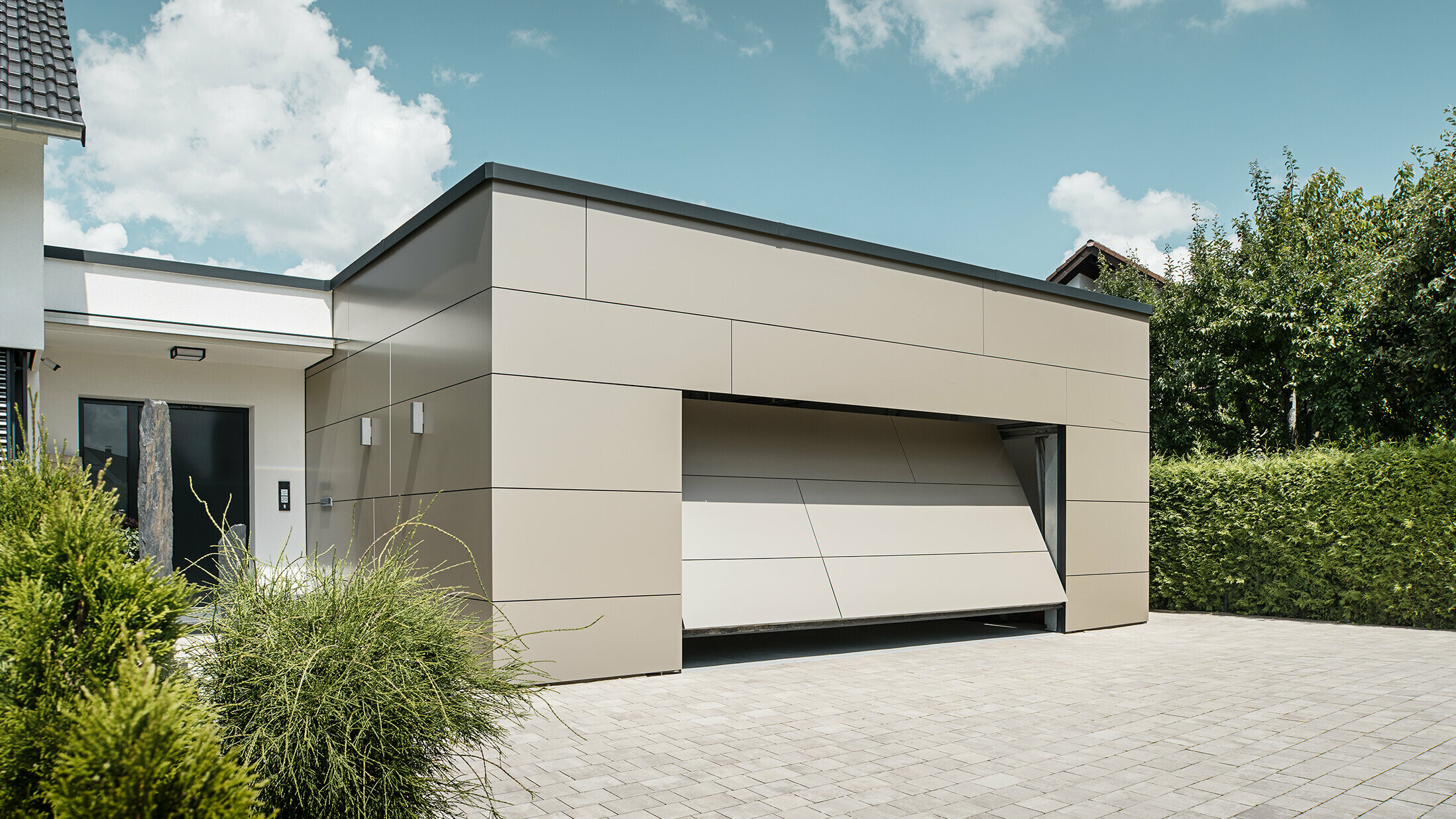

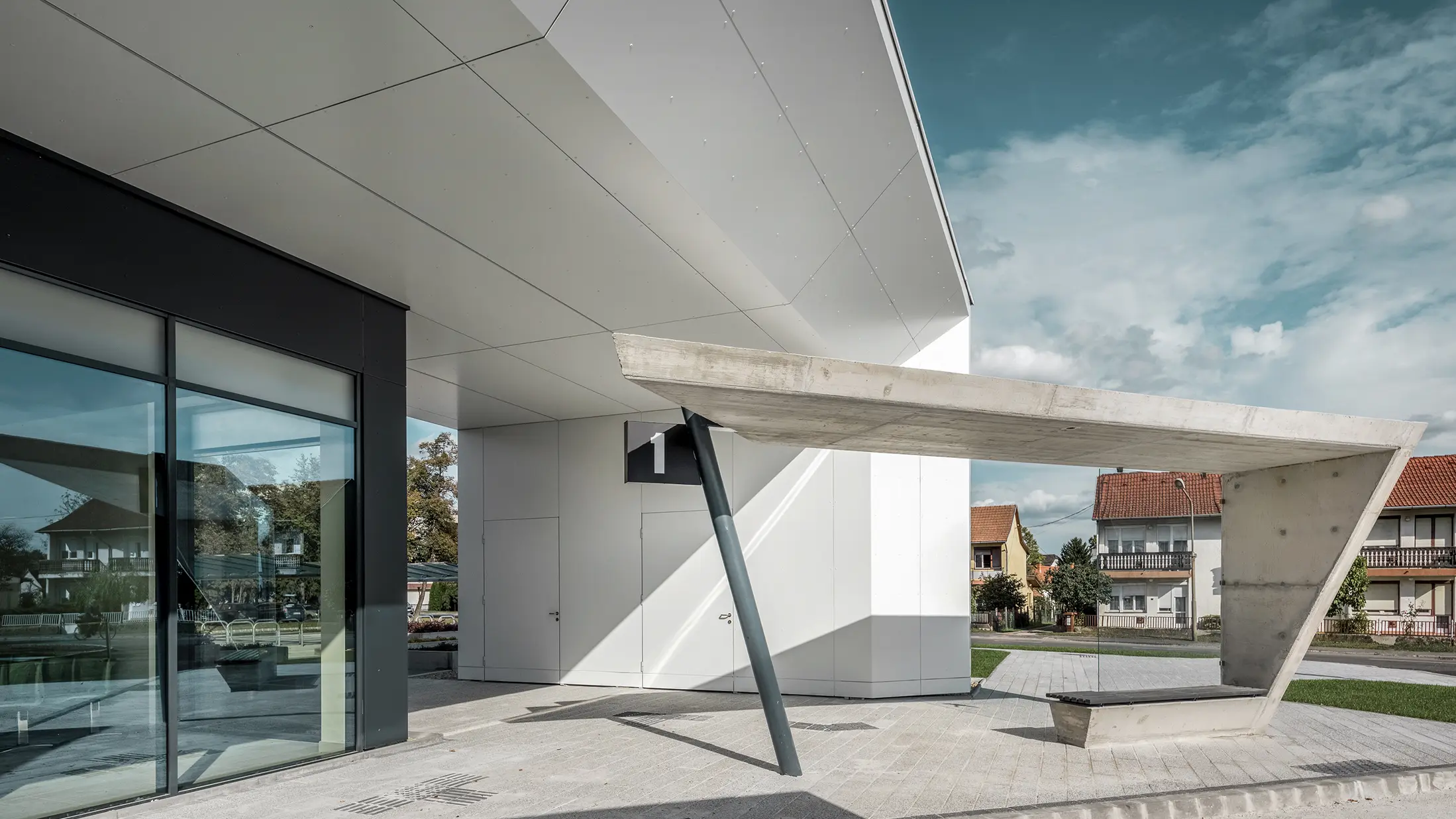

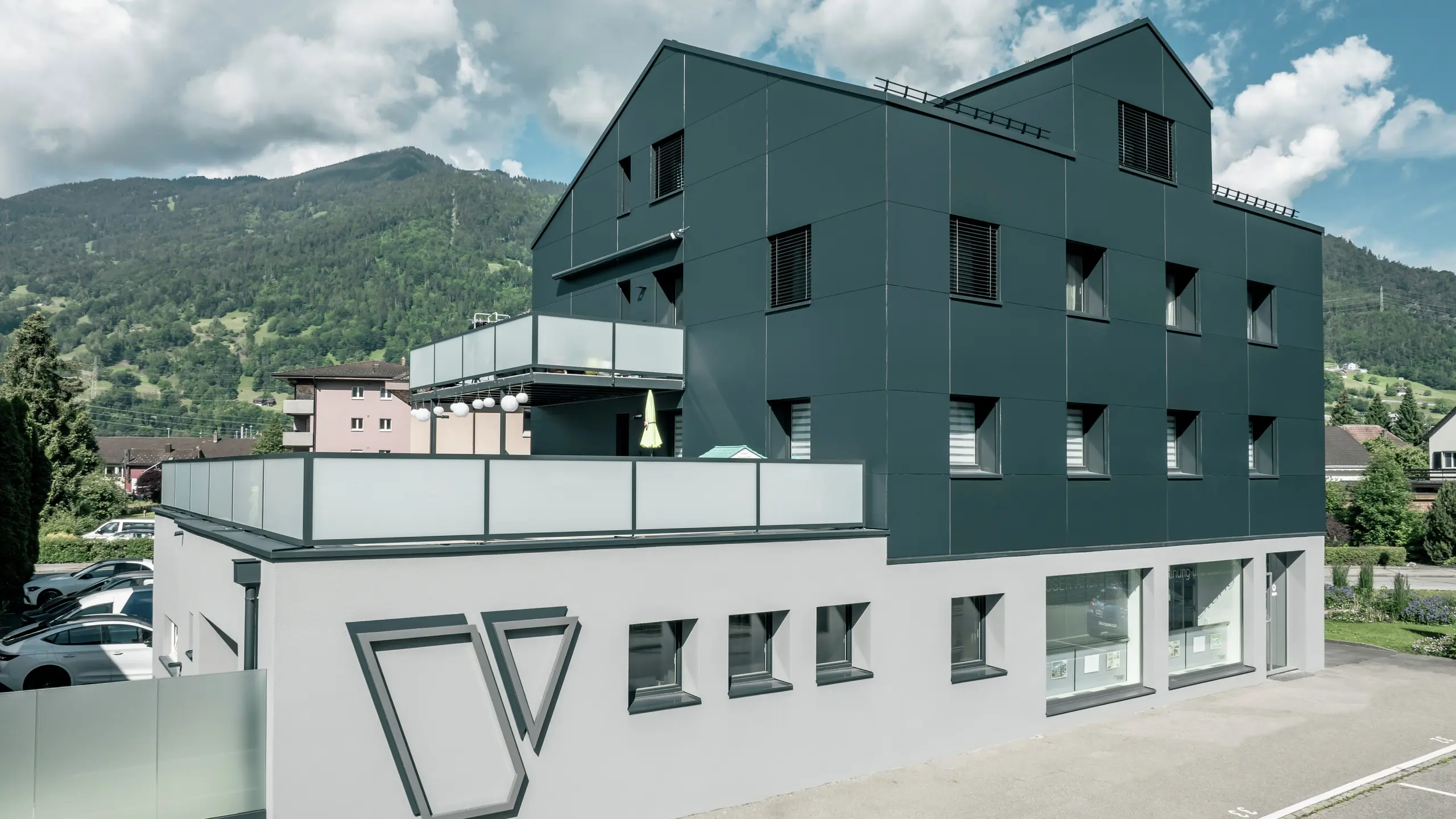

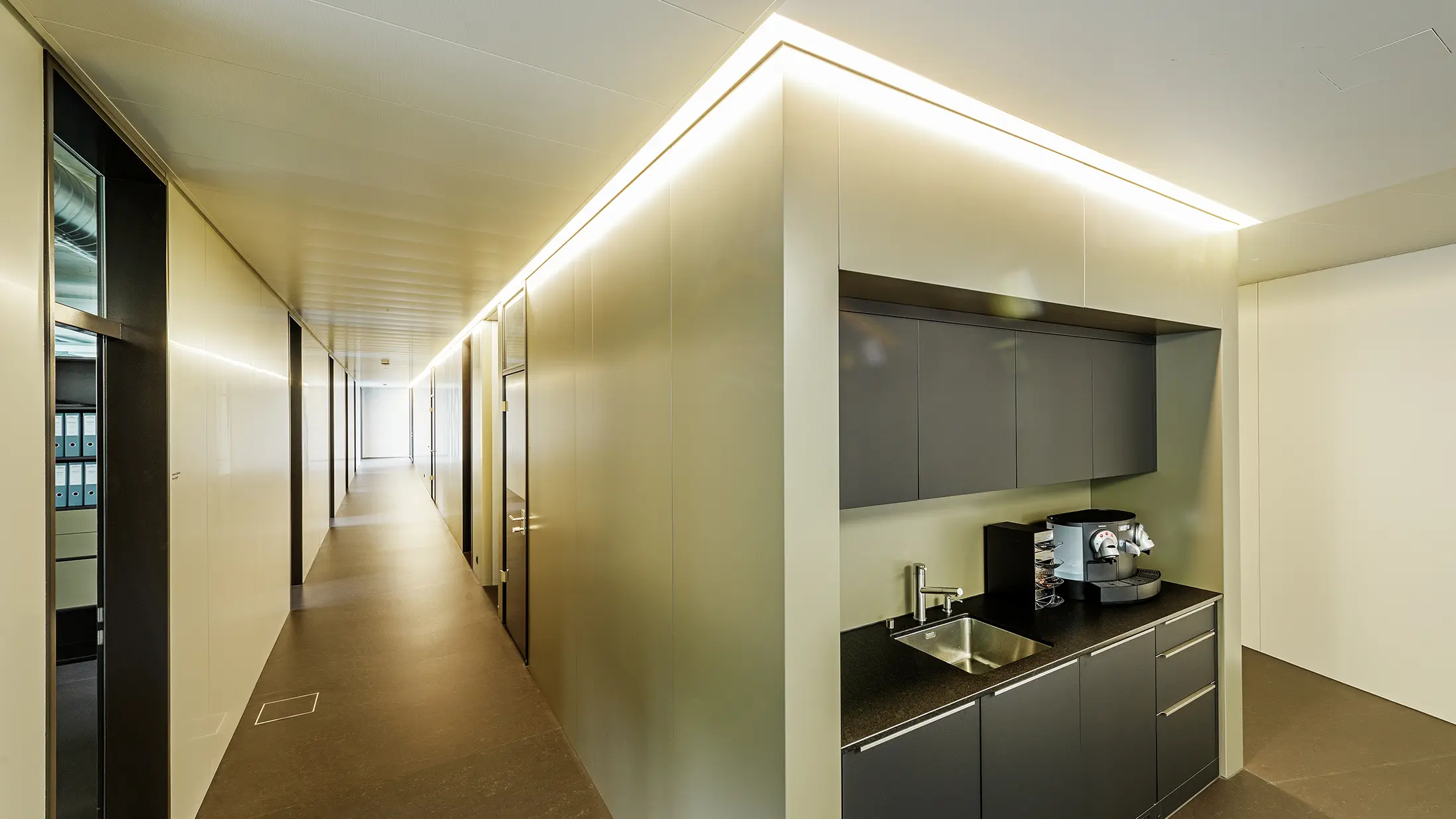

For big and small plans: ideas can be implemented impressively with PREFABOND aluminium composite panels.

+8
read more

The PREFABOND aluminium composite panel is the ideal façade cladding not only for large areas, but also for small ones — it not only looks great but is also extremely durable thanks to a special combination of materials.

It is also highly resistant to corrosion and weather, and boasts high deflection stiffness and shock resistance. It also offers great design freedom with all the advantages of rainscreens.

PREFABOND consists of two aluminium sheets which are fusion-bonded to both sides of an FR core (fire retardant). This connection is particularly robust due to the chemical and mechanical fastening. The aluminium composite panel thus ensures constant flatness and stability on all surfaces.

The aluminium composite panel is suitable for façade design and many construction measures:

  • Ventilated façade constructions
  • Cladding of balconies
  • Indoors: door panels, modular partitions, floor plans

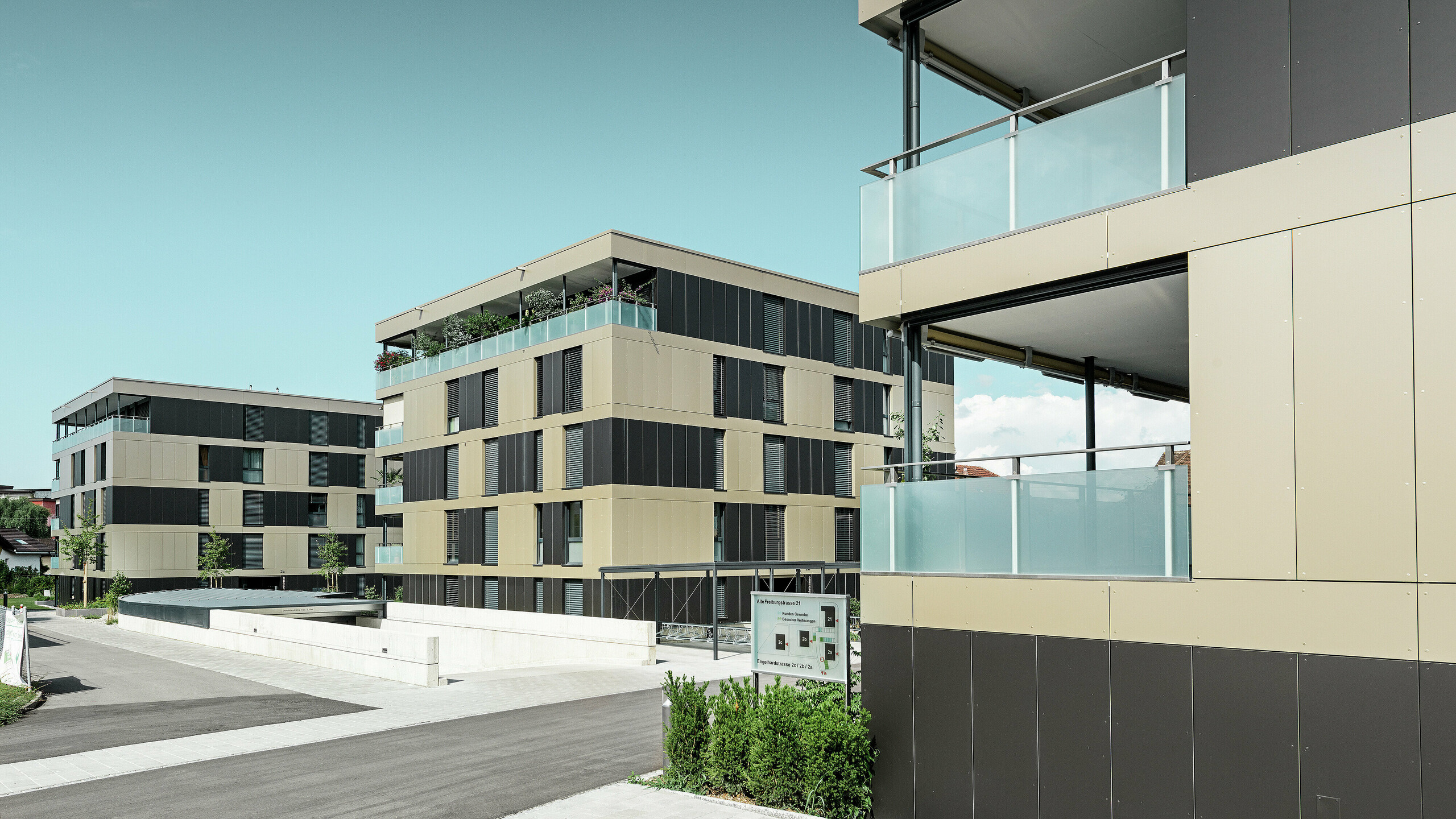

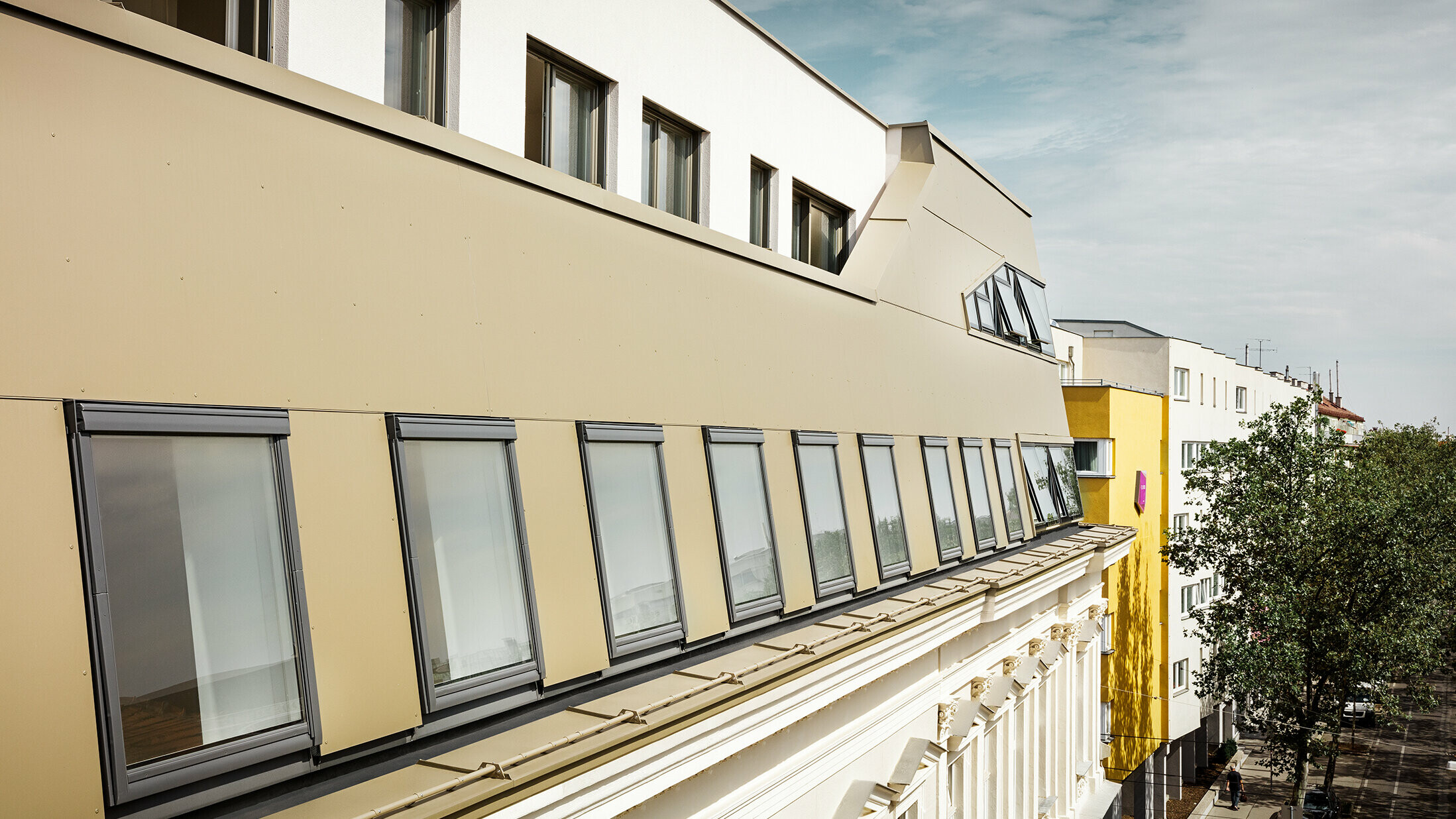

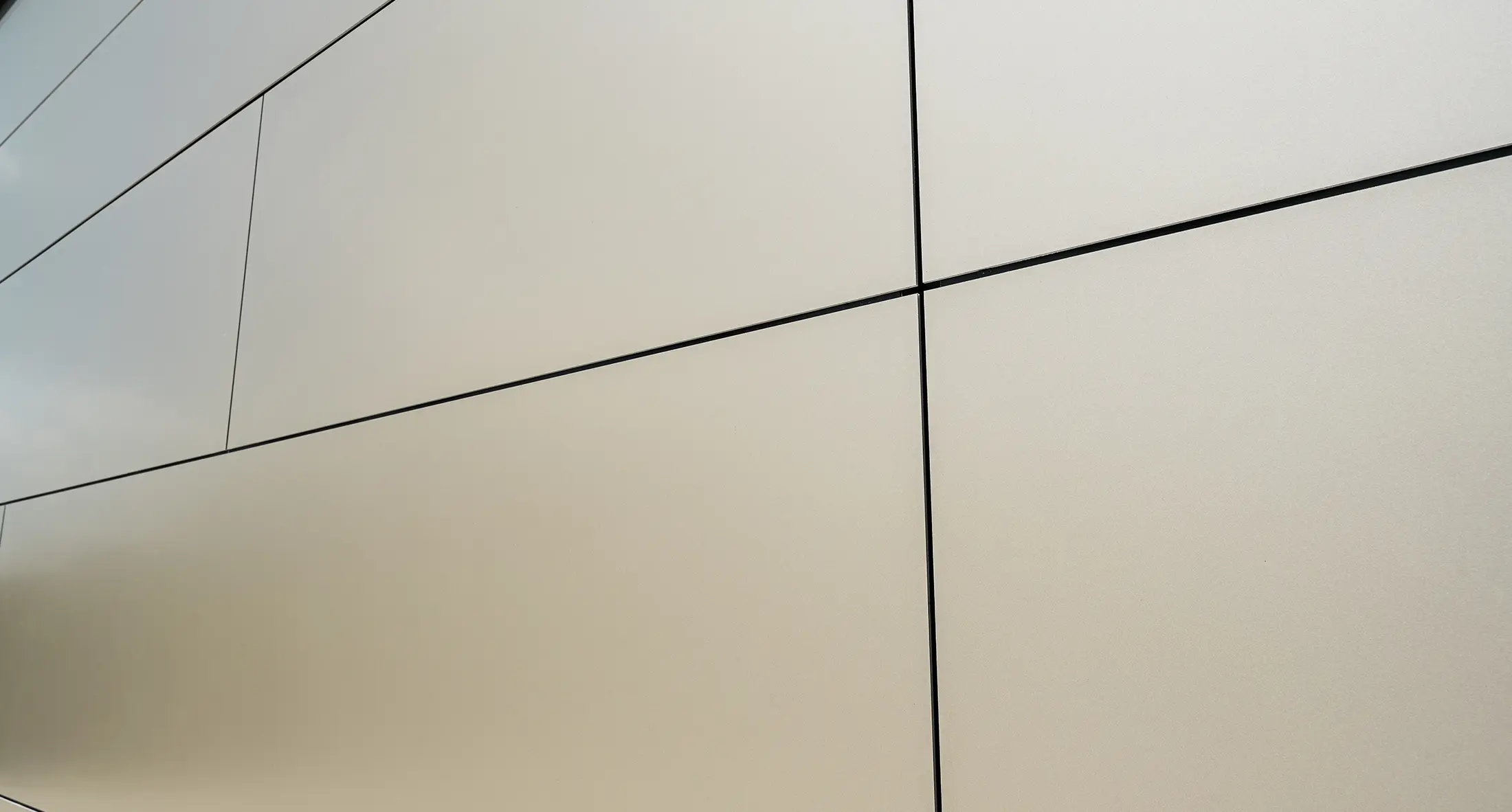

PREFABOND aluminium composite panels with bronze joints

Structure of the PREFABOND aluminium composite panel

  1. Coil-coated aluminium (front)
  2. FR core (fire retardant)*
  3. Aluminium with protective paint (reverse)

*A2 core (non-flammable) on request

Structure of a PREFABOND aluminium composite panel - coated aluminium - FR core - aluminium with protective paint, with magnifying glass

Advantages of the aluminium composite panel

Comprehensive complete system

All mounting accessories and additional items are perfectly coordinated and delivered together.

For a wide range of applications

Not only façade cladding, but also balcony cladding or indoor use is possible.

Numerous design options

Individual façade designs through individual cutting sizes and the machining options of milling, drilling and edges (by V-groove cutting)

Comprehensive complete system

All mounting accessories and additional items are perfectly coordinated and delivered together.

For a wide range of applications

Not only façade cladding, but also balcony cladding or indoor use is possible.

Numerous design options

Individual façade designs through individual cutting sizes and the machining options of milling, drilling and edges (by V-groove cutting)

Temperature-resistant

It can be used in a temperature range of -40 °C to +80 °C.

Fire retardant

Due to its reaction to fire, the FR core complies with classification B-s1, d0 according to EN 13501-1, and an A2 core is also possible.

Low weight

of 7.6 kg/m²

Temperature-resistant

It can be used in a temperature range of -40 °C to +80 °C.

Fire retardant

Due to its reaction to fire, the FR core complies with classification B-s1, d0 according to EN 13501-1, and an A2 core is also possible.

Low weight

of 7.6 kg/m²

The numerous processing and installation options of PREFABOND : Elegant, uniform appearance

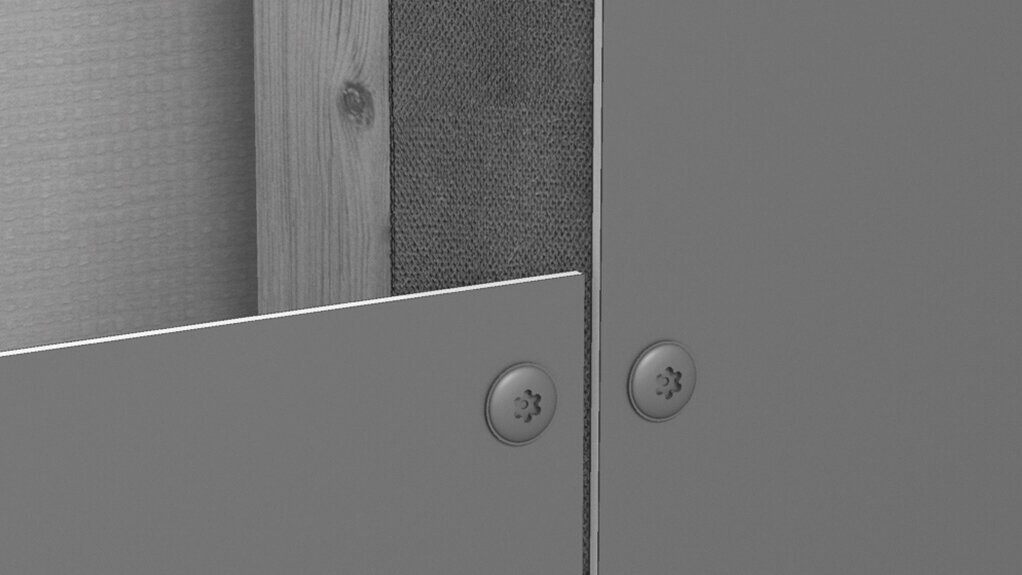

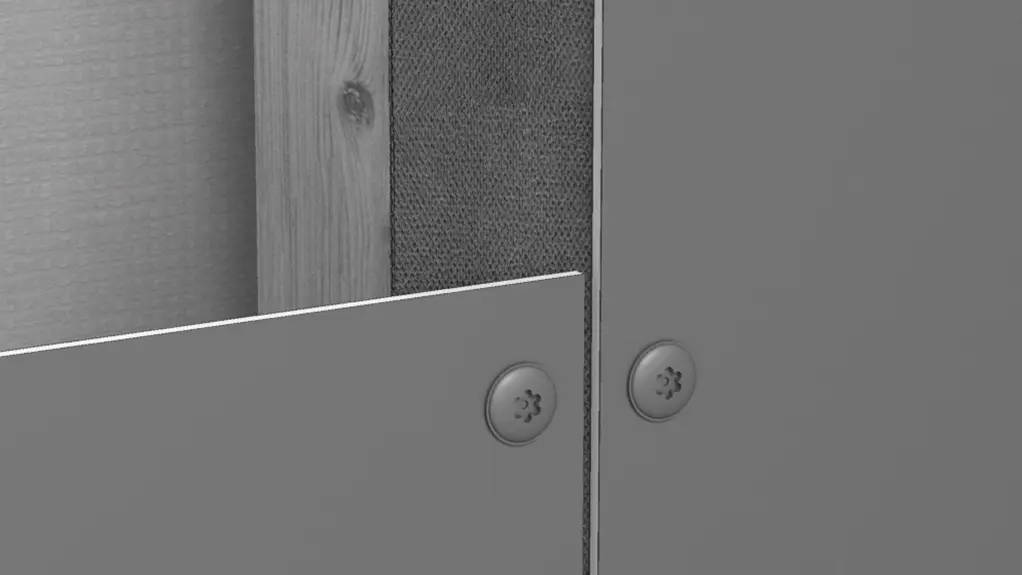

The composite panels can be screwed, riveted and glued for fastening. This results in an elegant, uniform appearance.

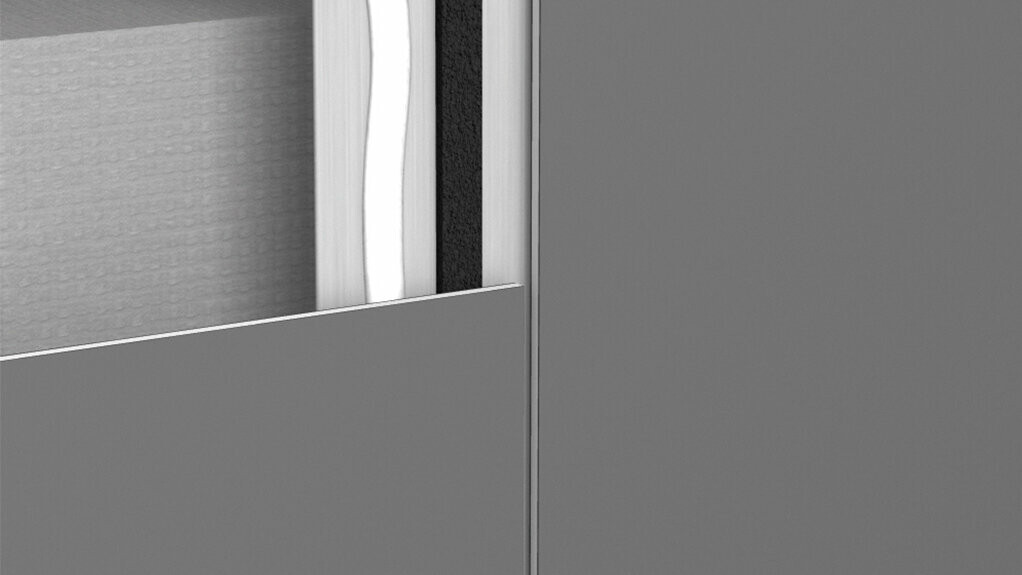

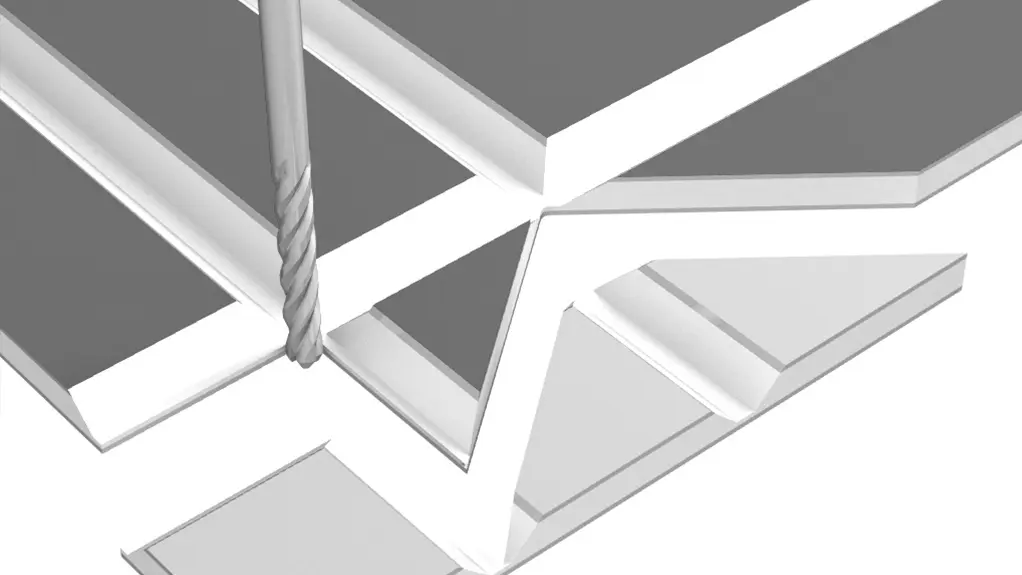

Milling, drilling and folding – the installation options of PREFABOND : The PREFABOND composite panel puts up with everything.

Individual design options also result from a large selection of colours and individual cutting sizes. The composite panels are ideal wherever small areas are required to make a big impression.

The standard panel has a raw format of 4,010 × 1,535 mm (usable format: 4,000 × 1,525 mm). Different formats can be cut from this depending on requirements. Versatile machining options such as milling, drilling and folding are also possible. All this with a minimum weight of just 7.6 kg/m².

Panel bending of PREFABOND aluminium composite panels is also possible. Thus, for example, rounded corners can be manufactured. The panels are bent in a convex or concave manner or with a straight off-cut.

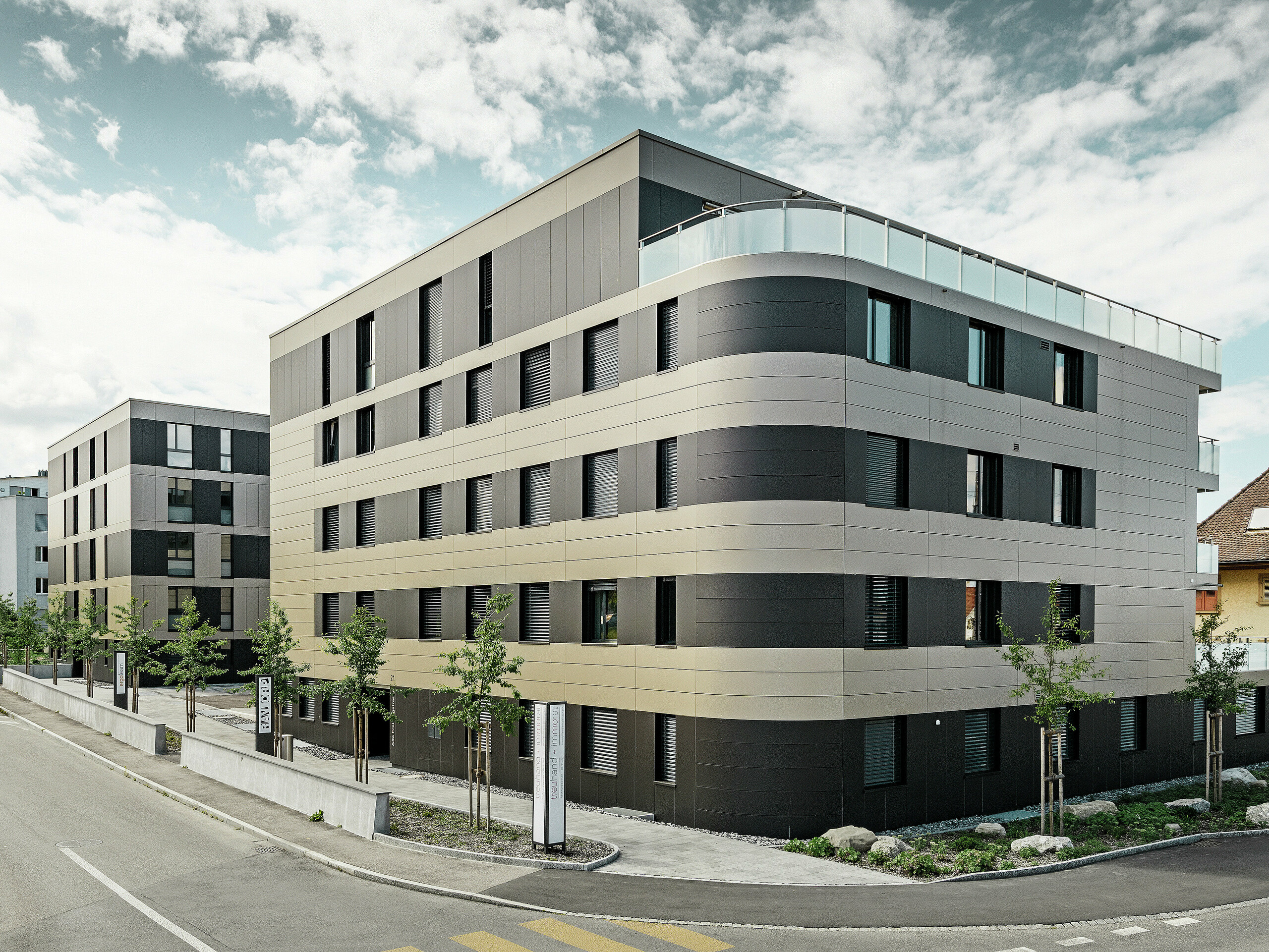

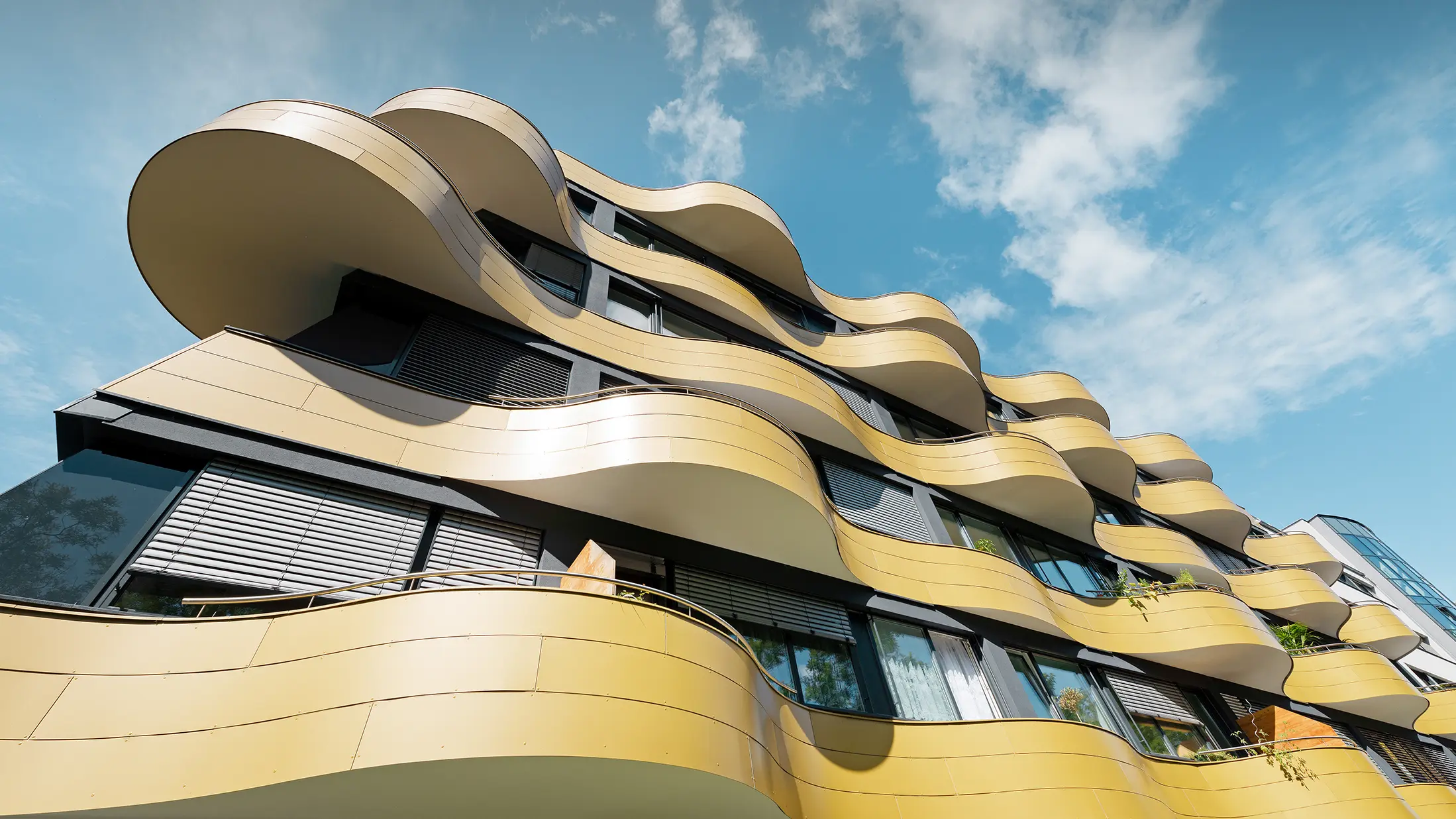

Company building with rounded external corners, clad with PREFA aluminium composite panels in bronze and black grey

Rounded external corners with PREFA aluminium composite panels in bronze and black grey

Fire retardant

Only the best quality for the toughest of requirements. For this reason, the PREFABOND aluminium composite panel is already equipped with an FR core (fire retardant) as standard. Due to its reaction to fire, the FR core complies with classification B-s1, d0 according to EN 13501-1. The PREFABOND composite panel is also available on request with an A2 core (non-combustible), which corresponds to the classification A2-s1, d0 according to EN 13501-1 due to its reaction to fire.

Temperature resistance

The PREFABOND aluminium composite panel is also ideally suited for extreme conditions. It can be used in a temperature range of -40 °C to +80 °C.

Joint backing strip

The horizontal or vertical joint backing strip not only protects the substructure but can also be used as a visual highlight between the panels. Either you adapt the colour of the joint backing strip to the panel colour and leave it deliberately discreet, or it should stand out by consciously using a lighter or darker colour than the façade colour.

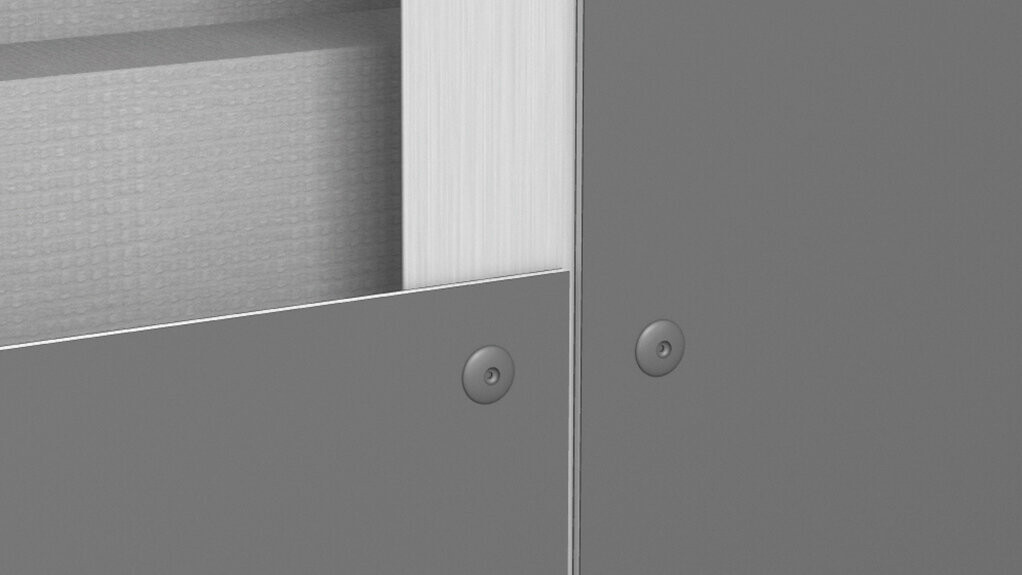

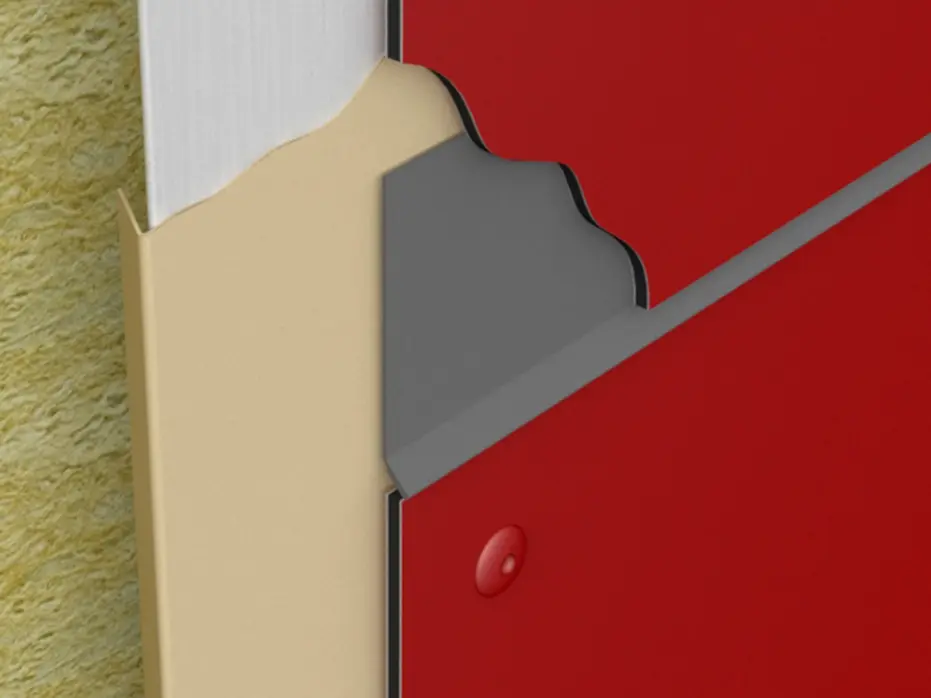

Animation of the joint backing strip for PREFA aluminium composite panels, PREFABOND

Colour range of the aluminum composite panel

The aluminium composite panel is available in many colours:

  • Special colours and gloss levels as desired are available on request.
  • All RAL colours are available on request (subject to feasibility).
  • Standard colours from 6 m²

Colour overview (12)

The following table contains the standard PREFABOND colours:

Colour

Code

~ RAL

02 Anthrazit

P.10 anthracite

7016

03 Schwarz

P.10 black

9005

10 Prefaweiß

P.10 prefa white

9002

11 Nussbraun

P.10 nut brown

8019

12 Silbermetallic

metallic silver

9006

17 Reinweiß

P.10 pure white

9010

17 Reinweiß

pure white

9010

PREFA dunkelgrau ähnlich DB 703 oder RAL 7043

P.10 dark grey

7043

20 Rauchsilber

smoke silver

9007

23 Schwarzgrau

black grey

7022

44 Anthrazit matt

matt anthracite (own colour)

7016

45 Bronze

bronze

7048

Notes

  • The RAL values stated are merely approximate values (~), some of which may differ vastly from the original PREFA colour and, under certain circumstances, may not reflect the subjective perception of the colour.
  • Above all for colour quality P.10, it is almost impossible to define values due to the surface structure.
  • Plain aluminium: The guarantee does not cover surface appearance alterations caused by processing and environmental influences. Follow the instructions.
  • Metallic colours may vary in shade.
  • To identify exact colours for complementary components please consult original samples.

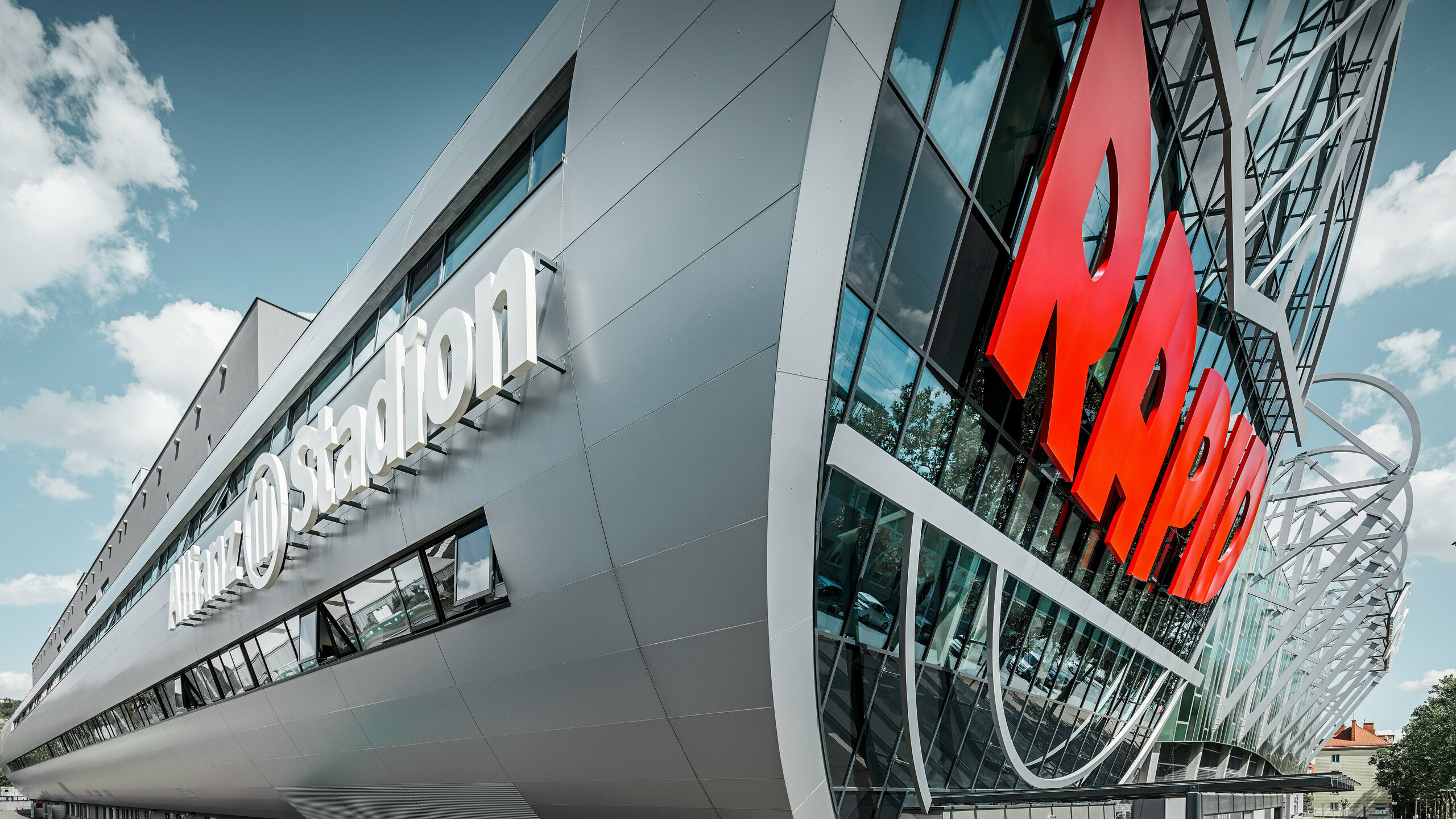

Get inspired by the projects already implemented with aluminium composite panels

The PREFABOND aluminium composite panel offers almost unlimited design options. The durable material is used in new buildings as well as in renovations and also ensures a special look in interior design. The PREFABOND aluminium composite panel can be screwed onto wooden substructures, riveted onto aluminium substructures and glued in both cases. It thus ensures an elegant, uniform appearance on both large and small surfaces or deliberately demonstrates architectural ingenuity. The wide range of colours, shapes and gloss levels creates a unique look – to the reference gallery.

If you still have not got a plan for your façade design, then our building tips will help: Ideas & tips for your new façade!

Modern cladding for your balcony

PREFABOND aluminium composite panels are also suitable for balcony cladding: The high-quality surface coating protects the panels against weather influences for decades and is also extremely colourfast and dirt-resistant. Panels coated on both sides are available on request and subject to feasibility.

With the stainless steel balcony rivet with the dimensions 5 × 14 mm and a head diameter of 15 mm, PREFABOND as well as serrated profile and ripple profile panels are fastened in an excellent manner to balcony and parapet cladding. In the system, the balcony rivet is tested for the increased requirements with regard to fall-through protection. This is proven by pendulum impact tests in accordance with the requirements of the ETB Directive (components that protect against falls) and EN 12600:2002-11 in cooperation with an external testing institute.

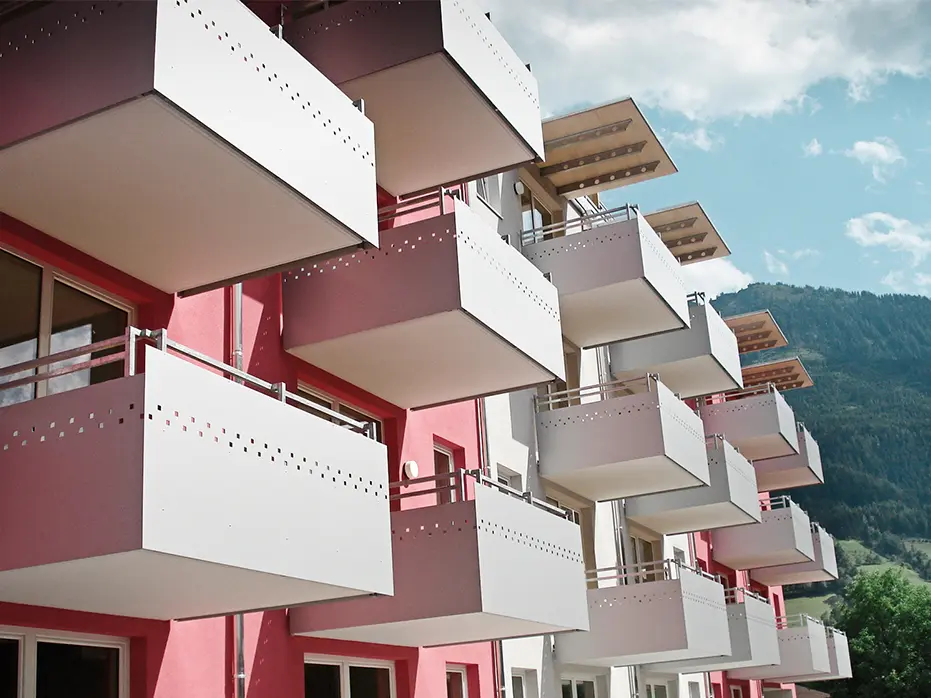

Balcony cladding with perforated aluminium composite panels from PREFA

Do you still have questions about PREFABOND aluminium composite panels?

If you are interested in an aluminium façade from PREFA, contact a PREFA partner company near you directly. To do this, use our tradesman search on the website.

PREFA façades are installed as non-bearing, rear-ventilated façades. This means that there is a gap for rear ventilation between the aluminium façade cladding and the insulation. In summer, the hot air cannot accumulate behind the façade because it rises through the rear ventilation and is transported away. In the winter, this structure provides thermal protection, as the heat transfer resistance is increased in the rear-ventilated space. This temperature buffering in the rear-ventilated space ensures a comfortable indoor climate all year round.

PREFA does not supply PE cores in its aluminium composite panels. It uses high-quality FR cores. FR stands for ‘fire-retardant’ (reaction to fire classification according to EN 13501-1 ‘B-s1, d0’). In addition, PREFA aluminium composite panels are also supplied with a non-flammable A2 core. Details on the fire classification of PREFA façades can be found in the PREFA information sheet on fire protection.

Fears of rusting are completely unfounded because aluminium cannot rust. If the surface of the PREFA aluminium façade is damaged, a new protective oxide layer is formed and the durability of the PREFA façade remains unchanged.

Non-bearing, rear-ventilated façades are designed to prevent moisture from forming. By separating the insulation and façade cladding, there is a constant air flow in the rear-ventilated space which regulates the moisture balance and ensures dryness. Thanks to the permanent ventilation, professional installation will not result in mould formation underneath the façade.

Aluminium wall claddings are well protected against weather conditions. Nevertheless, PREFA façades should be regularly checked and cleaned. Cleaning is uncomplicated and is not part of the 40-year material guarantee against breakage, corrosion (rust) and frost damage.

Technical information about aluminium composite panels

Coating on front:

DURAGLOSS 5000 is a paint with a recently developed coating made of high-quality polymer resin, and is available in four colours. The gloss level is between 3 and 80%.

Core:

FR core (fire retardant)

Coating on reverse:

Protective paint, suitable for adhesion, offers excellent corrosion protection. The coating direction is indicated by arrows on the back. This enables you to correctly align the tiles on the façade.

Standard dimensions:

thickness: 4 mm; width: 1,535 mm; length: 4,010 mm


usable dimension: 4,000 × 1,525 mm

Weight of the aluminium composite panel (FR):

4 mm = 7.6 kg/m²


Which is 3.4 times lighter than steel and 1.6 times lighter than pure aluminium.

Fire protection rating (aluminium composite panels FR):

Austria (EN 13501) – B-s1-d0
Germany (DIN) – B1


Switzerland (VKF) – 5.3

Temperature resistance:

between –50 °C and +80 °C

Linear thermal expansion:

A = 0.024 mm/m/°C (based on the aluminium cover plate)

Change in length at a temperature difference of 60 °C:

1.4 mm per metre

Fastening:

on timber supporting substrate: screwed down or glued
on aluminium supporting sub-structure: riveted, screwed or glued
according to static requirements

Planning & Application

You will find specification documents as well as details about PREFABOND aluminium composite panels for download here. The PREFABOND installation instructions, mounting instructions for composite panels on a wooden substructure, planning guide for façades, installation instructions for balcony cladding as well as a data entry form for sheet composite panels can be found in the service area (only for partner companies – please have your access data ready).

Aluminium composite panels – Accessories

For a complete, detailed list of accessory products, see our price list (only for processors).

Complementary coil

1.100 mm, 1.200 mm

Façade rivet

for fastening to metal supporting substrates; 5 × 14 mm, head diameter 16 mm

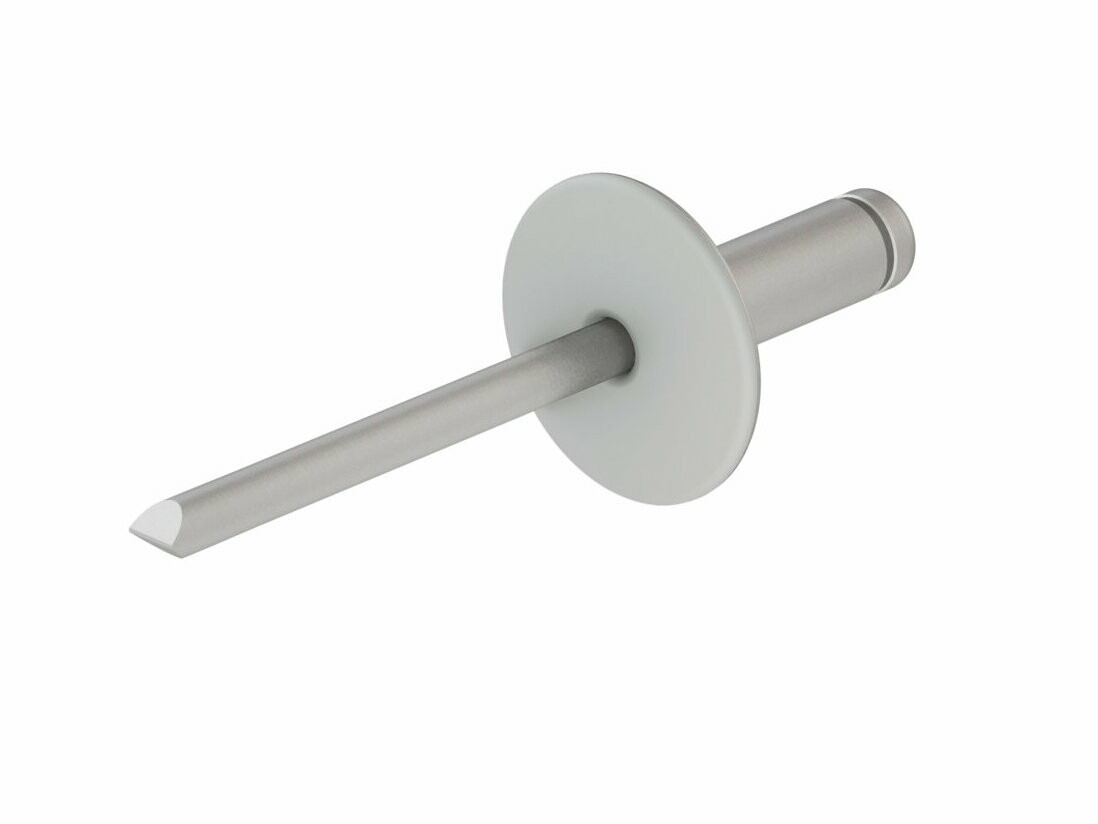

Balcony rivet

for fasting to metal supporting substrates; 5 × 14 mm, head diameter 15 mm

Fixed point bushing for fixed point

to reduce bore holes from ⌀ 9.5 mm to ⌀ 5.1 mm

Rivet nosepiece for balcony rivet

for fasting to metal supporting substrates; outer diameter 30 mm

Rivet nosepiece for façade rivet

for mounting PREFABOND aluminium composite panels; outer diameter 49 mm

spspring-loaded boring fixture

for fixing on metal substructures; borehole diameter for aluminium compostie panel 9,5 mm

Special drill bit for metal supporting substrates

Ø 5,1 × 85 mm

Bracket boring fixture for metal supporting substrate

Ø 9,5/5,1 mm

Façade screw on timber supporting substrate

4,8 × 30 mm, head diameter 16 mm; including façade-centring joint, Ø 14 × 4 mm, head diameter 16 mm

Façade screw for aluminium substructure

5.5 × 25 mm, Ø 11 × 4 mm, head 16 mm

Fixed point bushing for façade screw (aluminium substructure)

Ø 11 × 4 mm, to reduce bore holes from 11 mm to 5.8 mm

Sliding point bushing for façade screw (aluminium substructure)

Ø 11 × 4 mm, to reduce bore holes from 11 mm to 8.4 mm

EPDM joint tape

70 × 0,75 mm, 135 × 0,75 mm; for protecting vertical timber supporting substrates; self-adhesive on one side or not selr-adhesive

Special drill bit for timber supporting substrates

Ø 3,3 mm, DIN 338

Bracket boring fixture for timber supporting substrate

Ø 9,5/3,3 mm, borehole diameter aluminium composite panel 9,5 mm / supporting substrate 3,3 mm

F-profile for prefabond panels

3.000 mm

U-profile for PREFABond panels

3.000 mm

90° V-groove cutter

for processing PREFABOND panels with FR core

135° V-groove cutter

for processing PREFABOND panels with FR core

Step drill bit

for processing PREFABOND panels with FR core and pre-drilling metal supporting substrates

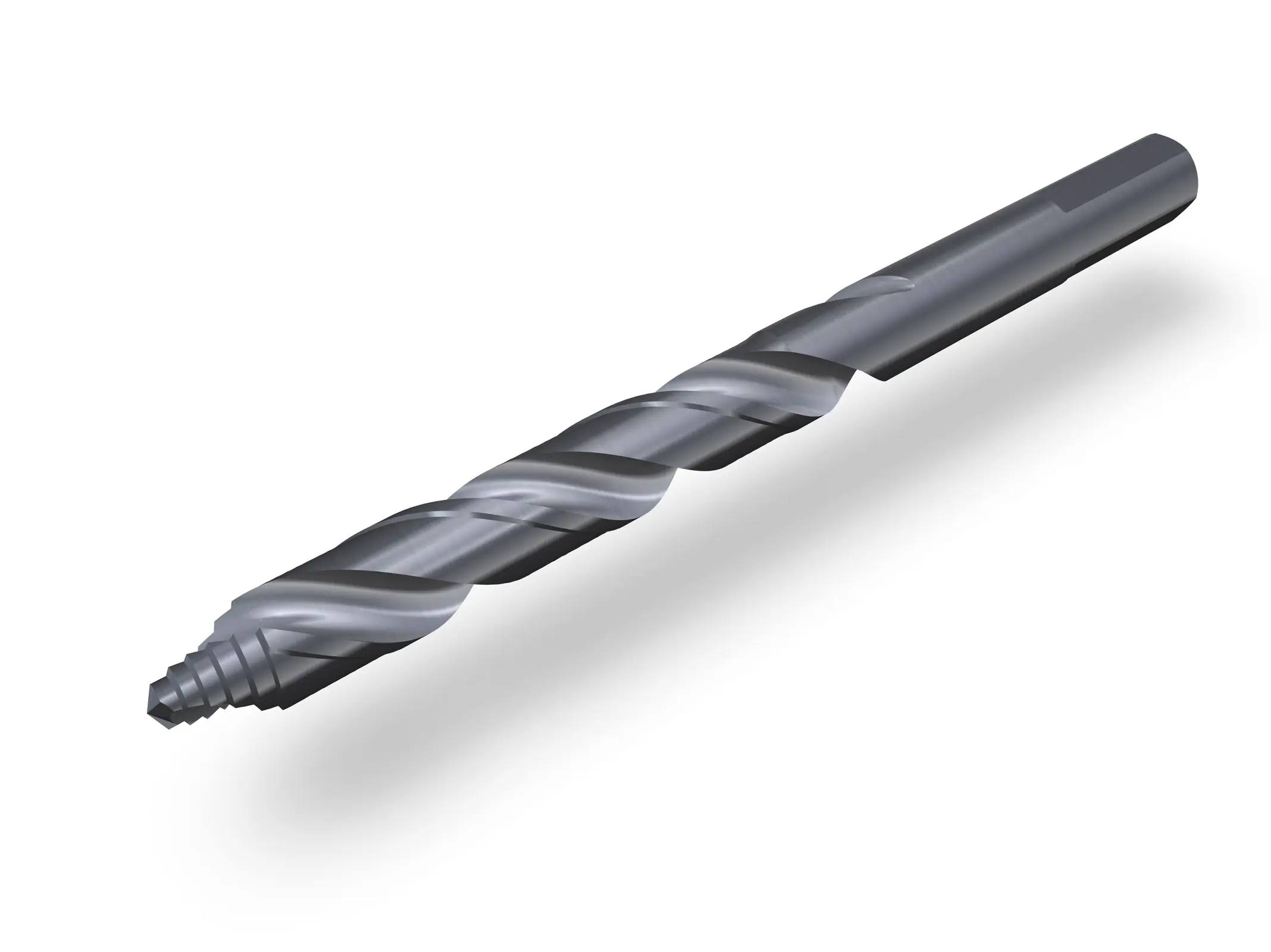

PREFA Spiralbohrer HSS Smart Step für hochpräzise, kreisrunde Bohrungen bei handgeführtem Einsatz für PREFABOND Aluminium Verbundplatten​.

Twist Drill HSS Smart-Step

Twist drill for PREFABOND, for highly accurate, round holes in hand-held applications.

Façade-centring joint

Ø 14 × 4 mm, for centring and sealing fixing screws (PREFABOND aluminium composite panels installed on timber supporting substrates)

Step drill bit depth stop

Ø 9,5 × Ø 5,1 mm

Deburring tool handle

S/E type, for direct mounting of blades (⌀ 3,2 mm); for processing PREFABOND panels.

Blades for deburring tool handle

S10/E100, Ø 3,2 mm; Ø 3,2 mm; for processing PREFABOND panels

LT-XT Tool TX 25

For screwing the PREFABOND façade screws (head diameter of 16 mm) for aluminium substructures.

Film cutter

for fixed points (Ø 5,1 mm) or sliding points (Ø 9,5 mm)

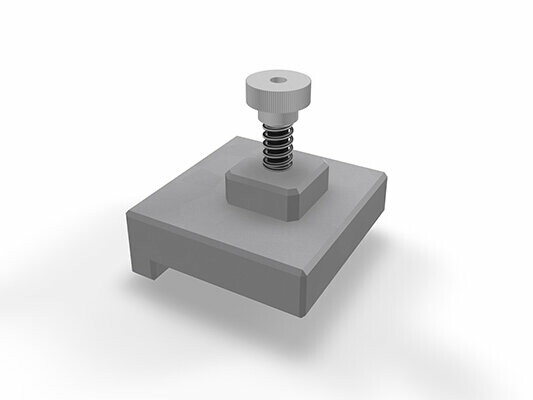

PREFABOND mounting aid

joint width 8 or 10 mm, suitable for longitudinal and transverse joints

Suction cup with nut

-
