FAÇADE SYSTEMS RHOMBOID FAÇADE TILE 20 × 20

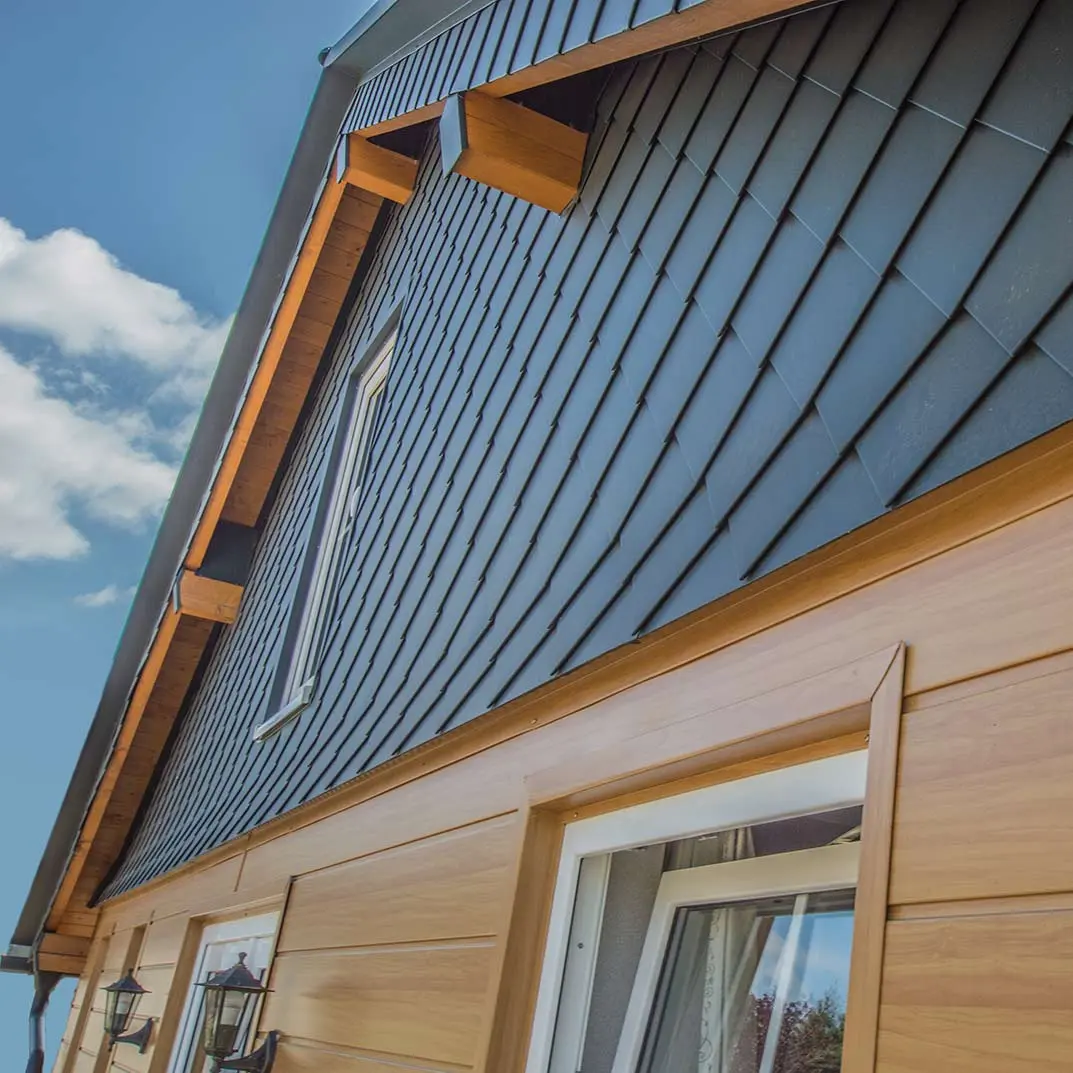

Außenwand einer Stockholmer Schule mit großen Fensterflächen, verkleidet mit der Aluraute von PREFA in Braun PREFA wall design with sidings in light wood, and a gable cladding in anthracite with PREFA 20 × 20 rhomboid wall tiles. Reference buildings PREFA Façade systems Rhomboid façade tile 20 × 20 03 P.10 black Reference buildings PREFA Façade systems Rhomboid façade tile 20 × 20 04 P.10 brick red Reference buildings PREFA Façade systems Rhomboid façade tile 20 × 20 05 P.10 oxide red Reference buildings PREFA Façade systems Rhomboid façade tile 20 × 20 06 P.10 moss green Reference buildings PREFA Façade systems Rhomboid façade tile 20 × 20 07 P.10 light grey Reference buildings PREFA Façade systems Rhomboid façade tile 20 × 20 10 P.10 prefa white Reference buildings PREFA Façade systems Rhomboid façade tile 20 × 20 11 P.10 nut brown Reference buildings PREFA Façade systems Rhomboid façade tile 20 × 20 43 P.10 stone grey Reference buildings PREFA Façade systems Rhomboid façade tile 20 × 20 12 metallic silver Reference buildings PREFA Façade systems Rhomboid façade tile 20 × 20 08 P.10 zinc grey
Product catalogue PREFA Façade systems Rhomboid façade tile 20 × 20 01 P.10 brown P.10 Product catalogue PREFA Façade systems Rhomboid façade tile 20 × 20 02 P.10 anthracite P.10 Product catalogue PREFA Façade systems Rhomboid façade tile 20 × 20 03 P.10 black P.10 Product catalogue PREFA Façade systems Rhomboid façade tile 20 × 20 04 P.10 brick red P.10 Product catalogue PREFA Façade systems Rhomboid façade tile 20 × 20 05 P.10 oxide red P.10 Product catalogue PREFA Façade systems Rhomboid façade tile 20 × 20 06 P.10 moss green P.10 Product catalogue PREFA Façade systems Rhomboid façade tile 20 × 20 07 P.10 light grey P.10 Product catalogue PREFA Façade systems Rhomboid façade tile 20 × 20 10 P.10 prefa white P.10 Product catalogue PREFA Façade systems Rhomboid façade tile 20 × 20 11 P.10 nut brown P.10 Product catalogue PREFA Façade systems Rhomboid façade tile 20 × 20 43 P.10 stone grey P.10 Product catalogue PREFA Façade systems Rhomboid façade tile 20 × 20 12 metallic silver DURAGLOSS 5000 Product catalogue PREFA Façade systems Rhomboid façade tile 20 × 20 08 P.10 zinc grey P.10
AVAILABLE COLOURS

RHOMBOID FAÇADE TILE 20 × 20 – INFORMATION

When tradition meets modernity: The new PREFA rhomboid façade tile 20 × 20 has been developed for traditional, “scaly” façade designs. Made of lightweight aluminium, the PREFA rhomboid façade tile is also perfectly suited to renovating dormers, gables and chimney cladding.

RHOMBOID FAÇADE TILE 20 × 20 – TECHNICAL INFORMATION

TECHNICAL INFORMATION ABOUT THE PRODUCT

MATERIAL:
aluminium 0.7 mm thick
VISIBLE SIDE:
Coil coating
REAR:
protective paint
WEIGHT:
1 m² = approx. 2.8 kg = 25 rhomboid façade tiles 20 × 20
INSTALLATION:
on solid sheathing (at least 24 mm thick)
FASTENING:
direct fastening
CHOICE OF COLOUR:
available in 12 colours (surface: stucco/smooth)

TECHNICAL DRAWING

RHOMBOID FAÇADE TILE 20 × 20 – COLOUR RANGE

THE PRODUCT IS AVAILABLE IN THE FOLLOWING COLOURS

COLOUR ~ RAL ~ NCS
01 P.10 brown 7013 S 8005-Y20R
02 P.10 anthracite 7016 S 8502-B
03 P.10 black 9005 S 9000-N
04 P.10 brick red 8004 S 4550-Y60R
05 P.10 oxide red 3009 S 0530-Y90R
06 P.10 moss green 6005 S 7020-G
07 P.10 light grey 7005 S 6000-N
08 P.10 zinc grey 7030 S 4502-G
10 P.10 prefa white 9002 S 1500-N
11 P.10 nut brown 8019 S 8005-Y80R
12 metallic silver 9006 S 3502-B
43 P.10 stone grey¹ 7031 S 6005-R80B
COLOUR
01 P.10 brown
~ RAL
7013
~ NCS
S 8005-Y20R
COLOUR
02 P.10 anthracite
~ RAL
7016
~ NCS
S 8502-B
COLOUR
03 P.10 black
~ RAL
9005
~ NCS
S 9000-N
COLOUR
04 P.10 brick red
~ RAL
8004
~ NCS
S 4550-Y60R
COLOUR
05 P.10 oxide red
~ RAL
3009
~ NCS
S 0530-Y90R
COLOUR
06 P.10 moss green
~ RAL
6005
~ NCS
S 7020-G
COLOUR
07 P.10 light grey
~ RAL
7005
~ NCS
S 6000-N
COLOUR
08 P.10 zinc grey
~ RAL
7030
~ NCS
S 4502-G
COLOUR
10 P.10 prefa white
~ RAL
9002
~ NCS
S 1500-N
COLOUR
11 P.10 nut brown
~ RAL
8019
~ NCS
S 8005-Y80R
COLOUR
12 metallic silver
~ RAL
9006
~ NCS
S 3502-B
COLOUR
43 P.10 stone grey¹
~ RAL
7031
~ NCS
S 6005-R80B

¹ The colours P.10 stone grey, P.10 sand brown, P.10 rust brown, P.10 patina green, light wood, dark wood, patina grey and natural blank reflect natural colouring and are therefore subject to minimal variation, which gives the products their unmistakable character.

³ Metallic colours may vary in shade.

Notes

  • The RAL and NCS values stated are merely approximate values (~), some of which may differ vastly from the original PREFA colour and, under certain circumstances, may not reflect the subjective perception of the colour.
  • Above all for colour quality P.10, it is almost impossible to define values due to the surface structure. Furthermore, the colours P.10 stone grey, P.10 sand brown, P.10 rust brown, P.10 patina green, light wood, dark wood, and patina grey reflect natural colourings that are composed of several colour tones.
  • To identify exact colours for complementary components please consult original samples.
COLOUR DETAILS

RHOMBOID FAÇADE TILE 20 × 20 – ACCESSORIES

YOU CAN FIND A LIST OF ACCESSORIES FOR THE PRODUCT HERE

PREFA edge cleat strip for façade shingles, rhomboid façade tiles and FX.12

PREFA EDGE CLEAT STRIP FOR FAÇADE SHINGLES, RHOMBOID FAÇADE TILES AND FX.12

1800 × 158 × 1.00 mm, pre-drilled

PREFA leading plate for rhomboid façade tile 20 × 20

PREFA LEADING PLATE FOR RHOMBOID FAÇADE TILE 20 × 20

RHOMBOID ROOF TILE 20 × 20 – PLANNING & INSTALLATION

MORE PRODUCT INFORMATION IS AVAILABLE FOR DOWNLOADING HERE

Note: download DWG and DXF format files by right-clicking and selecting “Save link as”.
