FAÇADE SYSTEMS RHOMBOID FAÇADE TILE 44 × 44

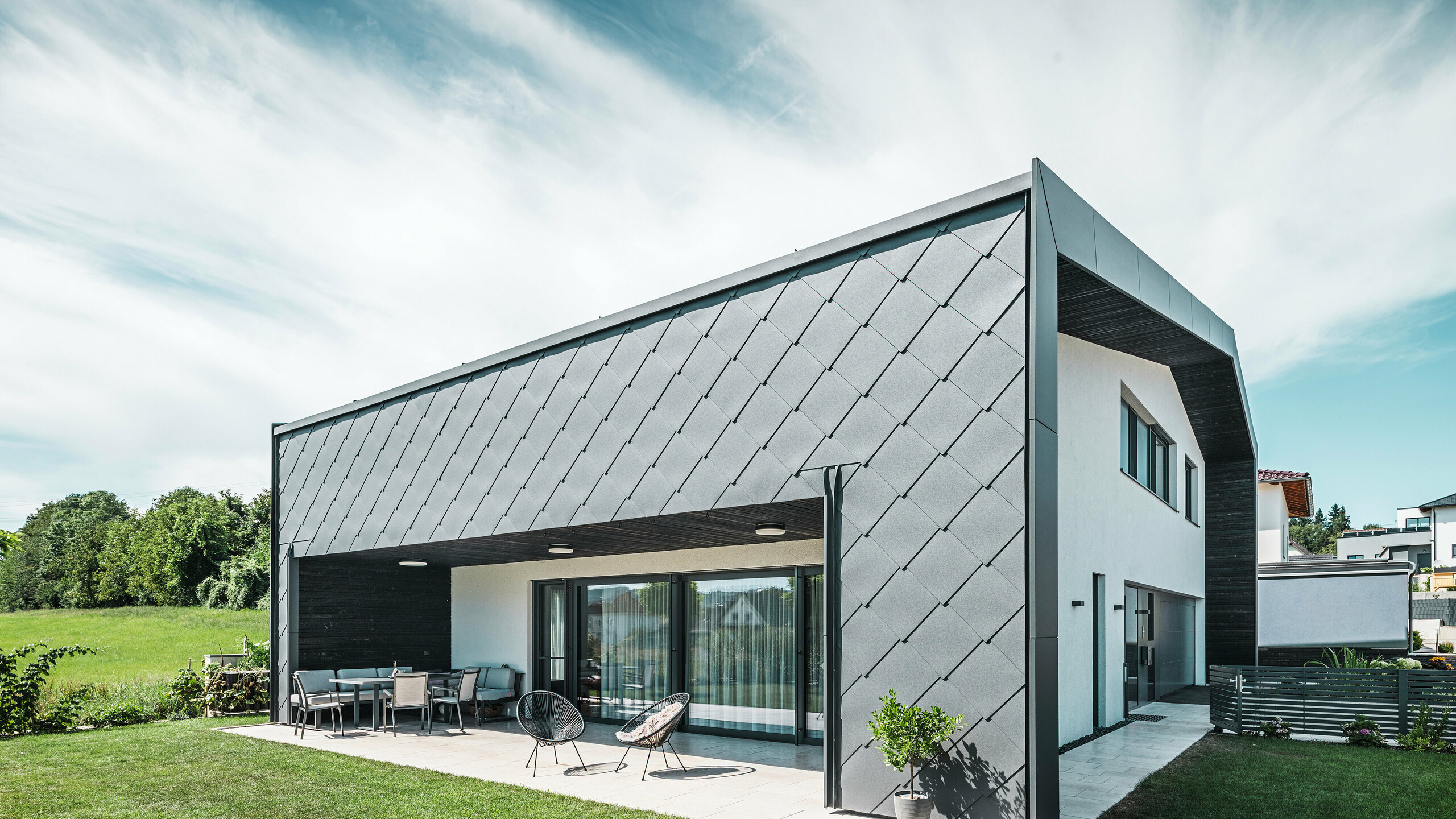

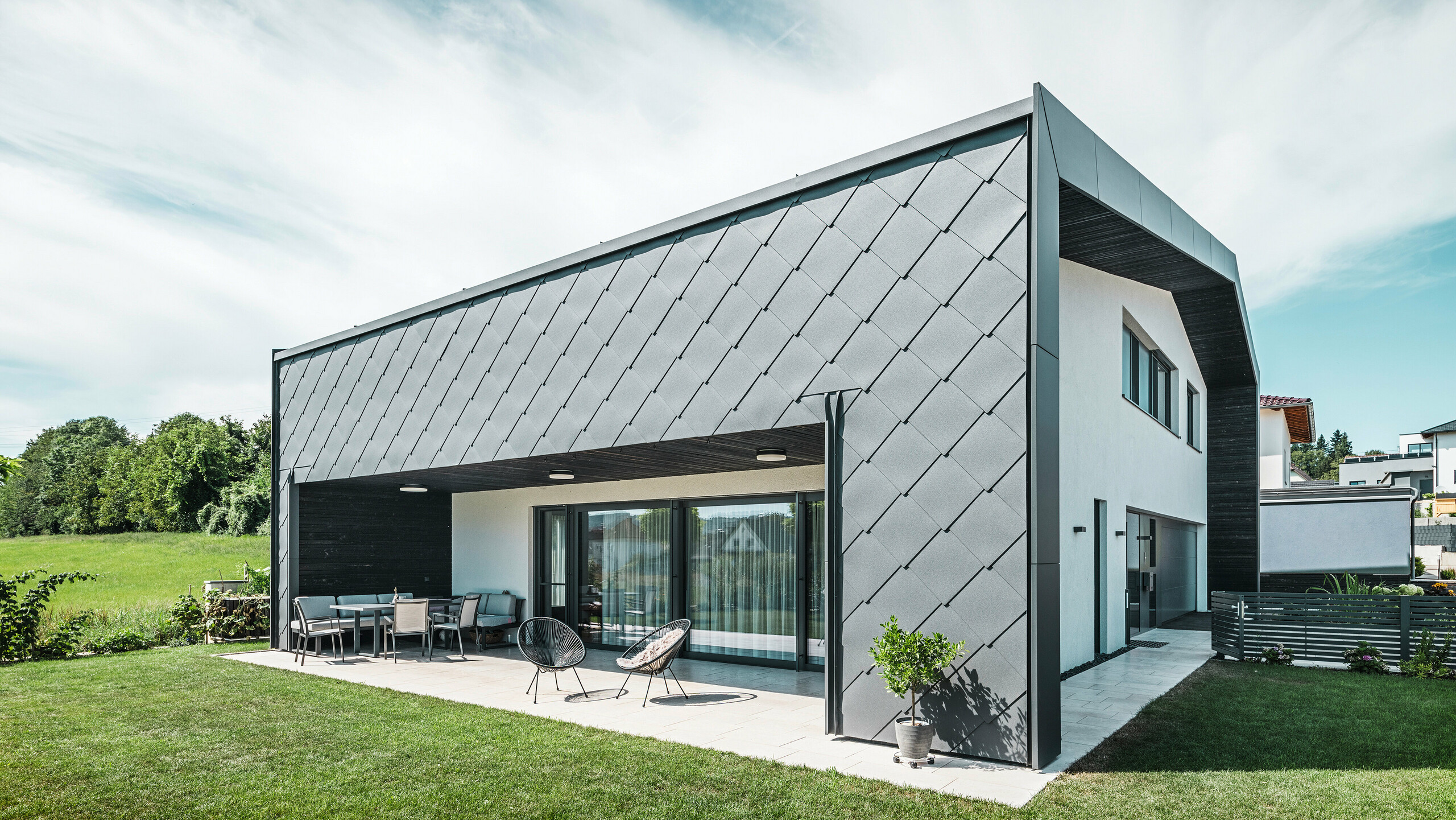

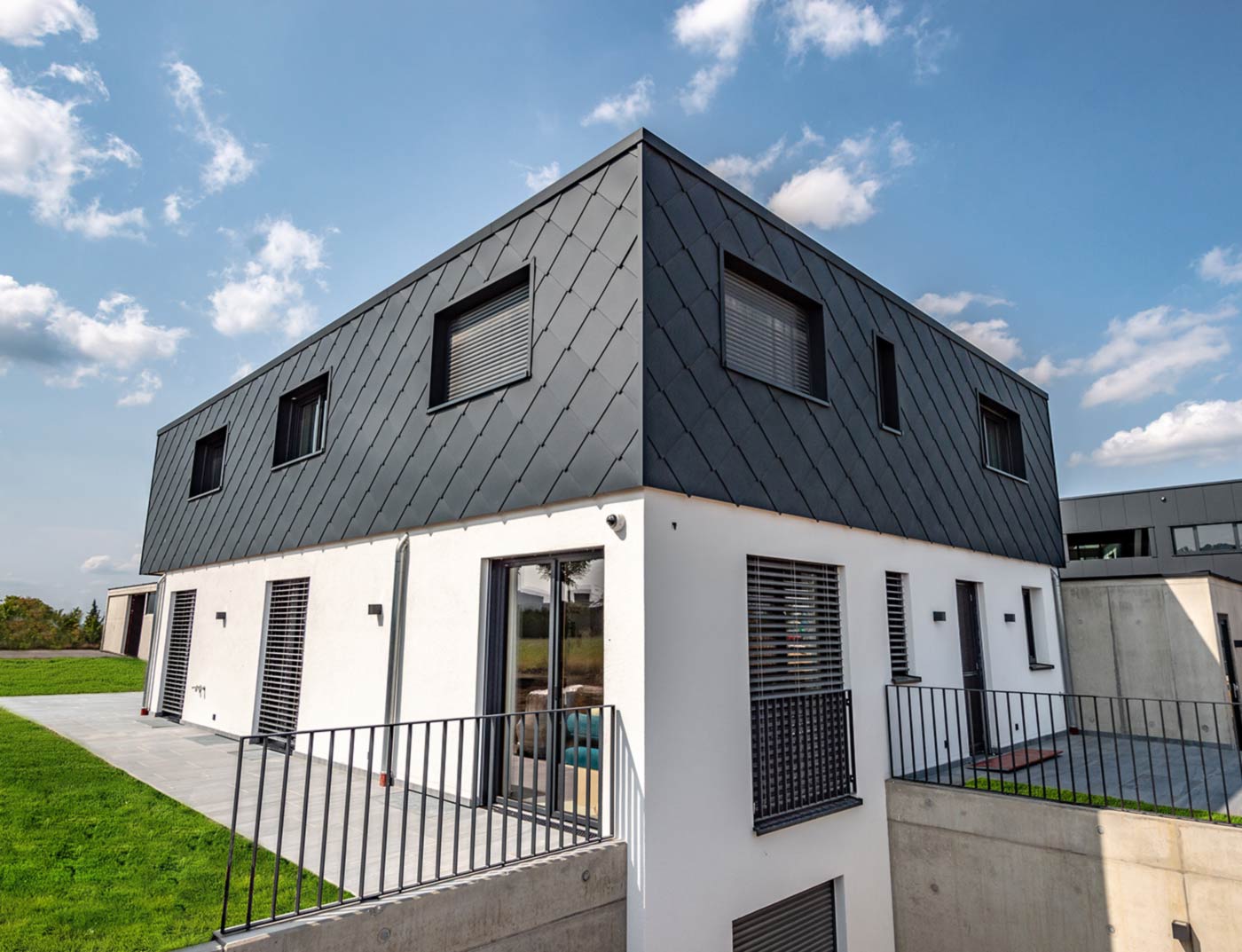

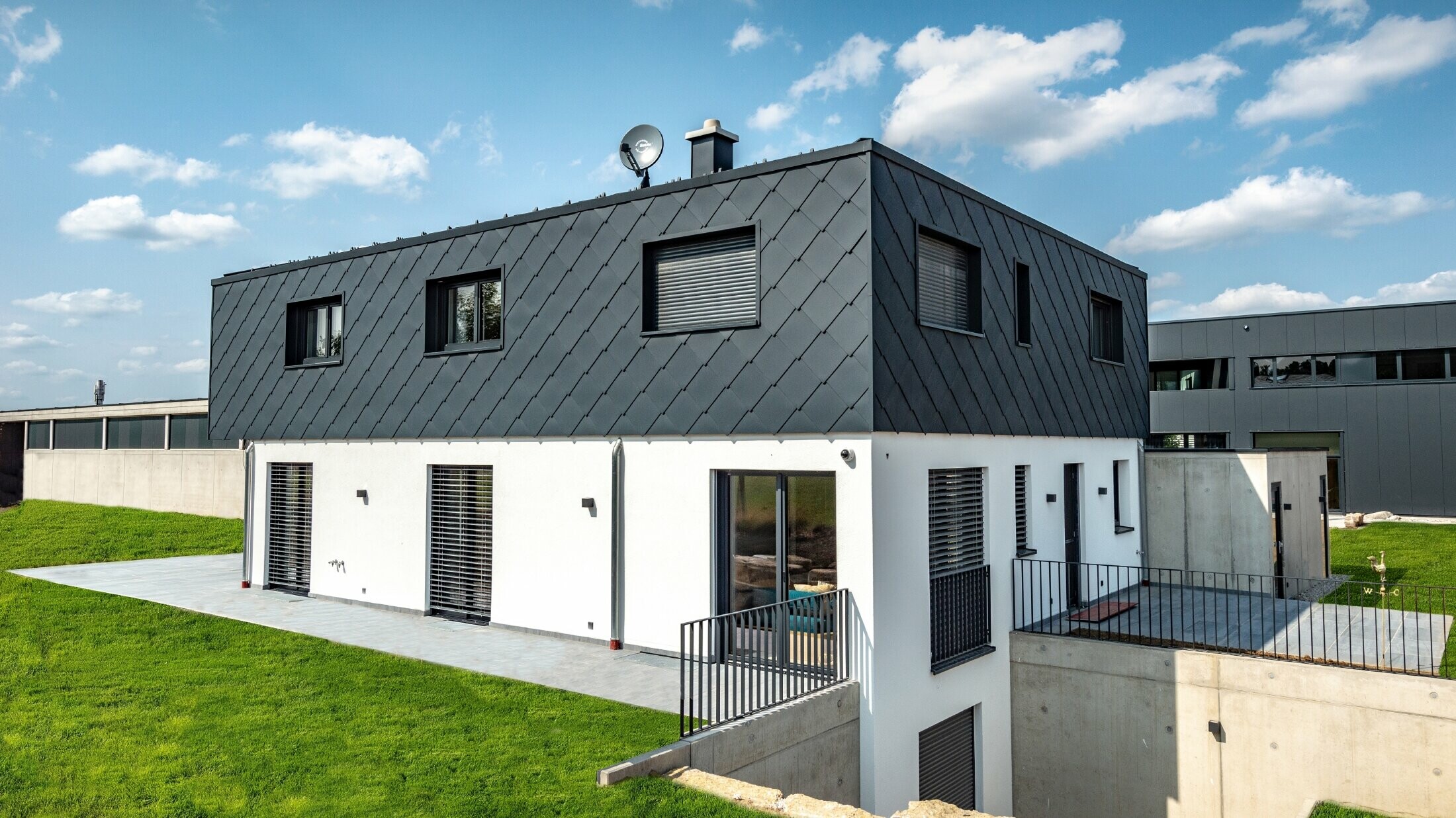

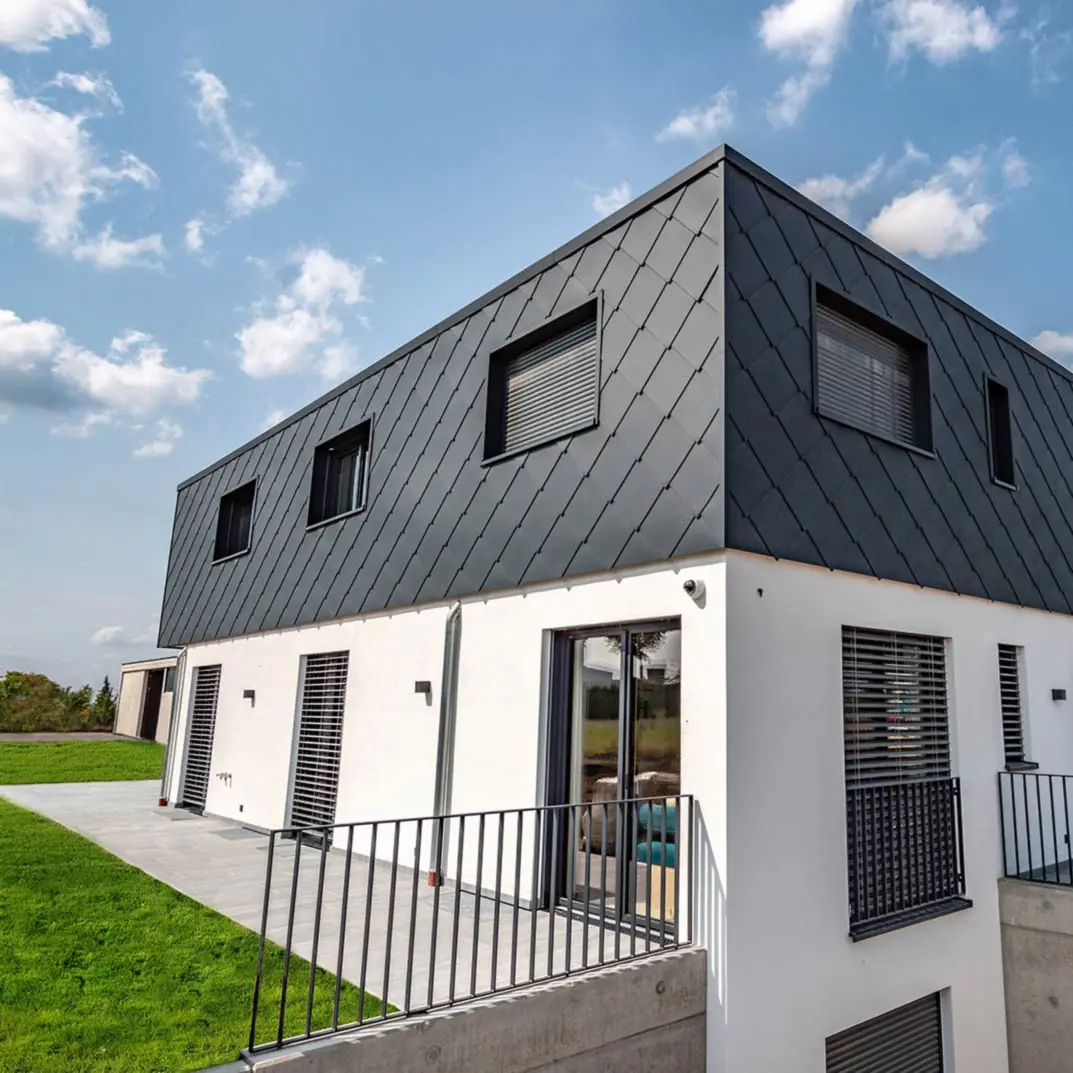

Reference buildings PREFA Façade systems Rhomboid façade tile 44 × 44 01 P.10 brown Modern new building with flat roof – the façade of the upper storey is clad with PREFA in anthracite 44 × 44 aluminium rhomboid wall tiles. The lower part of the façade is rendered in white. Reference buildings PREFA Façade systems Rhomboid façade tile 44 × 44 03 P.10 black Reference buildings PREFA Façade systems Rhomboid façade tile 44 × 44 04 P.10 brick red Ein Teil der Fassade der Betriebsfeuerwehr der Firma Neuman und PREFA in Marktl wurde mit der Aluwandraute 44 × 44 in Oxydrot verkleidet, darauf wurde der Schriftzug "Betriebsfeuerwehr" installiert. Reference buildings PREFA Façade systems Rhomboid façade tile 44 × 44 06 P.10 moss green Reference buildings PREFA Façade systems Rhomboid façade tile 44 × 44 07 P.10 light grey Reference buildings PREFA Façade systems Rhomboid façade tile 44 × 44 11 P.10 nut brown Der moderne Schönheitssalon wurde mit der Dach- und Wandraute 44 × 44 in Steingrau verkleidet, die Rinne ist nicht sichtbar installiert.
Product catalogue PREFA Façade systems Rhomboid façade tile 44 × 44 01 P.10 brown P.10 Product catalogue PREFA Façade systems Rhomboid façade tile 44 × 44 02 P.10 anthracite P.10 Product catalogue PREFA Façade systems Rhomboid façade tile 44 × 44 03 P.10 black P.10 Product catalogue PREFA Façade systems Rhomboid façade tile 44 × 44 04 P.10 brick red P.10 Product catalogue PREFA Façade systems Rhomboid façade tile 44 × 44 05 P.10 oxide red P.10 Product catalogue PREFA Façade systems Rhomboid façade tile 44 × 44 06 P.10 moss green P.10 Product catalogue PREFA Façade systems Rhomboid façade tile 44 × 44 07 P.10 light grey P.10 Product catalogue PREFA Façade systems Rhomboid façade tile 44 × 44 11 P.10 nut brown P.10 Product catalogue PREFA Façade systems Rhomboid façade tile 44 × 44 43 P.10 stone grey P.10
AVAILABLE COLOURS

RHOMBOID FAÇADE TILE 44 × 44 – INFORMATION

CREATING SURPRISING EFFECTS

PREFA rhomboid façade tiles in the large 44 × 44 cm format add surprising touches to the tried and tested “scaly” appearance of buildings. The fascinating rhomboid shape creates a contemporarily-styled façade which emphasizes the overall design and makes every building unique and full of character. The integrated fastening strips facilitate speedy and inexpensive installation of the façade elements.

  • Visually coordinated design
  • New mounting system – integrated fastening strip facilitates speedy installation
  • System optimisation
  • Available in 9 standard colours

RHOMBOID FAÇADE TILE 44 × 44 – TECHNICAL INFORMATION

  • Colour range: 9 standard colours – stucco surface
  • Also available with a smooth finish upon request

TECHNICAL INFORMATION ABOUT THE PRODUCT

MATERIAL:
aluminium 0.7 mm thick
VISIBLE SIDE:
Coil coating
REAR:
protective paint
SIZE:
437 × 437 mm (cover)
WEIGHT:
1 m² = approx. 2.6 kg = 5.24 rhomboid façade tiles 44 × 44
PACKAGING UNIT:
box containing 42 pc. = 8 m²
INSTALLATION:
on solid sheathing (at least 24 mm thick)
FASTENING:
direct, using 4 PREFA ring nails 28/25

RHOMBOID FAÇADE TILE 44 × 44 – COLOUR RANGE

THE PRODUCT IS AVAILABLE IN THE FOLLOWING COLOURS

COLOUR ~ RAL
01 P.10 brown 7013
02 P.10 anthracite 7016
03 P.10 black 9005
04 P.10 brick red 8004
05 P.10 oxide red 3009
06 P.10 moss green 6005
07 P.10 light grey 7005
11 P.10 nut brown 8019
43 P.10 stonegrey¹ 7031
01 P.10 BROWN
7013
02 P.10 ANTHRACITE
7016
03 P.10 BLACK
9005
04 P.10 BRICK RED
8004
05 P.10 OXIDE RED
3009
06 P.10 MOSS GREEN
6005
07 P.10 LIGHT GREY
7005
11 P.10 NUT BROWN
8019
43 P.10 STONEGREY¹
7031

¹ The colours P.10 stone grey, P.10 sand brown, P.10 rust brown, P.10 patina green, light wood, dark wood, patina grey and natural blank reflect natural colouring and are therefore subject to minimal variation, which gives the products their unmistakable character.

Notes

  • The RAL and NCS values stated are merely approximate values (~), some of which may differ vastly from the original PREFA colour and, under certain circumstances, may not reflect the subjective perception of the colour.
  • Above all for colour quality P.10, it is almost impossible to define values due to the surface structure. Furthermore, the colours P.10 stone grey, P.10 sand brown, P.10 rust brown, P.10 patina green, light wood, dark wood, and patina grey reflect natural colourings that are composed of several colour tones.
  • To identify exact colours for complementary components please consult original samples.
COLOUR DETAILS

RHOMBOID FAÇADE TILE 44 × 44 – ACCESSORIES

YOU CAN FIND A LIST OF ACCESSORIES FOR THE PRODUCT HERE

PREFA leading plate for rhomboid façade tile 44 × 44

PREFA LEADING PLATE FOR RHOMBOID FAÇADE TILE 44 × 44

1.48 pc. per metre

PREFA end plate for rhomboid façade tile 44 × 44

PREFA END PLATE FOR RHOMBOID FAÇADE TILE 44 × 44

1.48 pc. per metre

PREFA edge cleat strip for façade shingles, rhomboid façade tiles and FX.12

PREFA EDGE CLEAT STRIP FOR FAÇADE SHINGLES, RHOMBOID FAÇADE TILES AND FX.12

1,800 × 158 × 1.00 mm

RHOMBOID FAÇADE TILE 44 × 44 – PLANNING AND INSTALLATION

MORE PRODUCT INFORMATION IS AVAILABLE FOR DOWNLOADING HERE

Note: download DWG and DXF format files by right-clicking and selecting “Save link as”.
