Rhomboid façade tile 29 × 29

Give traditional façade design a new lease of life: Classic rhomboid façade tile with a matt, elegant structure.

+7
read more

The perfect combination of style and function: Façades covered with rhomboid façade tiles are characterised by harmonious light and shade effects – and are extremely robust. Alloys according to EN 1396 make up the basic material of PREFA aluminium products. The rhomboid façade tile 29 × 29 is coated in a coil-coating procedure and is subject to the strict requirements of the European Coil Coating Association in Brussels. PREFA guarantees the aluminium basic material for 40 years against breakage, rust and frost damage in natural environmental conditions and following installation by a professional.

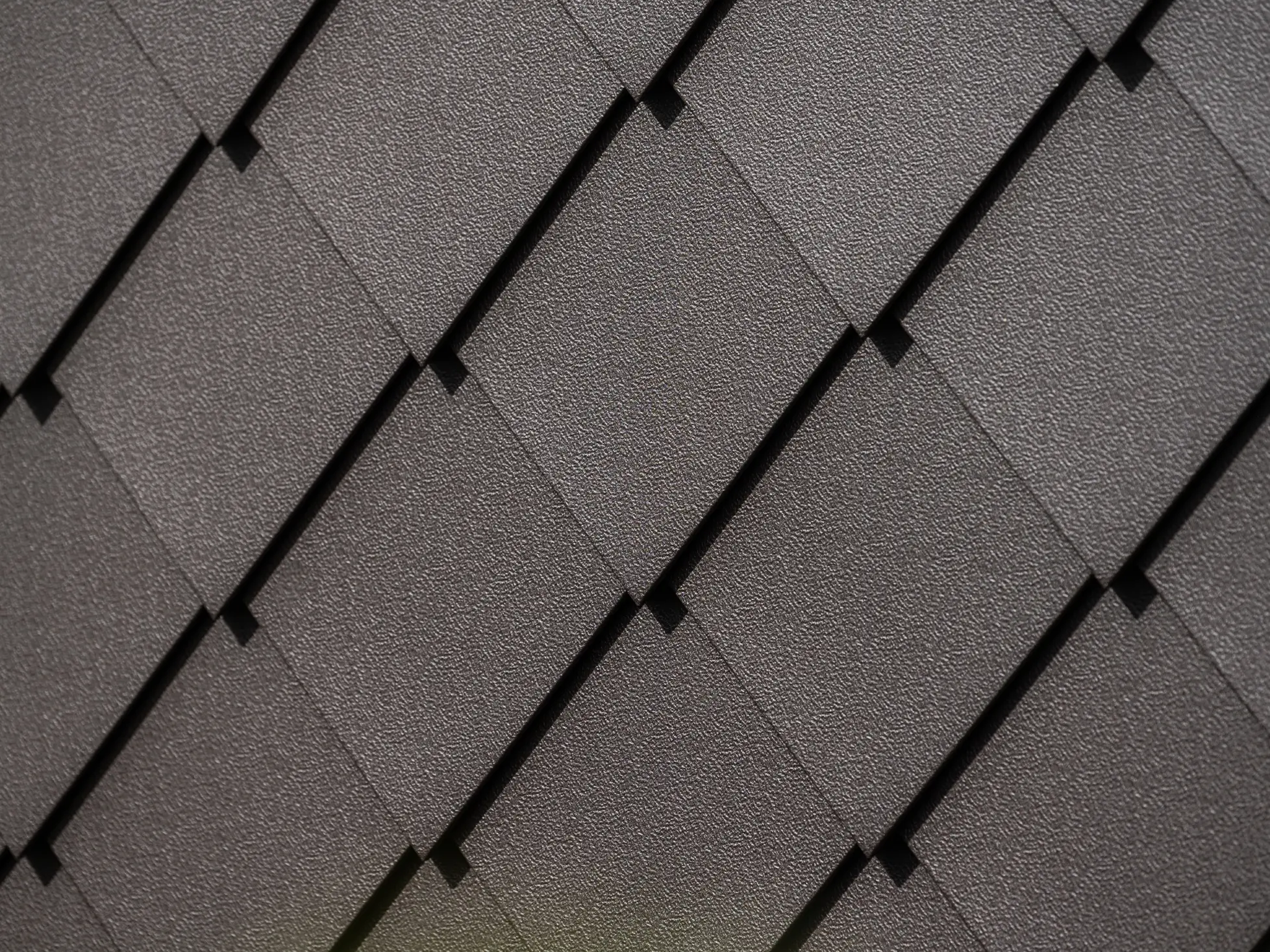

PREFA Wandraute 29 × 29 in Nussbraun Nahaufnahme mit Stucco-Oberfläche

Colour overview (11)

The product is available in the following colours

Colour

Code

~ RAL

01 Braun

P.10 brown

7013

02 Anthrazit

P.10 anthracite

7016

03 Schwarz

P.10 black

9005

04 Ziegelrot

P.10 brick red

8004

05 Oxydrot

P.10 oxide red

3009

06 Moosgrün

P.10 moss green

6005

07 Hellgrau

P.10 light grey

7005

10 Prefaweiß

P.10 prefa white

9002

11 Nussbraun

P.10 nut brown

8019

PREFA dunkelgrau ähnlich DB 703 oder RAL 7043

P.10 dark grey

7043

43 Steingrau

P.10 stone grey

7031

Notes

  • The RAL values stated are merely approximate values (~), some of which may differ vastly from the original PREFA colour and, under certain circumstances, may not reflect the subjective perception of the colour.
  • Above all for colour quality P.10, it is almost impossible to define values due to the surface structure.
  • Plain aluminium: The guarantee does not cover surface appearance alterations caused by processing and environmental influences. Follow the instructions.
  • Metallic colours may vary in shade.
  • To identify exact colours for complementary components please consult original samples.

Rhomboid façade tile 29 × 29 – Technical information

Material

coil-coated aluminium, 0.7 mm thick

Dimensions

437×437 mm (cover), i.e. approx. 5 pc./m²
290×290 mm (cover), i.e. 12 pc./m²

Weight

approx. 2.6 kg/m²

Supporting substrate*

on fully boarded substrate (at least 24 mm)*

* Observe country-specific standards and specialist guidelines.

Standard fastening

direct fastening, 4 PREFA ring nails per rhomboid façade tile 44×44 (i.e. 20 PREFA ring nails per m²)
indirect, 1 PREFA rhomboid façade tile clip as well as 1 ring nail per rhomboid façade tile 29×29 (i.e. 12 PREFA rhomboid façade tile clips as well as 12 ring nails per m²)

Rhomboid façade tile 29 × 29 – for wall mounting

Rhomboid façade tile 29 × 29 – for wall mounting

Rhomboid façade tile 29 × 29 – Planning and installation

More product information is available for downloading here.

Note: download DWG and DXF format files by right-clicking and selecting “Save link as”.

Accessories

Here, you will find a list of matching accessories for the rhomboid façade tile 29 x 29.
For a complete, detailed list of accessory products, see our price list (only for processors).

Leading plate for rhomboid façade tile 29 × 29

-

End plate for rhomboid façade tile 29 × 29

-

Starter strip façade

for façade shingles, rhomboid façade tiles and FX.12; 1800 × 158 × 1,00 mm, pre-drilled

Rhomboid façade tile clip 29 × 29

-

Fastener (aluminium screw)

Special screw for aluminium substructures, with hardened drill point (red tip for illustration only)

Fastener (steel screw)

Special screw for steel substructures, with hardened drill point (red tip for illustration only)
