ROOF SYSTEMS FX.12 ROOF PANEL

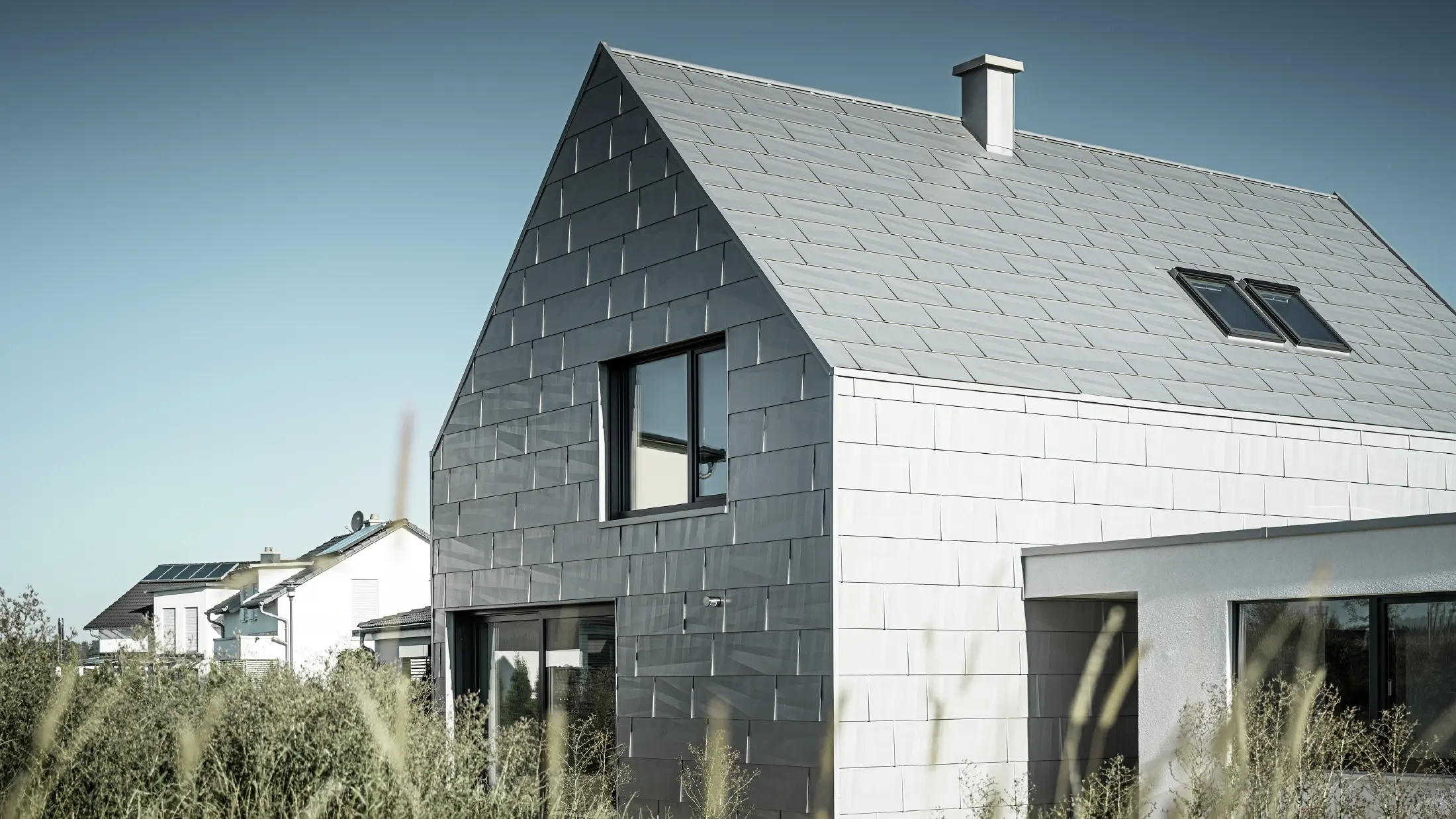

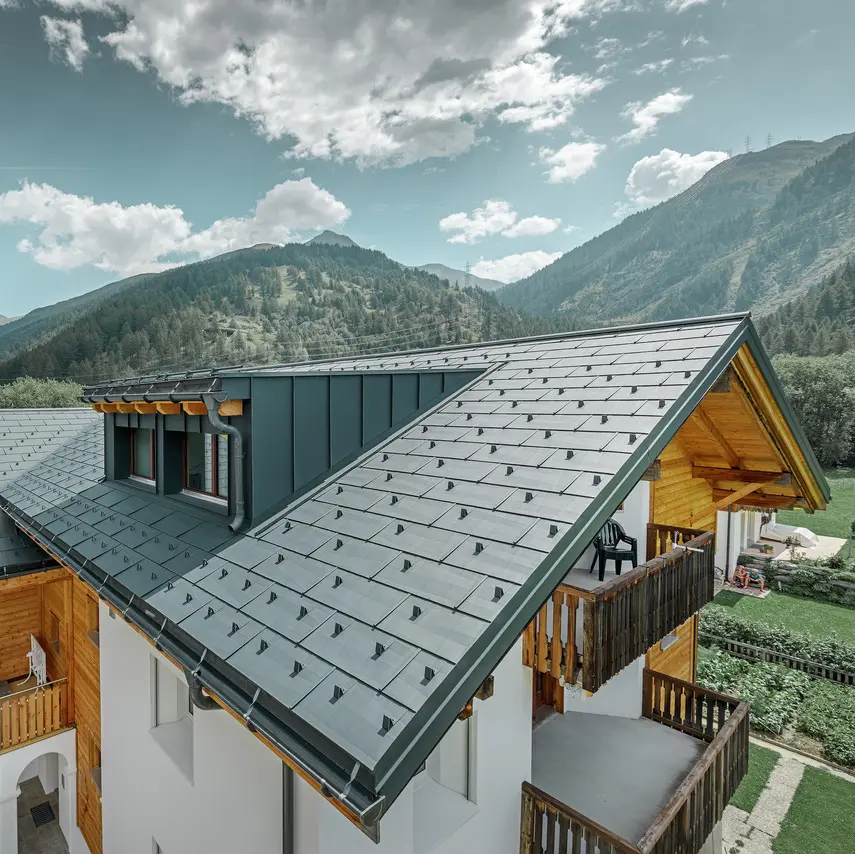

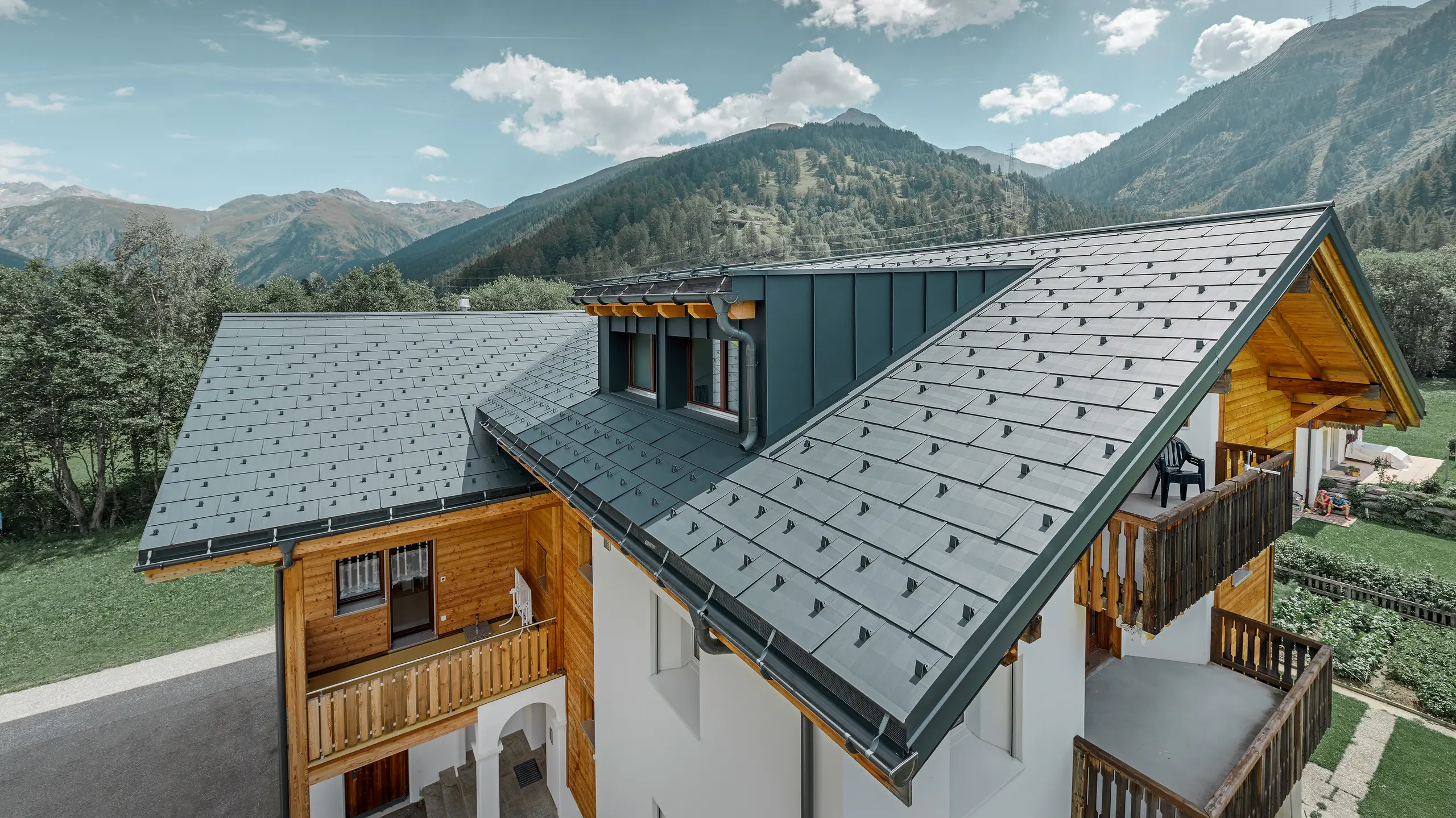

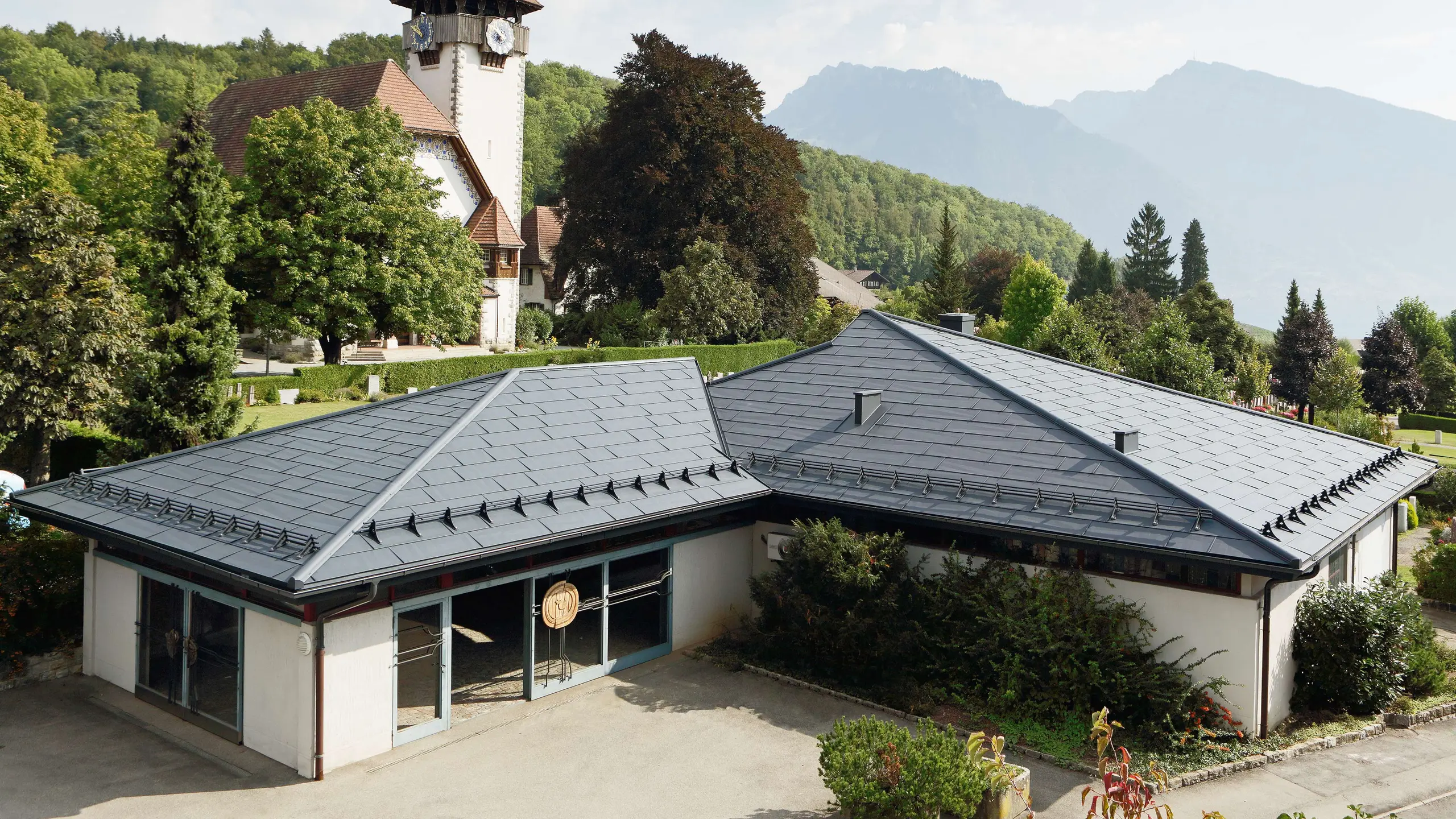

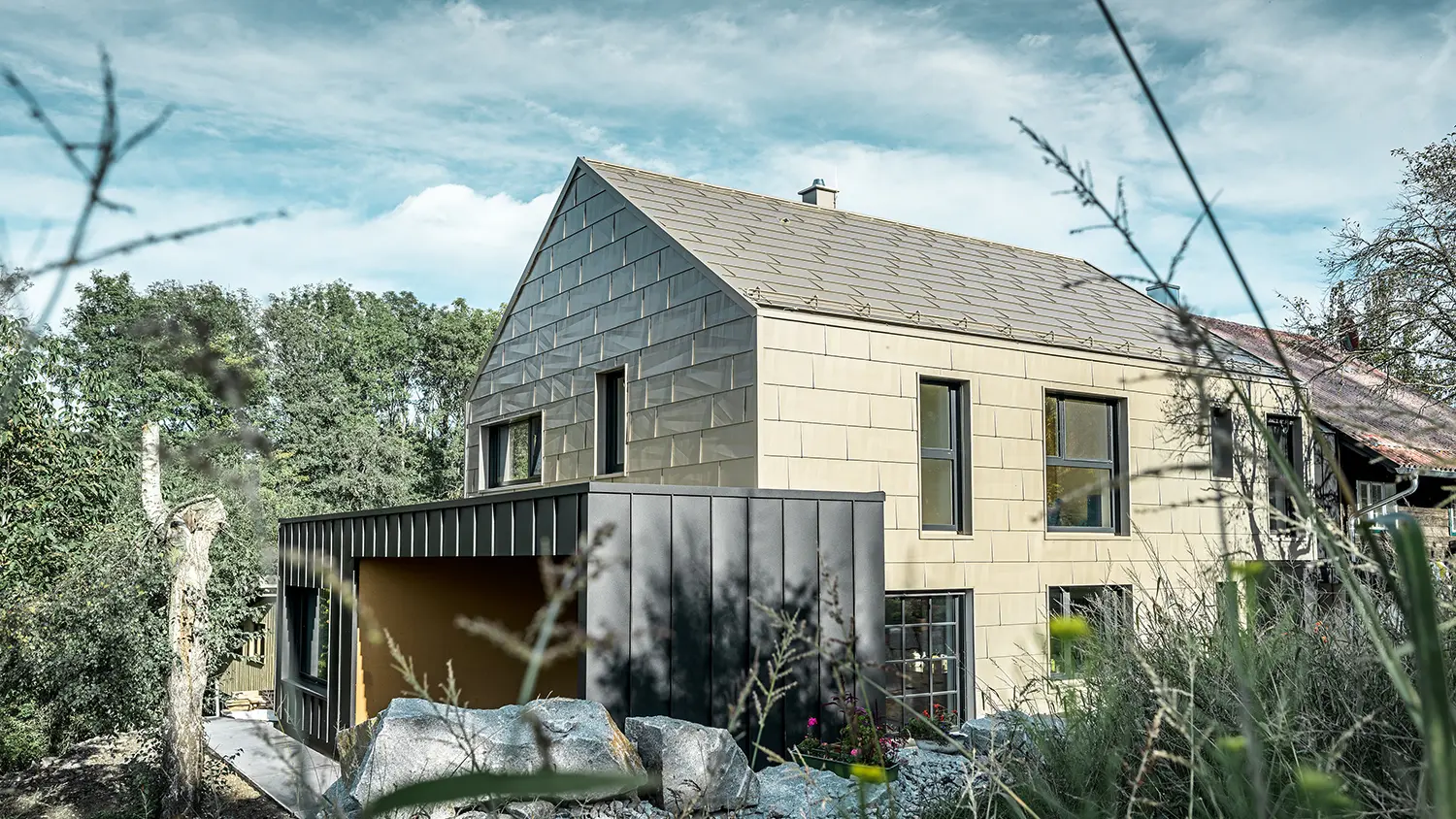

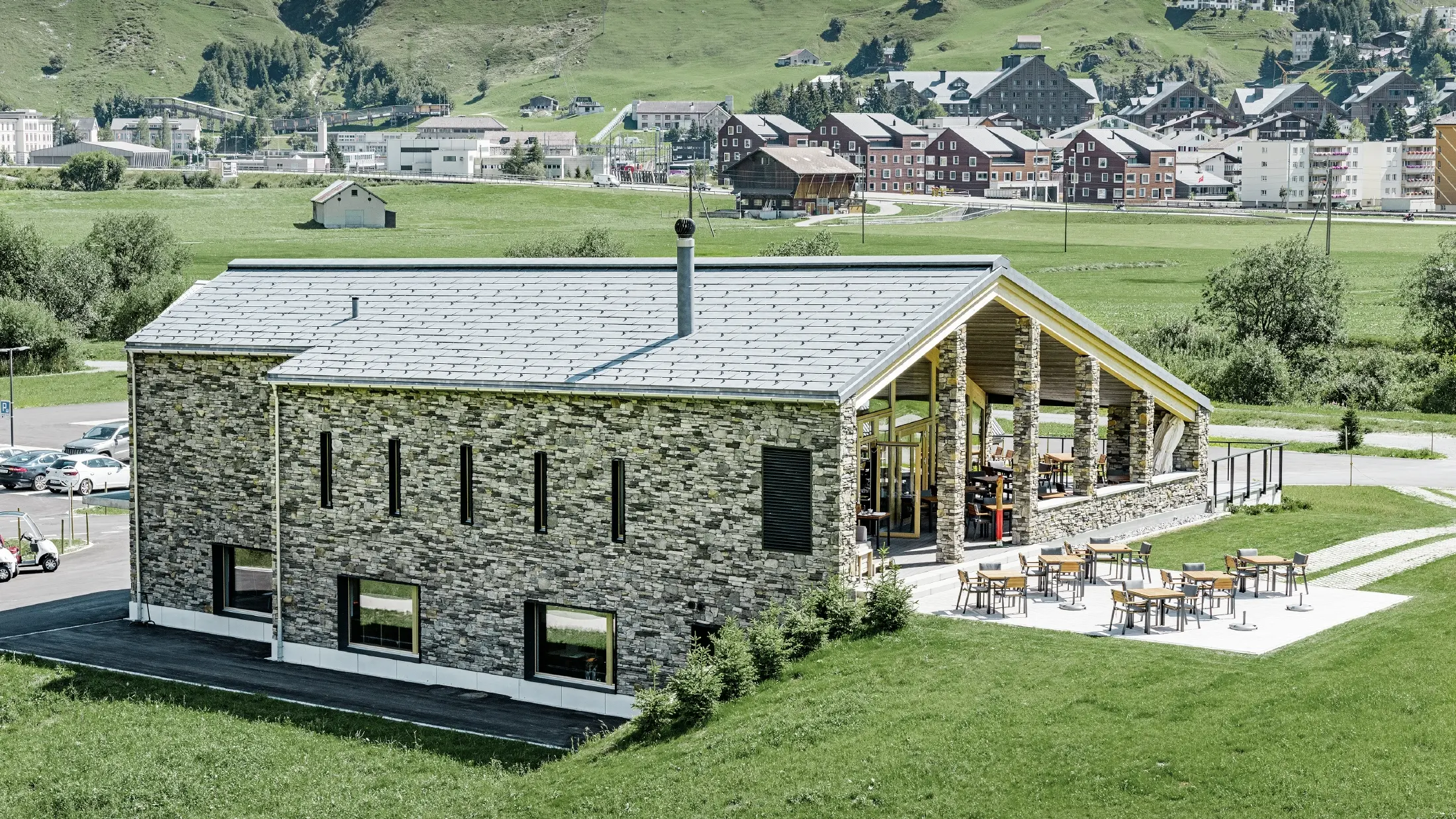

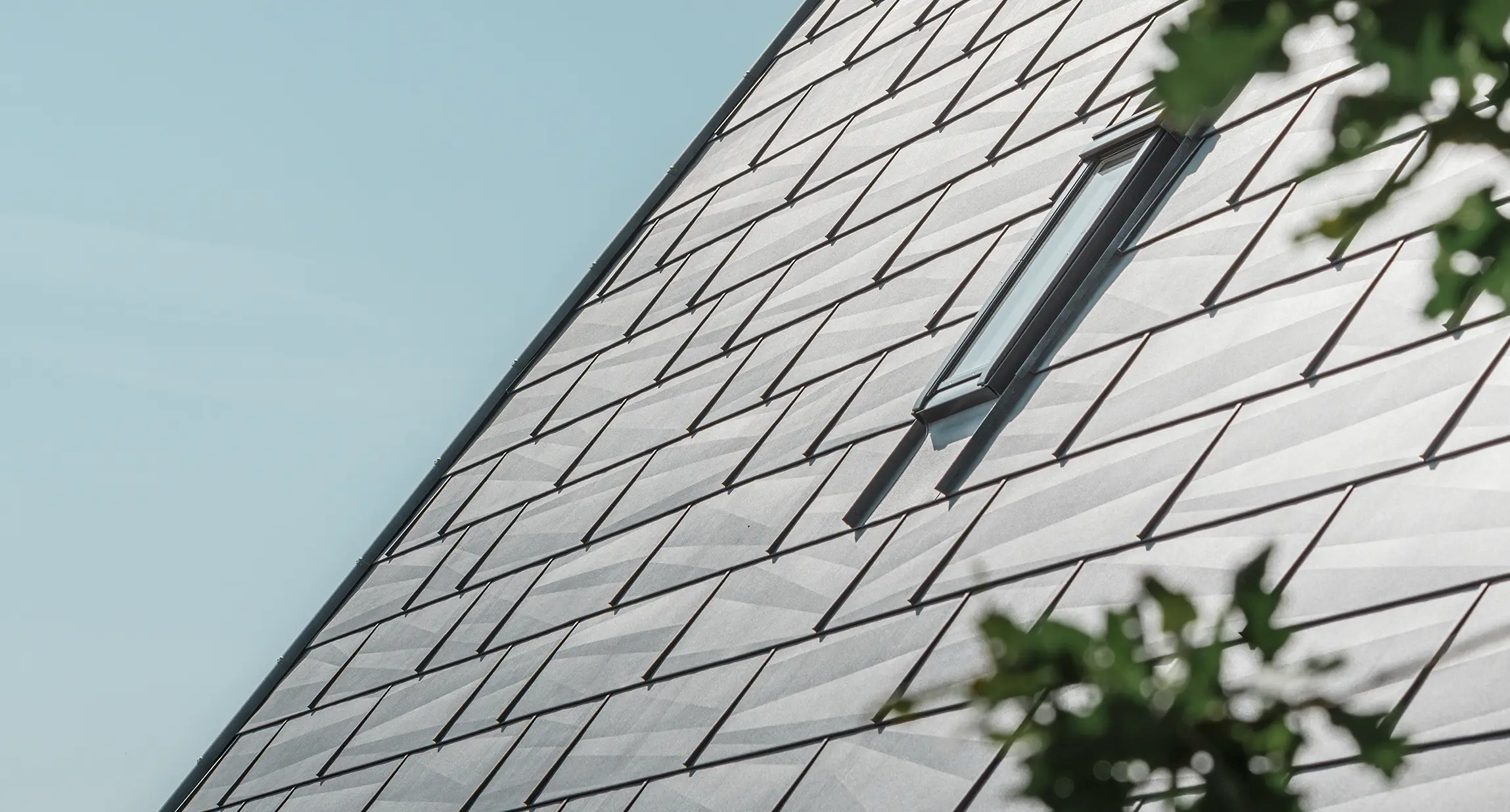

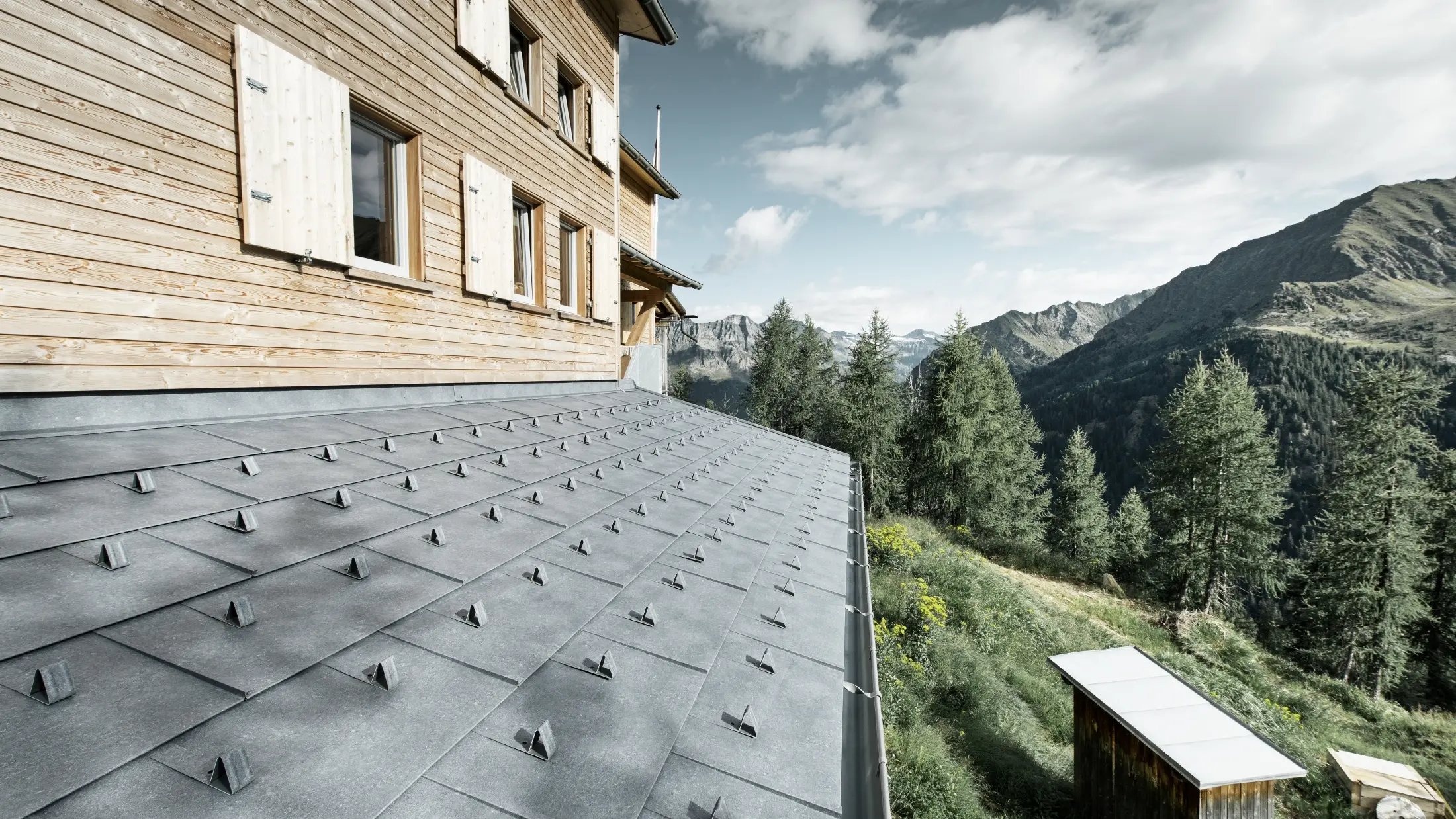

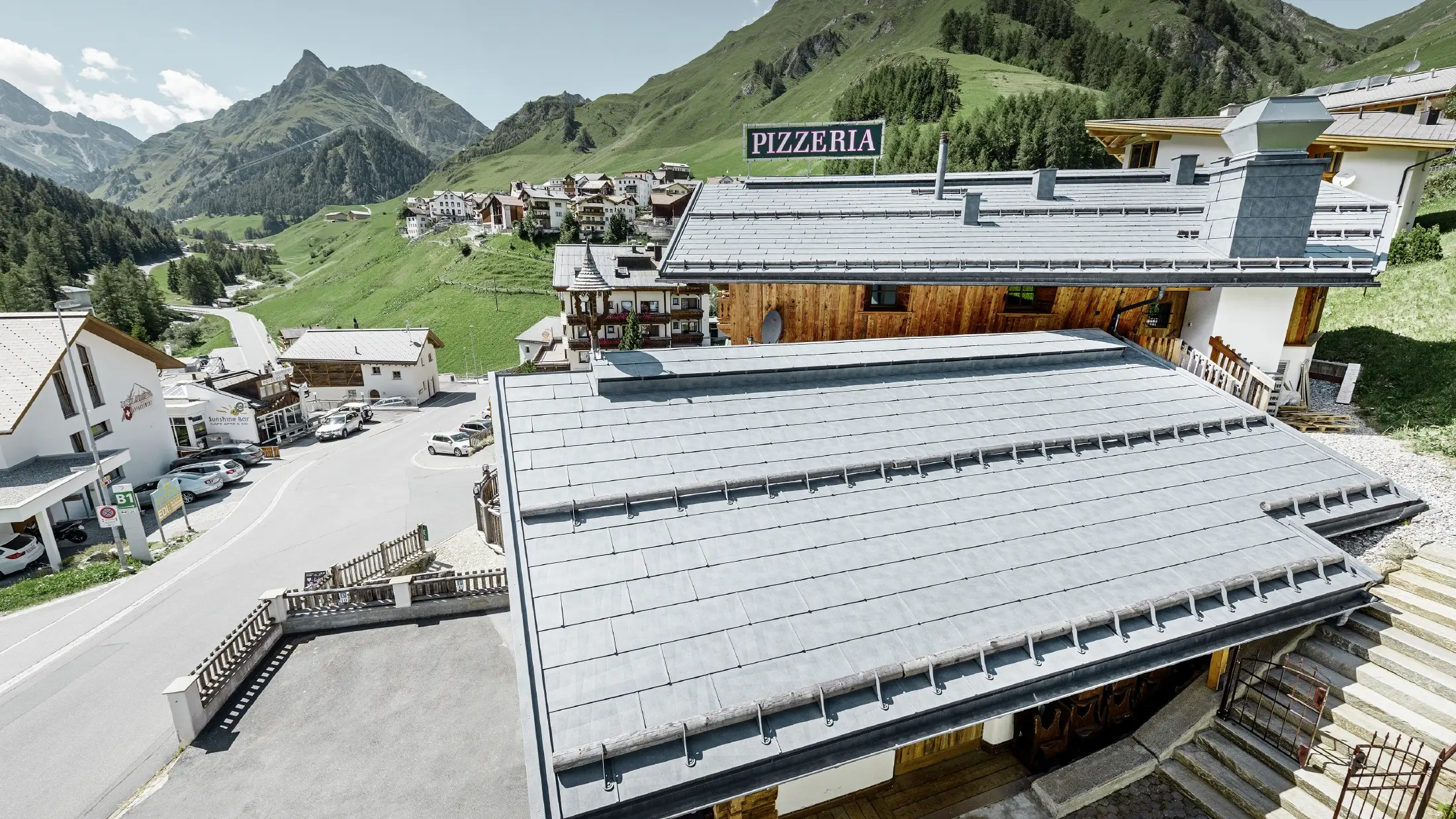

Talstation der Seilbahn Seiseralm; Die Talstation wurde mit dem PREFA Fassadenpaneel FX.12 in Braun aus Aluminium verkleidet. Detailansicht eines Wohnhauses mit Gaube mit dem PREFA Dachpaneel FX.12 in Anthrazit eingedeckt Reference buildings PREFA Roof systems FX.12 roof panel 03 P.10 black Reference buildings PREFA Roof systems FX.12 roof panel 04 P.10 brick red Detail of a roof surface with the PREFA FX.12 roof panel in oxide red with a snow load calculating system. Reference buildings PREFA Roof systems FX.12 roof panel 06 P.10 moss green Reference buildings PREFA Roof systems FX.12 roof panel 07 P.10 light grey Lakeside house with PREFA FX.12 roof panels in nut brown and façade cladding in sand brown and wood. Classic single-family house with gable roof with two dormers, covered with the PREFA FX.12 roof panel in stone grey.
Product catalogue PREFA Roof systems FX.12 roof panel 01 P.10 brown P.10 Product catalogue PREFA Roof systems FX.12 roof panel 02 P.10 anthracite P.10 Product catalogue PREFA Roof systems FX.12 roof panel 03 P.10 black P.10 Product catalogue PREFA Roof systems FX.12 roof panel 04 P.10 brick red P.10 Product catalogue PREFA Roof systems FX.12 roof panel 05 P.10 oxide red P.10 Product catalogue PREFA Roof systems FX.12 roof panel 06 P.10 moss green P.10 Product catalogue PREFA Roof systems FX.12 roof panel 07 P.10 light grey P.10 Product catalogue PREFA Roof systems FX.12 roof panel 11 P.10 nut brown P.10 Product catalogue PREFA Roof systems FX.12 roof panel 43 P.10 stone grey P.10
AVAILABLE COLOURS

FX.12 ROOF PANEL – INFORMATION

When smart design meets technical refinement. The irregular canting creates vibrant light and shade effects depending on the position of the sun.

However, the canting has an even more important role: It reinforces the panels, ensuring greater resistance. An additional characteristic is the tapered standing seam which has a number of uses:

  • Absorbs lateral expansion

ADDITIONAL ADVANTAGES OF THE FX.12 ROOF PANEL:

FX.12 ROOF PANEL – TECHNICAL INFORMATION

SIZE:
1,400 × 420 mm (long) = 1.7 pc./m²
700 × 420 mm (short) = 3.4 pc./m²
MATERIAL:
aluminium 0.7 mm thick
VISIBLE SIDE:
Coil coating
REAR:
protective paint
WEIGHT:
1 m²=approx. 2.4–2.5 kg/m²
SURFACE:
available in nine colours
ROOF PITCH:
from 17°
INSTALLATION:
only on solid sheathing (at least 24 mm thick)
a separating layer is required with a roof pitch up to 25°
FASTENING:

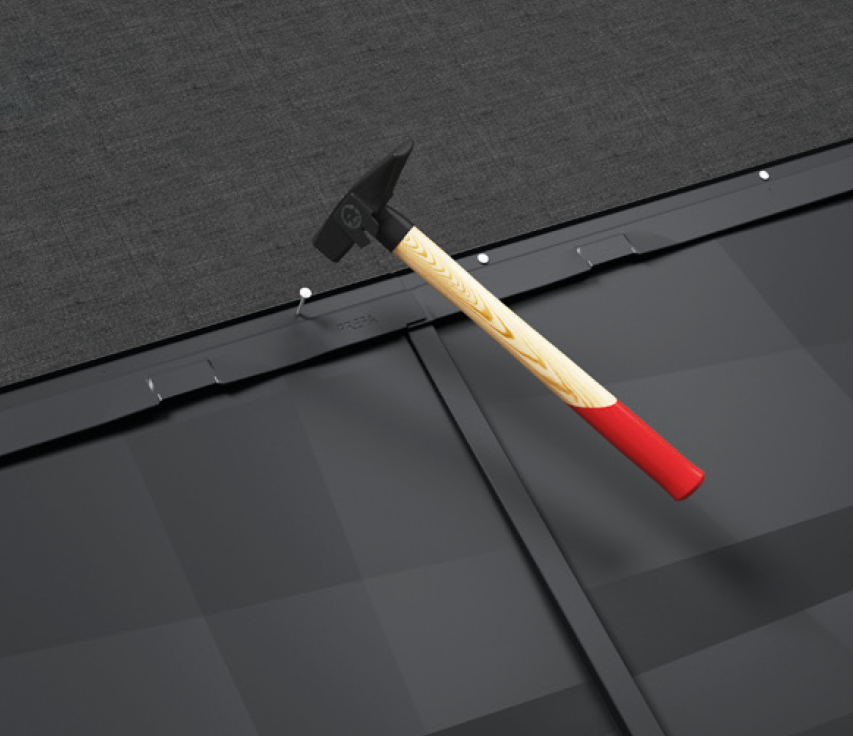

installation without patent clips.
3 nails per short panel and 5 nails per long panel → 9 nails per m² with a panel ratio of 2:1 or a surface ratio of 4:1 (long:short)

ROOF STRUCTURE

The attic can also be used as living space

The attic is not used as living space





INSTALLATION EXAMPLES

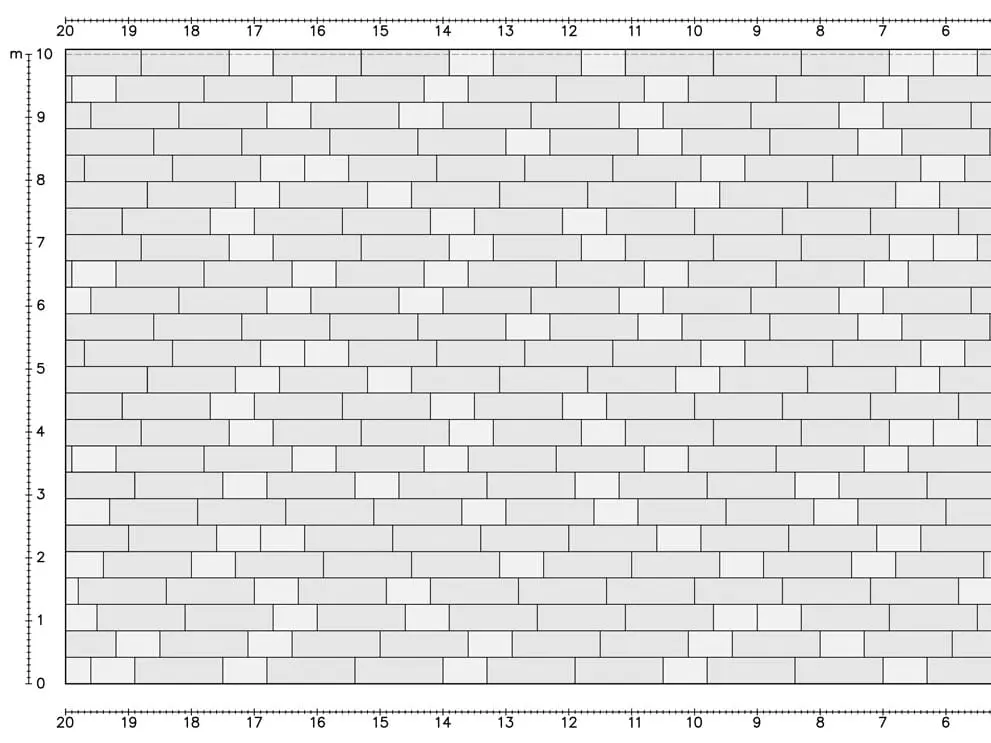

Installation example 1

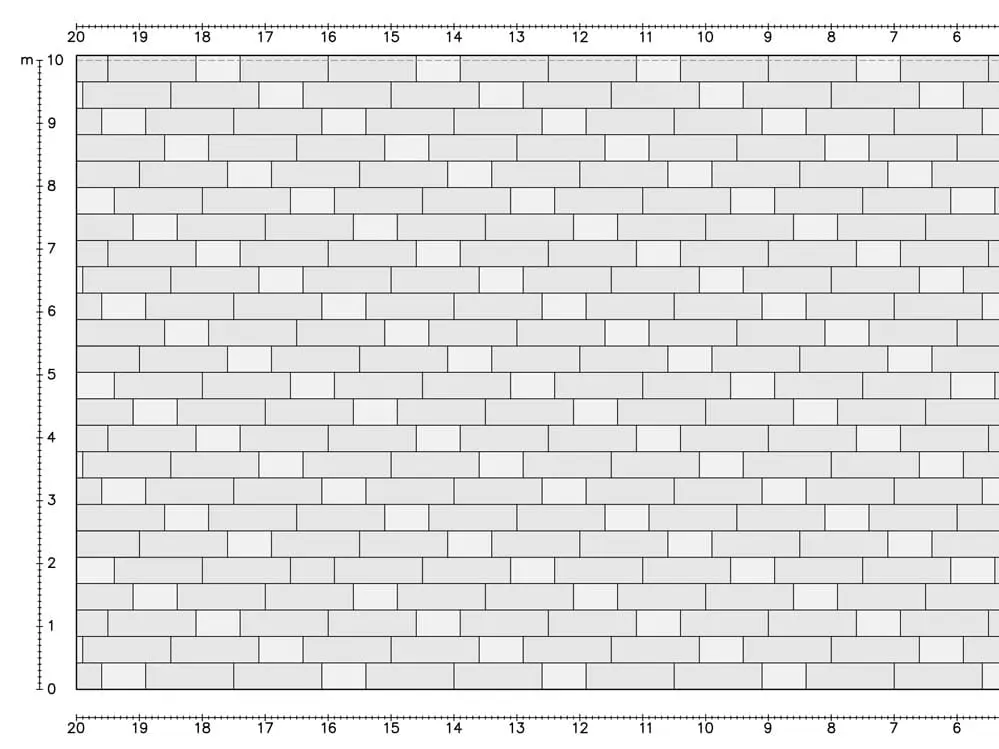

Installation example 2

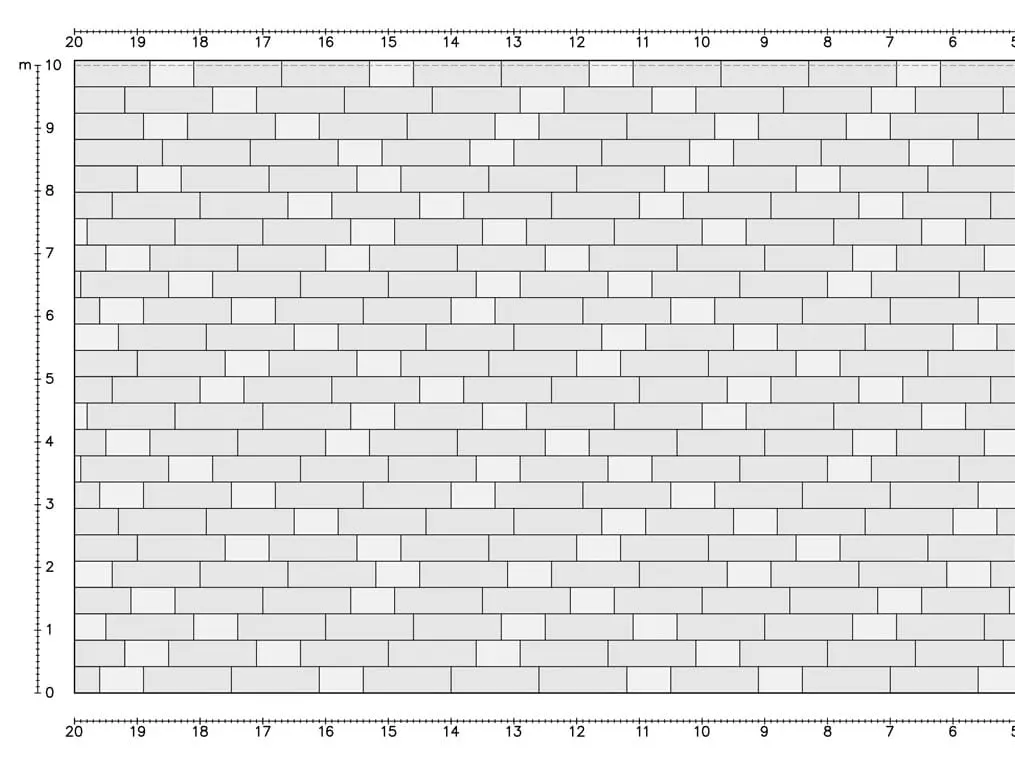

Installation example 3

FX.12 ROOF PANEL – COLOUR CHART

THE PRODUCT IS AVAILABLE IN THE FOLLOWING COLOURS

COLOUR ~ RAL ~ NCS
01 P.10 brown 7013 S 8005-Y20R
02 P.10 anthracite 7016 S 8502-B
03 P.10 black 9005 S 9000-N
04 P.10 brick red 8004 S 4550-Y60R
05 P.10 oxide red 3009 S 0530-Y90R
06 P.10 moss green 6005 S 7020-G
07 P.10 light grey 7005 S 6000-N
11 P.10 nut brown 8019 S 8005-Y80R
43 P.10 stonegrey¹ 7031 S 6005-R80B
01 P.10 BROWN
7013
S 8005-Y20R
02 P.10 ANTHRACITE
7016
S 8502-B
03 P.10 BLACK
9005
S 9000-N
04 P.10 BRICK RED
8004
S 4550-Y60R
05 P.10 OXIDE RED
3009
S 0530-Y90R
06 P.10 MOSS GREEN
6005
S 7020-G
07 P.10 LIGHT GREY
7005
S 6000-N
11 P.10 NUT BROWN
8019
S 8005-Y80R
43 P.10 STONEGREY¹
7031
S 6005-R80B

¹ The colours P.10 stone grey, P.10 sand brown, P.10 rust brown, P.10 patina green, light wood, dark wood, patina grey and natural blank reflect natural colouring and are therefore subject to minimal variation, which gives the products their unmistakable character.

Notes

  • The RAL and NCS values stated are merely approximate values (~), some of which may differ vastly from the original PREFA colour and, under certain circumstances, may not reflect the subjective perception of the colour.
  • Above all for colour quality P.10, it is almost impossible to define values due to the surface structure. Furthermore, the colours P.10 stone grey, P.10 sand brown, P.10 rust brown, P.10 patina green, light wood, dark wood, and patina grey reflect natural colourings that are composed of several colour tones.
  • To identify exact colours for complementary components please consult original samples.
COLOUR DETAILS

FX.12 ROOF PANEL – ACCESSORIES

YOU CAN FIND A LIST OF ACCESSORIES FOR THE PRODUCT HERE

PREFA edge cleat strip for shingles, rhomboid roof tiles, FX.12 and R.16

PREFA EDGE CLEAT STRIP FOR SHINGLES, RHOMBOID ROOF TILES, FX.12 AND R.16

1,800 × 158 × 1.00 mm, pre-drilled

PREFA bird screen

PREFA BIRD SCREEN

125 × 2,000 × 0.7 mm; round perforations (⌀ 5 mm)

PREFA ventilation screen

PREFA VENTILATION SCREEN

square perforations (6 mm); colours brown/anthracite and light grey/light grey; dimensions: 1.00 × 250 mm and 1.00 × 333 mm

PREFA eaves apron ice strip

PREFA EAVES APRON ICE STRIP

230 × 2,000 × 0.70 mm

PREFA verge flashing

PREFA VERGE FLASHING

95 × 2,000 × 0.70 mm; with cleat strip

PREFA safety valley

PREFA SAFETY VALLEY

3,000 mm; with double lock standing seam (canted)

PREFA frog-mouth vent cover

PREFA FROG-MOUTH VENT COVER

for riveting; air intake section: approx. 30 cm²

PREFA hip and ridge cap

PREFA HIP AND RIDGE CAP

500 × 1.00 mm

Edge covering front head

EDGE COVERING FRONT HEAD

PREFA ridge vent

PREFA RIDGE VENT

3,000 × 1.00 mm; 1,200 × 1.00 mm; for cold roofs; suitable for all rafter lengths

PREFA jet fan front head

PREFA JET FAN FRONT HEAD

PREFA roof hatch

PREFA ROOF HATCH

Inside dimensions: 595 × 595 mm; from roof pitches of 12°, complete with wooden frame, opening restrictor with cotter pin and 6 mm twinwall clear sheet

PREFA flashing for Velux roof windows

PREFA FLASHING FOR VELUX ROOF WINDOWS

available in various dimensions

PREFA flashing for Roto roof windows

PREFA FLASHING FOR ROTO ROOF WINDOWS

available in various dimensions

PREFA safety tread

PREFA SAFETY TREAD

composed of safety tread and two mounts with surface sealant, including fixing material, adjustable for roof pitches between 12° and 60° According to DIN EN 516-1-A

PREFA walkway support on one foot

PREFA WALKWAY SUPPORT ON ONE FOOT

250 mm; roof pitch: 5°–55°

PREFA walkway support on two feet

PREFA WALKWAY SUPPORT ON TWO FEET

360 mm
Roof pitch: 12°–55°

PREFA walkway

PREFA WALKWAY

250 × 420 mm
250 × 600 mm
250 × 800 mm
250 × 1200 mm
360 × 800 mm
360 × 1.200 mm

PREFA connector for walkways

PREFA CONNECTOR FOR WALKWAYS

PREFA roof anchor hook according to EN 517 B

PREFA ROOF ANCHOR HOOK ACCORDING TO EN 517 B

PREFA roof anchor hook according to EN 517 B

PREFA ROOF ANCHOR HOOK ACCORDING TO EN 517 B

on mounts

PREFA flashing plate for FX.12 and R.16

PREFA FLASHING PLATE FOR FX.12 AND R.16

for pipe openings of ⌀ 80–125 mm and roof pitches between 17° and 52°

PREFA flashing plate (for seaming)

PREFA FLASHING PLATE (FOR SEAMING)

roof pitch: 12°–52°; Ø 80–125 mm

PREFA universal flashing

PREFA UNIVERSAL FLASHING

for pipes with a diameter of 40–120 mm; roof pitch: 12°–52°

PREFA ventilation cap

PREFA VENTILATION CAP

roof pitch from 12°; ⌀ 100 mm

PREFA vent pipe

PREFA VENT PIPE

⌀ 100 mm, ⌀ 120 mm, flashing plates

PREFA flexible pipe collar 100

PREFA FLEXIBLE PIPE COLLAR 100

⌀ 100 – 130 mm, permanently flexible EPDM pipe collar for roof openings

PREFA base plate

PREFA BASE PLATE

PREFA snow guard for FX.12, DS.19 and R.16

PREFA SNOW GUARD FOR FX.12, DS.19 AND R.16

PREFA pipe-style snow guard bracket

PREFA PIPE-STYLE SNOW GUARD BRACKET

Opening height: 135 mm; bracket height: 165 mm

PREFA pipe

PREFA PIPE

for pipe-style snow guard brackets; 15 × 3,000 mm

End piece for pipe style snow guard

END PIECE FOR PIPE STYLE SNOW GUARD

PREFA pipe-style snow guard system

PREFA PIPE-STYLE SNOW GUARD SYSTEM

with 3 pipe openings

PREFA pipe-style snow guard system

PREFA PIPE-STYLE SNOW GUARD SYSTEM

removable pipe (3,000 mm 25/25)

PREFA ice-retention bracket for pipe-style snow guard system

PREFA ICE-RETENTION BRACKET FOR PIPE-STYLE SNOW GUARD SYSTEM

removable pipe including fixing material for pipe-style snow guard system

PREFA end piece for pipe-style snow guard system

PREFA END PIECE FOR PIPE-STYLE SNOW GUARD SYSTEM

PREFA aluminium mountain snow guard bracket

PREFA ALUMINIUM MOUNTAIN SNOW GUARD BRACKET

300 × 246 mm; for logs (⌀ 140 mm)

PREFA chimney cap

PREFA CHIMNEY CAP

700 × 700 mm, 800 × 800 mm, 1000 × 700 mm, 1100 × 800 mm, 1500 × 800 mm

PREFA flat profile

PREFA FLAT PROFILE
