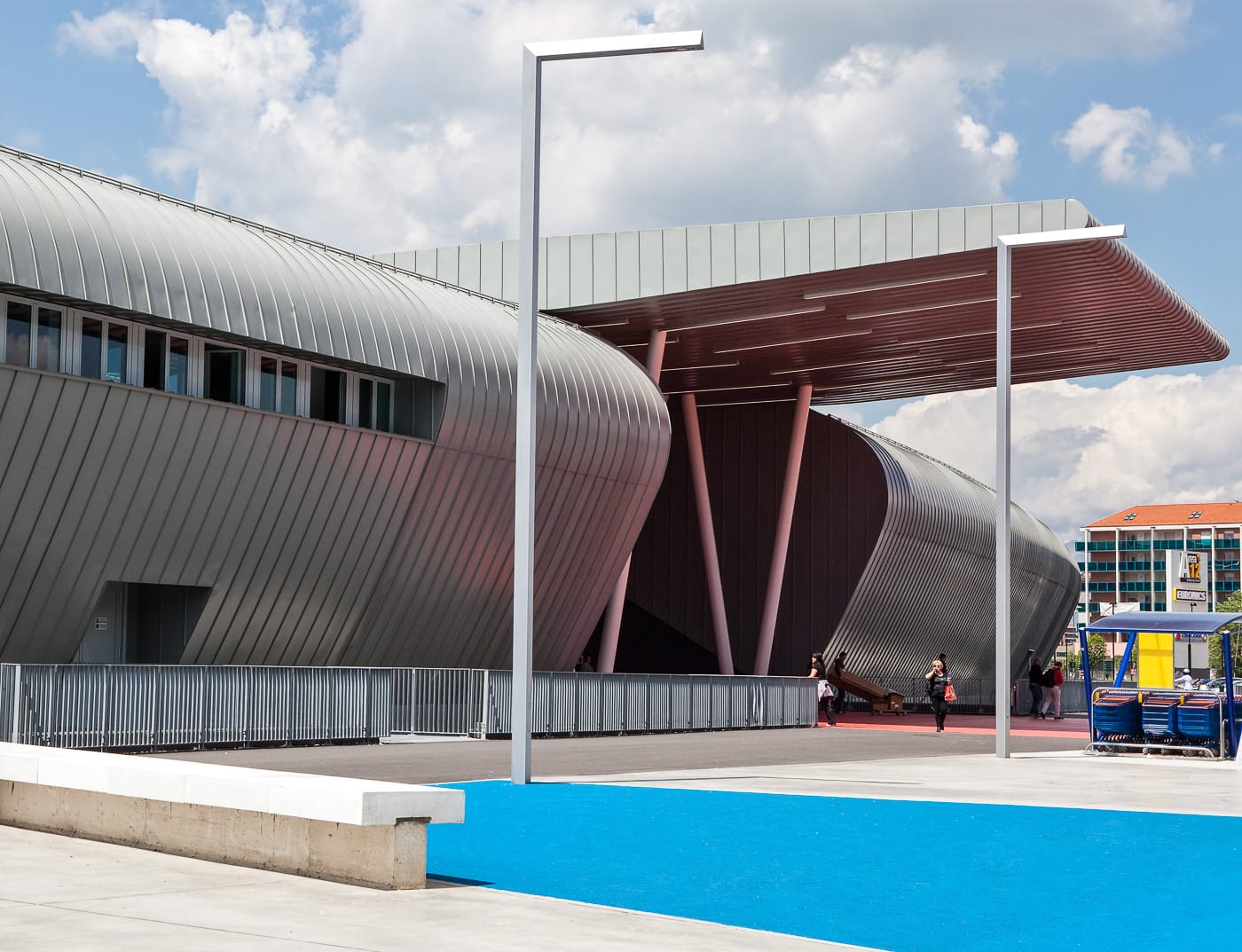

Reference buildings PREFA Roof systems Falzonal® standard pure white (similar to RAL 9010) Reference buildings PREFA Roof systems Falzonal® tin grey Reference buildings PREFA Roof systems Falzonal® pearl white (similar to RAL 1013) Reference buildings PREFA Roof systems Falzonal® dusty blue (similar to RAL 5014) Reference buildings PREFA Roof systems Falzonal® light ivory (similar to RAL 1015) Reference buildings PREFA Roof systems Falzonal® matt light zinc Reference buildings PREFA Roof systems Falzonal® broom yellow (similar to RAL 1003) Reference buildings PREFA Roof systems Falzonal® grey-green (similar to RAL 6021) Reference buildings PREFA Roof systems Falzonal® opal green Reference buildings PREFA Roof systems Falzonal® anodic brown Reference buildings PREFA Roof systems Falzonal® matt dark grey Reference buildings PREFA Roof systems Falzonal® anthracite grey (similar to RAL 7016) Reference buildings PREFA Roof systems Falzonal® matt light grey Reference buildings PREFA Roof systems Falzonal® bright metallic (similar to RAL 9006) Reference buildings PREFA Roof systems Falzonal® pastel turquoise (similar to RAL 6034) Reference buildings PREFA Roof systems Falzonal® savannah beige Reference buildings PREFA Roof systems Falzonal® carbon black (similar to RAL 9004) Reference buildings PREFA Roof systems Falzonal® gentian blue Reference buildings PREFA Roof systems Falzonal® light grey (similar to RAL 7035) Reference buildings PREFA Roof systems Falzonal® reseda green (similar to RAL 6011) Reference buildings PREFA Roof systems Falzonal® maya gold Reference buildings PREFA Roof systems Falzonal® azure blue (similar to RAL 5009) Reference buildings PREFA Roof systems Falzonal® olive green (similar to RAL 6003) Reference buildings PREFA Roof systems Falzonal® standard mint green (similar to RAL 6029) Reference buildings PREFA Roof systems Falzonal® standard quartz grey (similar to RAL 7039) Reference buildings PREFA Roof systems Falzonal® copper brown (similar to RAL 8004) Reference buildings PREFA Roof systems Falzonal® coffee brown (similar to RAL 8024) Reference buildings PREFA Roof systems Falzonal® Victorian brick red Reference buildings PREFA Roof systems Falzonal® rosewood pink Reference buildings PREFA Roof systems Falzonal® weathered clear varnish Reference buildings PREFA Roof systems Falzonal® new copper Reference buildings PREFA Roof systems Falzonal® standard grey aluminium (similar to RAL 9007) Reference buildings PREFA Roof systems Falzonal® turquoise blue (similar to RAL 5018) Reference buildings PREFA Roof systems Falzonal® crimson (similar to RAL 3002) Reference buildings PREFA Roof systems Falzonal® zinc grey Reference buildings PREFA Roof systems Falzonal® stainless-style bright Reference buildings PREFA Roof systems Falzonal® light bronze
Products PREFA Roof systems Falzonal® standard pure white (similar to RAL 9010) PVdF Products PREFA Roof systems Falzonal® tin grey PVdF Products PREFA Roof systems Falzonal® pearl white (similar to RAL 1013) PVdF Products PREFA Roof systems Falzonal® dusty blue (similar to RAL 5014) PVdF Products PREFA Roof systems Falzonal® light ivory (similar to RAL 1015) PVdF Products PREFA Roof systems Falzonal® matt light zinc PVdF Products PREFA Roof systems Falzonal® broom yellow (similar to RAL 1003) PVdF Products PREFA Roof systems Falzonal® grey-green (similar to RAL 6021) PVdF Products PREFA Roof systems Falzonal® opal green PVdF Products PREFA Roof systems Falzonal® anodic brown PVdF Products PREFA Roof systems Falzonal® matt dark grey PVdF Products PREFA Roof systems Falzonal® anthracite grey (similar to RAL 7016) PVdF Products PREFA Roof systems Falzonal® matt light grey PVdF Products PREFA Roof systems Falzonal® bright metallic (similar to RAL 9006) PVdF Products PREFA Roof systems Falzonal® pastel turquoise (similar to RAL 6034) PVdF Products PREFA Roof systems Falzonal® savannah beige PVdF Products PREFA Roof systems Falzonal® carbon black (similar to RAL 9004) PVdF Products PREFA Roof systems Falzonal® gentian blue PVdF Products PREFA Roof systems Falzonal® light grey (similar to RAL 7035) PVdF Products PREFA Roof systems Falzonal® reseda green (similar to RAL 6011) PVdF Products PREFA Roof systems Falzonal® maya gold PVdF Products PREFA Roof systems Falzonal® azure blue (similar to RAL 5009) PVdF Products PREFA Roof systems Falzonal® olive green (similar to RAL 6003) PVdF Products PREFA Roof systems Falzonal® standard mint green (similar to RAL 6029) PVdF Products PREFA Roof systems Falzonal® standard quartz grey (similar to RAL 7039) PVdF Products PREFA Roof systems Falzonal® copper brown (similar to RAL 8004) PVdF Products PREFA Roof systems Falzonal® coffee brown (similar to RAL 8024) PVdF Products PREFA Roof systems Falzonal® Victorian brick red PVdF Products PREFA Roof systems Falzonal® rosewood pink PVdF Products PREFA Roof systems Falzonal® weathered clear varnish PVdF Products PREFA Roof systems Falzonal® new copper PVdF Products PREFA Roof systems Falzonal® standard grey aluminium (similar to RAL 9007) PVdF Products PREFA Roof systems Falzonal® turquoise blue (similar to RAL 5018) PVdF Products PREFA Roof systems Falzonal® crimson (similar to RAL 3002) PVdF Products PREFA Roof systems Falzonal® zinc grey PVdF Products PREFA Roof systems Falzonal® stainless-style bright PVdF
AVAILABLE COLOURS

FALZONAL® – INFORMATION

In terms of alloy, strength and coating, this colour aluminium strip has been specially tailored for applications using sheet metal techniques. It is perfectly suited to the widest variety of folding techniques – and can be combined with materials such as wood, glass or steel.

Rainproof, single or double-skin ventilated roof and wall constructions can be realized in the same way as complex façade designs.

Falzonal® is available in a wide range of colours and surfaces with plain or metallic colours including copper, zinc or titanium shades.

  • Large choice of colours
  • PVdF coating (80/20) – UV-resistant and environmentally sound
  • Resists corrosion caused by condensation
  • Easy to work, strong load-bearing capacity
  • Alloy, mechanical properties and coating are coordinated with the folding technology
  • Falzonal® is non-combustible(A1)
  • No heavy metal erosion

FALZONAL® – TECHNICAL INFORMATION

Falzonal® Novelis colour aluminium in fold quality has been specially developed for roof & façade applications using sheet metal techniques.

MATERIAL:
aluminium 0.7 mm thick
VISIBLE SIDE:
made of powder-coated aluminium strip
REAR:
protective paint
SIZE:
“thickness: 0.7 mmwidth: 600 mm / 1,200 mmcentre-to-centre seam distance: 53 cm”
WEIGHT:
“sheet strip: 1.89 kg/m²approx. 2.2 kg/m² roof area with FALZONAL 600”
FIRE PROTECTION:
Falzonal ® is non-combustible according to EN 13501-A1. Smoke gases comply with DIN 4102 and pose no threat to health.

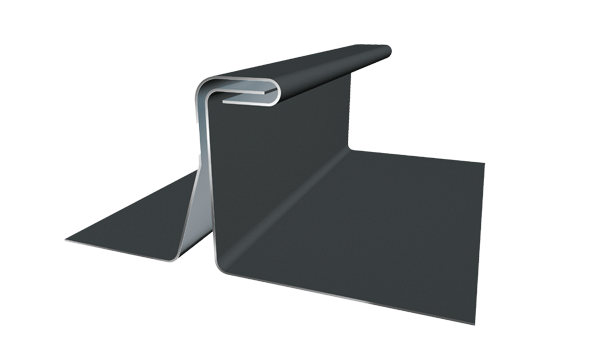

FOLD TYPES

The pre-painted aluminium strips can be easily rolled, cut, sawn, folded, canted, rounded, drilled, riveted and glued. Falzonal® can be combined with other materials such as wood, glass or steel. From arched roofs to narrow-angled dormers or bays, from church spires to large-scale façade cladding: Falzonal® offers many possibilities for individual roof and wall designs.

TECHNICAL DRAWING

FALZONAL® – COLOUR RANGE

PAINTS, COLOURS AND SURFACES

PAINT QUALITY:
“visible side:two-layer stove-enamel finish (available in 15 colours)Rear:protective paint”
GLOSS
Depending on the shade, covers approx. 10 to 20 units as per the Gardner measuring system (measuring angle 60°). Metallic colours approx. 40 units.
QUANTITIES
The colour range is available at short notice from your stockist. Your stockist will be delighted to provide you with more information.
PROTECTIVE FILM
The visible side of Falzonal® is coated with a patent, asymmetric perforated, non-slip protective film. This film is UV-resistant and can remain on the trays for up to six months after all work is complete.

THE PRODUCT IS AVAILABLE IN THE FOLLOWING COLOURS

STANDARD PURE WHITE
similar to RAL 9010

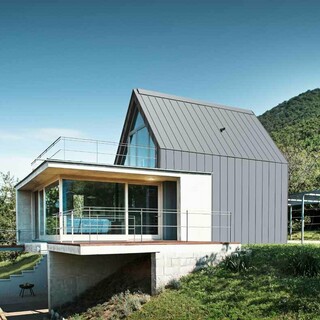

TIN GREY
PEARL WHITE
similar to RAL 1013
DUSTY BLUE (SIMILAR TO RAL 5014)
LIGHT IVORY
similar to RAL 1015
MATT LIGHT ZINC
BROOM YELLOW
similar to RAL 1003
GREY-GREEN
similar to RAL 6021
OPAL GREEN

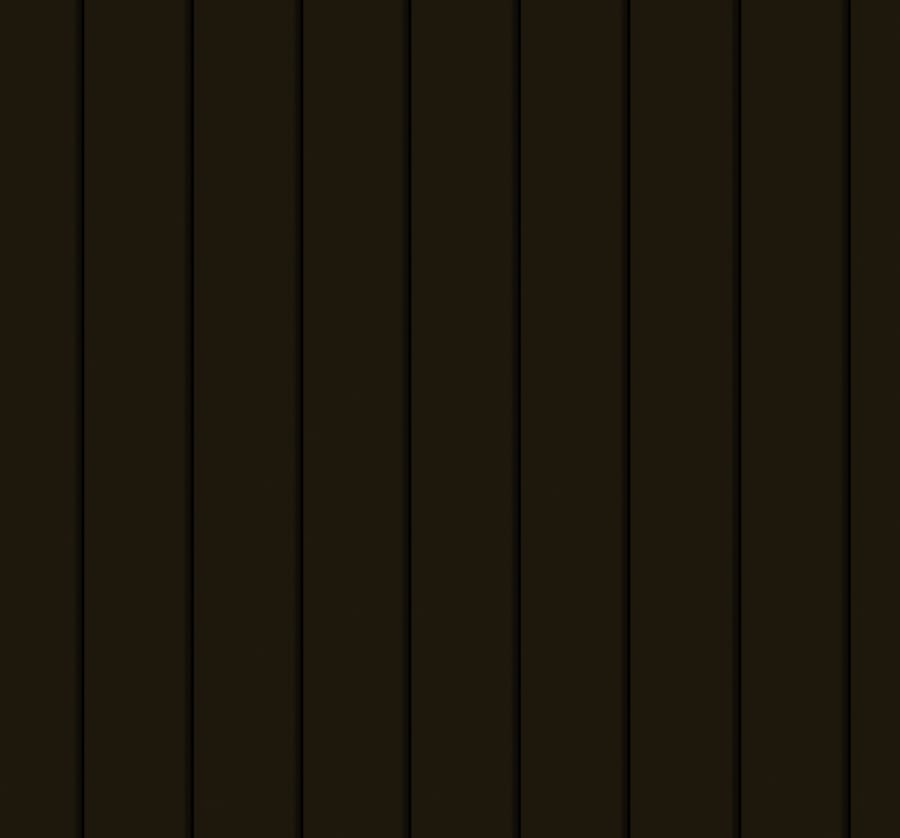

ANODIC BROWN
MATT DARK GREY
ANTHRACITE GREY
similar to RAL 7016
MATT LIGHT GREY
RUSTIC ZINC
BRIGHT METALLIC
similar to RAL 9006
PASTEL TURQUOISE
similar to RAL 6034

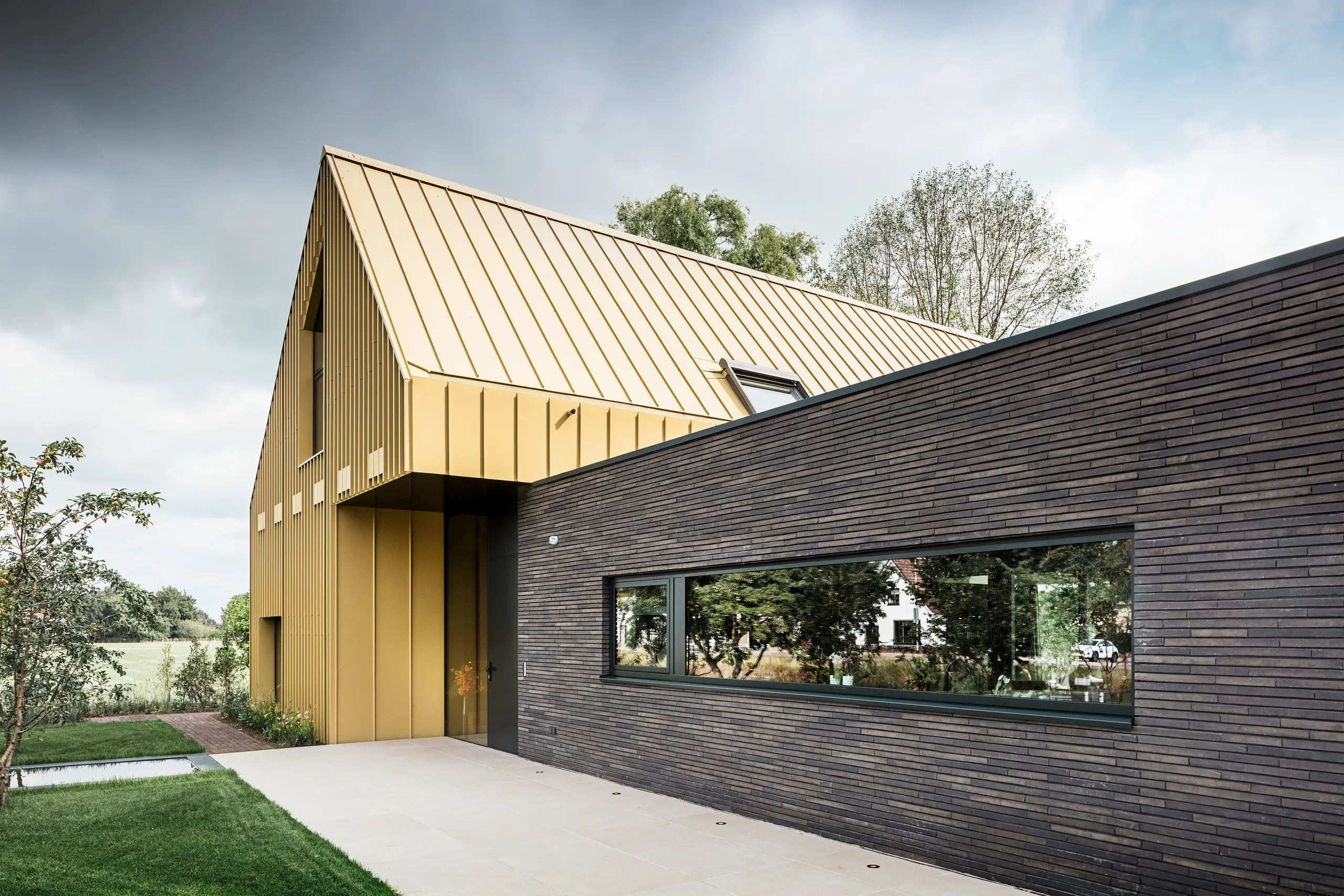

SAVANNAH BEIGE
CARBON BLACK
similar to RAL 9004
GENTIAN BLUE
LIGHT GREY
similar to RAL 7035
RESEDA GREEN
similar to RAL 6011
STAINLESS BRIGHT
MAYA GOLD
AZURE BLUE
similar to RAL 5009
OLIVE GREEN
similar to RAL 6003
MINT GREEN
similar to RAL 6029
QUARTZ GREY
similar to RAL 7039
COFFEE BROWN
similar to RAL 8024
COPPER BROWN
similar to RAL 8004
VICTORIAN BRICK RED
ROSEWOOD PINK
WEATHERED CLEAR VARNISH

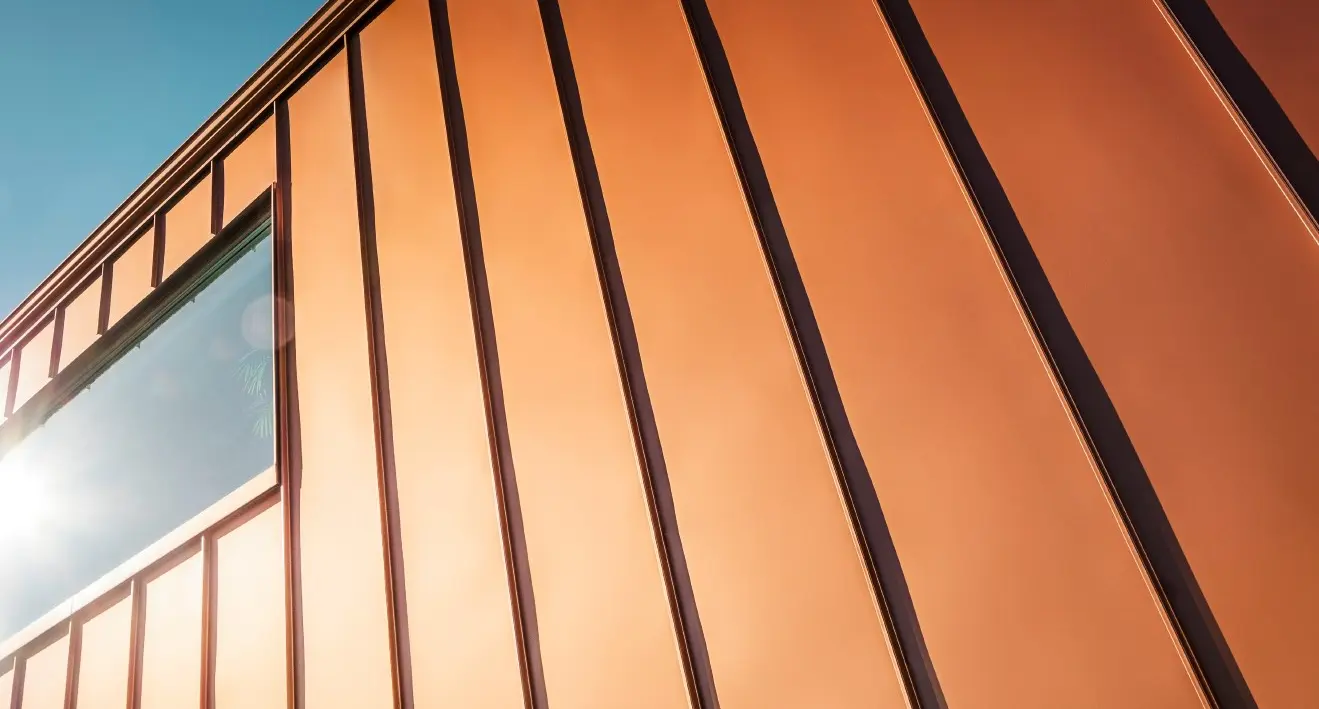

NEW COPPER
STANDARD GREY ALUMINIUM
similar to RAL 9007
TURQUOISE BLUE
similar to RAL 5018
CARMINE RED
similar to RAL 3002
LIGHT BRONZE

FALZONAL® – ACCESSORIES

YOU CAN FIND A LIST OF ACCESSORIES FOR THE PRODUCT HERE

PREFA stainless steel preformed fixed clip

PREFA STAINLESS STEEL PREFORMED FIXED CLIP

PREFA stainless steel preformed sliding clip

PREFA STAINLESS STEEL PREFORMED SLIDING CLIP

PREFA stainless steel preformed long sliding clip

PREFA STAINLESS STEEL PREFORMED LONG SLIDING CLIP

tray length 12 m – 15 m

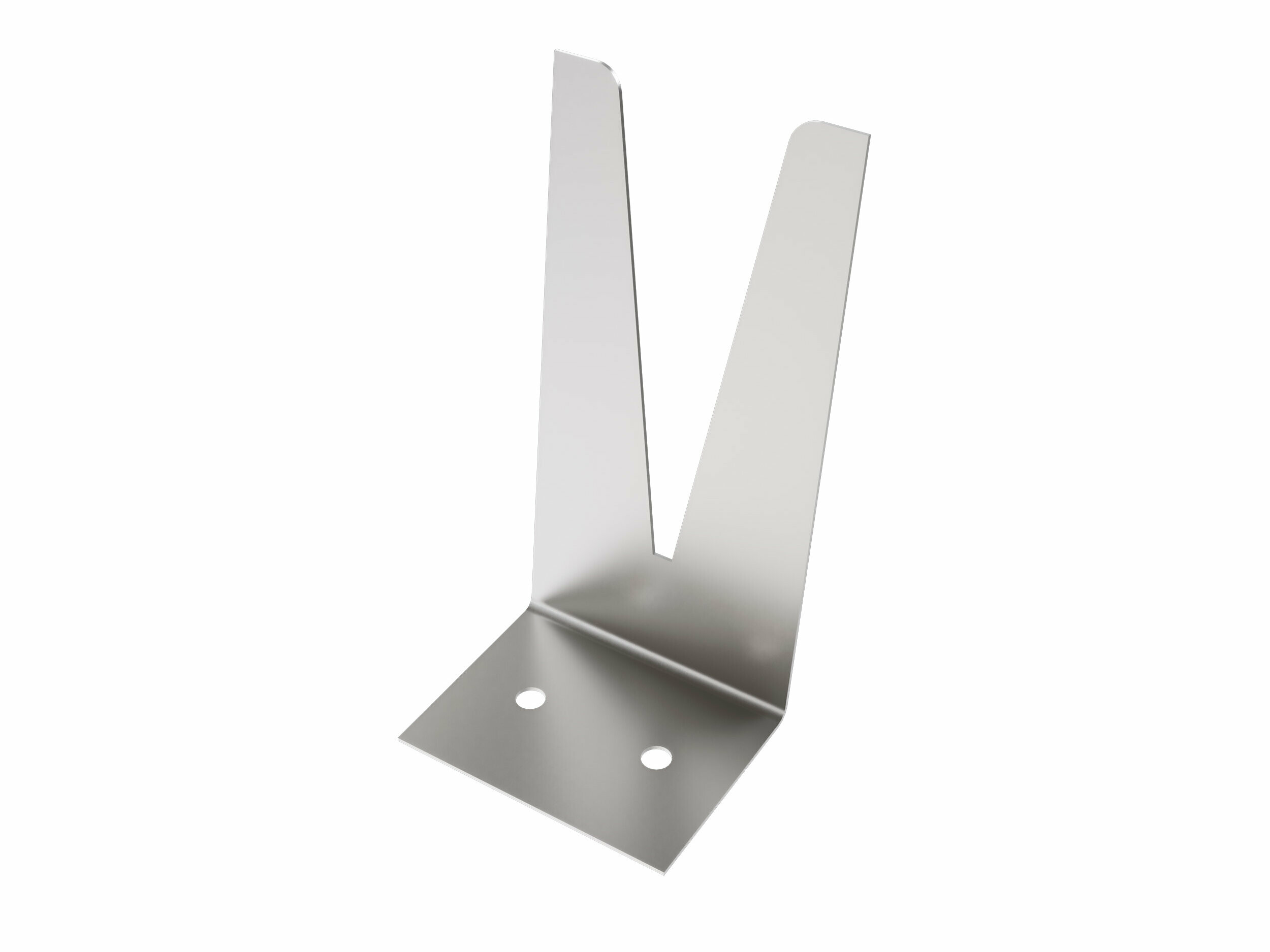

PREFA stainless steel fish tailed fixed clip

PREFA STAINLESS STEEL FISH TAILED FIXED CLIP

PREFA stainless steel fish tailed sliding clip

PREFA STAINLESS STEEL FISH TAILED SLIDING CLIP

PREFA sealing gel

PREFA SEALING GEL

PREFA one-pipe seam clamp

PREFA ONE-PIPE SEAM CLAMP

for pipe openings with a diameter of 28 mm

PREFA seam clamp with oblong hole for diagonal seams

PREFA SEAM CLAMP WITH OBLONG HOLE FOR DIAGONAL SEAMS

for pipe openings with a diameter of 28 mm

PREFA two-pipe seam clamp

PREFA TWO-PIPE SEAM CLAMP

for pipe openings with a diameter of 28 mm

PREFA pipes

PREFA PIPES

28 × 2 × 3,000 mm, for seam clamps, including connection sleeve

PREFA corner connector 90°

PREFA CORNER CONNECTOR 90°

for PREFA pipe 28 × 2 mm

PREFA ice stopper

PREFA ICE STOPPER

for PREFA pipe 28 × 2 mm

PREFA walkway

PREFA WALKWAY

250 × 1,200 mm, 250 × 800 mm, 250 × 600 mm, according to DIN EN 516-1-A

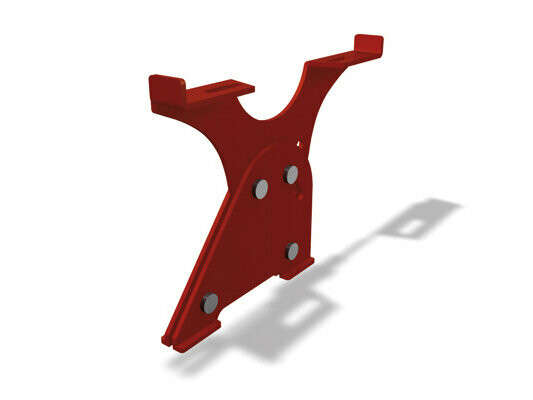

PREFA walkway supports for standing seam roofs

PREFA WALKWAY SUPPORTS FOR STANDING SEAM ROOFS

roof pitch: 5°–55°

PREFA connector for walkways

PREFA CONNECTOR FOR WALKWAYS

PREFA roof anchor hook according to EN 517 B SDH-Industry 31

PREFA ROOF ANCHOR HOOK ACCORDING TO EN 517 B SDH-INDUSTRY 31

tested for securing 2 persons

PREFA roof hatch cover and wooden frame

PREFA ROOF HATCH COVER AND WOODEN FRAME

from roof pitches of 12°

PREFA adhesive flashing strip for standing seam roofs

PREFA ADHESIVE FLASHING STRIP FOR STANDING SEAM ROOFS

roof pitch: 3°–52°

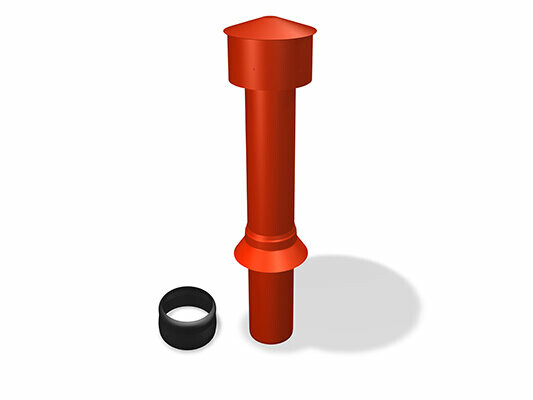

PREFA vent pipe

PREFA VENT PIPE

⌀ 100 mm, ⌀ 120 mm

PREFA frog-mouth vent cover

PREFA FROG-MOUTH VENT COVER

air intake section: approx. 30 cm²

PREFA special adhesive kit

PREFA SPECIAL ADHESIVE KIT

Content: 1 × 290 ml cartridge of PREFA special adhesive, 1 × 60 ml can of adhesive cleaner, 1 piece of sandpaper, 1 cloth and 2 adapter nozzles

PREFA bird screen

PREFA BIRD SCREEN

125 × 2,000 × 0.7 mm; round perforations (⌀ 5 mm)

PREFA ventilation screen

PREFA VENTILATION SCREEN

square perforations (6 mm); colours brown/anthracite and light grey/light grey; dimensions: 1.00 × 250 mm and 1.00 × 333 mm

FALZONAL® – PLANNING AND INSTALLATION

MORE PRODUCT INFORMATION IS AVAILABLE FOR DOWNLOADING HERE

Note: download DWG and DXF format files by right-clicking and selecting “Save link as”.
