ROOF SYSTEMS ROOF TILE

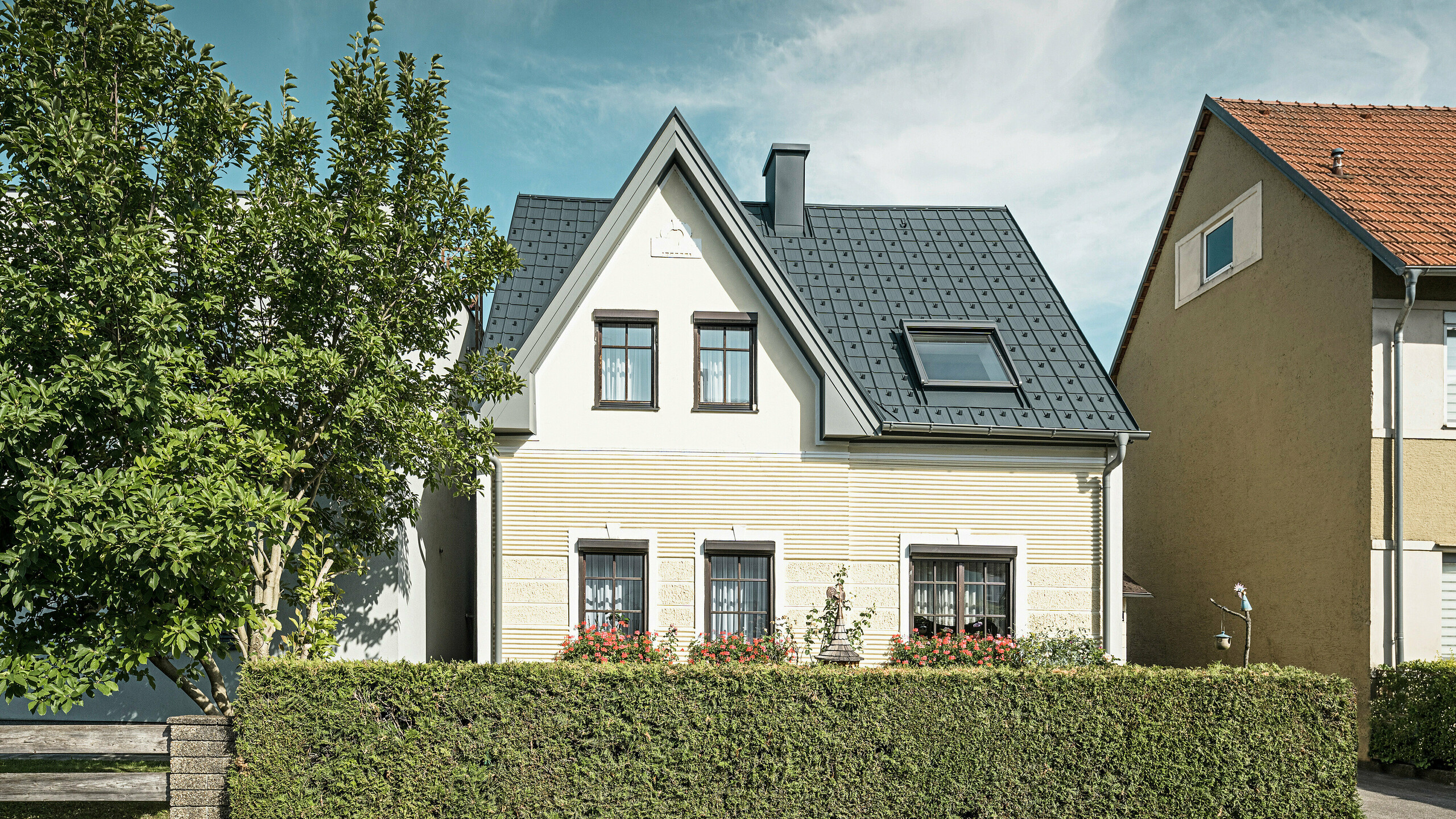

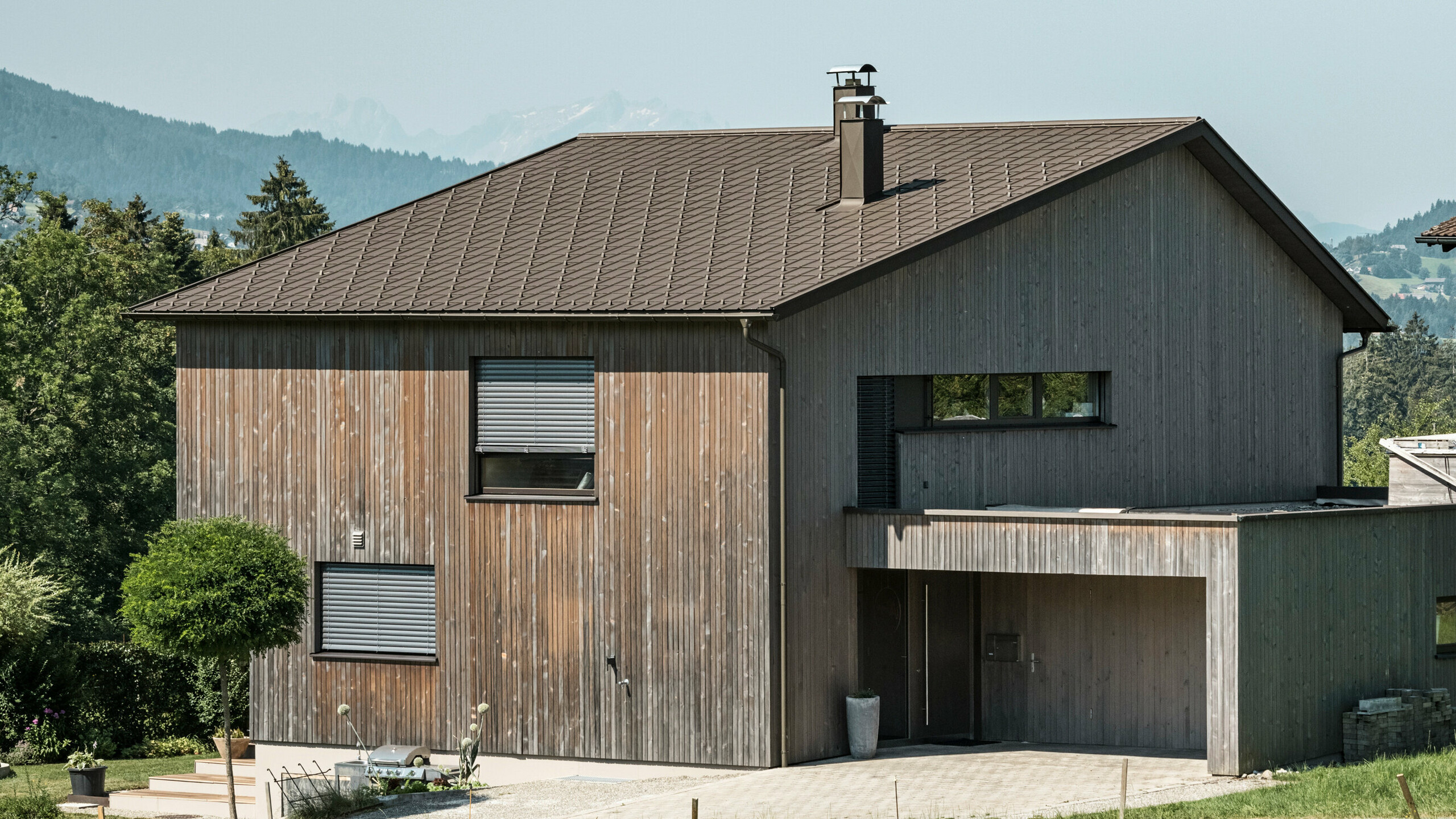

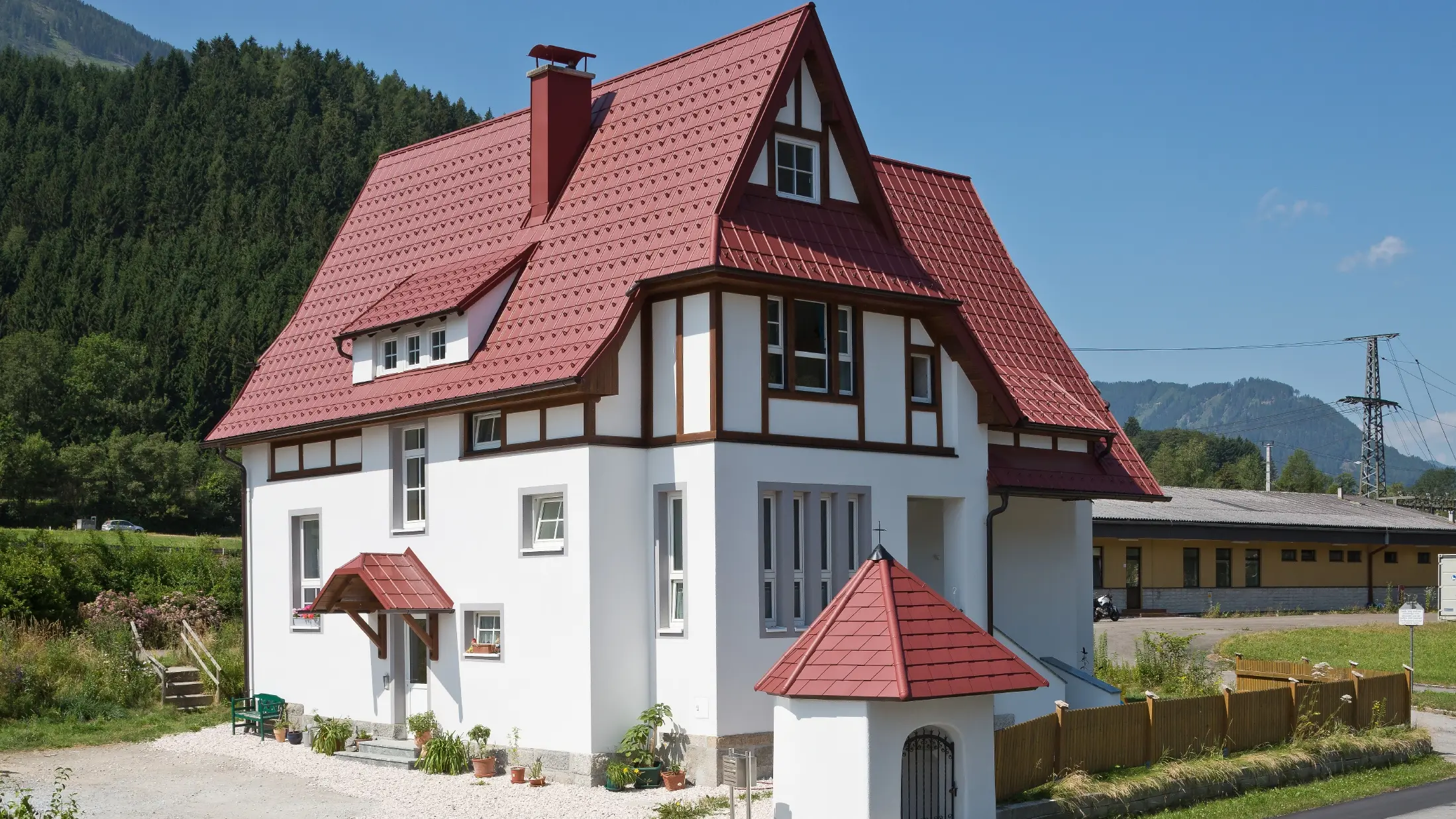

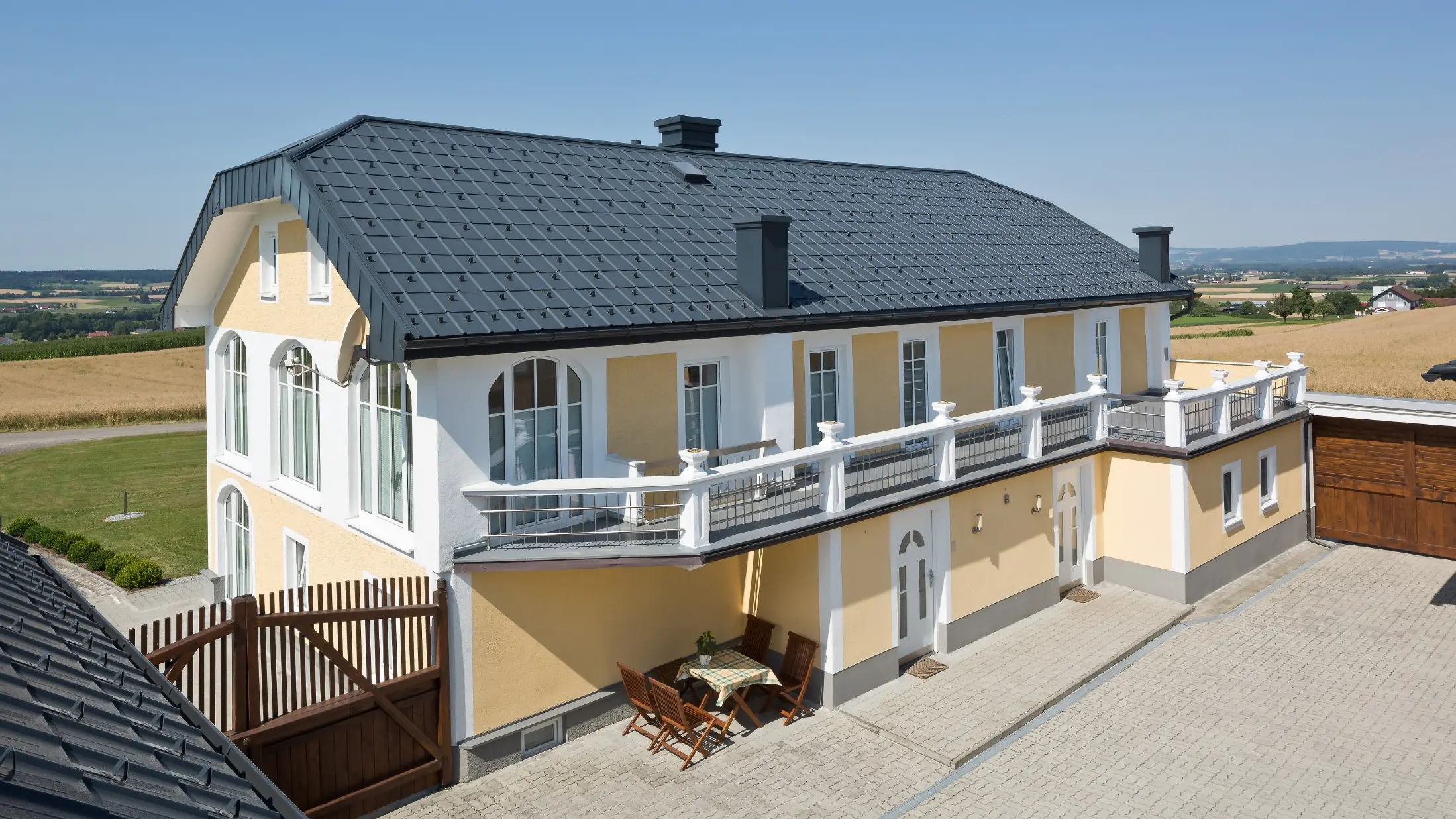

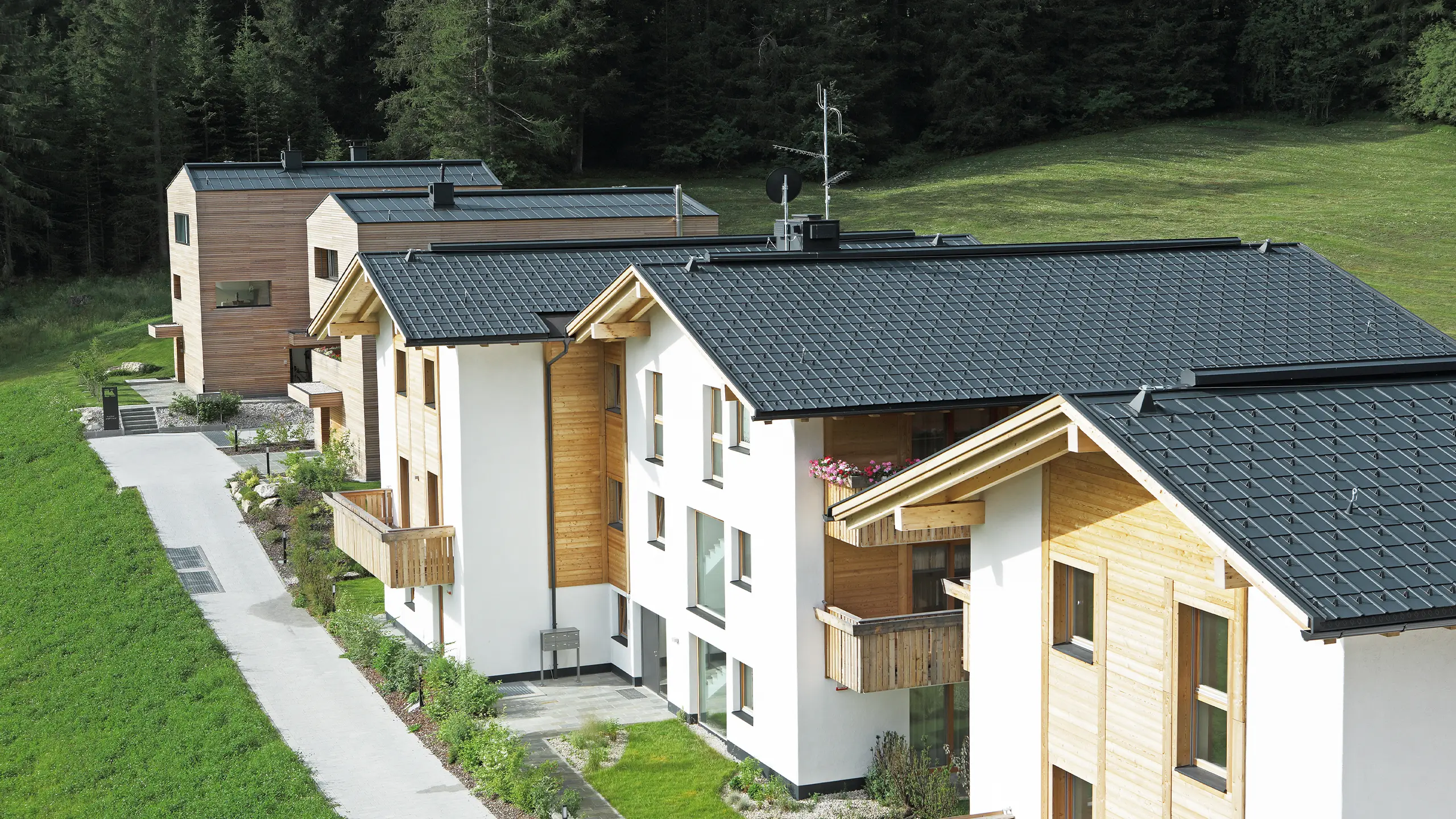

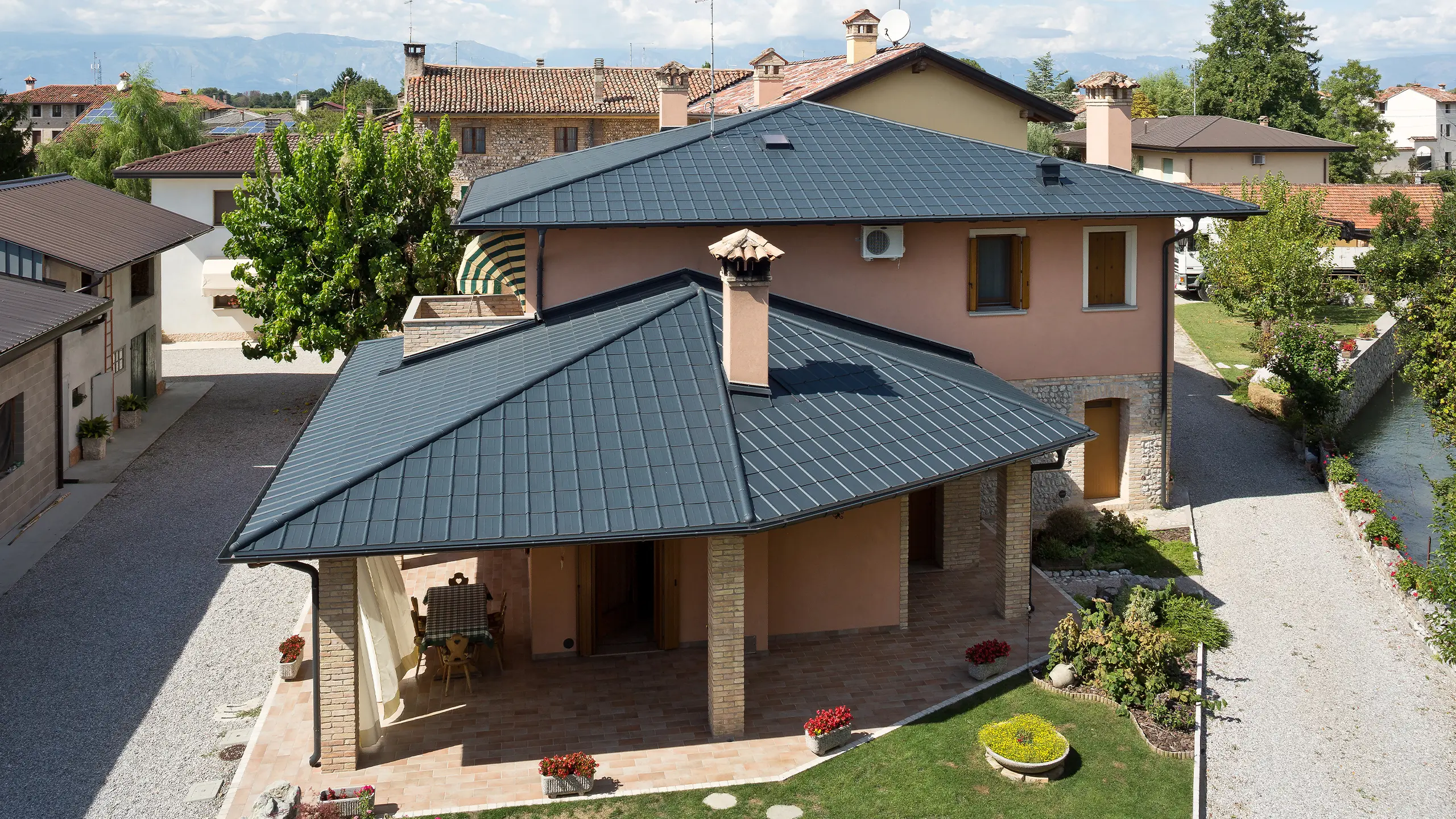

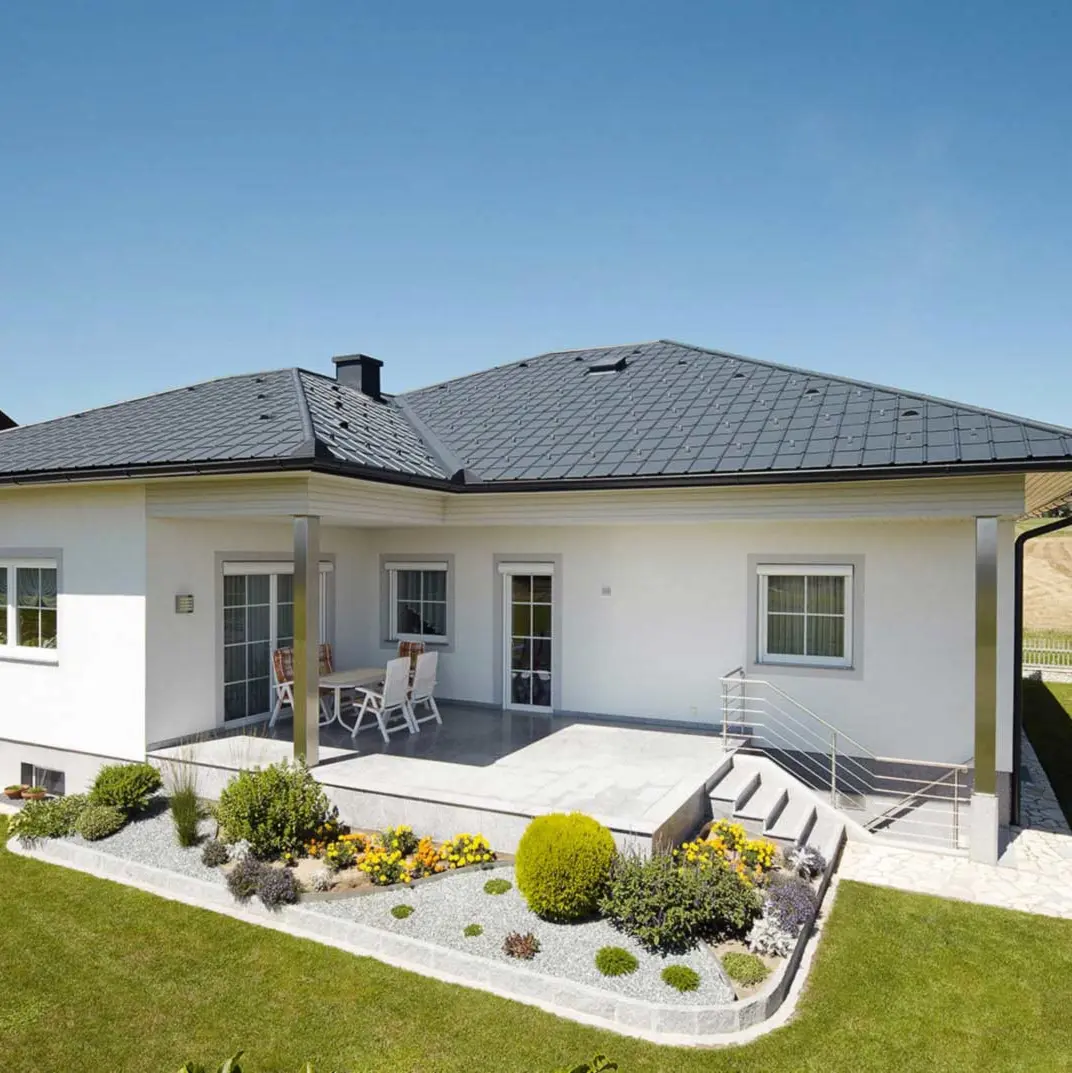

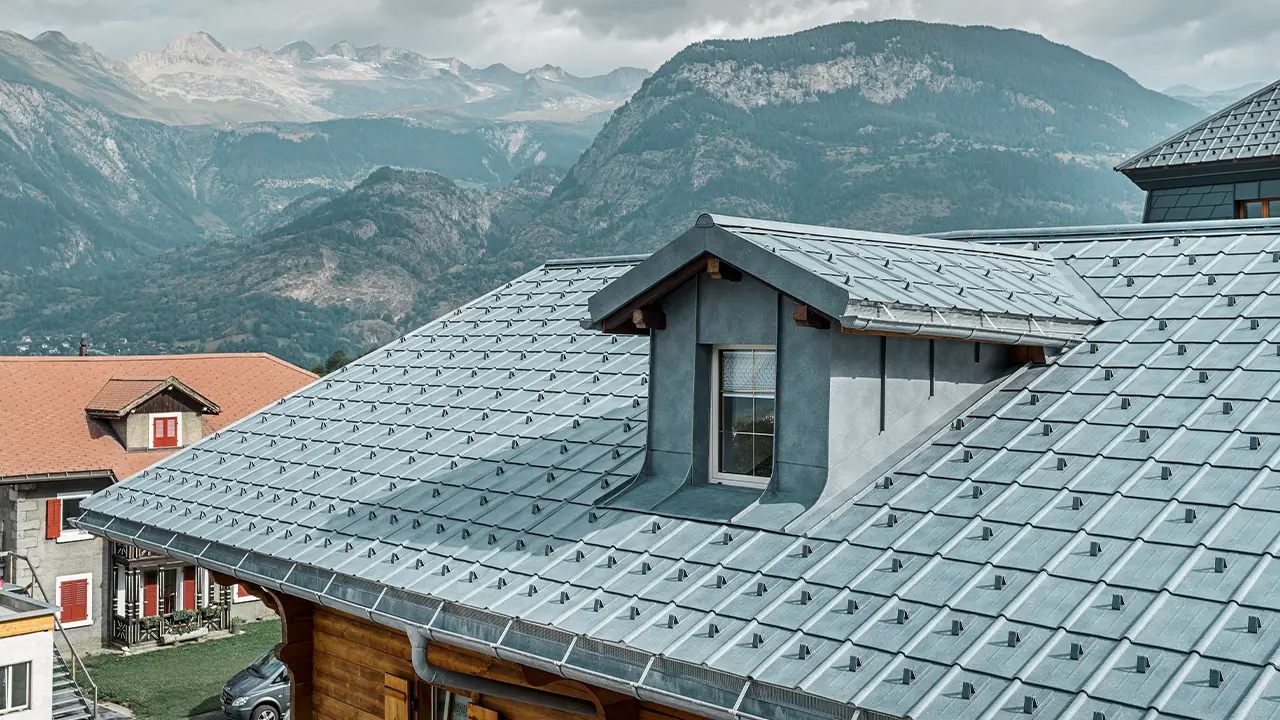

PREFA Dachplatte in braun auf der Alm als Referenzobjekt Hier sieht man eine PREFA Dachplatte in der Farbe anthrazit auf einem Einfamilienhaus Reference buildings PREFA Roof systems Roof tile 03 P.10 black Reference buildings PREFA Roof systems Roof tile 04 P.10 brick red Reference buildings PREFA Roof systems Roof tile 05 P.10 oxide red Reference buildings PREFA Roof systems Roof tile 06 P.10 moss green Reference buildings PREFA Roof systems Roof tile 07 P.10 light grey Reference buildings PREFA Roof systems Roof tile 11 P.10 nut brown Partie d'un toit avec lucarne; Le toit était revêtu du panneau de toiture PREFA gris pierre, tandis que la lucarne servait de revêtement mural Prefalz gris pierre.
Product catalogue PREFA Roof systems Roof tile 01 P.10 brown P.10 Product catalogue PREFA Roof systems Roof tile 02 P.10 anthracite P.10 Product catalogue PREFA Roof systems Roof tile 03 P.10 black P.10 Product catalogue PREFA Roof systems Roof tile 04 P.10 brick red P.10 Product catalogue PREFA Roof systems Roof tile 05 P.10 oxide red P.10 Product catalogue PREFA Roof systems Roof tile 06 P.10 moss green P.10 Product catalogue PREFA Roof systems Roof tile 07 P.10 light grey P.10 Product catalogue PREFA Roof systems Roof tile 11 P.10 nut brown P.10 Product catalogue PREFA Roof systems Roof tile 43 P.10 stone grey P.10
AVAILABLE COLOURS

ROOF TILE – INFORMATION

Weighing just 2.3 kg/m², PREFA roof tiles are one of the most resistant roof materials that exist. Even intact older roof structures can be renovated easily and affordably with small-format aluminium tiles. Four roof tiles are sufficient to cover an entire square metre of roof surface.

ROOF TILE – TECHNICAL INFORMATION

  • Available in 9 standard colours (stucco surface)
  • Also available with a smooth finish upon request
MATERIAL:
aluminium 0.7 mm thick
VISIBLE SIDE:
Coil coating
REAR:
protective paint
SIZE:
600 × 420 mm (cover)
WEIGHT:
1 m² = approx. 2.3 kg = 4 tiles
ROOF PITCH:
from 12° (rafter length: up to 7 m)
from 14° (rafter length: up to 7-12 m)
from 16° (rafter length: over 12 m)
INSTALLATION:
on solid sheathing (at least 24 mm); or with snow loads greater than 3.25 kN/m² (reference height for Switzerland: 925 m); or in terrain categories 0, I or II, solid sheathing with a bitumen layer is required
FASTENING:
2 PREFA patent clips per roof tile = 8 clips per m²

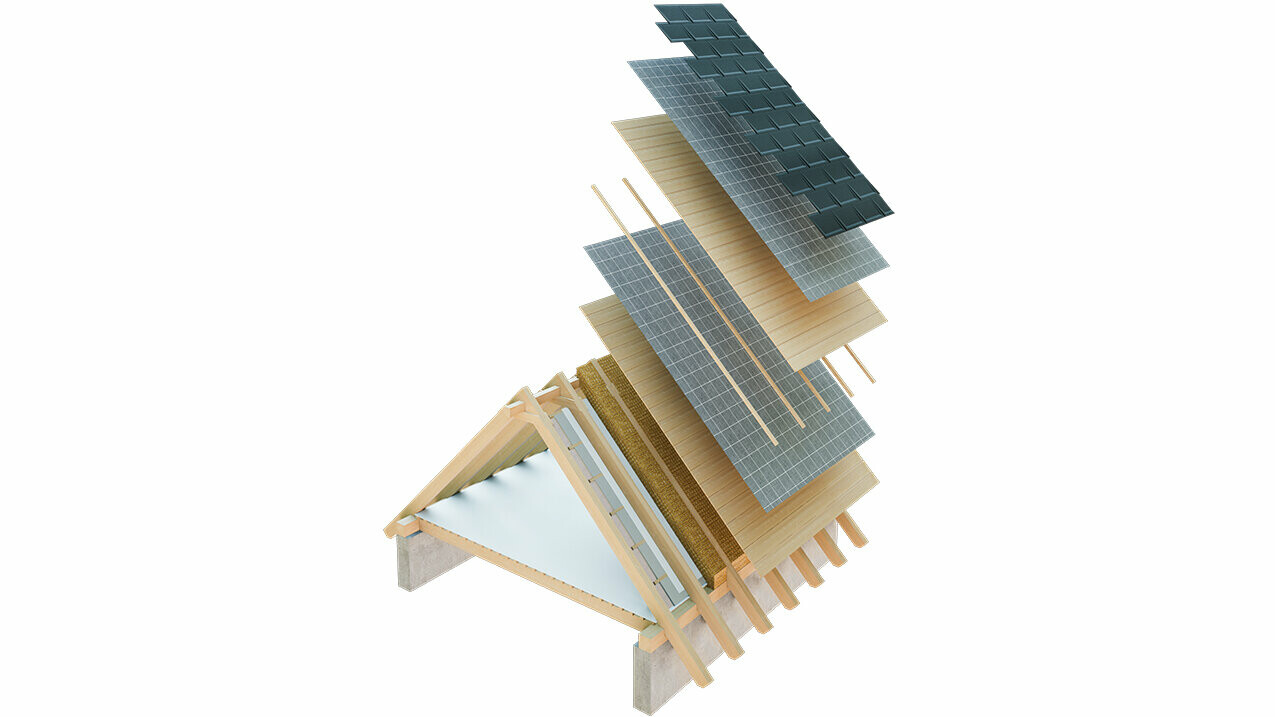

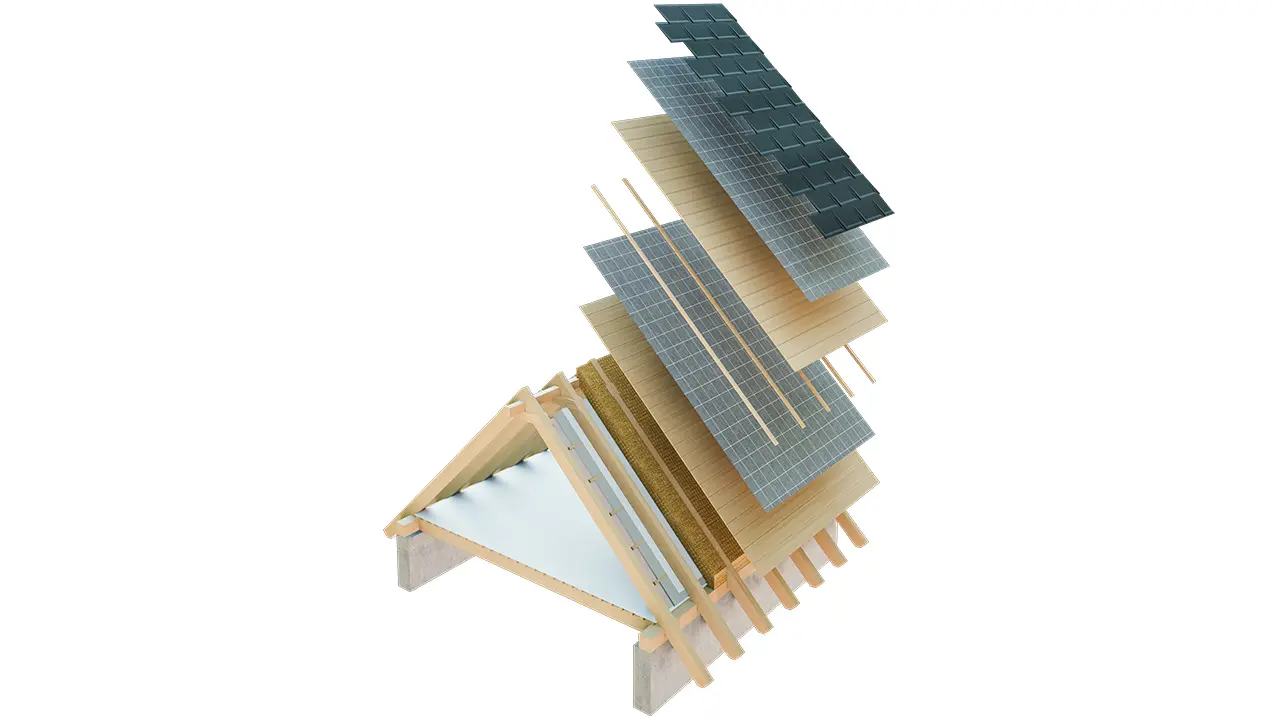

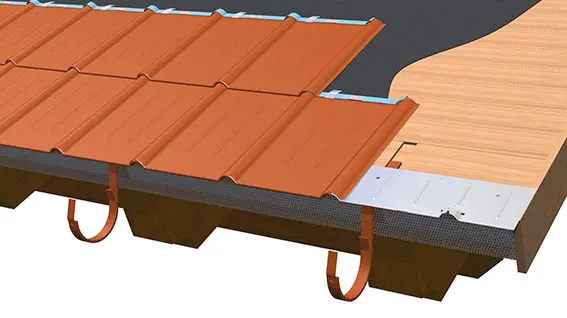

ROOF STRUCTURE

The attic can also be used as living space

The attic can also be used as living space

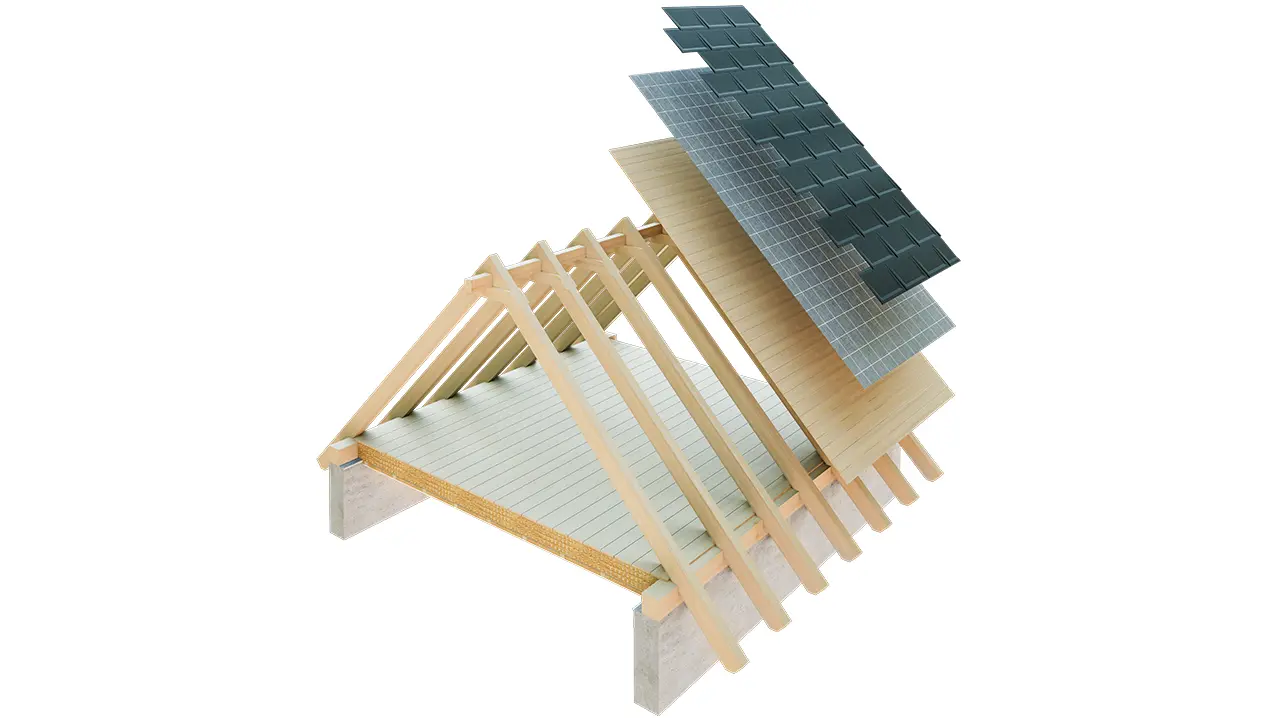

The attic is not used as living space

Roof tile

ROOF TILE – COLOUR CHART

THE PRODUCT IS AVAILABLE IN THE FOLLOWING COLOURS

COLOUR ~ RAL ~ NCS
01 P.10 brown 7013 S 8005-Y20R
02 P.10 anthracite 7016 S 8502-B
03 P.10 black 9005 S 9000-N
04 P.10 brick red 8004 S 4550-Y60R
05 P.10 oxide red 3009 S 0530-Y90R
06 P.10 moss green 6005 S 7020-G
07 P.10 light grey 7005 S 6000-N
11 P.10 nut brown 8019 S 8005-Y80R
43 P.10 stonegrey¹ 7031 S 6005-R80B
COLOUR
01 P.10 brown
~ RAL
7013
~ NCS
S 8005-Y20R
COLOUR
02 P.10 anthracite
~ RAL
7016
~ NCS
S 8502-B
COLOUR
03 P.10 black
~ RAL
9005
~ NCS
S 9000-N
COLOUR
04 P.10 brick red
~ RAL
8004
~ NCS
S 4550-Y60R
COLOUR
05 P.10 oxide red
~ RAL
3009
~ NCS
S 0530-Y90R
COLOUR
06 P.10 moss green
~ RAL
6005
~ NCS
S 7020-G
COLOUR
07 P.10 light grey
~ RAL
7005
~ NCS
S 6000-N
COLOUR
11 P.10 nut brown
~ RAL
8019
~ NCS
S 8005-Y80R
COLOUR
43 P.10 stonegrey¹
~ RAL
7031
~ NCS
S 6005-R80B

¹ The colours P.10 stone grey, P.10 sand brown, P.10 rust brown, P.10 patina green, light wood, dark wood, patina grey and natural blank reflect natural colouring and are therefore subject to minimal variation, which gives the products their unmistakable character.

Notes

  • The RAL and NCS values stated are merely approximate values (~), some of which may differ vastly from the original PREFA colour and, under certain circumstances, may not reflect the subjective perception of the colour.
  • Above all for colour quality P.10, it is almost impossible to define values due to the surface structure. Furthermore, the colours P.10 stone grey, P.10 sand brown, P.10 rust brown, P.10 patina green, light wood, dark wood, and patina grey reflect natural colourings that are composed of several colour tones.
  • To identify exact colours for complementary components please consult original samples.
COLOUR DETAILS

ROOF TILE – ACCESSORIES

YOU CAN FIND A LIST OF ACCESSORIES FOR THE PRODUCT HERE

PREFA edge cleat strip for roof tile

PREFA EDGE CLEAT STRIP FOR ROOF TILE

1,806 × 150 × 1.20 mm, pre-drilled

PREFA edge cleat strip for roof tile, grooved

PREFA EDGE CLEAT STRIP FOR ROOF TILE, GROOVED

600 × 150 mm, for step work (roof tile coverings)

PREFA patent clip for roof tile and shingle

PREFA PATENT CLIP FOR ROOF TILE AND SHINGLE

made of uncoated aluminium alloy

PREFA bird screen

PREFA BIRD SCREEN

125 × 2,000 × 0.7 mm; round perforations (⌀ 5 mm)

PREFA ventilation screen

PREFA VENTILATION SCREEN

square perforations (6 mm); colours brown/anthracite and light grey/light grey; dimensions: 1.00 × 250 mm and 1.00 × 333 mm

PREFA eaves apron ice strip

PREFA EAVES APRON ICE STRIP

230 × 2,000 × 0.70 mm

PREFA verge flashing

PREFA VERGE FLASHING

95 × 2,000 × 0.70 mm; with cleat strip

PREFA safety valley

PREFA SAFETY VALLEY

3,000 mm; with double lock standing seam (canted)

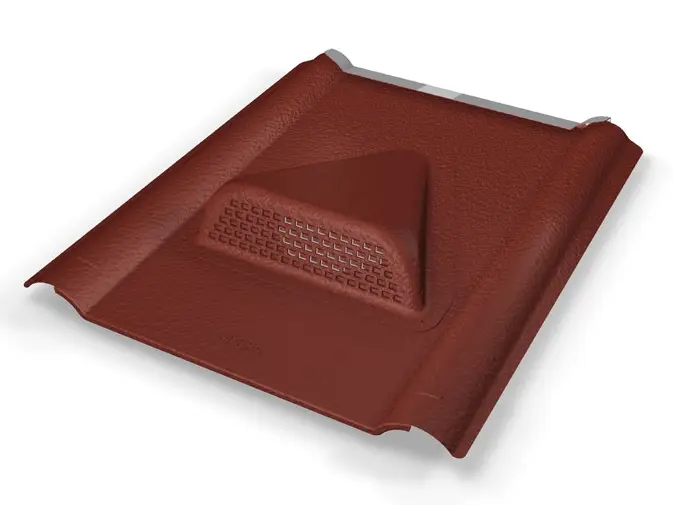

PREFA frog-mouth vent for PREFA roof tiles

PREFA FROG-MOUTH VENT FOR PREFA ROOF TILES

300 × 420 mm; air intake section: approx. 30 cm²

PREFA frog-mouth vent cover

PREFA FROG-MOUTH VENT COVER

for riveting; air intake section: approx. 30 cm²

PREFA hip and ridge cap

PREFA HIP AND RIDGE CAP

500 × 1.00 mm

Edge covering front head

EDGE COVERING FRONT HEAD

PREFA ridge vent

PREFA RIDGE VENT

3,000 × 1.00 mm; 1,200 × 1.00 mm; for cold roofs; suitable for all rafter lengths

PREFA jet fan front head

PREFA JET FAN FRONT HEAD

PREFA roof hatch

PREFA ROOF HATCH

Inside dimensions: 595 × 595 mm; from roof pitches of 12°, complete with wooden frame, opening restrictor with cotter pin and 6 mm twinwall clear sheet

PREFA flashing for Velux roof windows

PREFA FLASHING FOR VELUX ROOF WINDOWS

available in various dimensions

PREFA flashing for Roto roof windows

PREFA FLASHING FOR ROTO ROOF WINDOWS

available in various dimensions

PREFA safety tread

PREFA SAFETY TREAD

composed of safety tread and two mounts with surface sealant, including fixing material, adjustable for roof pitches between 12° and 60° According to DIN EN 516-1-A

PREFA walkway support on one foot

PREFA WALKWAY SUPPORT ON ONE FOOT

250 mm; roof pitch: 5°–55°

PREFA walkway support on two feet

PREFA WALKWAY SUPPORT ON TWO FEET

360 mm
roof pitch: 12°-55°

Walkway

WALKWAY

250 × 420 mm
250 × 600 mm
250 × 800 mm
250 × 1200 mm
360 × 800 mm
360 × 1.200 mm

Walkway connector

WALKWAY CONNECTOR

PREFA roof anchor hook according to EN 517 B (on mounts)

PREFA ROOF ANCHOR HOOK ACCORDING TO EN 517 B (ON MOUNTS)

PREFA roof anchor hook according to EN 517 B

PREFA ROOF ANCHOR HOOK ACCORDING TO EN 517 B

PREFA flashing plate for roof tile

PREFA FLASHING PLATE FOR ROOF TILE

roof pitch: 12°–52°; ⌀ 80–120 mm

PREFA flashing plate (for seaming)

PREFA FLASHING PLATE (FOR SEAMING)

roof pitch: 12°–52°; Ø 80–125 mm

PREFA universal flashing

PREFA UNIVERSAL FLASHING

for pipes with a diameter of 40–120 mm; roof pitch: 12°–52°

PREFA ventilation cap

PREFA VENTILATION CAP

roof pitch from 12°; ⌀ 100 mm

PREFA vent pipe

PREFA VENT PIPE

⌀ 100 mm, ⌀ 120 mm, flashing plates

PREFA flexible pipe collar 100

PREFA FLEXIBLE PIPE COLLAR 100

⌀ 100-130 mm, permanently flexible EPDM pipe collar for roof openings

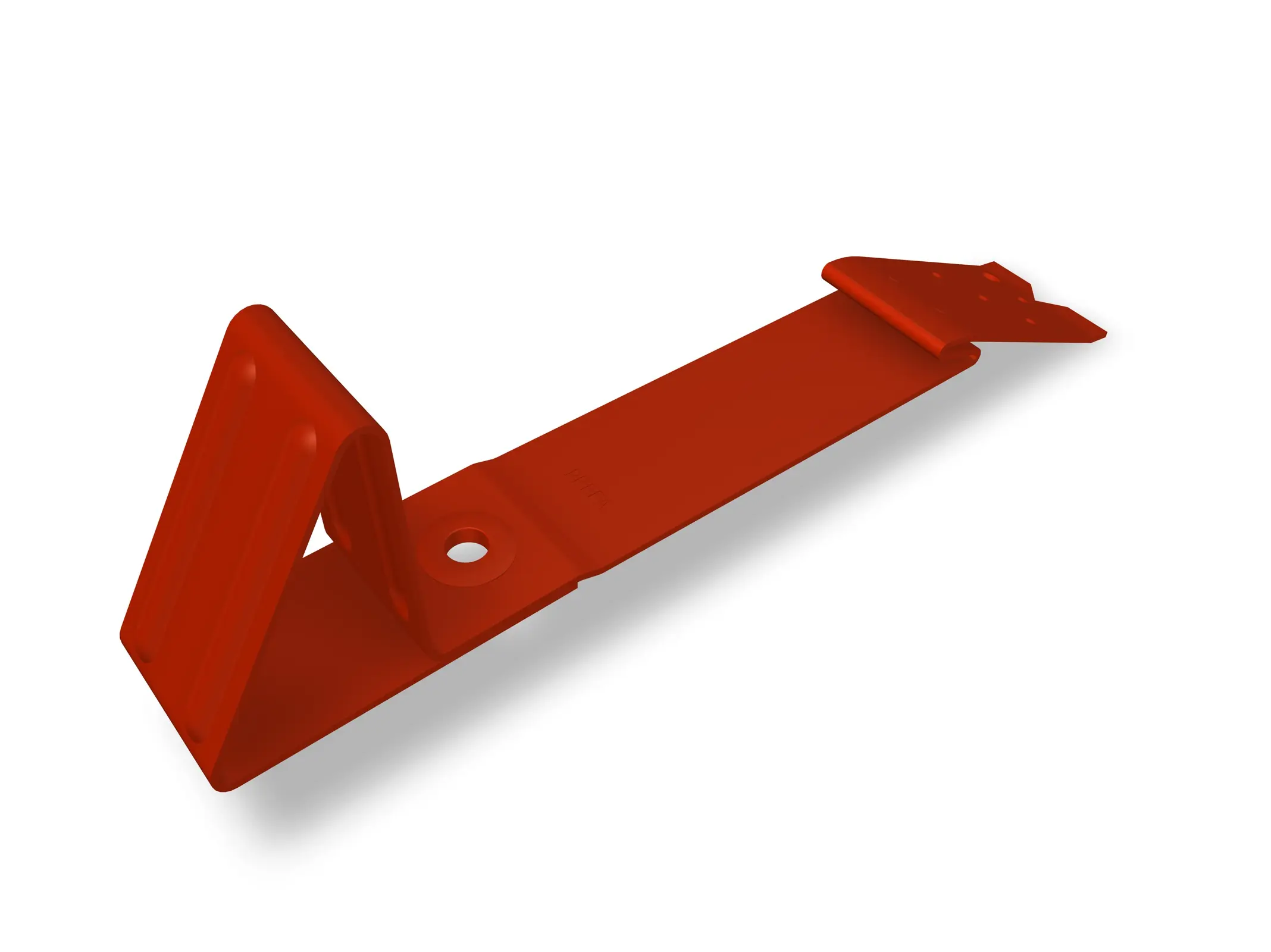

PREFA snow guard for roof tile and rhomboid roof tile 29 × 29

PREFA SNOW GUARD FOR ROOF TILE AND RHOMBOID ROOF TILE 29 × 29

PREFA base plate

PREFA BASE PLATE

PREFA pipe-style snow guard bracket

PREFA PIPE-STYLE SNOW GUARD BRACKET

Opening height: 135 mm; bracket height: 165 mm

PREFA pipe

PREFA PIPE

for pipe-style snow guard brackets; 15 × 3,000 mm

End piece for pipe style snow guard

END PIECE FOR PIPE STYLE SNOW GUARD

PREFA pipe-style snow guard system

PREFA PIPE-STYLE SNOW GUARD SYSTEM

with 3 pipe openings

PREFA removable pipe for pipe-style snow guard system

PREFA REMOVABLE PIPE FOR PIPE-STYLE SNOW GUARD SYSTEM

3,000 mm 25/25

PREFA ice-retention bracket

PREFA ICE-RETENTION BRACKET

removable pipe including fixing material for pipe-style snow guard system

PREFA end piece for pipe-style snow guard system

PREFA END PIECE FOR PIPE-STYLE SNOW GUARD SYSTEM

PREFA aluminium mountain snow guard bracket

PREFA ALUMINIUM MOUNTAIN SNOW GUARD BRACKET

300 × 246 mm; for logs (⌀ 140 mm)

PREFA chimney cap

PREFA CHIMNEY CAP

700 × 700 mm, 800 × 800 mm, 1000 × 700 mm, 1100 × 800 mm, 1500 × 800 mm

PREFA flat profile

PREFA FLAT PROFILE
